MTA Monitoring Report 07/18/25 - 07/24/25

Archive of all weekly reports
Archive of monthly reports


Radiation

Quiet

Detrended CTI

Although we prefer to quote CTI values of the cleanest data (FT <= -119.7 C, int time > 7000sec), the data that fulfills these conditions are getting rare. We now quote CTI based on temperature corrected data for Focal plane temperature <= -118.5 C).

The unit is now CTI/year not CTI/day.

Average of ACIS-I CCDs (MnKa) slope: 5.214e-02 CTI/year (1.428e-04 CTI/day)
Detrended slope: 4.865e-02 CTI/year (1.333e-04 CTI/day)

ACIS Warm Pixels

We display all bad pixels that have showed up in past, and, if any, previously unknown bad pixels appeared in the last 14 days. We also list hot pixels (defined as 1000 above the average of bias background). Warm columns 509-514 are probably due to boundaries.

New definitions of warm pixels and flickering pixels (May 15, 2014). If a pixel displays the level beyond a threshold for more than 70% of the time in the past two weeks, the pixel is categorized as a "warm" pixel. If a pixel is above the threshold more than 30% of time but less than 70% of the time in the past two weeks, the pixel is categorized as a "flickering" pixel.

 CCD0CCD1CCD2CCD3CCD4CCD5CCD6CCD7CCD8CCD9
Previously Unknown Bad Pixels
Current Warm Pixels (786,117) (802,665) (985,393) (910,239) (99,899) (526,66) (803,225) (178,149) (837,378) (811,637) (21,95)
Flickering Warm Pixels (171,937) (283,278) (427,125) (726,537) (665,25) (104,31) (394,80) (680,391) (931,553) (318,53) (617,159)   (369,376) (357,303) (849,169) (61,77) (1000,214) (884,31) (126,856) (335,412) (220,813) (136,65) (597,187) (182,474) (275,393)
Current Hot Pixels
Flickering Hot Pixels
Warm column candidates           1022 512 510   1022 512
Flickering Warm column candidates

ACIS Focal Plane Temperature

For this period, 6 peaks are observed.

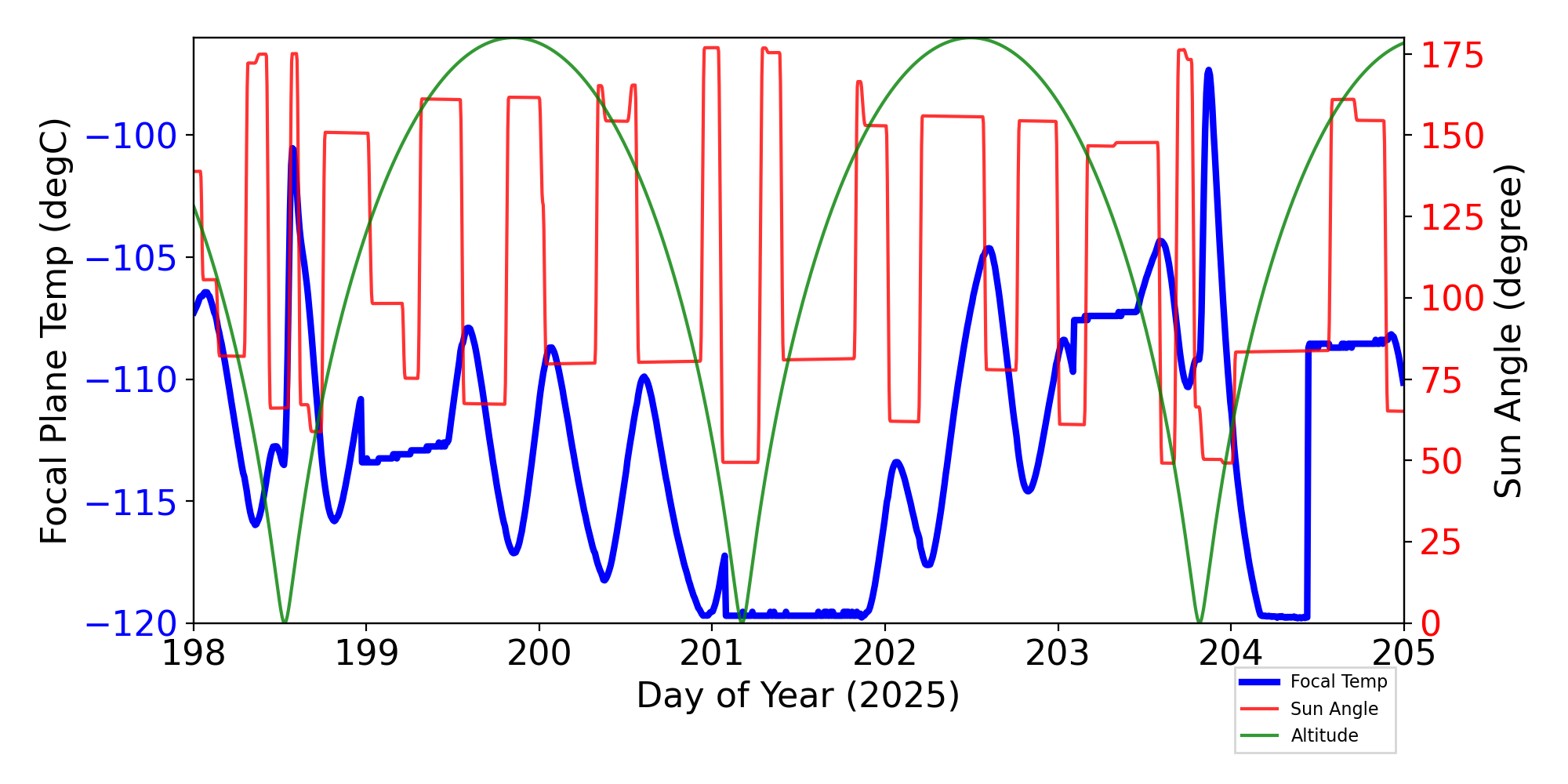

Weekly focal plane temperature with sun angle, earth angle, and altitude overplotted. Sun angle is the solar array angle, that is the angle between the sun and the optical axis (+X axis). The earth angle is the angle between earth and the ACIS radiator (+Z axis). Altitude varies from 34 kkm to 128 kkm.



SIM Movements

16 TSC moves this period

Telemetry

New violations or new extrema are shown in blue cells.

MSID 07/18/25 07/19/25 07/20/25 07/21/25 07/22/25 07/23/25 07/24/25 yellow limits
(lower)
upper
red limits
(lower)
upper
Units Description
AWD4TQI           (-3.31)   (-1.22)
1.22
(-3.3)
3.3
AMPWHEEL 4 TORQUE CURRENT
AWD6TQI   (-3.39)           (-1.22)
1.22
(-3.3)
3.3
AMPWHEEL 6 TORQUE CURRENT
CTXBPWR (0.00) (0.00) (0.00) (0.00) (0.00) (0.00) (0.00) (36.12)
37.0
(36.0)
38.0
DBMTRANSMITTER B OUTPUT POWER
IMHBLV   (79.00) (79.00)         (126.0)
128.0
(125.0)
129.0
(2IMHBLV)Imaging Bot & Top MCP HV Monitor
MZOBACONE 311.52 312.02 311.56 309.69   312.67 311.58 (260.2)
303.0
(250.2)
308.0
CONE-Z SIDE OBA CONE
OBAAVG 303.13 303.32 302.85 301.64   303.66 303.14 (282.5)
300.0
(281.4)
301.0
KOBA/TFTE TEMP
OBADIAGRAD 4.69 4.84 4.83 4.74 4.38 4.78 4.65 (-1.11)
3.5
(-2.78)
3.9
KOBA DIAM GRAD
PZOBACONE           308.32   (260.2)
303.0
(250.2)
308.0
CONE+Z SIDE OBA CONE
TCM_PA1         (260.05)     (269.15)
348.15
(260.15)
413.15
KRF POWER AMP-1 EXT BPL TEMP
TCM_TX1       (268.43) (268.06)     (283.15)
348.15
(269.15)
404.15
KTRANSPONDER-1 EXT BPL TEMP
TFTERANGE   46.76 46.46   46.69 46.97   (16.7)
37.5
(11.1)
45.0
KTFTE VENT/RAD TEMP
TSCTSF3     (268.43) (268.06)   (268.06) (268.79) (278.15)
359.15
(269.15)
483.15
KSC-TS FITTING -3 TEMP


IRUs

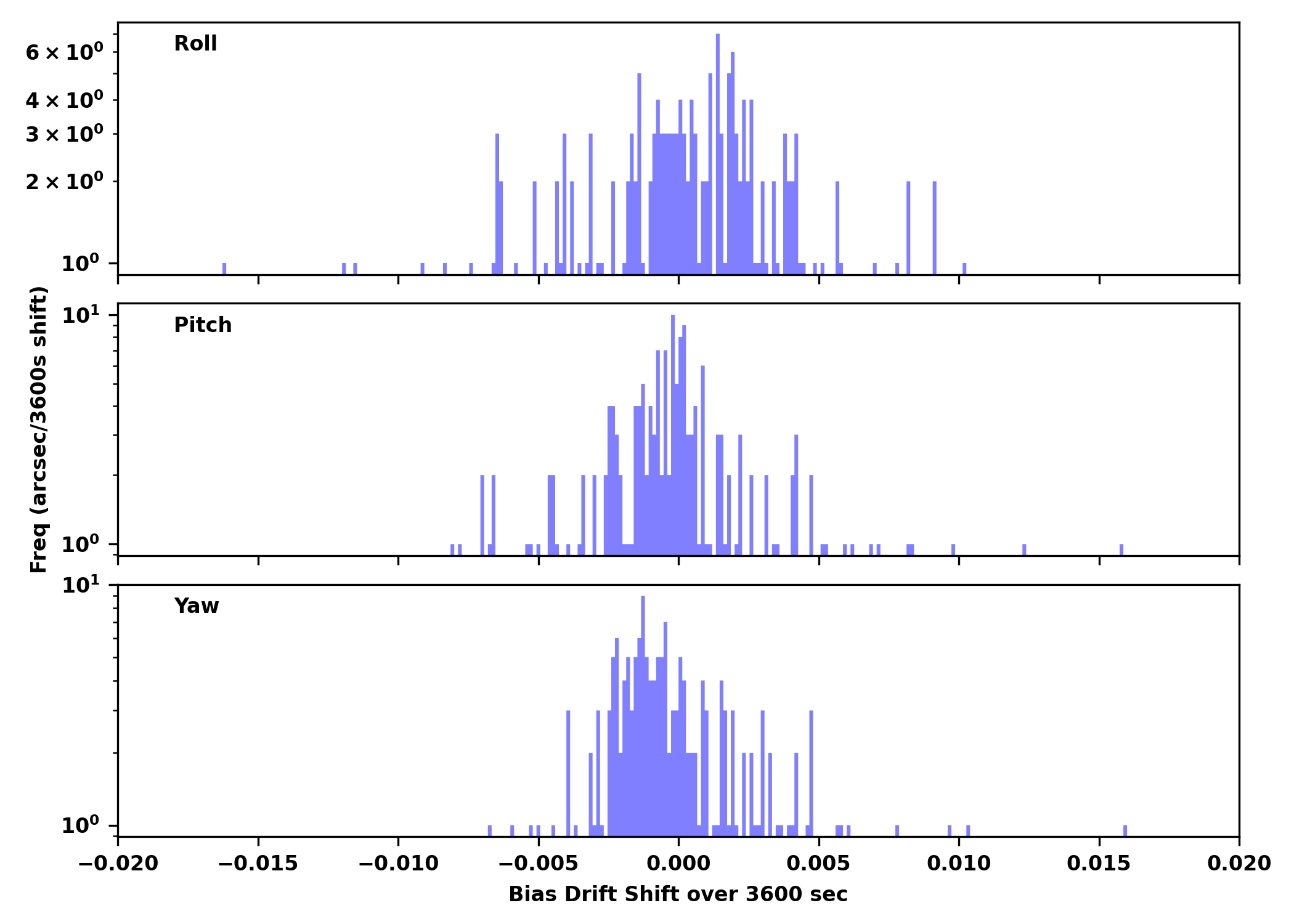

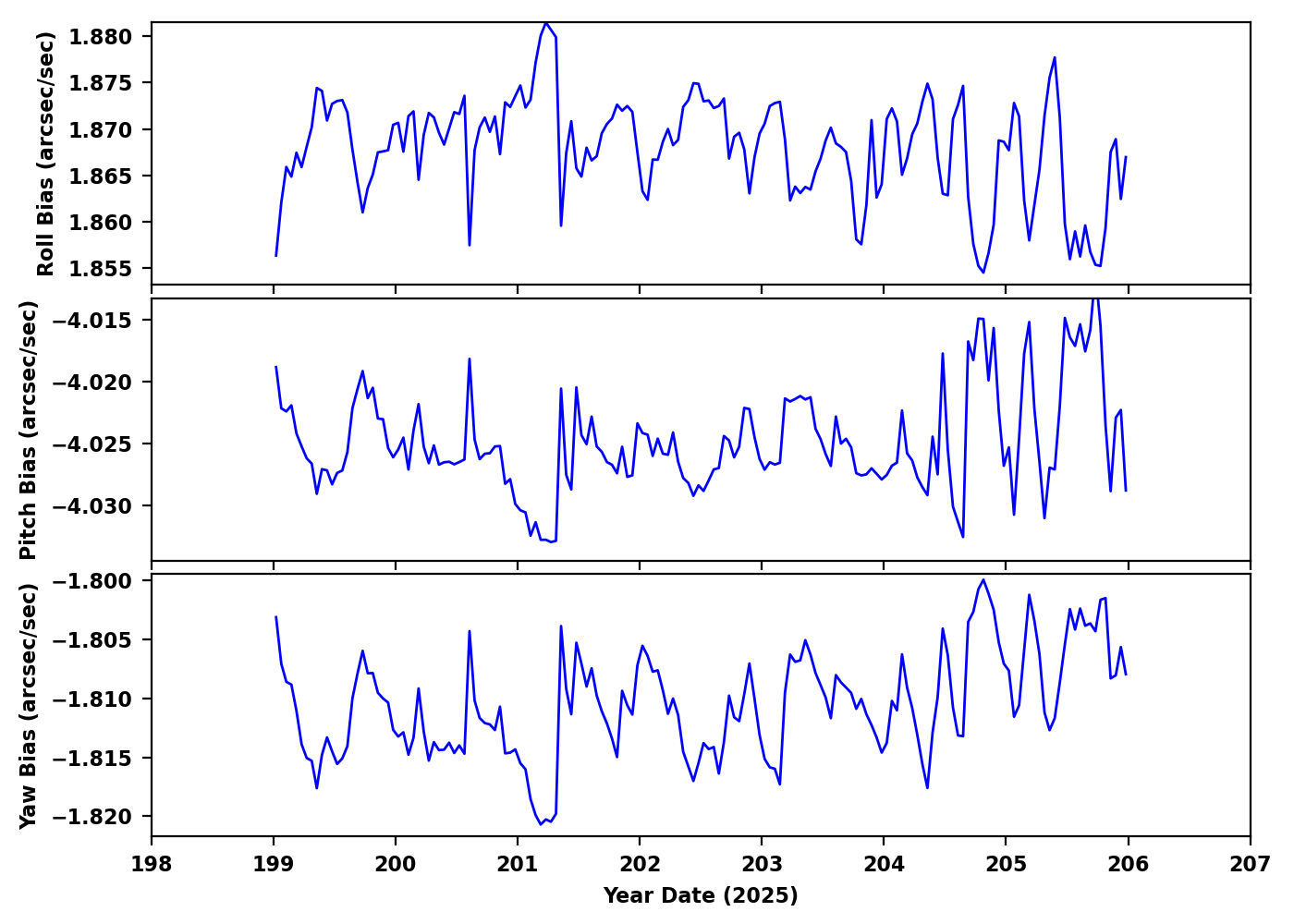

Gyro Bias Drift Gyro Bias Drift Histogram

Recent Observations

OBSID DETECTOR GRATING TARGET ANALYSIS ACA
30006 ACIS-67 NONE MaNGA 12622-12705 OK OK
30544 HRC-I NONE SN 2017eaw OK OK
28727 ACIS-0123 NONE [JDW2009] G359.55+0.16 OK OK
31000 ACIS-5678 HETG GS 1826-238 OK/NA OK
31003 ACIS-0123 NONE EP250702a OK OK
29891 ACIS-67 NONE NGVS J123214.58+120305.3 OK OK
28844 ACIS-0123 NONE Abell 370 OK OK
28002 HRC-I NONE NGC 6537 OK OK
28607 ACIS-0123 NONE Abell 370 OK OK
28627 ACIS-0123 NONE Abell 370 OK OK
31001 HRC-I NONE NGC 6537 OK OK
29653 ACIS-3678 NONE NGC4207 OK OK
30483 HRC-I NONE SN 2012au OK OK
29840 ACIS-0123 NONE PSR J1826-1256 OK OK
28512 ACIS-67 NONE SNR G15.9+0.2 OK OK
30124 ACIS-0123 NONE Snake OK OK
31007 ACIS-3678 NONE NGC4207 OK OK
31012 ACIS-2367 NONE GRB250704B OK OK
29678 HRC-I NONE WASP-69 OK OK
28597 ACIS-0123 NONE Abell 370 OK OK
30104 ACIS-5678 HETG XTE J1855-026 OK/NA OK
29890 ACIS-67 NONE NGVS J124251.12+113716.0 OK OK
31010 ACIS-5678 HETG XTE J1855-026 OK/NA OK
31009 HRC-I NONE WASP-69 OK OK
28651 ACIS-01237 NONE SDSS J0100+2802 OK OK

Trending

This week's focus is Ground Computed Gradients

Last reported on May 08.

Only the most interesting or representative msids are shown below. For a full listing choose the bulletted link.


MSIDMeanRMSDelta/YrDelta/Yr/YrUnitDescription
hcapgrd1 -1.1310.3944.03 +/- 251.65(7.41+/-17.89)e-5KRT100-RT101: HRMA CAP circum
hcapgrd2 -1.1070.3633.94 +/- 232.16(7.84+/-4.61)e-4KRT100-RT104: HRMA CAP ridial
hcapgrd3 0.2230.115-0.88 +/- 73.51-(2.93+/-2.19)e-4KRT101-RT102: HRMA CAP circum
hcapgrd4 0.0240.045-0.09 +/- 28.60(8.45+/-4.26)e-4KRT101-RT104: HRMA CAP ridial
hcapgrd5 0.2430.072-0.68 +/- 46.02(2.21+/-2.44)e-4KRT102-RT103: HRMA CAP circum
hcapgrd6 -0.2770.1080.92 +/- 68.79(8.02+/-5.51)e-4KRT102-RT105: HRMA CAP ridial
hcapgrd7 -0.4670.1751.57 +/- 111.77-(5.84+/-17.13)e-5KRT103-RT101: HRMA CAP circum

MSIDMeanRMSDelta/YrDelta/Yr/YrUnitDescription
hfapgrd1 0.8550.292-3.03 +/- 186.79-(6.75+/-14.93)e-5KRT1-RT2: HRMA Forward Aperture Plate
hfapgrd2 0.1080.047-0.35 +/- 30.000.00 +/- 0.00KRT1-RT4: HRMA Forward Aperture Plate
hfapgrd3 -0.6450.2092.31 +/- 133.40(1.40+/-1.60)e-4KRT2-RT3: HRMA Forward Aperture Plate
hfapgrd4 -0.2100.0770.81 +/- 49.110.00 +/- 0.00KRT2-RT5: HRMA Forward Aperture Plate
hfapgrd5 -0.2100.0900.72 +/- 57.39-(2.80+/-1.29)e-4KRT3-RT1: HRMA Forward Aperture Plate
hfapgrd6 0.3060.095-1.07 +/- 60.880.00 +/- 0.00KRT3-RT6: HRMA Forward Aperture Plate
hfapgrd7 0.5360.173-1.87 +/- 110.55-(1.06+/-2.17)e-4KRT4-RT5: HRMA Forward Aperture Plate
hfapgrd8 -0.1290.0420.43 +/- 26.84(1.43+/-2.61)e-4KRT5-RT6: HRMA Forward Aperture Plate
hfapgrd9 -0.4070.1361.44 +/- 86.86-(1.36+/-10.21)e-5KRT6-RT4: HRMA Forward Aperture Plate

MSIDMeanRMSDelta/YrDelta/Yr/YrUnitDescription
hsstrtgrd1 16.6735.796-63.30 +/- 3706.05-0.03 +/- 0.03KRT75-RT76: Spacecraft Struts
hsstrtgrd2 -1.1684.062-0.98 +/- 2595.890.01 +/- 0.03KRT76-RT77: Spacecraft Struts
hsstrtgrd3 -32.61313.076(1.15+/-83.60)e2-0.01 +/- 0.01KRT77-RT78: Spacecraft Struts
hsstrtgrd4 10.0464.263-29.71 +/- 2725.24-0.02 +/- 0.03KRT78-RT79: Spacecraft Struts
hsstrtgrd5 12.2763.665-39.55 +/- 2343.970.05 +/- 0.03KRT79-RT80: Spacecraft Struts
hsstrtgrd6 -5.2142.28518.38 +/- 1460.79(7.90+/-27.65)e-4KRT80-RT75: Spacecraft Struts
