MTA Monitoring Report 08/15/25 - 08/21/25

Archive of all weekly reports
Archive of monthly reports

Although we prefer to quote CTI values of the cleanest data (FT <= -119.7 C, int time > 7000sec), the data that fulfills these conditions are getting rare. We now quote CTI based on temperature corrected data for Focal plane temperature <= -118.5 C).

The unit is now CTI/year not CTI/day.

Average of ACIS-I CCDs (MnKa) slope:	5.214e-02 CTI/year	(1.428e-04 CTI/day)
Detrended slope:	4.865e-02 CTI/year	(1.333e-04 CTI/day)

ACIS Warm Pixels

We display all bad pixels that have showed up in past, and, if any, previously unknown bad pixels appeared in the last 14 days. We also list hot pixels (defined as 1000 above the average of bias background). Warm columns 509-514 are probably due to boundaries.

New definitions of warm pixels and flickering pixels (May 15, 2014). If a pixel displays the level beyond a threshold for more than 70% of the time in the past two weeks, the pixel is categorized as a "warm" pixel. If a pixel is above the threshold more than 30% of time but less than 70% of the time in the past two weeks, the pixel is categorized as a "flickering" pixel.

	CCD0	CCD1	CCD2	CCD3	CCD5	CCD6	CCD7	CCD8
Previously Unknown Bad Pixels		(42,269)
Current Warm Pixels		(910,239)	(803,225) (178,149) (526,66)			(849,169) (670,387)
Flickering Warm Pixels	(786,117)	(985,393) (90,859) (427,125)	(665,25) (99,899) (726,537) (837,378) (104,31)	(394,80) (318,53) (21,95) (617,159) (680,391) (811,637)	(282,385) (263,317) (728,340) (877,408)	(884,31) (1000,214) (287,164)	(335,412) (74,134) (126,856)
Current Hot Pixels
Flickering Hot Pixels
Warm column candidates					1022 510 512		1022 512	520
Flickering Warm column candidates

ACIS Focal Plane Temperature

For this period, 7 peaks are observed.

Day (DOY)	Temp (C)	Width (Days)
226.55	-110.17	0.68
227.47	-111.82	0.55
227.71	-102.70	0.29
228.13	-110.12	0.50
228.57	-115.67	0.38
229.55	-111.62	0.48
230.34	-99.18	0.90

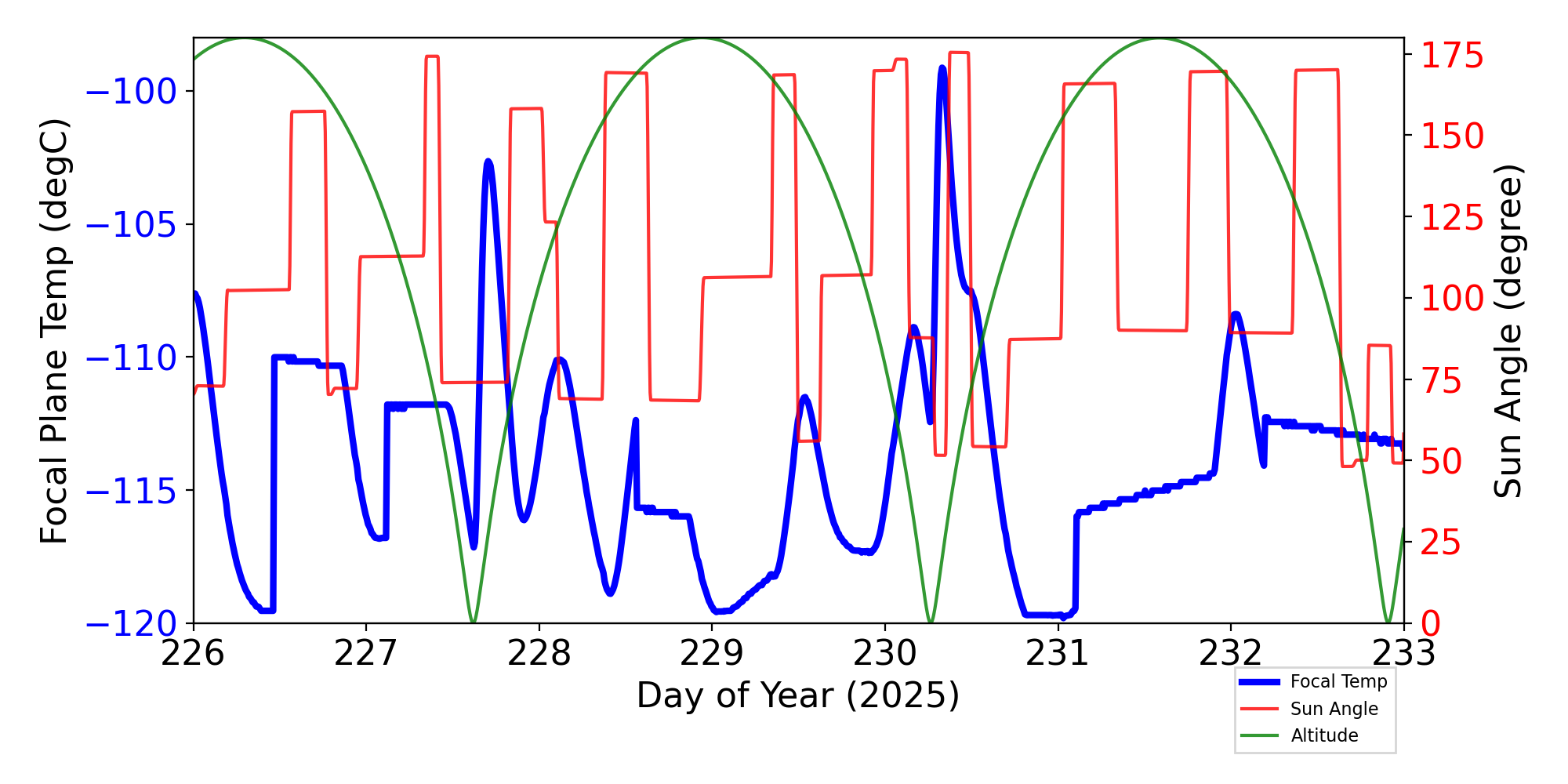

Weekly focal plane temperature with sun angle, earth angle, and altitude overplotted. Sun angle is the solar array angle, that is the angle between the sun and the optical axis (+X axis). The earth angle is the angle between earth and the ACIS radiator (+Z axis). Altitude varies from 34 kkm to 128 kkm.

SIM Movements

10 TSC moves this period

weekly average time/step	0.00137 s
mission average time/step	0.00132 s

Telemetry

New violations or new extrema are shown in blue cells.

MSID	08/15/25	08/16/25	08/17/25	08/18/25	08/19/25	08/20/25	08/21/25	yellow limits (lower) upper	red limits (lower) upper	Units	Description
AWD1TQI	(-3.39)		(-3.35)					(-1.22) 1.22	(-3.3) 3.3	AMP	WHEEL 1 TORQUE CURRENT
AWD6TQI	(-3.43)		(-3.39)					(-1.22) 1.22	(-3.3) 3.3	AMP	WHEEL 6 TORQUE CURRENT
CTXBPWR	(0.00)	(0.00)	(0.00)	(0.00)		(0.00)	(0.00)	(36.12) 37.0	(36.0) 38.0	DBM	TRANSMITTER B OUTPUT POWER
ESAMYI	(0.06)			(0.06)		(0.06)		(5.63) 30.15	(5.3) 33.0	AMP	S/A -Y CURRENT
ESAPYI	(0.14)			(0.14)		(0.14)		(5.54) 30.15	(5.2) 33.0	AMP	S/A +Y CURRENT
MZOBACONE	311.77	310.77	311.75	310.30	310.24	309.43	308.96	(260.2) 303.0	(250.2) 308.0	CONE	-Z SIDE OBA CONE
OBAAVG	303.72	302.42	303.38	301.62	301.76	301.30		(282.5) 300.0	(281.4) 301.0	K	OBA/TFTE TEMP
OBACONEAVG		307.68			306.98	306.38	305.56	(282.5) 300.0	(281.8) 301.0	K	OBA CONE AVG TEMP
OBADIAGRAD	4.40	4.69	4.58	4.78	4.75	4.75	4.82	(-1.11) 3.5	(-2.78) 3.9	K	OBA DIAM GRAD
PZOBACONE	308.08							(260.2) 303.0	(250.2) 308.0	CONE	+Z SIDE OBA CONE
TCM_PA1			(260.05)		(258.96)	(258.56)		(269.15) 348.15	(260.15) 413.15	K	RF POWER AMP-1 EXT BPL TEMP
TCM_PA2					(260.05)	(260.05)		(269.15) 348.15	(260.15) 413.15	K	RF POWER AMP-2 EXT BPL TEMP
TCM_TX1			(268.79)	(268.79)	(267.33)	(267.33)	(268.79)	(283.15) 348.15	(269.15) 404.15	K	TRANSPONDER-1 EXT BPL TEMP
TFTERANGE	48.83	47.14		47.01	48.15	48.11	46.54	(16.7) 37.5	(11.1) 45.0	K	TFTE VENT/RAD TEMP
TSCTSF3	(268.79)	(268.43)		(268.06)	(267.70)		(268.06)	(278.15) 359.15	(269.15) 483.15	K	SC-TS FITTING -3 TEMP

IRUs

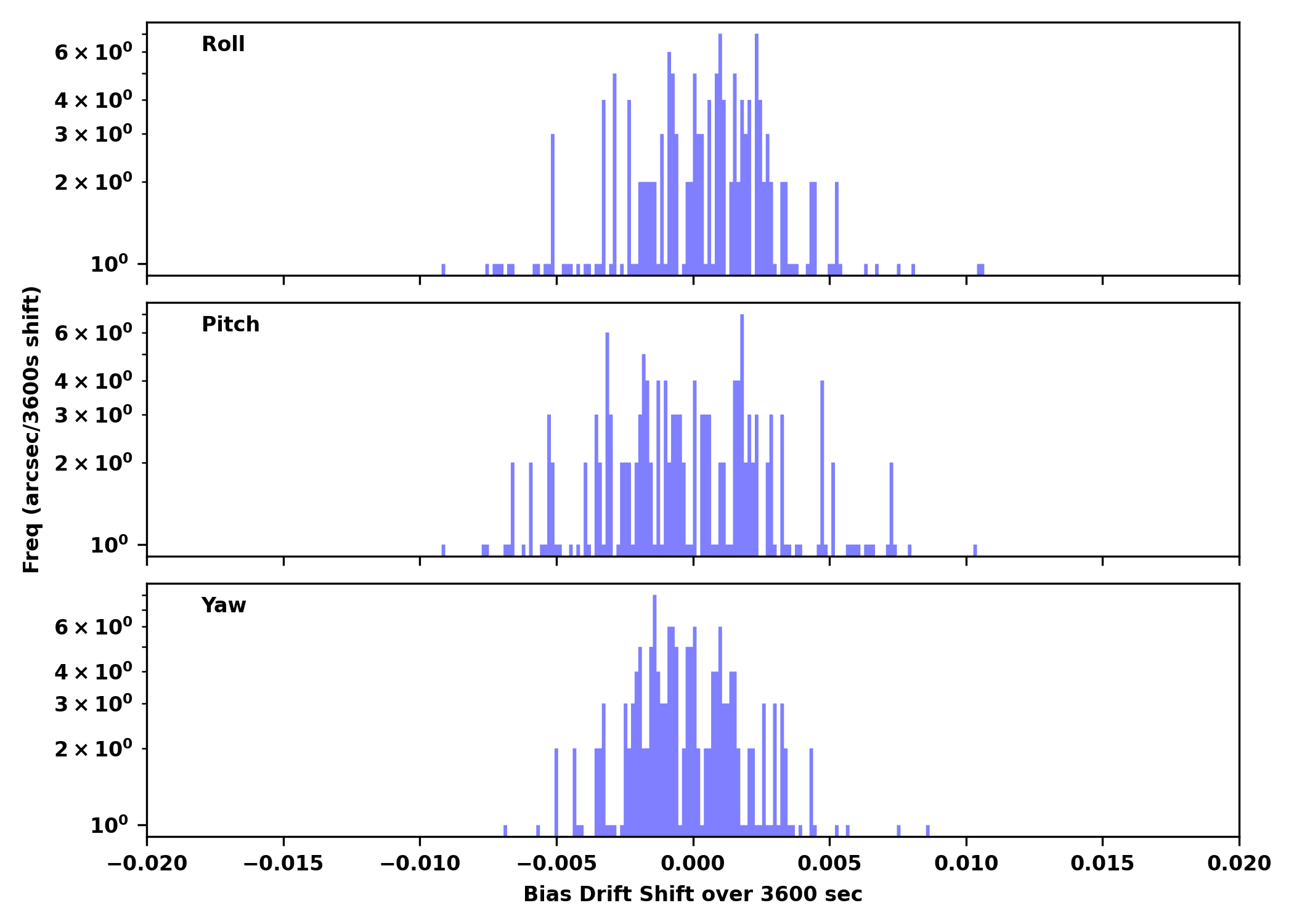

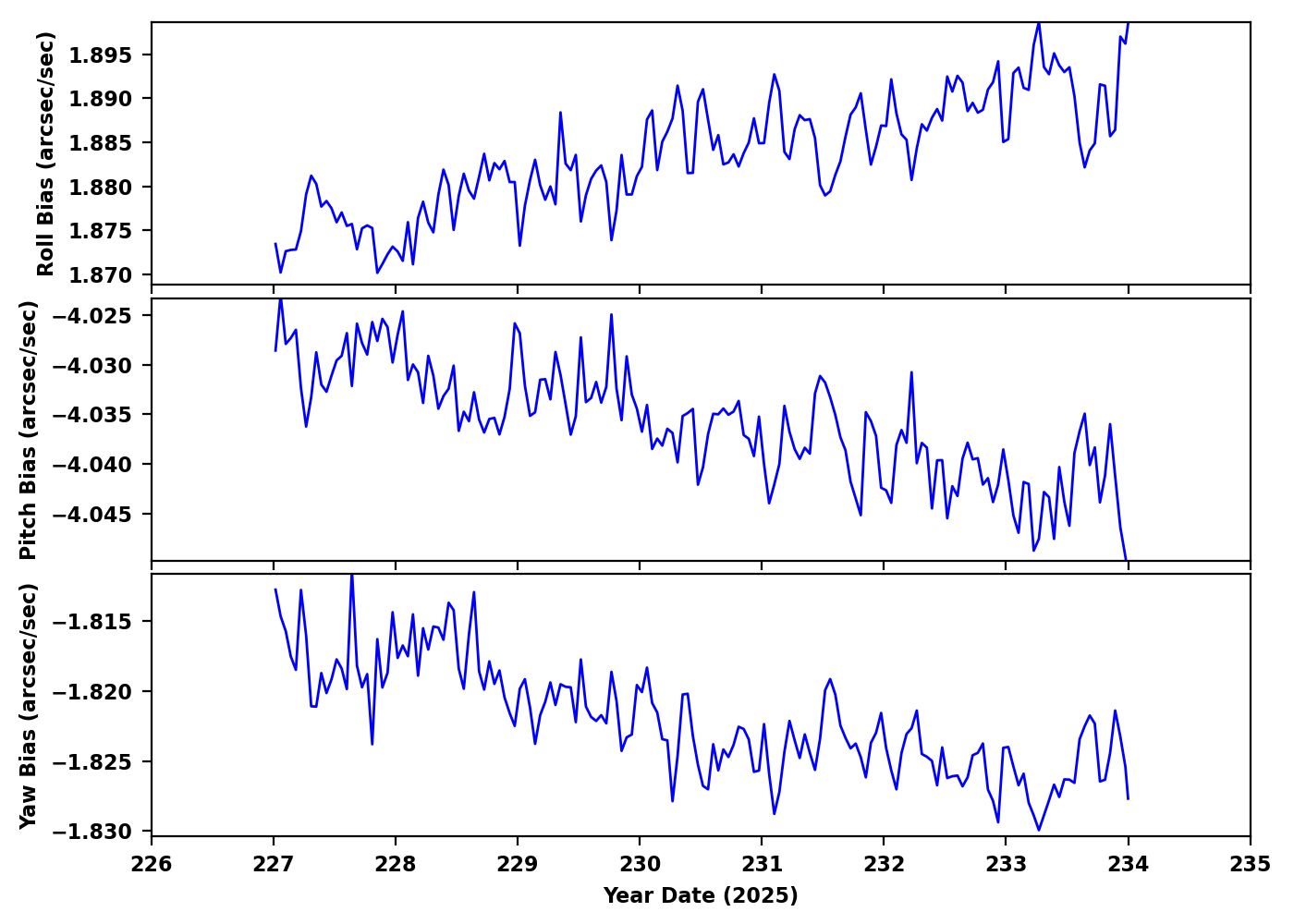

Gyro Bias Drift	Gyro Bias Drift Histogram

Recent Observations

OBSID	DETECTOR	GRATING	TARGET	ANALYSIS	ACA
30443	HRC-I	NONE	HE 1353-1917	OK	OK
28685	ACIS-23567	NONE	Abell 3017	OK	OK
31031	ACIS-0123	NONE	SPT-CL J2305-2248	OK	OK
28157	ACIS-67	NONE	IC 4709	OK	OK
30015	ACIS-67	NONE	GAMA238411	OK	OK
31029	ACIS-67	NONE	2RXS J205841.2-142911	OK	OK
29921	ACIS-67	NONE	SDSS J142819.32+152514.7	OK	OK
28593	ACIS-0123	NONE	Abell 370	OK	OK
31030	ACIS-67	NONE	Gaia DR2 3321943971216932096	OK	OK
31028	ACIS-67	NONE	SDSSJ223025.08-092041.8	OK	OK
28622	ACIS-0123	NONE	Abell 370	OK	OK
28284	ACIS-67	NONE	SDSS J133610.96+184529.9	OK	OK
30369	ACIS-01236	NONE	Perseus cluster E	OK	OK
29918	ACIS-67	NONE	SDSS J221220.34+003336.4	OK	OK
28800	ACIS-0123	NONE	SpARCS J163852+403843	OK	OK
28700	ACIS-01236	NONE	1E 2215.7-0404 / 1E 2216.0-0401	OK	OK
28706	ACIS-01236	NONE	1E 2215.7-0404 / 1E 2216.0-0401	OK	OK
29870	ACIS-2567	NONE	SDSS J164039.03+432045.8	OK	OK
31356	ACIS-0123	NONE	1E 2215.7-0404 / 1E 2216.0-0401	OK	OK
30433	ACIS-0123	NONE	Abell 2255	OK	OK
31035	ACIS-01236	NONE	A1795	OK	OK

MSID	Mean	RMS	Delta/Yr	Delta/Yr/Yr	Unit	Description
4hposaro	-0.155	0.029	67.81 +/- 20.17	0.76 +/- 0.83	na	NA
4hposbro	-0.151	0.029	68.39 +/- 20.39	0.77 +/- 0.84	na	NA
4lposaro	0.036	0.018	73.94 +/- 12.47	0.28 +/- 0.47	na	NA
4lposbro	0.038	0.019	72.99 +/- 12.82	0.36 +/- 0.48	na	NA
4mp28av	0.013	0.001	0.41 +/- 0.73	-0.01 +/- 0.02	V	MCE A: +28 VOLT MONITOR
4mp28bv	0.079	0.005	2.02 +/- 3.22	-0.03 +/- 0.12	V	MCE B: +28 VOLT MONITOR
4mp5av	0.019	0.001	0.49 +/- 0.78	-0.01 +/- 0.03	V	MCE A: +5 VOLT MONITOR
4mp5bv	0.014	8.331e-04	0.37 +/- 0.59	-0.01 +/- 0.02	V	MCE B: +5 VOLT MONITOR
