MTA Monitoring Report 11/21/25 - 11/27/25

Archive of all weekly reports
Archive of monthly reports

Radiation

Quiet

Detrended CTI

Although we prefer to quote CTI values of the cleanest data (FT <= -119.7 C, int time > 7000sec), the data that fulfills these conditions are getting rare. We now quote CTI based on temperature corrected data for Focal plane temperature <= -118.5 C).

The unit is now CTI/year not CTI/day.

Average of ACIS-I CCDs (MnKa) slope: 5.214e-02 CTI/year (1.428e-04 CTI/day)
Detrended slope: 4.865e-02 CTI/year (1.333e-04 CTI/day)

ACIS Warm Pixels

We display all bad pixels that have showed up in past, and, if any, previously unknown bad pixels appeared in the last 14 days. We also list hot pixels (defined as 1000 above the average of bias background). Warm columns 509-514 are probably due to boundaries.

New definitions of warm pixels and flickering pixels (May 15, 2014). If a pixel displays the level beyond a threshold for more than 70% of the time in the past two weeks, the pixel is categorized as a "warm" pixel. If a pixel is above the threshold more than 30% of time but less than 70% of the time in the past two weeks, the pixel is categorized as a "flickering" pixel.

 CCD0CCD1CCD2CCD3CCD4CCD5CCD6CCD7CCD8CCD9
Previously Unknown Bad Pixels
Current Warm Pixels (786,117) (283,278) (985,393) (910,239) (803,225) (665,25) (104,31) (526,66) (99,899) (178,149) (726,537) (21,95) (811,637) (680,391) (394,80)     (849,169) (884,31) (1000,214) (670,387) (335,412)
Flickering Warm Pixels (798,494) (171,937) (271,24) (370,70) (427,125) (787,181) (802,665) (684,280) (837,378) (206,757) (345,12) (353,201) (617,159) (931,553) (318,53)   (728,340) (669,577) (263,317) (641,669) (233,102) (233,227) (357,303) (367,511) (439,452) (877,408) (383,586) (161,206) (258,797) (369,376) (282,385) (80,130) (414,5) (126,856) (178,399) (295,978) (182,474) (666,165) (881,53) (838,239) (136,65) (275,393) (597,187) (675,304) (893,490) (447,769) (139,109)
Current Hot Pixels
Flickering Hot Pixels
Warm column candidates           1022 510 512   1022 512
Flickering Warm column candidates

ACIS Focal Plane Temperature

For this period, 4 peaks are observed.

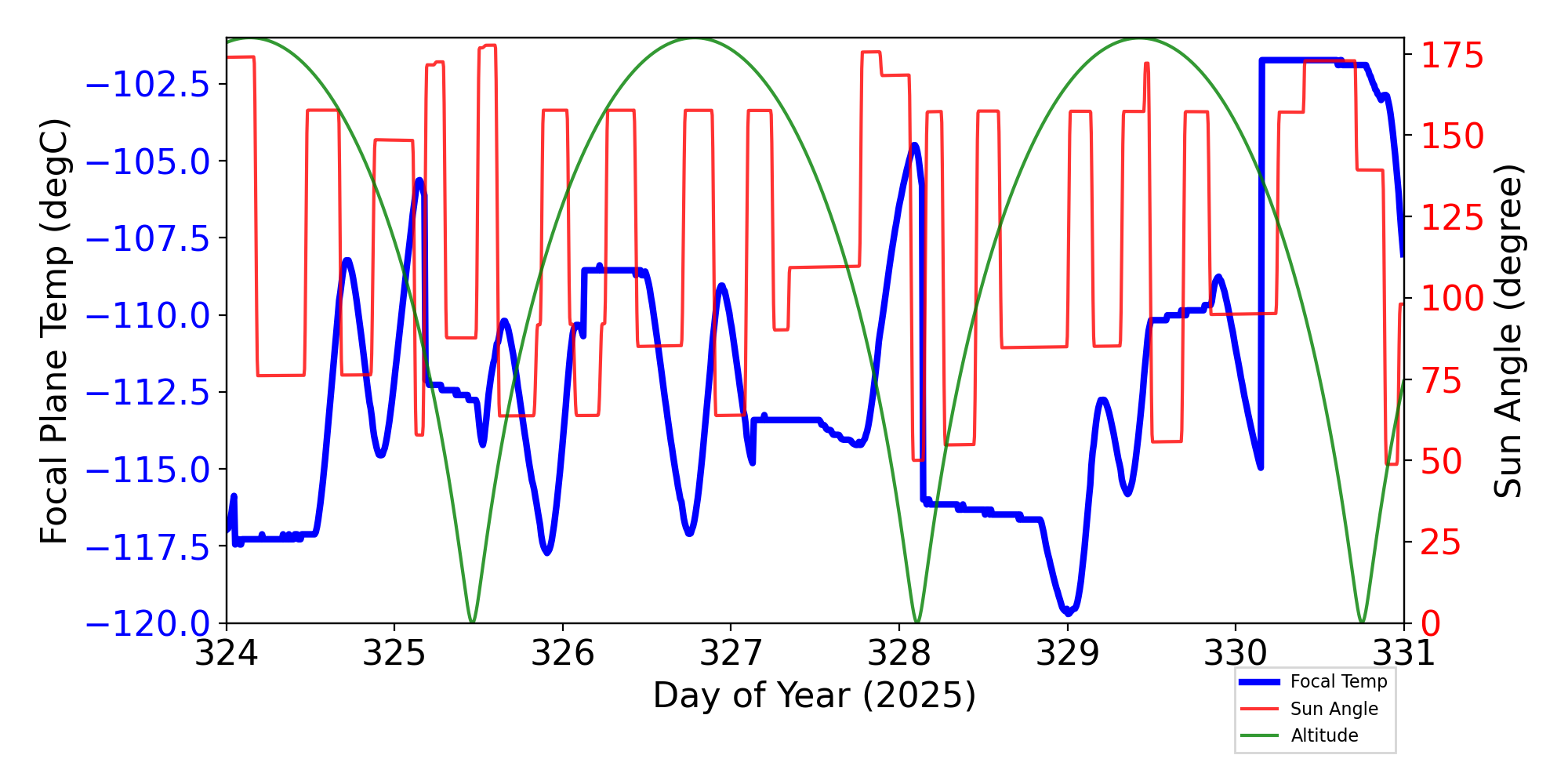

Weekly focal plane temperature with sun angle, earth angle, and altitude overplotted. Sun angle is the solar array angle, that is the angle between the sun and the optical axis (+X axis). The earth angle is the angle between earth and the ACIS radiator (+Z axis). Altitude varies from 34 kkm to 128 kkm.



SIM Movements

9 TSC moves this period

Telemetry

New violations or new extrema are shown in blue cells.

MSID 11/21/25 11/22/25 11/23/25 11/24/25 11/25/25 11/26/25 11/27/25 yellow limits
(lower)
upper 		red limits
(lower)
upper 		Units Description
AFTBLKHDT           308.24   (260.2)
303.0		 (250.2)
308.0		 TEMPAFT BULKHEAD TEMP
AWD1TQI     (-3.31)     (-3.39)   (-1.22)
1.22		 (-3.3)
3.3		 AMPWHEEL 1 TORQUE CURRENT
AWD3TQI         (-3.35)     (-1.22)
1.22		 (-3.3)
3.3		 AMPWHEEL 3 TORQUE CURRENT
AWD6TQI     (-3.39)     (-3.39)   (-1.22)
1.22		 (-3.3)
3.3		 AMPWHEEL 6 TORQUE CURRENT
CTXBPWR (0.00)   (0.00) (0.00)   (0.00)   (36.12)
37.0		 (36.0)
38.0		 DBMTRANSMITTER B OUTPUT POWER
MZOBACONE 310.88 312.56 314.61 313.40 312.76 314.54 314.01 (260.2)
303.0		 (250.2)
308.0		 CONE-Z SIDE OBA CONE
OBAAVG 302.64 303.74 305.98 304.27 304.13 305.50 304.95 (282.5)
300.0		 (281.4)
301.0		 KOBA/TFTE TEMP
OBACONEAVG           311.35   (282.5)
300.0		 (281.8)
301.0		 KOBA CONE AVG TEMP
OBADIAGRAD 4.84 4.84 4.60 4.90 4.73 4.76 4.88 (-1.11)
3.5		 (-2.78)
3.9		 KOBA DIAM GRAD
PZOBACONE   308.23 310.75 308.96 308.56 310.29 309.73 (260.2)
303.0		 (250.2)
308.0		 CONE+Z SIDE OBA CONE
TFTERANGE 47.03   49.35 46.86 47.41 47.91   (16.7)
37.5		 (11.1)
45.0		 KTFTE VENT/RAD TEMP


IRUs

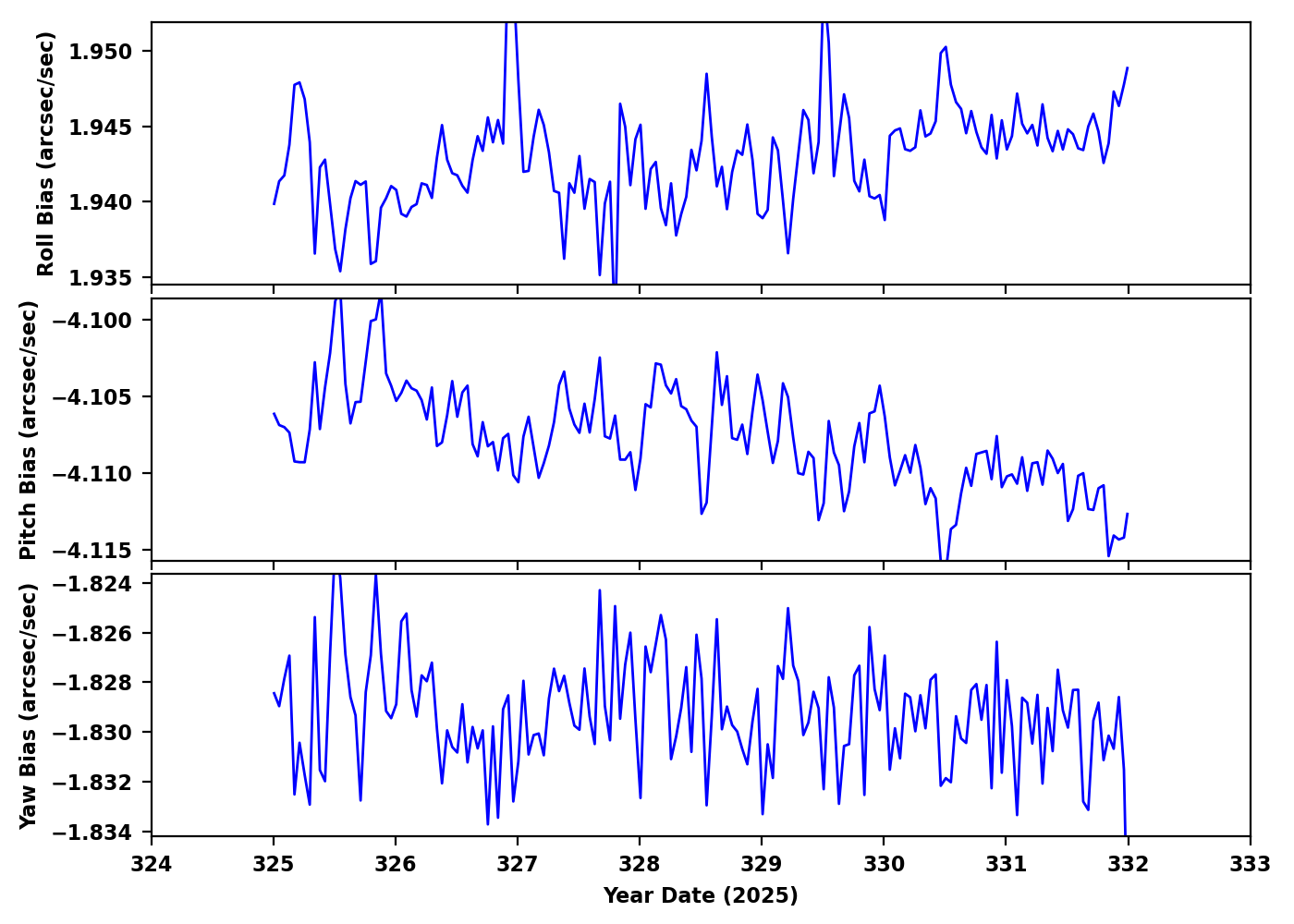

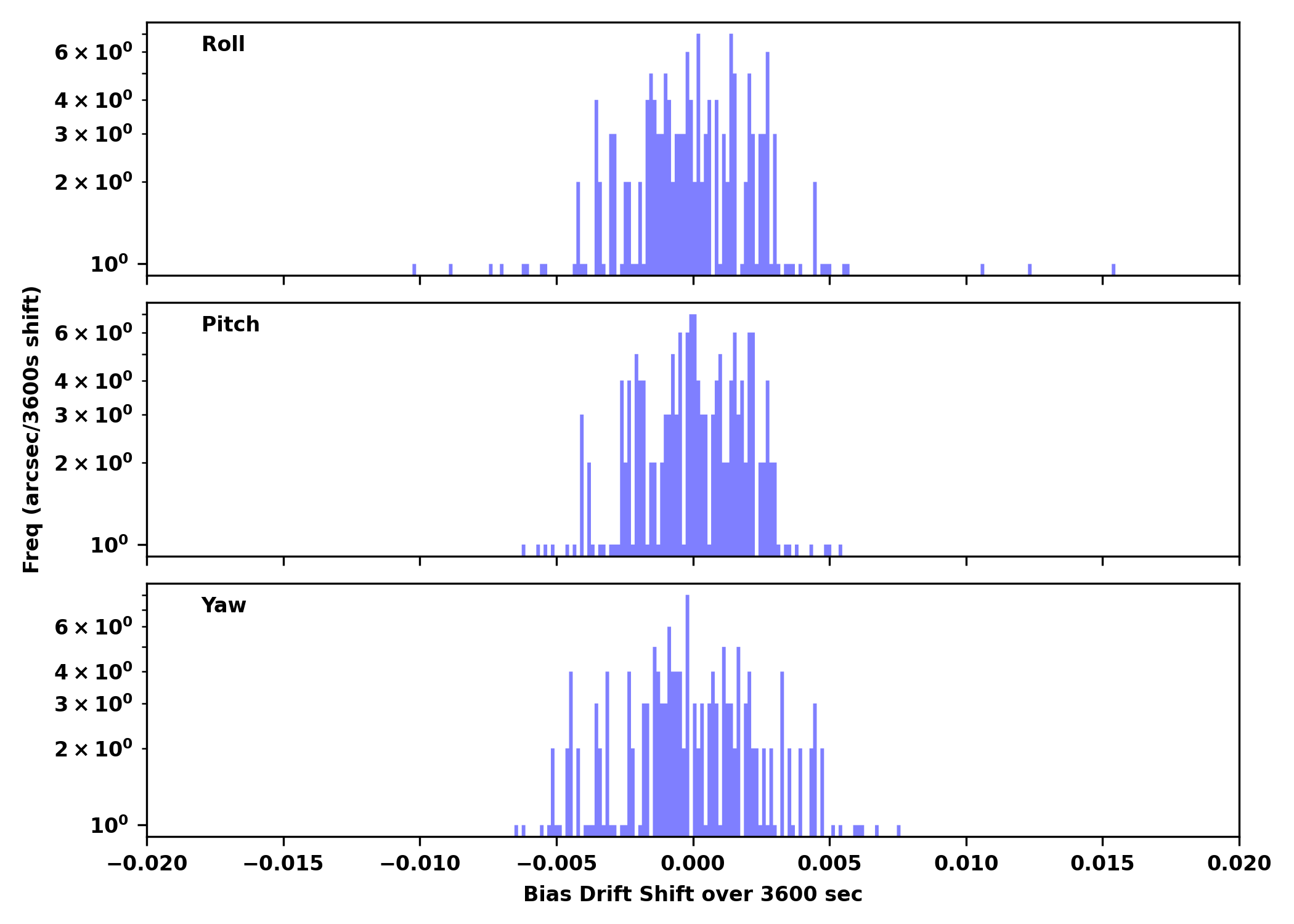

Gyro Bias Drift Gyro Bias Drift Histogram

Recent Observations

OBSID DETECTOR GRATING TARGET ANALYSIS ACA
32003 ACIS-67 NONE CFHQS J142952+544717 OK OK
30310 ACIS-0123 NONE Perseus cluster OK OK
31690 ACIS-0123 NONE SDSS J014837.63+060020.0 OK OK
32006 ACIS-0123 NONE Perseus cluster OK OK
30105 ACIS-0123 NONE PSR J1101-6101 OK OK
32004 ACIS-0123 NONE PSR J1101-6101 OK OK
30313 ACIS-0123 NONE Perseus cluster OK OK
29882 ACIS-2567 NONE SDSS J125354.49+262435.6 OK OK
32007 ACIS-0123 NONE Perseus cluster OK OK
31451 ACIS-567 NONE ACT-CL J1032.8+1310 OK OK
31443 ACIS-67 NONE IC2604 OK OK
30861 ACIS-0123 NONE Perseus cluster OK OK
30392 ACIS-567 NONE ZwCl 0857.9+2107 OK OK
31879 ACIS-0123 NONE BOSS1348 OK OK
30281 ACIS-01236 NONE Perseus cluster OK OK
29991 ACIS-67 HETG NGC 4051 OK/NA OK
32015 ACIS-01236 NONE Perseus cluster OK OK
32014 ACIS-01236 NONE Perseus cluster OK OK
32010 ACIS-67 HETG NGC 4051 OK/NA OK
30317 ACIS-01236 NONE Perseus cluster OK OK
32021 ACIS-0123 NONE BOSS1348 OK OK
32016 ACIS-0123 NONE Perseus cluster OK OK
30102 ACIS-56789 HETG AN UMa OK/NA OK
30532 ACIS-67 HETG Cygnus X-2 OK/NA OK
30121 ACIS-0123 NONE PSR J1015-5719 OK OK
31987 ACIS-01236 NONE Perseus cluster OK OK
30521 ACIS-456789 HETG zeta Tau OK/NA OK

Trending

This week's focus is Ground Computations

Last reported on Sep 11.

Only the most interesting or representative msids are shown below. For a full listing choose the bulletted link.


MSIDMeanRMSDelta/YrDelta/Yr/YrUnitDescription
1dppwra -0.5570.00734.06 +/- 6.18-0.00 +/- 0.16WDPA POWER A
1dppwrb -0.5180.00830.13 +/- 6.69-0.32 +/- 0.20WDPA POWER B

MSIDMeanRMSDelta/YrDelta/Yr/YrUnitDescription
flexadif 0.0410.00865.08 +/- 5.28-0.03 +/- 0.08KDIFF FLEX A & SET
flexbdif 0.2190.00761.50 +/- 4.79-0.02 +/- 0.08KDIFF FLEX B & SET
flexcdif 0.0900.01373.75 +/- 8.990.10 +/- 0.24KDIFF FLEX C & SET

If you have any questions, please contact: swolk@head.cfa.harvard.edu
