MTA Monitoring Report 01/02/26 - 01/08/26

Archive of all weekly reports
Archive of monthly reports

Although we prefer to quote CTI values of the cleanest data (FT <= -119.7 C, int time > 7000sec), the data that fulfills these conditions are getting rare. We now quote CTI based on temperature corrected data for Focal plane temperature <= -118.5 C).

The unit is now CTI/year not CTI/day.

Average of ACIS-I CCDs (MnKa) slope:	5.214e-02 CTI/year	(1.428e-04 CTI/day)
Detrended slope:	4.865e-02 CTI/year	(1.333e-04 CTI/day)

ACIS Warm Pixels

We display all bad pixels that have showed up in past, and, if any, previously unknown bad pixels appeared in the last 14 days. We also list hot pixels (defined as 1000 above the average of bias background). Warm columns 509-514 are probably due to boundaries.

New definitions of warm pixels and flickering pixels (May 15, 2014). If a pixel displays the level beyond a threshold for more than 70% of the time in the past two weeks, the pixel is categorized as a "warm" pixel. If a pixel is above the threshold more than 30% of time but less than 70% of the time in the past two weeks, the pixel is categorized as a "flickering" pixel.

	CCD0	CCD1	CCD2	CCD3	CCD5	CCD6	CCD7	CCD8	CCD9
Previously Unknown Bad Pixels				(13,272)				(976,990)
Current Warm Pixels		(985,393) (910,239)	(803,225) (178,149) (526,66)	(21,95) (394,80)		(849,169) (1000,214) (670,387)	(335,412)	(275,393) (136,65) (182,474) (295,978) (597,187) (139,109) (447,769) (332,324)
Flickering Warm Pixels	(786,117)	(370,70) (802,665) (427,125) (787,181)	(665,25) (726,537) (99,899) (837,378) (104,31)	(811,637) (318,53) (931,553) (680,391) (617,159)	(233,227) (669,577) (728,340) (282,385) (367,511) (263,317) (258,797) (357,303) (369,376) (161,206)	(884,31)	(126,856) (874,186)	(838,239) (34,645) (541,41) (157,47) (893,490) (102,139) (198,699) (220,813) (326,978) (333,466) (666,165) (234,69) (178,399) (675,304) (881,53)	(40,49) (749,477) (675,52)
Current Hot Pixels
Flickering Hot Pixels
Warm column candidates					510 512 1022		512 1022
Flickering Warm column candidates

ACIS Focal Plane Temperature

For this period, 4 peaks are observed.

Day (DOY)	Temp (C)	Width (Days)
001.89	-104.97	0.57
002.75	-103.88	1.24
003.75	-111.10	0.37
005.62	-111.72	0.90

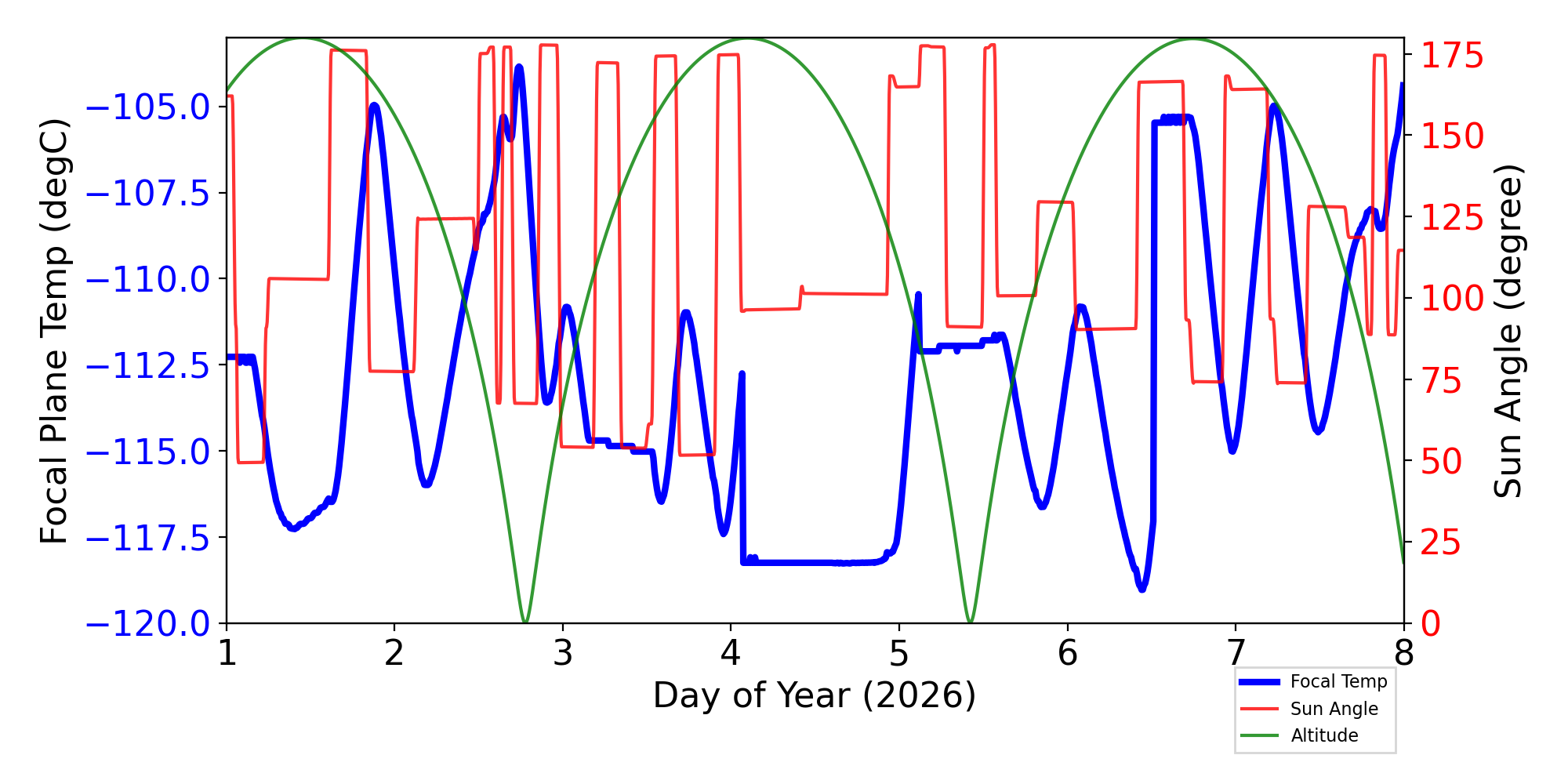

Weekly focal plane temperature with sun angle, earth angle, and altitude overplotted. Sun angle is the solar array angle, that is the angle between the sun and the optical axis (+X axis). The earth angle is the angle between earth and the ACIS radiator (+Z axis). Altitude varies from 34 kkm to 128 kkm.

SIM Movements

9 TSC moves this period

weekly average time/step	0.00137 s
mission average time/step	0.00132 s

Telemetry

New violations or new extrema are shown in blue cells.

MSID	01/02/26	01/03/26	01/04/26	01/05/26	01/06/26	01/07/26	01/08/26	yellow limits (lower) upper	red limits (lower) upper	Units	Description
AFTBLKHDT			309.35		310.73			(260.2) 303.0	(250.2) 308.0	TEMP	AFT BULKHEAD TEMP
AWD6TQI				(-3.43)		(-3.43)		(-1.22) 1.22	(-3.3) 3.3	AMP	WHEEL 6 TORQUE CURRENT
CTXBPWR	(0.00)				(0.00)		(0.00)	(36.12) 37.0	(36.0) 38.0	DBM	TRANSMITTER B OUTPUT POWER
HRMAAVG	(304.83)				(304.55)		(304.40)	(306.0) 308.0	(305.0) 309.0	K	AVG OF HRMA METRICS
MZOBACONE	313.52	309.85	315.79	312.36	317.03	313.10	313.67	(260.2) 303.0	(250.2) 308.0	CONE	-Z SIDE OBA CONE
OBAAVG		301.87	306.71	304.85		304.89	305.31	(282.5) 300.0	(281.4) 301.0	K	OBA/TFTE TEMP
OBACONEAVG		306.99	312.77					(282.5) 300.0	(281.8) 301.0	K	OBA CONE AVG TEMP
OBADIAGRAD	4.91	4.60	4.90	4.94	4.76	4.89	4.73	(-1.11) 3.5	(-2.78) 3.9	K	OBA DIAM GRAD
PZOBACONE	310.20		311.79	309.59	312.94	309.28	309.74	(260.2) 303.0	(250.2) 308.0	CONE	+Z SIDE OBA CONE
TCYZ_RW6	(276.44)		(276.44)					(288.15) 363.15	(278.15) 404.15	K	RWA -6 TEMP (RWA CRNR COMP)
TFTERANGE	47.78		49.17	49.08			47.87	(16.7) 37.5	(11.1) 45.0	K	TFTE VENT/RAD TEMP

IRUs

Gyro Bias Drift	Gyro Bias Drift Histogram

Recent Observations

OBSID	DETECTOR	GRATING	TARGET	ANALYSIS	ACA
32076	ACIS-678	NONE	B2.4 0628+21B	OK	OK
29999	ACIS-3678	NONE	2MASX J01110461-4558435	OK	OK
30403	ACIS-3567	NONE	ClG J0242-2132	OK	OK
31732	ACIS-567	LETG	MKN421	OK/NA	OK
32077	ACIS-0123	NONE	HEP G189.006+04.012	OK	OK
32094	ACIS-3678	NONE	IC5273	OK	OK
31971	ACIS-3678	NONE	IC5273	OK	OK
32095	ACIS-67	NONE	2RXS J072007.5+215916	OK	OK
32078	ACIS-67	NONE	2RXS J072007.5+215916	OK	OK
32093	ACIS-0123	NONE	sn1006 NE	OK	OK
30169	ACIS-3678	NONE	NGC4536	OK	OK
29638	ACIS-3678	NONE	NGC1317	OK	OK
31266	ACIS-67	NONE	SDSS J080704.32+210208.6	OK	OK
30212	ACIS-67	NONE	8C 1435+638	OK	OK
32086	ACIS-01236	NONE	Perseus cluster	OK	OK
30537	ACIS-0123	NONE	BOSS1348	OK	OK
32090	ACIS-67	NONE	SDSS J080704.32+210208.6	OK	OK
32081	ACIS-3678	NONE	2MASX J01110461-4558435	OK	OK
32091	ACIS-67	NONE	ACT-CLJ0808.7+1420	OK	OK
32082	ACIS-3678	NONE	2MASX J01110461-4558435	OK	OK
31281	ACIS-5678	NONE	SDSS J111749.18+044315.5	OK	OK
30322	ACIS-0123	NONE	Perseus cluster	OK	OK
31293	ACIS-67	NONE	WISEA J181745.37+471614.7	OK	OK
31264	ACIS-67	NONE	SDSS J075130.56+315414.3	OK	OK
32089	ACIS-67	NONE	SDSS J075130.56+315414.3	OK	OK
30226	ACIS-3678	NONE	2MASX J01110461-4558435	OK	OK

MSID	Mean	RMS	Delta/Yr	Delta/Yr/Yr	Unit	Description
oobthr02	0.400	0.026	(2.87+/-0.22)e2	0.06 +/- 0.03	K	RT 25: HRMA STRUT
oobthr03	0.626	0.018	(2.92+/-0.16)e2	0.07 +/- 0.04	K	RT 26: HRMA STRUT
oobthr04	0.774	0.019	(2.95+/-0.16)e2	0.07 +/- 0.04	K	RT 27: HRMA STRUT
oobthr05	0.763	0.025	(2.95+/-0.21)e2	0.08 +/- 0.04	K	RT 28: HRMA STRUT
oobthr06	0.627	0.020	(2.93+/-0.17)e2	0.08 +/- 0.04	K	RT 29: HRMA STRUT
oobthr07	0.413	0.018	(2.88+/-0.15)e2	0.06 +/- 0.03	K	RT 30: HRMA STRUT
oobthr08	1.021	0.003	(2.94+/-0.08)e2	0.10 +/- 0.06	K	RT 31: OBA CONE
oobthr09	0.781	0.127	(2.95+/-1.04)e2	0.10 +/- 0.06	K	RT 32: OBA CONE
oobthr10	0.787	0.083	(2.93+/-0.68)e2	0.10 +/- 0.05	K	RT 33: OBA CONE
oobthr11	0.918	0.003	(2.92+/-0.08)e2	0.10 +/- 0.05	K	RT 34: OBA CONE
oobthr12	0.910	0.003	(2.92+/-0.08)e2	0.10 +/- 0.05	K	RT 35: OBA CONE
oobthr13	-3.687	2.569	(3.10+/-20.92)e2	0.10 +/- 0.05	K	RT 36: OBA CONE
oobthr14	-1.127	1.160	(3.01+/-9.44)e2	0.10 +/- 0.05	K	RT 37: OBA CONE
oobthr15	0.926	0.003	(2.93+/-0.08)e2	0.10 +/- 0.05	K	RT 38: OBA CONE

HRMA Heaters

MSID	Mean	RMS	Delta/Yr	Delta/Yr/Yr	Unit	Description
ohrthr02	-0.003	0.001	(2.95+/-0.01)e2	(6.84+/-9.74)e-5	K	RT 2: HRMA FORWARD APERTURE PLATE
ohrthr03	0.004	9.461e-05	(2.95+/-0.00)e2	0.01 +/- 0.00	K	RT 5: HRMA FORWARD APERTURE PLATE
ohrthr04	-0.004	0.002	(2.95+/-0.02)e2	-(4.97+/-7.31)e-5	K	RT 9: HRMA PRECOLLIMATOR PLATE 10
ohrthr05	0.124	9.696e-04	(2.96+/-0.01)e2	0.04 +/- 0.02	K	RT 13: HRMA AFT HEATER PLATE
ohrthr06	0.090	6.106e-04	(2.95+/-0.01)e2	0.03 +/- 0.01	K	RT 14: HRMA MOUNT
ohrthr07	0.097	5.994e-04	(2.95+/-0.01)e2	0.03 +/- 0.01	K	RT 18: HSA OUTER CYLINDER
ohrthr08	0.091	5.901e-04	(2.95+/-0.01)e2	0.03 +/- 0.01	K	RT 103: HRMA CAP
ohrthr09	0.088	5.503e-04	(2.95+/-0.01)e2	0.02 +/- 0.01	K	RT 105: HRMA CAP
ohrthr10	0.080	4.959e-04	(2.95+/-0.01)e2	0.02 +/- 0.01	K	RT 107: HRMA P1 FLEXURE
ohrthr11	0.079	4.984e-04	(2.95+/-0.01)e2	0.02 +/- 0.01	K	RT 108: HRMA P4 FLEXURE
ohrthr12	0.100	6.456e-04	(2.95+/-0.01)e2	0.03 +/- 0.01	K	RT 115: HRMA H1 FLEXURE
ohrthr13	0.097	6.166e-04	(2.95+/-0.01)e2	0.03 +/- 0.01	K	RT 116: HRMA H6 FLEXURE
ohrthr14	0.136	7.704e-04	(2.95+/-0.01)e2	0.03 +/- 0.01	K	RT 121: HSA AFT INNER CYLINDER

If you have any questions, please contact: swolk@head.cfa.harvard.edu
