MTA Monitoring Report 01/09/26 - 01/15/26

Archive of all weekly reports
Archive of monthly reports

Although we prefer to quote CTI values of the cleanest data (FT <= -119.7 C, int time > 7000sec), the data that fulfills these conditions are getting rare. We now quote CTI based on temperature corrected data for Focal plane temperature <= -118.5 C).

The unit is now CTI/year not CTI/day.

Average of ACIS-I CCDs (MnKa) slope:	5.214e-02 CTI/year	(1.428e-04 CTI/day)
Detrended slope:	4.865e-02 CTI/year	(1.333e-04 CTI/day)

ACIS Warm Pixels

We display all bad pixels that have showed up in past, and, if any, previously unknown bad pixels appeared in the last 14 days. We also list hot pixels (defined as 1000 above the average of bias background). Warm columns 509-514 are probably due to boundaries.

New definitions of warm pixels and flickering pixels (May 15, 2014). If a pixel displays the level beyond a threshold for more than 70% of the time in the past two weeks, the pixel is categorized as a "warm" pixel. If a pixel is above the threshold more than 30% of time but less than 70% of the time in the past two weeks, the pixel is categorized as a "flickering" pixel.

	CCD0	CCD1	CCD2	CCD3	CCD5	CCD6	CCD7	CCD8	CCD9
Previously Unknown Bad Pixels
Current Warm Pixels			(803,225) (837,378) (526,66)	(21,95) (394,80) (811,637)		(670,387) (849,169) (1000,214)	(335,412)	(447,769) (332,324) (675,304) (275,393) (182,474) (597,187) (136,65) (139,109) (34,645) (295,978)
Flickering Warm Pixels	(786,117)	(910,239) (985,393) (802,665) (427,125)	(99,899) (178,149) (726,537) (104,31)	(318,53) (680,391) (617,159)	(369,376) (233,227) (263,317) (728,340) (258,797) (233,102) (669,577) (161,206) (367,511) (282,385) (357,303) (641,669)	(357,29) (884,31)	(126,856) (74,134)	(220,813) (838,239) (234,69) (157,47) (541,41) (881,53) (893,490) (333,466) (326,978)	(749,477)
Current Hot Pixels
Flickering Hot Pixels
Warm column candidates					1022 512 510		1022 512
Flickering Warm column candidates

ACIS Focal Plane Temperature

For this period, 6 peaks are observed.

Day (DOY)	Temp (C)	Width (Days)
008.61	-108.55	1.85
009.07	-105.89	0.45
009.45	-110.64	0.24
010.66	-103.94	1.05
010.89	-114.69	0.24
013.36	-106.02	2.72

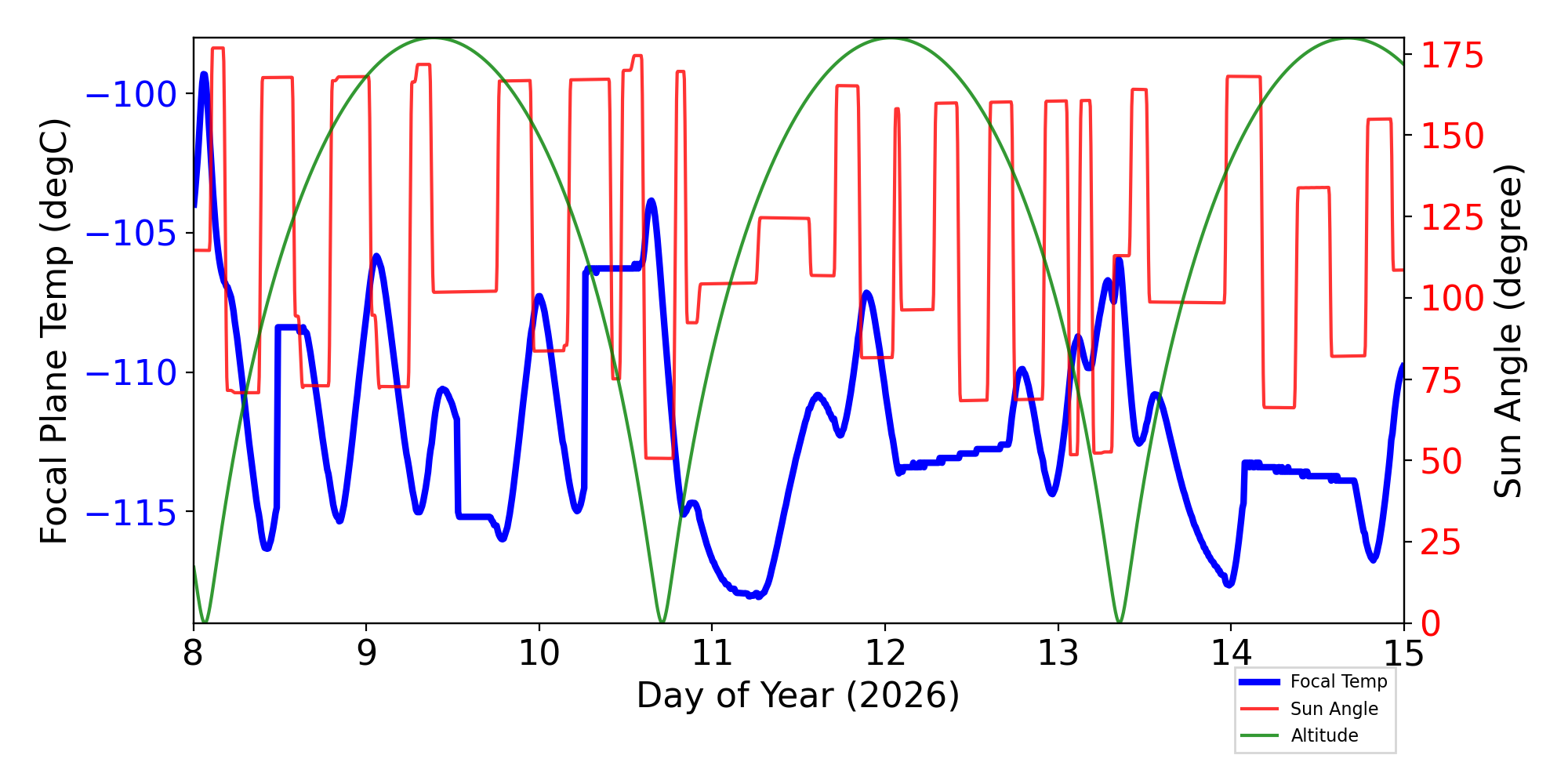

Weekly focal plane temperature with sun angle, earth angle, and altitude overplotted. Sun angle is the solar array angle, that is the angle between the sun and the optical axis (+X axis). The earth angle is the angle between earth and the ACIS radiator (+Z axis). Altitude varies from 34 kkm to 128 kkm.

SIM Movements

7 TSC moves this period

weekly average time/step	0.00133 s
mission average time/step	0.00132 s

Telemetry

New violations or new extrema are shown in blue cells.

MSID	01/09/26	01/10/26	01/11/26	01/12/26	01/13/26	01/14/26	01/15/26	yellow limits (lower) upper	red limits (lower) upper	Units	Description
AFTBLKHDT				308.80	309.15	308.37	308.80	(260.2) 303.0	(250.2) 308.0	TEMP	AFT BULKHEAD TEMP
AWD1TQI						(-3.39)		(-1.22) 1.22	(-3.3) 3.3	AMP	WHEEL 1 TORQUE CURRENT
AWD3TQI					(-3.39)			(-1.22) 1.22	(-3.3) 3.3	AMP	WHEEL 3 TORQUE CURRENT
AWD6TQI						(-3.31)		(-1.22) 1.22	(-3.3) 3.3	AMP	WHEEL 6 TORQUE CURRENT
CALPALV						(0.00)		(126.0) 128.0	(125.0) 129.0	V	Cal Pulser Amplitude
CTXBPWR					(0.00)			(36.12) 37.0	(36.0) 38.0	DBM	TRANSMITTER B OUTPUT POWER
ESAMYI					(0.06)			(5.63) 30.15	(5.3) 33.0	AMP	S/A -Y CURRENT
ESAPYI					(0.14)			(5.54) 30.15	(5.2) 33.0	AMP	S/A +Y CURRENT
HRMAAVG				(304.77)	(304.46)	(304.75)		(306.0) 308.0	(305.0) 309.0	K	AVG OF HRMA METRICS
IMHBLV						(0.00)		(126.0) 128.0	(125.0) 129.0	(2IMHBLV)	Imaging Bot & Top MCP HV Monitor
MZOBACONE	312.88	311.14				314.69		(260.2) 303.0	(250.2) 308.0	CONE	-Z SIDE OBA CONE
OBAAVG	304.28	302.91	305.81					(282.5) 300.0	(281.4) 301.0	K	OBA/TFTE TEMP
OBADIAGRAD	4.90	4.85	4.73	4.70	4.59	4.68	4.27	(-1.11) 3.5	(-2.78) 3.9	K	OBA DIAM GRAD
PZOBACONE	308.77		310.41	311.31	311.61	310.62	311.74	(260.2) 303.0	(250.2) 308.0	CONE	+Z SIDE OBA CONE
TFTERANGE	49.27	47.99			49.09		49.40	(16.7) 37.5	(11.1) 45.0	K	TFTE VENT/RAD TEMP
TSCTSF3	(268.79)							(278.15) 359.15	(269.15) 483.15	K	SC-TS FITTING -3 TEMP

IRUs

Gyro Bias Drift	Gyro Bias Drift Histogram

Recent Observations

OBSID	DETECTOR	GRATING	TARGET	ANALYSIS	ACA
32089	ACIS-67	NONE	SDSS J075130.56+315414.3	OK	OK
30226	ACIS-3678	NONE	2MASX J01110461-4558435	OK	OK
31450	ACIS-567	NONE	PSZ2 G204.24+14.51	OK	OK
32085	ACIS-3678	NONE	2MASX J01110461-4558435	OK	OK
32092	ACIS-67	NONE	ACT-CLJ0808.7+1420	OK	OK
30178	ACIS-3678	NONE	NGC4694	OK	OK
29919	ACIS-67	NONE	SDSS J143154.09+215618.3	OK	OK
31772	ACIS-5678	NONE	ACT-CLJ0808.7+1420	OK	OK
29662	ACIS-3678	NONE	NGC4689	OK	OK
32087	ACIS-0123	NONE	Perseus cluster	OK	OK
32079	ACIS-67	NONE	2RXS J064310.6+123549	OK	OK
31453	ACIS-567	NONE	ACT-CL J0302.4-1004	OK	OK
31137	ACIS-23678	NONE	4XMM J114051.9-641848	OK	OK
30395	ACIS-567	NONE	ZwCl 0857.9+2107	OK	OK
30193	ACIS-67	NONE	NGC5728	OK	OK
31412	ACIS-23567	NONE	A1795	OK	OK
32103	ACIS-67	NONE	NGC5728	OK	OK
32105	ACIS-5678	NONE	ZwCl 0857.9+2107	OK	OK
32106	ACIS-5678	NONE	ZwCl 0857.9+2107	OK	OK
30090	ACIS-456789	HETG	TV Cassiopeia	OK/NA	OK
32098	ACIS-678	NONE	B2.1 0719+32C	OK	OK
31515	HRC-I	HETG	Cyg X-2	OK/NA	OK
31398	ACIS-56789	LETG	MKN421	OK/NA	OK
30156	ACIS-23678	NONE	NGC2775	OK	OK
29986	ACIS-7	HETG	NGC 5506	OK/NA	OK
31300	ACIS-67	NONE	SDSS J081800.19+191810.0	OK	OK
32096	ACIS-67	NONE	SDSSJ161649.37-004250.4	OK	OK
31396	ACIS-56789	HETG	3C273	OK/NA	OK
32107	ACIS-67	NONE	SDSS J081800.19+191810.0	OK	OK

MSID	Mean	RMS	Delta/Yr	Delta/Yr/Yr	Unit	Description
4rt556t	0.091	6.058e-04	(2.95+/-0.01)e2	0.03 +/- 0.01	K	RT 556 - HRMA TEMP
4rt558t	0.106	6.465e-04	(2.95+/-0.01)e2	0.03 +/- 0.01	K	RT 558 - HRMA TEMP
4rt568t	0.733	0.002	(2.93+/-0.06)e2	0.11 +/- 0.05	K	RT 568 - HRMA TEMP
4rt575t	1.018	0.003	(2.95+/-0.08)e2	0.12 +/- 0.06	K	RT 575 - OB CONE TEMP
4rt576t	0.749	0.002	(2.88+/-0.06)e2	0.10 +/- 0.05	K	RT 576 - OB CONE TEMP
4rt577t	1.100	0.003	(2.96+/-0.09)e2	0.16 +/- 0.08	K	RT 577 - OB CONE TEMP
4rt578t	1.011	0.003	(2.94+/-0.08)e2	0.16 +/- 0.07	K	RT 578 - OB CONE TEMP
4rt579t	0.761	0.003	(2.90+/-0.07)e2	0.15 +/- 0.07	K	RT 579 - OB CONE TEMP
4rt580t	0.772	0.003	(2.90+/-0.07)e2	0.16 +/- 0.07	K	RT 580 - OB CONE TEMP
4rt581t	0.863	0.004	(2.92+/-0.07)e2	0.19 +/- 0.08	K	RT 581 - OB CONE TEMP

HRMA Struts

MSID	Mean	RMS	Delta/Yr	Delta/Yr/Yr	Unit	Description
4rt582t	0.385	0.001	(2.87+/-0.03)e2	0.06 +/- 0.03	K	RT 582 - STRUT TEMP
4rt583t	0.593	0.002	(2.92+/-0.05)e2	0.07 +/- 0.04	K	RT 583 - STRUT TEMP
4rt584t	0.742	0.002	(2.95+/-0.06)e2	0.07 +/- 0.04	K	RT 584 - STRUT TEMP
4rt585t	0.745	0.002	(2.95+/-0.06)e2	0.08 +/- 0.04	K	RT 585 - STRUT TEMP
4rt586t	0.596	0.002	(2.92+/-0.05)e2	0.08 +/- 0.04	K	RT 586 - STRUT TEMP
4rt587t	0.385	0.002	(2.88+/-0.03)e2	0.06 +/- 0.03	K	RT 587 - STRUT TEMP
4rt588t	-0.010	7.824e-04	(2.83+/-0.01)e2	0.03 +/- 0.01	K	RT 588 - STRUT TEMP
4rt589t	0.783	0.003	(2.90+/-0.07)e2	0.08 +/- 0.05	K	RT 589 - STRUT TEMP
4rt590t	1.363	0.004	(2.98+/-0.11)e2	0.10 +/- 0.07	K	RT 590 - STRUT TEMP
4rt591t	1.353	0.004	(2.98+/-0.11)e2	0.12 +/- 0.07	K	RT 591 - STRUT TEMP
4rt592t	0.714	0.003	(2.89+/-0.06)e2	0.10 +/- 0.04	K	RT 592 - STRUT TEMP
4rt593t	-0.016	6.172e-04	(2.83+/-0.01)e2	0.02 +/- 0.01	K	RT 593 - STRUT TEMP
4rt594t	0.016	0.003	(2.88+/-0.02)e2	0.03 +/- 0.01	K	RT 594 - TFTE TEMP
4rt595t	0.727	0.002	(2.90+/-0.06)e2	0.09 +/- 0.04	K	RT 595 - TFTE TEMP
4rt596t	0.615	0.003	(2.88+/-0.05)e2	0.03 +/- 0.04	K	RT 596 - TFTE TEMP
4rt597t	1.302	0.003	(2.97+/-0.11)e2	0.14 +/- 0.07	K	RT 597 - TFTE TEMP
4rt598t	1.286	0.003	(2.97+/-0.11)e2	0.14 +/- 0.07	K	RT 598 - TFTE TEMP

If you have any questions, please contact: swolk@head.cfa.harvard.edu
