MTA Monitoring Report 02/27/26 - 03/05/26

Archive of all weekly reports
Archive of monthly reports

Radiation

Quiet

Detrended CTI

Although we prefer to quote CTI values of the cleanest data (FT <= -119.7 C, int time > 7000sec), the data that fulfills these conditions are getting rare. We now quote CTI based on temperature corrected data for Focal plane temperature <= -118.5 C).

The unit is now CTI/year not CTI/day.

Average of ACIS-I CCDs (MnKa) slope: 5.214e-02 CTI/year (1.428e-04 CTI/day)
Detrended slope: 4.865e-02 CTI/year (1.333e-04 CTI/day)

ACIS Warm Pixels

We display all bad pixels that have showed up in past, and, if any, previously unknown bad pixels appeared in the last 14 days. We also list hot pixels (defined as 1000 above the average of bias background). Warm columns 509-514 are probably due to boundaries.

New definitions of warm pixels and flickering pixels (May 15, 2014). If a pixel displays the level beyond a threshold for more than 70% of the time in the past two weeks, the pixel is categorized as a "warm" pixel. If a pixel is above the threshold more than 30% of time but less than 70% of the time in the past two weeks, the pixel is categorized as a "flickering" pixel.

 CCD0CCD1CCD2CCD3CCD4CCD5CCD6CCD7CCD8CCD9
Previously Unknown Bad Pixels   (240,61) (772,9) (331,455)
Current Warm Pixels (786,117) (427,125) (910,239) (665,25) (104,31) (526,66) (99,899) (726,537) (178,149) (803,225) (837,378) (617,159) (811,637) (21,95) (680,391)     (849,169) (670,387)
Flickering Warm Pixels (283,278) (802,665) (370,70) (787,181) (642,361) (353,201) (318,53) (394,80)   (233,102) (357,303) (369,376) (263,317) (1000,214) (335,412) (182,474) (275,393) (136,65) (597,187) (447,769)
Current Hot Pixels
Flickering Hot Pixels
Warm column candidates           512 1022 510   512 1022
Flickering Warm column candidates

ACIS Focal Plane Temperature

For this period, 8 peaks are observed.

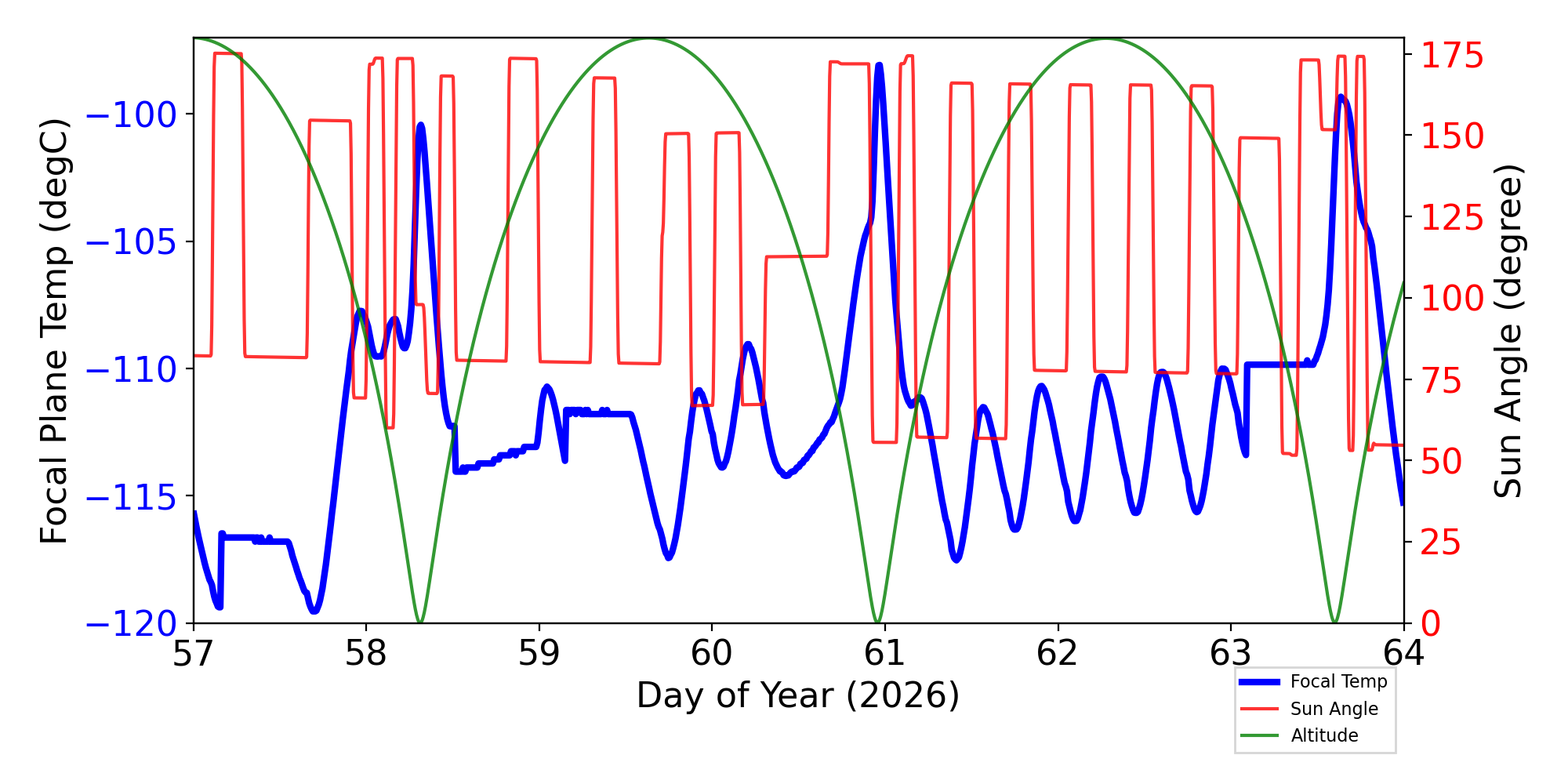

Weekly focal plane temperature with sun angle, earth angle, and altitude overplotted. Sun angle is the solar array angle, that is the angle between the sun and the optical axis (+X axis). The earth angle is the angle between earth and the ACIS radiator (+Z axis). Altitude varies from 34 kkm to 128 kkm.



SIM Movements

7 TSC moves this period

Telemetry

New violations or new extrema are shown in blue cells.

MSID 02/27/26 02/28/26 03/01/26 03/02/26 03/03/26 03/04/26 03/05/26 yellow limits
(lower)
upper 		red limits
(lower)
upper 		Units Description
AWD1TQI     (-3.39)         (-1.22)
1.22		 (-3.3)
3.3		 AMPWHEEL 1 TORQUE CURRENT
AWD6TQI     (-3.47)         (-1.22)
1.22		 (-3.3)
3.3		 AMPWHEEL 6 TORQUE CURRENT
CTXBPWR (0.00)     (0.00) (0.00) (0.00) (0.00) (36.12)
37.0		 (36.0)
38.0		 DBMTRANSMITTER B OUTPUT POWER
MZOBACONE 312.03 311.68 314.36 308.70 309.67 308.17 308.17 (260.2)
303.0		 (250.2)
308.0		 CONE-Z SIDE OBA CONE
OBAAVG 303.18 303.10 305.89 301.16 301.43     (282.5)
300.0		 (281.4)
301.0		 KOBA/TFTE TEMP
OBACONEAVG           305.69 304.92 (282.5)
300.0		 (281.8)
301.0		 KOBA CONE AVG TEMP
OBADIAGRAD 4.86 4.93 4.55 4.78 4.94 4.43 4.91 (-1.11)
3.5		 (-2.78)
3.9		 KOBA DIAM GRAD
PZOBACONE     310.68         (260.2)
303.0		 (250.2)
308.0		 CONE+Z SIDE OBA CONE
TCYZ_RW1             (275.71) (288.15)
363.15		 (278.15)
404.15		 KRWA -1 TEMP (RWA CRNR COMP)
TFTERANGE 46.39 47.13 49.07 45.62   46.77 45.79 (16.7)
37.5		 (11.1)
45.0		 KTFTE VENT/RAD TEMP


IRUs

Gyro Bias Drift Gyro Bias Drift Histogram

Recent Observations

OBSID DETECTOR GRATING TARGET ANALYSIS ACA
32182 ACIS-67 NONE HD 20385 OK OK
31147 ACIS-67 NONE AT2026dbl OK OK
30304 ACIS-0123 NONE Perseus cluster OK OK
32180 ACIS-67 NONE SDSS J102258.41+123429.7 OK OK
32176 ACIS-0123 NONE Center of COSMOS-Web OK OK
32177 ACIS-0123 NONE Perseus cluster OK OK
30305 ACIS-01236 NONE Perseus cluster OK OK
31142 ACIS-0123 NONE g12.82-0.02 OK OK
32175 ACIS-3678 NONE NGC4654 OK OK
32174 ACIS-3678 NONE NGC4654 OK OK
32181 ACIS-0123 NONE g12.82-0.02 OK OK
31875 ACIS-0123 NONE G292.0+1.8 OK OK
30260 ACIS-0123 NONE Center of COSMOS-Web OK OK
30017 ACIS-0123 NONE [vD2023]1 OK OK
32191 ACIS-0123 NONE Center of COSMOS-Web OK OK
30286 ACIS-0123 NONE Perseus cluster OK OK
32186 ACIS-0123 NONE [vD2023]1 OK OK
30067 ACIS-0123 NONE Center of COSMOS-Web OK OK
32192 ACIS-0123 NONE Center of COSMOS-Web OK OK
32199 ACIS-0123 NONE Perseus cluster OK OK
32187 ACIS-0123 NONE Center of COSMOS-Web OK OK
32200 ACIS-0123 NONE Perseus cluster OK OK
30292 ACIS-0123 NONE Perseus cluster OK OK
31148 ACIS-67 NONE AT2026dbl OK OK
32188 ACIS-0123 NONE Center of COSMOS-Web OK OK
30231 ACIS-0123 NONE [vD2023]1 OK OK
30265 ACIS-0123 NONE Center of COSMOS-Web OK OK
32190 ACIS-0123 NONE [vD2023]1 OK OK
32193 ACIS-0123 NONE Center of COSMOS-Web OK OK
31880 ACIS-0123 NONE Perseus cluster OK OK
32202 ACIS-0123 NONE Perseus cluster OK OK

Trending

This week's focus is PCAD

Last reported on Dec 18.

Only the most interesting or representative msids are shown below. For a full listing choose the bulletted link.


MSIDMeanRMSDelta/YrDelta/Yr/YrUnitDescription
afsspc2von0.0044.414e-043.51 +/- 0.14-(3.18+/-4.03)e-5VFSS POWER CONV 2 VOLTAGE
 off0.0015.434e-040.01 +/- 0.14(0.00+/-0.00)e0
airu2g1ion-0.4840.008(1.01+/-0.06)e2-0.07 +/- 0.02mAIRU-2 GYRO
 off-0.2420.0749.74 +/- 4.62-0.17 +/- 0.37
airu2g2ion0.4310.035(1.06+/-0.23)e20.10 +/- 0.06mAIRU-2 GYRO
 off-0.1960.0769.74 +/- 4.74-0.12 +/- 0.33
airu2g2ton-0.0660.008(3.41+/-0.06)e2(6.95+/-60.24)e-5KIRU-2 GYRO
 off0.0710.045(2.93+/-0.03)e2-0.03 +/- 0.02

MSIDMeanRMSDelta/YrDelta/Yr/YrUnitDescription
aogyrct1 -0.2531.02014.96 +/- 836.77-14.60 +/- 10.94CNTSACCUMULATED GYRO PULSE COUNTS FROM OBC SELECTED GYRO 1
aogyrct2 -2.6371.6327.56 +/- 1338.89-9.94 +/- 25.34CNTSACCUMULATED GYRO PULSE COUNTS FROM OBC SELECTED GYRO 2
aogyrct3 2.8922.998-20.53 +/- 2458.8617.74 +/- 34.61CNTSACCUMULATED GYRO PULSE COUNTS FROM OBC SELECTED GYRO 3
aogyrct4 0.2621.167-33.57 +/- 956.71-1.80 +/- 6.25CNTSACCUMULATED GYRO PULSE COUNTS FROM OBC SELECTED GYRO 4
