MTA Monitoring Report 05/01/26 - 05/07/26

Archive of all weekly reports
Archive of monthly reports

Although we prefer to quote CTI values of the cleanest data (FT <= -119.7 C, int time > 7000sec), the data that fulfills these conditions are getting rare. We now quote CTI based on temperature corrected data for Focal plane temperature <= -118.5 C).

The unit is now CTI/year not CTI/day.

Average of ACIS-I CCDs (MnKa) slope:	5.214e-02 CTI/year	(1.428e-04 CTI/day)
Detrended slope:	4.865e-02 CTI/year	(1.333e-04 CTI/day)

ACIS Warm Pixels

We display all bad pixels that have showed up in past, and, if any, previously unknown bad pixels appeared in the last 14 days. We also list hot pixels (defined as 1000 above the average of bias background). Warm columns 509-514 are probably due to boundaries.

New definitions of warm pixels and flickering pixels (May 15, 2014). If a pixel displays the level beyond a threshold for more than 70% of the time in the past two weeks, the pixel is categorized as a "warm" pixel. If a pixel is above the threshold more than 30% of time but less than 70% of the time in the past two weeks, the pixel is categorized as a "flickering" pixel.

	CCD0	CCD1	CCD2	CCD3	CCD4	CCD5	CCD6	CCD7	CCD8	CCD9
Previously Unknown Bad Pixels
Current Warm Pixels	(786,117)	(910,239)	(526,66) (178,149) (803,225) (665,25) (726,537) (837,378)	(811,637) (21,95)			(670,387) (849,169)	(335,412)	(136,65) (275,393)
Flickering Warm Pixels	(283,278)	(427,125) (802,665)	(104,31) (99,899)	(680,391)	(879,121)	(233,102) (369,376) (282,385) (161,206)	(287,164) (1000,214) (884,31)		(838,239) (541,41) (182,474) (333,466) (447,769) (178,399) (597,187) (295,978) (666,165)	(675,52)
Current Hot Pixels
Flickering Hot Pixels
Warm column candidates						510 1022 512		1022 512
Flickering Warm column candidates

ACIS Focal Plane Temperature

For this period, 4 peaks are observed.

Day (DOY)	Temp (C)	Width (Days)
119.17	-116.80	0.58
121.59	-102.07	2.49
123.23	-110.98	1.71
124.05	-107.58	0.33

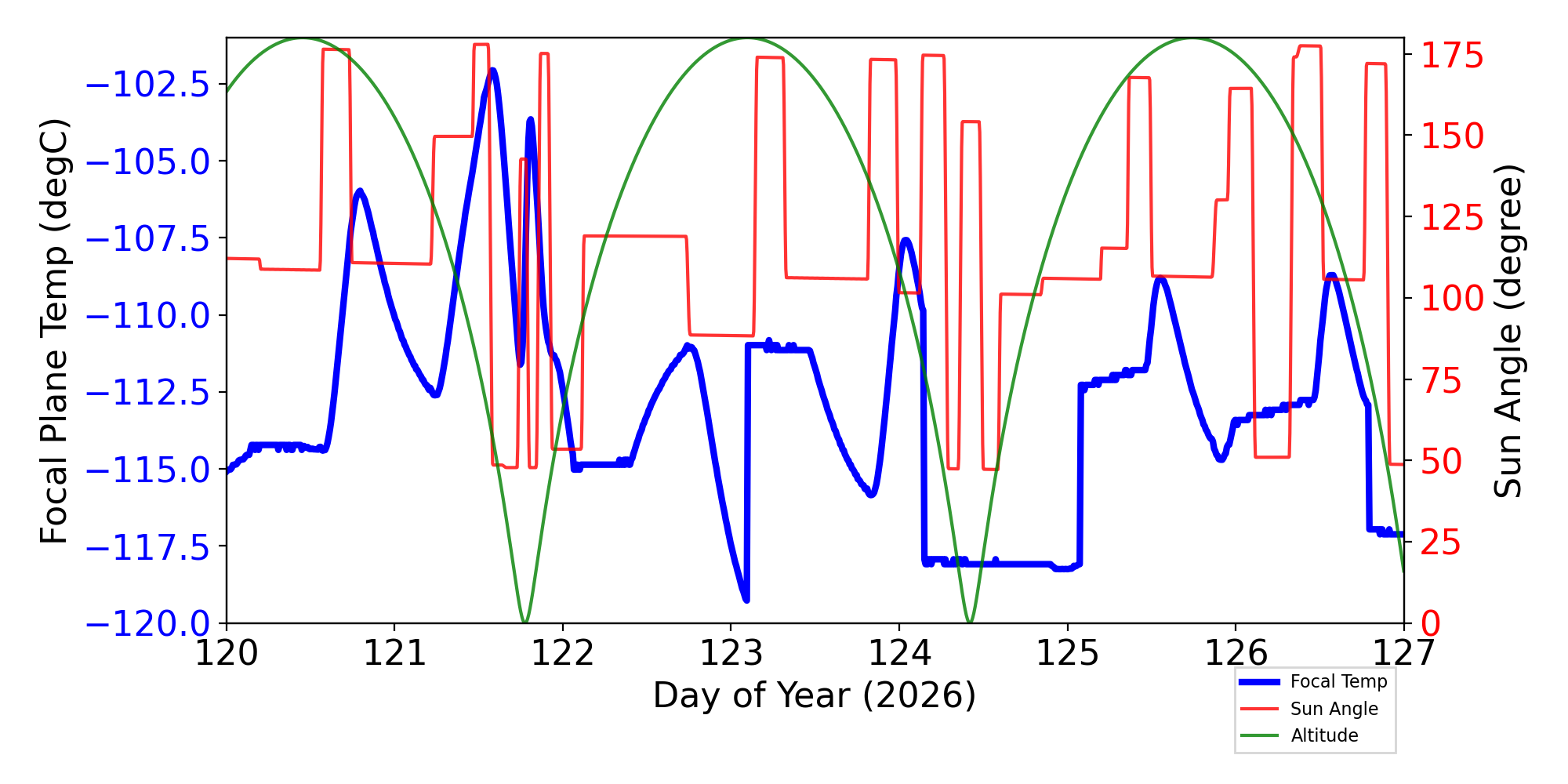

Weekly focal plane temperature with sun angle, earth angle, and altitude overplotted. Sun angle is the solar array angle, that is the angle between the sun and the optical axis (+X axis). The earth angle is the angle between earth and the ACIS radiator (+Z axis). Altitude varies from 34 kkm to 128 kkm.

SIM Movements

10 TSC moves this period

weekly average time/step	0.00130 s
mission average time/step	0.00132 s

Telemetry

New violations or new extrema are shown in blue cells.

MSID	05/01/26	05/02/26	05/03/26	05/04/26	05/05/26	05/06/26	05/07/26	yellow limits (lower) upper	red limits (lower) upper	Units	Description
1CRBT	677.96			677.96				(136.15) 183.15	(131.15) 193.15	K	COLD RADIATOR TEMP. B
1CRBTC	(48.36)			(58.62)				(136.15) 183.15	(131.15) 193.15	C	COLD RADIATOR TEMP. B
AFTBLKHDT		309.41	310.73		308.05		308.52	(260.2) 303.0	(250.2) 308.0	TEMP	AFT BULKHEAD TEMP
AWD1TQI	(-3.39)					(-3.39)		(-1.22) 1.22	(-3.3) 3.3	AMP	WHEEL 1 TORQUE CURRENT
AWD6TQI	(-3.43)					(-3.47)		(-1.22) 1.22	(-3.3) 3.3	AMP	WHEEL 6 TORQUE CURRENT
CTXBPWR		(0.00)		(0.00)	(0.00)	(0.00)	(0.00)	(36.12) 37.0	(36.0) 38.0	DBM	TRANSMITTER B OUTPUT POWER
HRMAAVG			(304.83)	(304.00)	(304.49)	(304.04)		(306.0) 308.0	(305.0) 309.0	K	AVG OF HRMA METRICS
MZOBACONE	313.95		316.63	313.32		310.81	314.62	(260.2) 303.0	(250.2) 308.0	CONE	-Z SIDE OBA CONE
OBAAVG	305.71	306.50		304.69		303.97	305.59	(282.5) 300.0	(281.4) 301.0	K	OBA/TFTE TEMP
OBADIAGRAD	4.14	4.41	4.34	4.55	4.16	4.42	4.67	(-1.11) 3.5	(-2.78) 3.9	K	OBA DIAM GRAD
PZOBACONE	310.28	311.31	312.58	309.22	311.27	308.42	310.44	(260.2) 303.0	(250.2) 308.0	CONE	+Z SIDE OBA CONE
TCYZ_RW1		(274.98)						(288.15) 363.15	(278.15) 404.15	K	RWA -1 TEMP (RWA CRNR COMP)
TCYZ_RW6			(276.44)					(288.15) 363.15	(278.15) 404.15	K	RWA -6 TEMP (RWA CRNR COMP)
TFTERANGE	48.95	49.14	48.96	48.71		47.48	48.45	(16.7) 37.5	(11.1) 45.0	K	TFTE VENT/RAD TEMP

IRUs

Gyro Bias Drift	Gyro Bias Drift Histogram

Recent Observations

OBSID	DETECTOR	GRATING	TARGET	ANALYSIS	ACA
30070	ACIS-0123	NONE	Center of COSMOS-Web	OK	OK
32318	ACIS-267	NONE	SDSS J152322.13+124133.2	OK	OK
32322	ACIS-3678	NONE	NGC1317	OK	OK
26961	ACIS-5678	HETG	WR 25	OK/NA	OK
32323	ACIS-0123	NONE	MOOJ1415-1422	OK	OK
31627	ACIS-3678	NONE	NGC3079	OK	OK
32324	ACIS-0123	NONE	MOOJ1415-1422	OK	OK
31736	ACIS-567	LETG	MKN421	OK/NA	OK
30101	ACIS-456789	HETG	AN UMa	OK/NA	OK
32328	ACIS-456789	HETG	AN UMa	OK/NA	OK
31929	ACIS-3678	NONE	NGC3137	OK	OK
30536	ACIS-0123	NONE	Hoinga	OK	OK
32291	HRC-I	NONE	PSR J1810-0623	OK	OK
32326	ACIS-67	NONE	2RXS J135911.3-195005	OK	OK
30262	ACIS-0123	NONE	Center of COSMOS-Web	OK	OK
32325	ACIS-67	NONE	SDSSJ152055.44-023440.4	OK	OK
32080	ACIS-456789	HETG	TV Cassiopeia	OK/NA	OK
30204	ACIS-67	NONE	NGC5728	OK	OK
30063	ACIS-0123	NONE	Center of COSMOS-Web	OK	OK
30210	ACIS-67	NONE	NGC5728	OK	OK
31376	ACIS-3	NONE	E0102-72.3	OK	OK
30141	ACIS-3678	NONE	NGC0685	OK	OK

MSID	Mean	RMS	Delta/Yr	Delta/Yr/Yr	Unit	Description
5eiot	0.084	0.021	(3.37+/-0.17)e2	0.17 +/- 0.35	K	EIO TEMP
5ephint	2.130	0.009	(3.22+/-0.19)e2	-0.09 +/- 0.16	K	EPHIN TEMP
teio	1.471	0.017	(3.19+/-0.19)e2	0.21 +/- 0.35	K	EPHIN ELECTRONICS HOUSING TEMP
tephin	2.110	0.009	(3.22+/-0.18)e2	0.02 +/- 0.16	K	EPHIN SENSOR HOUSING TEMP

MTA Monitoring Report 05/01/26 - 05/07/26

Radiation

Detrended CTI
