MTA Monitoring Report 05/08/26 - 05/14/26

Archive of all weekly reports
Archive of monthly reports

Although we prefer to quote CTI values of the cleanest data (FT <= -119.7 C, int time > 7000sec), the data that fulfills these conditions are getting rare. We now quote CTI based on temperature corrected data for Focal plane temperature <= -118.5 C).

The unit is now CTI/year not CTI/day.

Average of ACIS-I CCDs (MnKa) slope:	5.214e-02 CTI/year	(1.428e-04 CTI/day)
Detrended slope:	4.865e-02 CTI/year	(1.333e-04 CTI/day)

ACIS Warm Pixels

We display all bad pixels that have showed up in past, and, if any, previously unknown bad pixels appeared in the last 14 days. We also list hot pixels (defined as 1000 above the average of bias background). Warm columns 509-514 are probably due to boundaries.

New definitions of warm pixels and flickering pixels (May 15, 2014). If a pixel displays the level beyond a threshold for more than 70% of the time in the past two weeks, the pixel is categorized as a "warm" pixel. If a pixel is above the threshold more than 30% of time but less than 70% of the time in the past two weeks, the pixel is categorized as a "flickering" pixel.

	CCD0	CCD1	CCD2	CCD3	CCD4	CCD5	CCD6	CCD7	CCD8	CCD9
Previously Unknown Bad Pixels
Current Warm Pixels	(786,117)	(910,239) (802,665)	(665,25) (726,537) (526,66) (99,899) (178,149) (803,225)	(811,637) (21,95)			(849,169) (670,387)	(335,412)	(182,474) (136,65) (275,393) (597,187)
Flickering Warm Pixels	(171,937)	(427,125)	(104,31) (837,378)	(680,391)	(758,244) (419,163) (879,121)	(367,511) (258,797) (282,385) (161,206) (233,79) (233,227) (263,317) (357,303) (233,102) (877,408) (369,376)	(884,31) (1000,214)		(666,165) (675,304) (178,399) (881,53) (541,41) (838,239) (295,978) (139,109) (34,645) (447,769)	(40,49) (675,52)
Current Hot Pixels
Flickering Hot Pixels
Warm column candidates						1022 512 510		1022 512
Flickering Warm column candidates

ACIS Focal Plane Temperature

For this period, 6 peaks are observed.

Day (DOY)	Temp (C)	Width (Days)
126.86	-117.12	1.19
127.85	-111.31	0.44
128.60	-108.14	0.96
129.76	-103.11	2.12
131.63	-108.85	0.66
132.80	-110.26	0.42

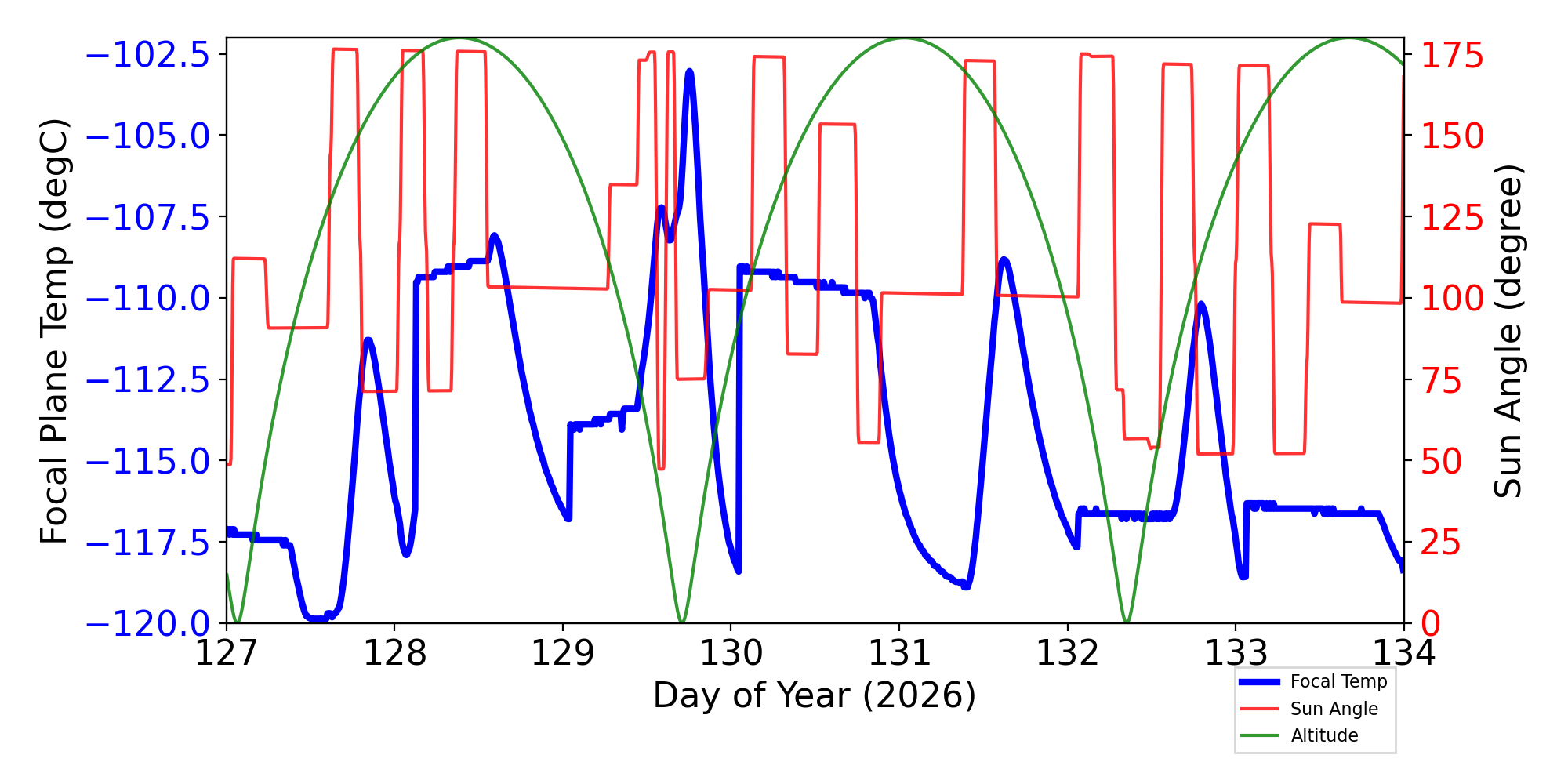

Weekly focal plane temperature with sun angle, earth angle, and altitude overplotted. Sun angle is the solar array angle, that is the angle between the sun and the optical axis (+X axis). The earth angle is the angle between earth and the ACIS radiator (+Z axis). Altitude varies from 34 kkm to 128 kkm.

SIM Movements

9 TSC moves this period

weekly average time/step	0.00133 s
mission average time/step	0.00132 s

Telemetry

New violations or new extrema are shown in blue cells.

MSID	05/08/26	05/09/26	05/10/26	05/11/26	05/12/26	05/13/26	05/14/26	yellow limits (lower) upper	red limits (lower) upper	Units	Description
AFTBLKHDT				308.07				(260.2) 303.0	(250.2) 308.0	TEMP	AFT BULKHEAD TEMP
AWD1TQI					(-3.39)		(-3.39)	(-1.22) 1.22	(-3.3) 3.3	AMP	WHEEL 1 TORQUE CURRENT
AWD6TQI		(-3.47)			(-3.43)	(-3.47)	(-3.43)	(-1.22) 1.22	(-3.3) 3.3	AMP	WHEEL 6 TORQUE CURRENT
CTXBPWR	(0.00)	(0.00)		(0.00)	(0.00)	(0.00)	(0.00)	(36.12) 37.0	(36.0) 38.0	DBM	TRANSMITTER B OUTPUT POWER
MZOBACONE	311.35	313.54	313.98	314.38	313.92	311.54	313.36	(260.2) 303.0	(250.2) 308.0	CONE	-Z SIDE OBA CONE
OBAAVG	302.88	304.91	305.30	305.51	305.33	302.99	304.64	(282.5) 300.0	(281.4) 301.0	K	OBA/TFTE TEMP
OBACONEAVG	308.41					308.44		(282.5) 300.0	(281.8) 301.0	K	OBA CONE AVG TEMP
OBADIAGRAD	4.70	4.54	4.75	4.51	4.26	4.58	4.50	(-1.11) 3.5	(-2.78) 3.9	K	OBA DIAM GRAD
PZOBACONE		309.58	309.97	310.30	309.95		309.22	(260.2) 303.0	(250.2) 308.0	CONE	+Z SIDE OBA CONE
TCYZ_RW6						(276.07)		(288.15) 363.15	(278.15) 404.15	K	RWA -6 TEMP (RWA CRNR COMP)
TFTERANGE	48.46	48.92	48.56	48.66	48.73	48.30	48.68	(16.7) 37.5	(11.1) 45.0	K	TFTE VENT/RAD TEMP

IRUs

Gyro Bias Drift	Gyro Bias Drift Histogram

Recent Observations

OBSID	DETECTOR	GRATING	TARGET	ANALYSIS	ACA
30141	ACIS-3678	NONE	NGC0685	OK	OK
32330	ACIS-67	NONE	NGC5728	OK	OK
32331	ACIS-67	NONE	NGC5728	OK	OK
32329	ACIS-3678	NONE	NGC0685	OK	OK
30062	ACIS-0123	NONE	Center of COSMOS-Web	OK	OK
32161	ACIS-0123	NONE	BOSS1348	OK	OK
32332	ACIS-67	NONE	NGC5728	OK	OK
32327	ACIS-0123	NONE	Center of COSMOS-Web	OK	OK
31494	HRC-I	NONE	WR 8	OK	OK
31918	ACIS-0123	NONE	Abell 3558 SE	OK	OK
31456	ACIS-567	NONE	ACT-CL J0520.4-2757	OK	OK
30059	ACIS-0123	NONE	Center of COSMOS-Web	OK	OK
29939	ACIS-67	NONE	NGC5728	OK	OK
30060	ACIS-0123	NONE	Center of COSMOS-Web	OK	OK
32339	ACIS-67	NONE	NGC5728	OK	OK
30091	ACIS-5678	HETG	TV Cassiopeia	OK/NA	OK
30195	ACIS-67	NONE	NGC5728	OK	OK
32341	ACIS-456789	HETG	TV Cassiopeia	OK/NA	OK
32210	ACIS-0123	NONE	Cloverleaf ORC	OK	OK
30258	ACIS-0123	NONE	Center of COSMOS-Web	OK	OK
32343	ACIS-67	NONE	NGC5728	OK	OK
31145	ACIS-5678	NONE	SN2026hkg	OK	OK
30066	ACIS-0123	NONE	Center of COSMOS-Web	OK	OK

MSID	Mean	RMS	Delta/Yr	Delta/Yr/Yr	Unit	Description
3btu_bpt	0.388	0.007	(2.66+/-0.07)e2	-0.15 +/- 0.17	K	BTU BASEPLATE (+X)), ABORT HTR TSC2
3fabraat	0.186	0.004	(2.67+/-0.04)e2	-0.05 +/- 0.07	K	FA STRUCTURE AT BEARING A ABORT HTR. FA6 TEMP
3fabrcat	0.188	0.007	(2.76+/-0.06)e2	0.03 +/- 0.15	K	FA STRUCTURE AT BEARING C ABORT HTR. FA6 TEMP
3famyzat	-0.129	0.014	(2.83+/-0.12)e2	0.03 +/- 0.17	K	FA STRUCTURE +X FACE AT -Y-Z END ABORT HTR. FA6 TEMP
3fapyzat	-0.215	0.014	(2.82+/-0.12)e2	-0.04 +/- 0.07	K	FA STRUCTURE +X FACE AT +Y+Z END ABORT HTR. FA6 TEMP
3faralat	0.066	0.013	(2.77+/-0.11)e2	-0.02 +/- 0.22	K	FA STRUCTURE AT RAIL -Z, ABORT HEATER FA6 TEMP
3flcabpt	0.326	0.004	(2.82+/-0.04)e2	-0.07 +/- 0.08	K	FLCA BASEPLATE (+X)
3rctubpt	0.518	0.009	(2.74+/-0.09)e2	-0.20 +/- 0.21	K	RCTU BASEPLATE (+X)
3tsmxcet	1.870	0.024	(2.30+/-0.25)e2	0.14 +/- 0.52	K	-X TURTLE SHELL NR HRC CEA
3tsmxspt	10.519	0.100	(3.35+/-1.18)e2	1.58 +/- 1.84	K	-X TURTLE SHELL NR ACIS SS
3tsmydpt	0.714	0.010	(2.33+/-0.10)e2	-0.08 +/- 0.21	K	-Y TURTLE SHELL NR ACIS DPA
3tspyfet	0.153	0.008	(2.33+/-0.06)e2	-0.16 +/- 0.16	K	+Y TURTLE SHELL NR HRC FEA
3tspzdet	0.624	0.008	(2.68+/-0.08)e2	-0.08 +/- 0.17	K	+Z TURTLE SHELL NR ACIS DEA
3tspzspt	0.631	0.007	(2.72+/-0.08)e2	-0.06 +/- 0.17	K	+Z TURTLE SHELL NR ACIS SS
3ttacs1t	0.210	0.003	(2.66+/-0.03)e2	-0.03 +/- 0.06	K	TT at ACIS Attach #1 Abort Htr
3ttacs2t	0.200	0.004	(2.66+/-0.03)e2	-0.00 +/- 0.08	K	TT at ACIS Attach #2 Abort Htr
3ttacs3t	0.179	0.002	(2.62+/-0.02)e2	0.03 +/- 0.04	K	TT at ACIS Attach #3 Abort Htr
3ttbrgbt	0.264	0.010	(2.60+/-0.08)e2	-0.06 +/- 0.23	K	TT at Bearing B, Abort Htr TSC4
3tthrc1t	0.243	0.010	(2.69+/-0.09)e2	-0.08 +/- 0.24	K	TT at HRC Bipod Attach #1
3tthrc2t	0.188	0.010	(2.73+/-0.09)e2	-0.05 +/- 0.24	K	TT at HRC Bipod Attach #2
3tthrc3t	0.139	0.004	(2.68+/-0.03)e2	0.07 +/- 0.09	K	TT at HRC Bipod Attach #3
3ttralat	0.319	0.007	(2.47+/-0.07)e2	0.11 +/- 0.15	K	TT at Rail A, Abort Htr TSC3
3ttralct	0.205	0.005	(2.67+/-0.04)e2	0.01 +/- 0.11	K	TT at Rail C, Abort Htr TSC3
3ttvalvt	0.397	0.009	(2.54+/-0.08)e2	0.11 +/- 0.21	K	TT at Vent Valve, Abort Htr TSC7

If you have any questions, please contact: swolk@head.cfa.harvard.edu
