MTA Monitoring Report 06/05/26 - 06/11/26

Archive of all weekly reports
Archive of monthly reports

Radiation

Quiet

Detrended CTI

Although we prefer to quote CTI values of the cleanest data (FT <= -119.7 C, int time > 7000sec), the data that fulfills these conditions are getting rare. We now quote CTI based on temperature corrected data for Focal plane temperature <= -118.5 C).

The unit is now CTI/year not CTI/day.

Average of ACIS-I CCDs (MnKa) slope: 5.214e-02 CTI/year (1.428e-04 CTI/day)
Detrended slope: 4.865e-02 CTI/year (1.333e-04 CTI/day)

ACIS Warm Pixels

We display all bad pixels that have showed up in past, and, if any, previously unknown bad pixels appeared in the last 14 days. We also list hot pixels (defined as 1000 above the average of bias background). Warm columns 509-514 are probably due to boundaries.

New definitions of warm pixels and flickering pixels (May 15, 2014). If a pixel displays the level beyond a threshold for more than 70% of the time in the past two weeks, the pixel is categorized as a "warm" pixel. If a pixel is above the threshold more than 30% of time but less than 70% of the time in the past two weeks, the pixel is categorized as a "flickering" pixel.

 CCD0CCD1CCD2CCD3CCD4CCD5CCD6CCD7CCD8CCD9
Previously Unknown Bad Pixels   (110,18) (266,210)
Current Warm Pixels     (526,66) (803,225) (178,149) (99,899) (21,95) (811,637)       (335,412) (275,393)
Flickering Warm Pixels (786,117) (154,9) (802,665) (910,239) (427,125) (665,25) (726,537) (680,391)   (641,669) (877,408) (367,511) (282,385) (258,797) (728,340) (226,202) (263,317) (233,227) (669,577) (233,102) (369,376) (161,206) (357,303) (849,169) (670,387) (360,249) (287,164) (884,31)   (136,65) (447,769) (541,41) (295,978) (220,813) (182,474) (597,187) (838,239)
Current Hot Pixels
Flickering Hot Pixels
Warm column candidates           510 1022 512   1022 512
Flickering Warm column candidates

ACIS Focal Plane Temperature

For this period, 5 peaks are observed.

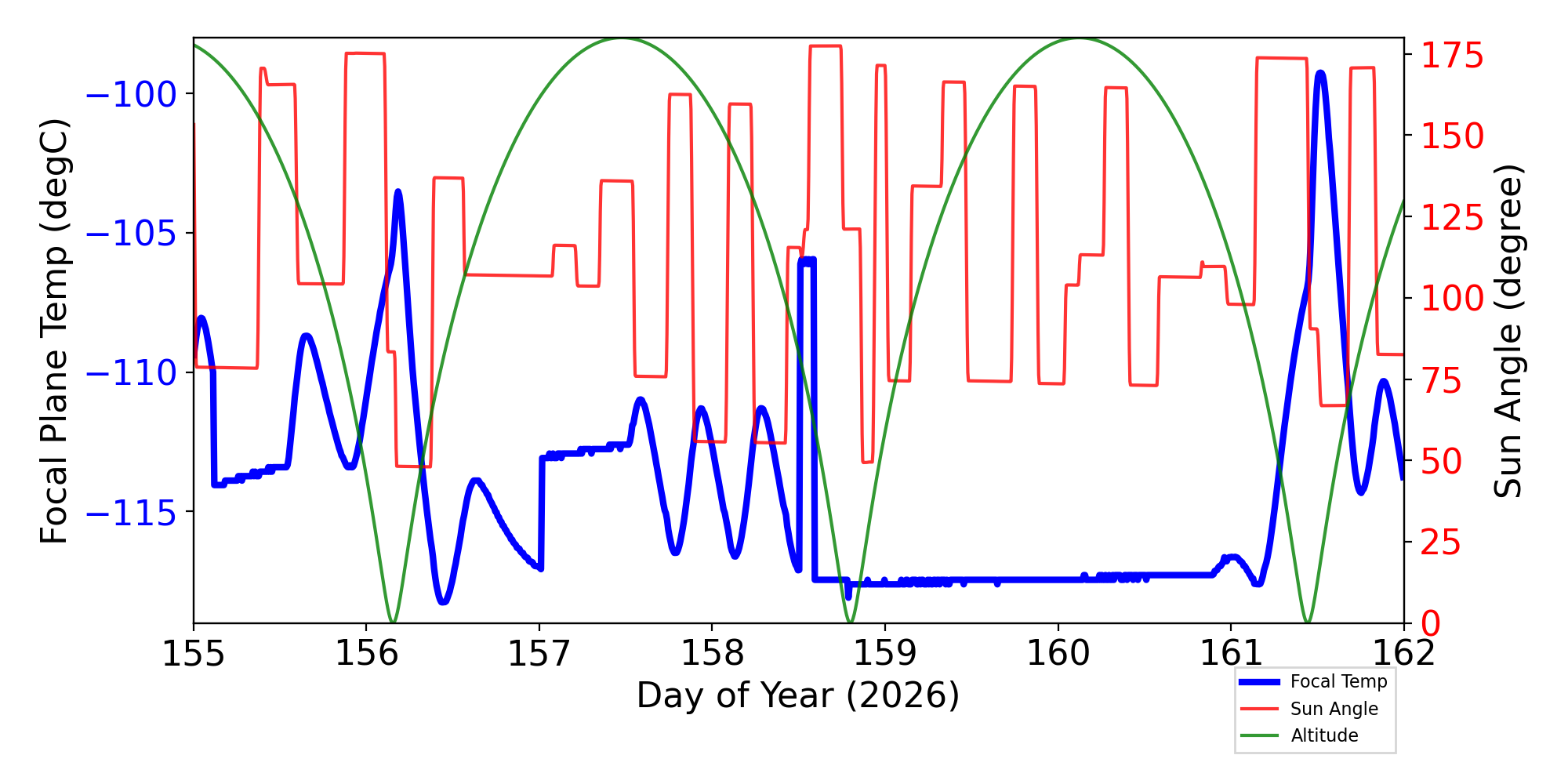

Weekly focal plane temperature with sun angle, earth angle, and altitude overplotted. Sun angle is the solar array angle, that is the angle between the sun and the optical axis (+X axis). The earth angle is the angle between earth and the ACIS radiator (+Z axis). Altitude varies from 34 kkm to 128 kkm.



SIM Movements

12 TSC moves this period

Telemetry

New violations or new extrema are shown in blue cells.

MSID 06/05/26 06/06/26 06/07/26 06/08/26 06/09/26 06/10/26 06/11/26 yellow limits
(lower)
upper 		red limits
(lower)
upper 		Units Description
1CRBT 677.96   677.96 677.96   677.96 677.96 (136.15)
183.15		 (131.15)
193.15		 KCOLD RADIATOR TEMP. B
1CRBTC (45.80)   (58.62) (71.48)   (35.58) (74.06) (136.15)
183.15		 (131.15)
193.15		 CCOLD RADIATOR TEMP. B
AFTBLKHDT   308.80       308.78   (260.2)
303.0		 (250.2)
308.0		 TEMPAFT BULKHEAD TEMP
AWD1TQI     (-3.39)   (-3.39) (-3.39)   (-1.22)
1.22		 (-3.3)
3.3		 AMPWHEEL 1 TORQUE CURRENT
AWD4TQI         (-3.43)     (-1.22)
1.22		 (-3.3)
3.3		 AMPWHEEL 4 TORQUE CURRENT
AWD6TQI         (-3.39) (-3.43)   (-1.22)
1.22		 (-3.3)
3.3		 AMPWHEEL 6 TORQUE CURRENT
CTXBPWR       (0.00)       (36.12)
37.0		 (36.0)
38.0		 DBMTRANSMITTER B OUTPUT POWER
HRMAAVG   (304.06) (303.95)         (306.0)
308.0		 (305.0)
309.0		 KAVG OF HRMA METRICS
MZOBACONE 312.36   311.84 309.76 314.05 315.07 308.23 (260.2)
303.0		 (250.2)
308.0		 CONE-Z SIDE OBA CONE
OBAAVG 303.79   303.69 301.57 305.26 306.22   (282.5)
300.0		 (281.4)
301.0		 KOBA/TFTE TEMP
OBACONEAVG             305.48 (282.5)
300.0		 (281.8)
301.0		 KOBA CONE AVG TEMP
OBADIAGRAD 4.29 4.38 4.31 4.82 4.74 4.67 4.73 (-1.11)
3.5		 (-2.78)
3.9		 KOBA DIAM GRAD
PZOBACONE 308.21 310.77     309.86 311.08   (260.2)
303.0		 (250.2)
308.0		 CONE+Z SIDE OBA CONE
S2HVLV             (83.00) (126.0)
128.0		 (125.0)
129.0		 (2S2HVLV)Shield PMT 2 HV Monitor
TCYZ_RW1     (275.71)         (288.15)
363.15		 (278.15)
404.15		 KRWA -1 TEMP (RWA CRNR COMP)
TCYZ_RW6   (277.17) (277.17)         (288.15)
363.15		 (278.15)
404.15		 KRWA -6 TEMP (RWA CRNR COMP)
TFTERANGE 47.86   47.19 47.39   48.65 45.75 (16.7)
37.5		 (11.1)
45.0		 KTFTE VENT/RAD TEMP


IRUs

Gyro Bias Drift Gyro Bias Drift Histogram

Recent Observations

OBSID DETECTOR GRATING TARGET ANALYSIS ACA
32376 ACIS-67 NONE SNR G1.9+0.3 OK OK
30119 ACIS-0123 NONE PSR J1015-5719 OK OK
32333 ACIS-67 NONE LEDA 184063 OK OK
32372 ACIS-0123 NONE PSR J1015-5719 OK OK
31168 ACIS-67 NONE SN 2024ggi OK OK
32243 ACIS-67 HETG NGC 4593 OK/NA OK
30268 ACIS-0123 NONE Center of COSMOS-Web OK OK
32334 ACIS-67 NONE LEDA 184063 OK OK
32370 ACIS-67 NONE PKS1552-331 OK OK
31884 ACIS-5678 NONE ZwCl 0857.9+2107 OK OK
32369 ACIS-5678 NONE IGR J15549-3740 OK OK
32374 ACIS-5678 NONE ZwCl 0857.9+2107 OK OK
32371 ACIS-67 NONE 2MASS J12300479-1323350 OK OK
32373 ACIS-0123 NONE Center of COSMOS-Web OK OK
31312 ACIS-67 NONE LEDA 184063 OK OK
32380 ACIS-67 NONE 2RXS J161409.7-142143 OK OK
32379 ACIS-5678 NONE 2MASX J16242022-3311067 OK OK
30254 ACIS-0123 NONE Center of COSMOS-Web OK OK
30244 ACIS-0123 NONE Center of COSMOS-Web OK OK
31370 HRC-I LETG HZ43 OK/NA OK
32356 HRC-I LETG HZ43 OK/NA OK
32390 ACIS-67 NONE 2RXS J161409.7-142143 OK OK
32382 ACIS-0123 NONE Center of COSMOS-Web OK OK
29989 ACIS-67 HETG NGC 4593 OK/NA OK
29922 ACIS-67 NONE SDSS J131249.15+225151.5 OK OK
32378 ACIS-5678 HETG Cyg X-1 OK/NA OK
29654 ACIS-3678 NONE NGC4293 OK OK
30541 ACIS-0123 NONE CMZ Molecular Cloud OK OK
30506 ACIS-56789 HETG Vela X-1 OK/NA OK
32388 ACIS-0123 NONE CMZ Molecular Cloud OK OK
32357 HRC-I NONE Ar Lac OK OK
32389 ACIS-0123 NONE CMZ Molecular Cloud OK OK
29955 ACIS-678 NONE WISE J010050.09-024218.7 OK OK
32358 HRC-I NONE Ar Lac OK OK
30137 ACIS-2367 NONE Kepler's SNR OK OK

Trending

This week's focus is OBA Thermal

Last reported on Mar 26.

Only the most interesting or representative msids are shown below. For a full listing choose the bulletted link.


MSIDMeanRMSDelta/YrDelta/Yr/YrUnitDescription
oobthr02 0.4020.025(2.87+/-0.21)e20.06 +/- 0.03KRT 25: HRMA STRUT
oobthr03 0.6280.018(2.92+/-0.16)e20.07 +/- 0.04KRT 26: HRMA STRUT
oobthr04 0.7760.018(2.95+/-0.16)e20.07 +/- 0.04KRT 27: HRMA STRUT
oobthr05 0.7650.024(2.96+/-0.21)e20.08 +/- 0.04KRT 28: HRMA STRUT
oobthr06 0.6290.019(2.93+/-0.17)e20.08 +/- 0.04KRT 29: HRMA STRUT
oobthr07 0.4150.018(2.88+/-0.15)e20.06 +/- 0.03KRT 30: HRMA STRUT
oobthr08 1.0190.003(2.95+/-0.08)e20.10 +/- 0.06KRT 31: OBA CONE
oobthr09 0.7890.123(2.95+/-1.03)e20.10 +/- 0.06KRT 32: OBA CONE
oobthr10 0.7940.080(2.94+/-0.67)e20.10 +/- 0.05KRT 33: OBA CONE
oobthr11 0.9190.003(2.92+/-0.08)e20.10 +/- 0.05KRT 34: OBA CONE
oobthr12 0.9110.003(2.92+/-0.08)e20.10 +/- 0.05KRT 35: OBA CONE
oobthr13 -3.5402.478(3.10+/-20.70)e20.10 +/- 0.05KRT 36: OBA CONE
oobthr14 -1.0611.119(3.01+/-9.35)e20.10 +/- 0.05KRT 37: OBA CONE
oobthr15 0.9280.003(2.93+/-0.08)e20.10 +/- 0.05KRT 38: OBA CONE

MSIDMeanRMSDelta/YrDelta/Yr/YrUnitDescription
ohrthr02 -0.0030.001(2.95+/-0.01)e2(6.48+/-9.74)e-5KRT 2: HRMA FORWARD APERTURE PLATE
ohrthr03 0.0051.049e-04(2.95+/-0.00)e20.01 +/- 0.00KRT 5: HRMA FORWARD APERTURE PLATE
ohrthr04 -0.0040.002(2.95+/-0.02)e2(3.22+/-7.60)e-5KRT 9: HRMA PRECOLLIMATOR PLATE 10
ohrthr05 0.1299.705e-04(2.96+/-0.01)e20.04 +/- 0.02KRT 13: HRMA AFT HEATER PLATE
ohrthr06 0.0936.090e-04(2.95+/-0.01)e20.03 +/- 0.01KRT 14: HRMA MOUNT
ohrthr07 0.0995.975e-04(2.95+/-0.01)e20.03 +/- 0.01KRT 18: HSA OUTER CYLINDER
ohrthr08 0.0945.891e-04(2.95+/-0.01)e20.03 +/- 0.01KRT 103: HRMA CAP
ohrthr09 0.0905.490e-04(2.95+/-0.01)e20.03 +/- 0.01KRT 105: HRMA CAP
ohrthr10 0.0834.954e-04(2.95+/-0.01)e20.02 +/- 0.01KRT 107: HRMA P1 FLEXURE
ohrthr11 0.0814.990e-04(2.95+/-0.01)e20.03 +/- 0.01KRT 108: HRMA P4 FLEXURE
ohrthr12 0.1046.445e-04(2.95+/-0.01)e20.03 +/- 0.01KRT 115: HRMA H1 FLEXURE
ohrthr13 0.1006.153e-04(2.95+/-0.01)e20.03 +/- 0.01KRT 116: HRMA H6 FLEXURE
ohrthr14 0.1407.683e-04(2.95+/-0.01)e20.04 +/- 0.01KRT 121: HSA AFT INNER CYLINDER

If you have any questions, please contact: swolk@head.cfa.harvard.edu
