MTA Monitoring Report 07/03/26 - 07/09/26

Archive of all weekly reports
Archive of monthly reports

Although we prefer to quote CTI values of the cleanest data (FT <= -119.7 C, int time > 7000sec), the data that fulfills these conditions are getting rare. We now quote CTI based on temperature corrected data for Focal plane temperature <= -118.5 C).

The unit is now CTI/year not CTI/day.

Average of ACIS-I CCDs (MnKa) slope:	5.214e-02 CTI/year	(1.428e-04 CTI/day)
Detrended slope:	4.865e-02 CTI/year	(1.333e-04 CTI/day)

ACIS Warm Pixels

We display all bad pixels that have showed up in past, and, if any, previously unknown bad pixels appeared in the last 14 days. We also list hot pixels (defined as 1000 above the average of bias background). Warm columns 509-514 are probably due to boundaries.

New definitions of warm pixels and flickering pixels (May 15, 2014). If a pixel displays the level beyond a threshold for more than 70% of the time in the past two weeks, the pixel is categorized as a "warm" pixel. If a pixel is above the threshold more than 30% of time but less than 70% of the time in the past two weeks, the pixel is categorized as a "flickering" pixel.

	CCD0	CCD1	CCD2	CCD3	CCD5	CCD6	CCD7	CCD8
Previously Unknown Bad Pixels
Current Warm Pixels	(786,117)	(910,239) (370,70) (427,125)	(803,225) (526,66) (837,378) (99,899) (178,149)	(811,637) (21,95) (680,391)		(849,169) (670,387)	(335,412)
Flickering Warm Pixels	(283,278) (171,937)	(271,24) (700,242)	(726,537) (104,31) (665,25) (345,12)	(931,553) (318,53) (144,50) (617,159) (394,80)	(669,577) (369,376) (282,385) (367,511) (641,669) (357,303) (161,206) (233,102) (728,340) (877,408) (263,317)	(884,31) (1000,214)	(126,856)	(275,393) (675,304)
Current Hot Pixels
Flickering Hot Pixels
Warm column candidates					1022 512 510		1022 512
Flickering Warm column candidates

ACIS Focal Plane Temperature

For this period, 6 peaks are observed.

Day (DOY)	Temp (C)	Width (Days)
182.68	-100.73	0.74
183.33	-111.01	0.54
183.82	-112.19	0.35
184.16	-111.43	0.35
184.91	-105.30	2.69
187.95	-100.23	1.74

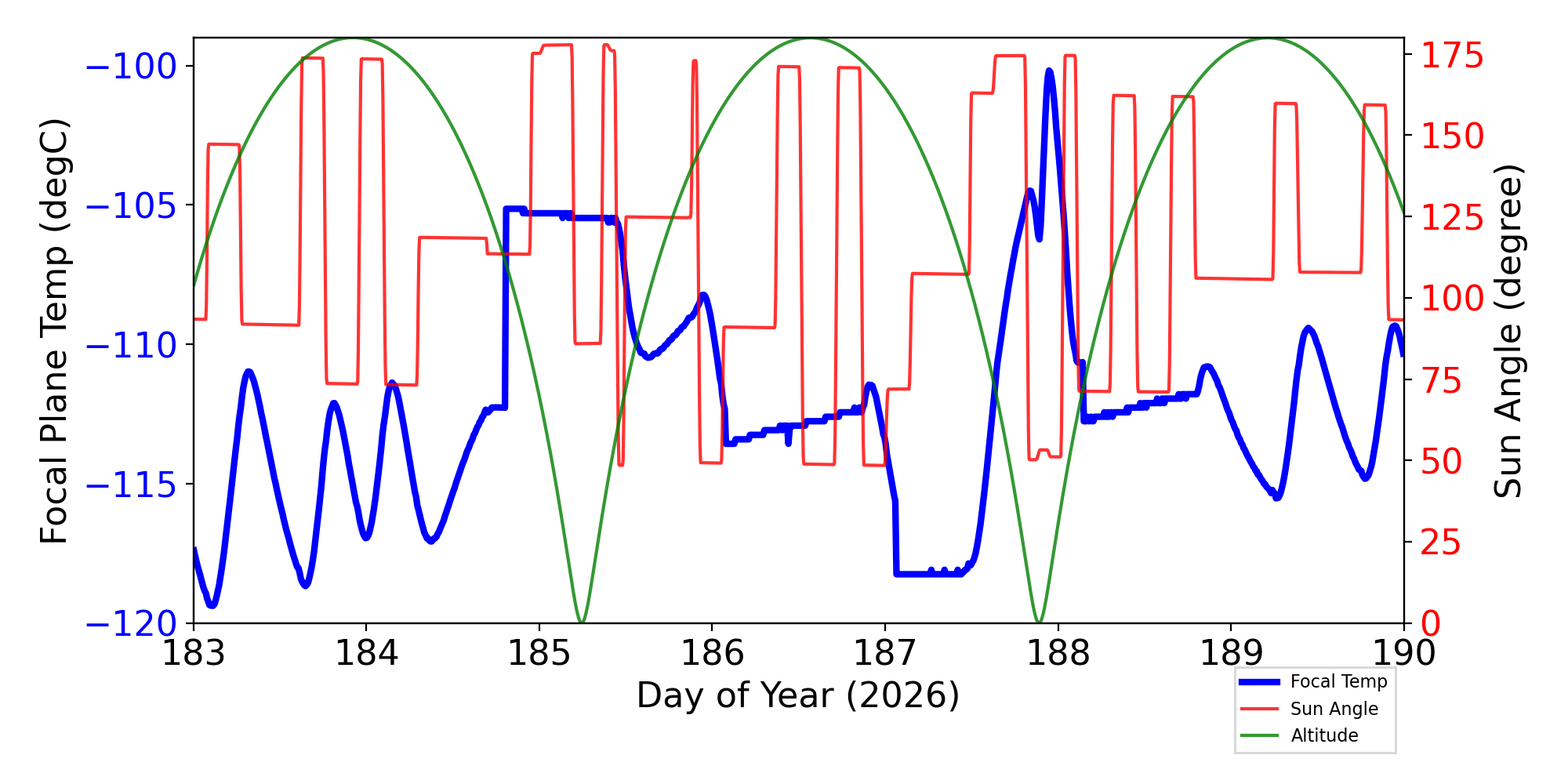

Weekly focal plane temperature with sun angle, earth angle, and altitude overplotted. Sun angle is the solar array angle, that is the angle between the sun and the optical axis (+X axis). The earth angle is the angle between earth and the ACIS radiator (+Z axis). Altitude varies from 34 kkm to 128 kkm.

SIM Movements

12 TSC moves this period

weekly average time/step	0.00134 s
mission average time/step	0.00132 s

Telemetry

New violations or new extrema are shown in blue cells.

MSID	07/03/26	07/04/26	07/05/26	07/06/26	07/07/26	07/08/26	07/09/26	yellow limits (lower) upper	red limits (lower) upper	Units	Description
1CRBT	677.96	404.25	677.96	677.96	677.96	677.96	677.96	(136.15) 183.15	(131.15) 193.15	K	COLD RADIATOR TEMP. B
1CRBTC	(74.06)	(25.39)	(74.06)	(7.62)	(25.39)	(20.30)	(48.36)	(136.15) 183.15	(131.15) 193.15	C	COLD RADIATOR TEMP. B
AWD1TQI	(-3.39)							(-1.22) 1.22	(-3.3) 3.3	AMP	WHEEL 1 TORQUE CURRENT
AWD6TQI	(-3.43)			(-3.35)				(-1.22) 1.22	(-3.3) 3.3	AMP	WHEEL 6 TORQUE CURRENT
CTXBPWR	(0.00)	(0.00)	(0.00)	(0.00)	(0.00)	(0.00)	(0.00)	(36.12) 37.0	(36.0) 38.0	DBM	TRANSMITTER B OUTPUT POWER
MZOBACONE	313.18	309.98	313.16	311.61	308.18	312.29		(260.2) 303.0	(250.2) 308.0	CONE	-Z SIDE OBA CONE
OBAAVG	305.02	303.48	304.29	303.23		304.05		(282.5) 300.0	(281.4) 301.0	K	OBA/TFTE TEMP
OBACONEAVG				308.70				(282.5) 300.0	(281.8) 301.0	K	OBA CONE AVG TEMP
OBADIAGRAD	4.71	4.52	4.61	4.77	4.70	4.39		(-1.11) 3.5	(-2.78) 3.9	K	OBA DIAM GRAD
PZOBACONE	309.54	308.50	308.91			308.44		(260.2) 303.0	(250.2) 308.0	CONE	+Z SIDE OBA CONE
TCYZ_RW6				(276.44)				(288.15) 363.15	(278.15) 404.15	K	RWA -6 TEMP (RWA CRNR COMP)
TFTERANGE	49.08	48.35	47.47	48.29	47.53			(16.7) 37.5	(11.1) 45.0	K	TFTE VENT/RAD TEMP

IRUs

Gyro Bias Drift	Gyro Bias Drift Histogram

Recent Observations

OBSID	DETECTOR	GRATING	TARGET	ANALYSIS	ACA
32400	ACIS-67	NONE	AT2026nik	OK	OK
31340	ACIS-0123	NONE	V4641 Sgr N1	OK	OK
32414	ACIS-0123	NONE	V4641 Sgr N1	OK	OK
32416	ACIS-67	NONE	AT2026nik	OK	OK
30020	ACIS-01236	NONE	Abell 2108	OK	OK
29932	ACIS-67	NONE	SDSS J155007.62+272814.5	OK	OK
30436	ACIS-0123	NONE	PG 1553+113	OK	OK
32412	ACIS-0123	NONE	Center of COSMOS-Web	OK	OK
31346	ACIS-2367	NONE	V4641 Sgr S1	OK	OK
32415	ACIS-2367	NONE	V4641 Sgr S1	OK	OK
30267	ACIS-0123	NONE	Center of COSMOS-Web	OK	OK
31404	ACIS-01236	NONE	A1795	OK	OK
32413	ACIS-0123	NONE	Center of COSMOS-Web	OK	OK
29997	ACIS-5678	NONE	ASASSN-14ko	OK	OK
30133	ACIS-2367	NONE	SNR G1.9+0.3	OK	OK
30418	ACIS-0123	NONE	Abell 3558 SE	OK	OK
30094	ACIS-012367	NONE	[CTC2021] Vela C CR1c1	OK	OK
32425	ACIS-2367	NONE	SNR G1.9+0.3	OK	OK
32424	ACIS-2367	NONE	SNR G1.9+0.3	OK	OK
32423	ACIS-012367	NONE	[CTC2021] Vela C CR1c1	OK	OK
29817	ACIS-0123	NONE	Snake	OK	OK
30419	ACIS-0123	NONE	Abell 3558 SE	OK	OK
30187	ACIS-67	NONE	SDSS J164818.07+415550.2	OK	OK
31302	ACIS-67	NONE	SDSS J141843.40+280957.4	OK	OK
32420	ACIS-0123	NONE	Snake	OK	OK
32421	ACIS-0123	NONE	Snake	OK	OK
30364	ACIS-01236	NONE	Perseus cluster E	OK	OK

MSID	Mean	RMS	Delta/Yr	Delta/Yr/Yr	Unit	Description
2ceahvpt	-0.471	0.009	(2.94+/-0.08)e2	-0.10 +/- 0.07	K	CEA RADIATOR TEMPERATURE AT CENTER
2chtrpzt	0.311	0.004	(2.94+/-0.03)e2	-0.05 +/- 0.10	K	CENTRAL ELECTRONICS BOX TEMP
2condmxt	-0.452	0.009	(2.86+/-0.08)e2	-0.11 +/- 0.07	K	CONDUIT -X FACE TEMPERATURE
2dcentrt	-0.407	0.008	(2.87+/-0.07)e2	-0.06 +/- 0.07	K	DETECTOR HOUSING TEMP 2
2dtstatt	-0.545	0.009	(2.86+/-0.09)e2	-0.04 +/- 0.06	K	DETECTOR HOUSING TEMP 1
2fhtrmzt	-0.732	0.012	(2.87+/-0.11)e2	-0.10 +/- 0.07	K	FRONT END ELECTRONICS BOX TEMPERATURE
2fradpyt	-0.663	0.011	(2.83+/-0.10)e2	-0.10 +/- 0.07	K	FRONT END ASSEMBLY +Y AT RADIATOR CENTER TEMP
2pmt1t	-0.064	0.005	(2.90+/-0.05)e2	-0.11 +/- 0.08	K	PMT 1 TEMPERATURE
2pmt2t	-0.107	0.006	(2.92+/-0.05)e2	-0.09 +/- 0.09	K	PMT 2 TEMPERATURE
2uvlspxt	-0.254	0.006	(2.84+/-0.05)e2	-0.04 +/- 0.08	K	UV LIGHT SHIELD NEXT TO SNOUT TEMP

HRC Housekeeping

MSID		Mean	RMS	Delta/Yr	Delta/Yr/Yr	Unit	Description
2fe00atm		-0.133	0.008	18.46 +/- 5.76	-0.06 +/- 0.06	C	Front end temperature
2fepratm	off	-5.334	0.102	8.37 +/- 12.40	0.13 +/- 1.07	C	FE temp card temperature
	on	0.279	0.003	22.04 +/- 2.64	-0.14 +/- 0.08	C	FE temp card temperature
2iminatm	off	-3.867	0.075	8.38 +/- 9.01	-0.52 +/- 0.77	C	Imaging det temperature
	on	0.237	0.004	16.73 +/- 2.76	-0.06 +/- 0.10	C	Imaging det temperature
2lvplatm	off	-3.792	0.072	17.08 +/- 8.57	-0.69 +/- 0.73	C	LVPS plate temperature
	on	0.203	0.004	25.81 +/- 2.48	-0.13 +/- 0.07	C	LVPS plate temperature
2prbscr	off	-0.005	7.292e-04	1.73 +/- 0.05	-0.03 +/- 0.03	AMP	Primary bus current
	on	-8.701e-04	8.346e-05	1.60 +/- 0.05	(1.91+/-14.58)e-4	AMP	Primary bus current
2prbsvl		-0.117	4.961e-04	28.02 +/- 0.92	(1.01+/-42.10)e-4	V	Primary bus voltage

If you have any questions, please contact: swolk@head.cfa.harvard.edu
