MTA Monitoring Report 08/07/26 - 08/13/26

Archive of all weekly reports
Archive of monthly reports

Although we prefer to quote CTI values of the cleanest data (FT <= -119.7 C, int time > 7000sec), the data that fulfills these conditions are getting rare. We now quote CTI based on temperature corrected data for Focal plane temperature <= -118.5 C).

The unit is now CTI/year not CTI/day.

Average of ACIS-I CCDs (MnKa) slope:	5.214e-02 CTI/year	(1.428e-04 CTI/day)
Detrended slope:	4.865e-02 CTI/year	(1.333e-04 CTI/day)

ACIS Warm Pixels

We display all bad pixels that have showed up in past, and, if any, previously unknown bad pixels appeared in the last 14 days. We also list hot pixels (defined as 1000 above the average of bias background). Warm columns 509-514 are probably due to boundaries.

New definitions of warm pixels and flickering pixels (May 15, 2014). If a pixel displays the level beyond a threshold for more than 70% of the time in the past two weeks, the pixel is categorized as a "warm" pixel. If a pixel is above the threshold more than 30% of time but less than 70% of the time in the past two weeks, the pixel is categorized as a "flickering" pixel.

	CCD0	CCD1	CCD2	CCD3	CCD5	CCD6	CCD7	CCD8
Previously Unknown Bad Pixels
Current Warm Pixels	(786,117)		(665,25) (99,899) (803,225) (526,66) (837,378) (178,149) (104,31)	(21,95) (811,637)		(849,169) (670,387)	(335,412)
Flickering Warm Pixels	(283,278) (171,937)	(370,70) (910,239) (787,181) (427,125)	(345,12) (353,201) (818,22) (726,537)	(931,553) (617,159) (680,391) (394,80)	(282,385) (367,511) (161,206) (263,317) (728,340) (233,102) (369,376) (357,303)	(1000,214) (287,164) (357,29) (884,31)	(126,856)	(881,53) (447,769) (541,41) (597,187) (675,304) (275,393) (139,109) (136,65) (182,474) (295,978)
Current Hot Pixels
Flickering Hot Pixels
Warm column candidates					510 512 1022		512 1022
Flickering Warm column candidates

ACIS Focal Plane Temperature

For this period, 9 peaks are observed.

Day (DOY)	Temp (C)	Width (Days)
218.54	-105.80	1.79
219.72	-103.57	1.35
220.33	-111.01	0.47
220.81	-110.66	0.47
221.28	-110.78	0.47
221.75	-109.62	0.51
222.39	-104.61	0.67
222.94	-109.36	0.73
223.75	-112.56	0.53

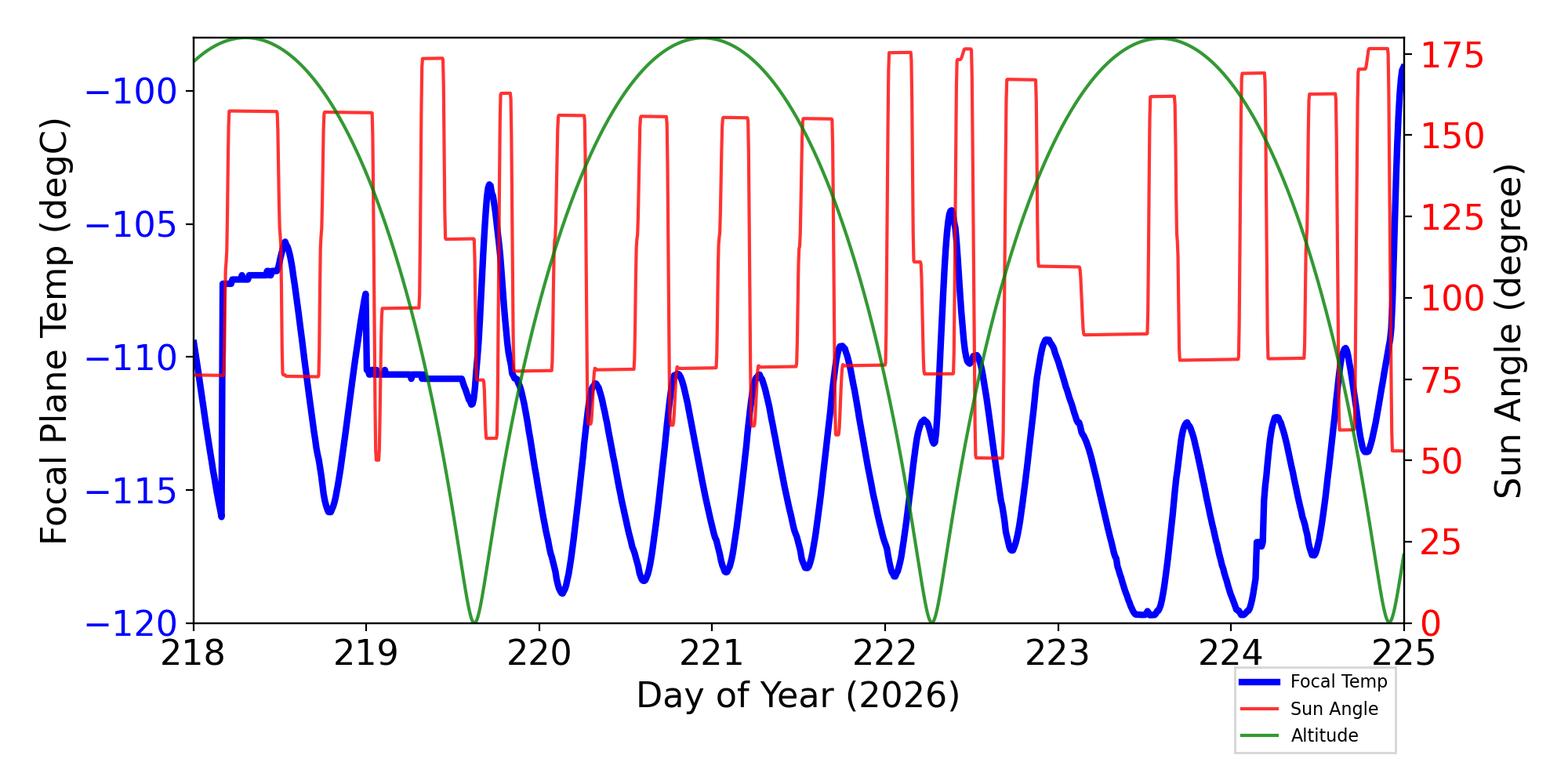

Weekly focal plane temperature with sun angle, earth angle, and altitude overplotted. Sun angle is the solar array angle, that is the angle between the sun and the optical axis (+X axis). The earth angle is the angle between earth and the ACIS radiator (+Z axis). Altitude varies from 34 kkm to 128 kkm.

SIM Movements

9 TSC moves this period

weekly average time/step	0.00136 s
mission average time/step	0.00132 s

Telemetry

New violations or new extrema are shown in blue cells.

MSID	08/07/26	08/08/26	08/09/26	08/10/26	08/11/26	08/12/26	08/13/26	yellow limits (lower) upper	red limits (lower) upper	Units	Description
1CRBT	677.96	677.96	677.96	677.96	677.96	677.96	677.96	(136.15) 183.15	(131.15) 193.15	K	COLD RADIATOR TEMP. B
1CRBTC	(12.69)	(35.58)	(35.58)	(15.22)	(40.69)	(20.30)	(35.58)	(136.15) 183.15	(131.15) 193.15	C	COLD RADIATOR TEMP. B
AFTBLKHDT						308.26		(260.2) 303.0	(250.2) 308.0	TEMP	AFT BULKHEAD TEMP
AWD1TQI	(-3.39)			(-3.39)				(-1.22) 1.22	(-3.3) 3.3	AMP	WHEEL 1 TORQUE CURRENT
AWD6TQI	(-3.43)			(-3.39)				(-1.22) 1.22	(-3.3) 3.3	AMP	WHEEL 6 TORQUE CURRENT
CTXBPWR		(0.00)						(36.12) 37.0	(36.0) 38.0	DBM	TRANSMITTER B OUTPUT POWER
ESAMYI	(0.06)							(5.63) 30.15	(5.3) 33.0	AMP	S/A -Y CURRENT
ESAPYI	(0.14)							(5.54) 30.15	(5.2) 33.0	AMP	S/A +Y CURRENT
FAMTRTEMP			293.15					(260.0) 289.0	(255.0) 292.0	K	FA Motor Temperature
MZOBACONE	310.57	312.33	312.99	313.19	313.88	314.06	309.13	(260.2) 303.0	(250.2) 308.0	CONE	-Z SIDE OBA CONE
OBAAVG	301.93	303.45		304.33	304.85	305.05		(282.5) 300.0	(281.4) 301.0	K	OBA/TFTE TEMP
OBADIAGRAD	4.71	4.68	4.66	4.59	4.63	4.66	4.77	(-1.11) 3.5	(-2.78) 3.9	K	OBA DIAM GRAD
PZOBACONE			308.60	308.83	309.62	309.72		(260.2) 303.0	(250.2) 308.0	CONE	+Z SIDE OBA CONE
TCYZ_RW6			(275.71)			(275.34)		(288.15) 363.15	(278.15) 404.15	K	RWA -6 TEMP (RWA CRNR COMP)
TFTERANGE	46.60			46.25		46.59	45.52	(16.7) 37.5	(11.1) 45.0	K	TFTE VENT/RAD TEMP
TSCTSF3	(268.43)							(278.15) 359.15	(269.15) 483.15	K	SC-TS FITTING -3 TEMP

IRUs

Gyro Bias Drift	Gyro Bias Drift Histogram

Recent Observations

OBSID	DETECTOR	GRATING	TARGET	ANALYSIS	ACA
32476	ACIS-2567	NONE	SDSS J143345.14+264915.1	OK	OK
31053	ACIS-67	NONE	GL 783	OK	OK
32474	ACIS-0123	NONE	CLJ030310.0-211933	OK	OK
32481	ACIS-67	NONE	GL 783	OK	OK
31054	ACIS-678	NONE	GL 783	OK	OK
30353	ACIS-01236	NONE	Perseus cluster S	OK	OK
32482	ACIS-678	NONE	GL 783	OK	OK
30358	ACIS-01236	NONE	Perseus cluster S	OK	OK
32477	ACIS-01236	NONE	Perseus cluster S	OK	OK
32483	ACIS-678	NONE	GL 783	OK	OK
32478	ACIS-01236	NONE	Perseus cluster S	OK	OK
32001	ACIS-267	NONE	SDSS J125354.49+262435.6	OK	OK
31663	ACIS-67	NONE	PSO J308.0416-21.2339	OK	OK
32467	ACIS-01236	NONE	Perseus cluster S	OK	OK
32484	ACIS-678	NONE	GL 783	OK	OK
31316	ACIS-67	NONE	2MASX J22373491-1925343	OK	OK
31992	ACIS-23678	NONE	NGC 1358	OK	OK
29936	ACIS-23678	NONE	NGC 1358	OK	OK
30332	ACIS-0123	NONE	Perseus cluster N	OK	OK
32498	ACIS-67	NONE	1RXS J161700.0-313639	OK	OK
32488	ACIS-67	NONE	SDSSJ220153.56-083443.7	OK	OK
32248	ACIS-01236	NONE	Perseus cluster N	OK	OK
32491	ACIS-67	NONE	2MASX J22373491-1925343	OK	OK
32492	ACIS-67	NONE	2MASX J22373491-1925343	OK	OK
29634	ACIS-01236	NONE	Perseus cluster S	OK	OK
32490	ACIS-0123	NONE	Perseus cluster S	OK	OK

MSID	Mean	RMS	Delta/Yr	Delta/Yr/Yr	Unit	Description
hcapgrd1	-1.041	0.361	3.84 +/- 245.60	(1.10+/-1.70)e-4	K	RT100-RT101: HRMA CAP circum
hcapgrd2	-1.019	0.333	3.76 +/- 226.58	(6.20+/-4.65)e-4	K	RT100-RT104: HRMA CAP ridial
hcapgrd3	0.205	0.106	-0.85 +/- 71.74	-(2.08+/-2.15)e-4	K	RT101-RT102: HRMA CAP circum
hcapgrd4	0.022	0.041	-0.08 +/- 27.91	(5.84+/-4.46)e-4	K	RT101-RT104: HRMA CAP ridial
hcapgrd5	0.224	0.066	-0.64 +/- 44.92	(1.30+/-2.39)e-4	K	RT102-RT103: HRMA CAP circum
hcapgrd6	-0.254	0.099	0.88 +/- 67.14	(5.56+/-5.70)e-4	K	RT102-RT105: HRMA CAP ridial
hcapgrd7	-0.430	0.160	1.49 +/- 109.09	-(3.09+/-16.99)e-5	K	RT103-RT101: HRMA CAP circum

HRMA FAP

MSID	Mean	RMS	Delta/Yr	Delta/Yr/Yr	Unit	Description
hfapgrd1	0.787	0.268	-2.89 +/- 182.30	-(6.51+/-141.10)e-6	K	RT1-RT2: HRMA Forward Aperture Plate
hfapgrd2	0.099	0.043	-0.34 +/- 29.28	0.01 +/- 0.00	K	RT1-RT4: HRMA Forward Aperture Plate
hfapgrd3	-0.594	0.191	2.20 +/- 130.19	-(1.00+/-1.84)e-4	K	RT2-RT3: HRMA Forward Aperture Plate
hfapgrd4	-0.194	0.071	0.77 +/- 47.93	0.00 +/- 0.00	K	RT2-RT5: HRMA Forward Aperture Plate
hfapgrd5	-0.193	0.082	0.69 +/- 56.01	(1.34+/-14.73)e-5	K	RT3-RT1: HRMA Forward Aperture Plate
hfapgrd6	0.280	0.087	-1.03 +/- 59.42	0.01 +/- 0.00	K	RT3-RT6: HRMA Forward Aperture Plate
hfapgrd7	0.494	0.159	-1.78 +/- 107.89	-(1.83+/-21.83)e-5	K	RT4-RT5: HRMA Forward Aperture Plate
hfapgrd8	-0.119	0.039	0.41 +/- 26.20	(3.01+/-26.16)e-5	K	RT5-RT6: HRMA Forward Aperture Plate
hfapgrd9	-0.375	0.125	1.37 +/- 84.77	(4.87+/-11.06)e-5	K	RT6-RT4: HRMA Forward Aperture Plate

Spacecraft Struts

MSID	Mean	RMS	Delta/Yr	Delta/Yr/Yr	Unit	Description
hsstrtgrd1	12.471	4.308	-54.52 +/- 3402.11	0.00 +/- 0.02	K	RT75-RT76: Spacecraft Struts
hsstrtgrd2	-0.910	3.055	-1.72 +/- 2391.29	0.01 +/- 0.02	K	RT76-RT77: Spacecraft Struts
hsstrtgrd3	-24.844	9.835	97.70 +/- 7700.75	-0.01 +/- 0.01	K	RT77-RT78: Spacecraft Struts
hsstrtgrd4	7.675	3.206	-24.20 +/- 2510.48	-0.02 +/- 0.02	K	RT78-RT79: Spacecraft Struts
hsstrtgrd5	9.443	2.757	-32.46 +/- 2159.29	0.04 +/- 0.02	K	RT79-RT80: Spacecraft Struts
hsstrtgrd6	-3.980	1.719	15.54 +/- 1345.67	0.00 +/- 0.00	K	RT80-RT75: Spacecraft Struts
