MTA Monitoring Report 08/28/26 - 09/03/26

Archive of all weekly reports
Archive of monthly reports

Although we prefer to quote CTI values of the cleanest data (FT <= -119.7 C, int time > 7000sec), the data that fulfills these conditions are getting rare. We now quote CTI based on temperature corrected data for Focal plane temperature <= -118.5 C).

The unit is now CTI/year not CTI/day.

Average of ACIS-I CCDs (MnKa) slope:	5.214e-02 CTI/year	(1.428e-04 CTI/day)
Detrended slope:	4.865e-02 CTI/year	(1.333e-04 CTI/day)

ACIS Warm Pixels

We display all bad pixels that have showed up in past, and, if any, previously unknown bad pixels appeared in the last 14 days. We also list hot pixels (defined as 1000 above the average of bias background). Warm columns 509-514 are probably due to boundaries.

New definitions of warm pixels and flickering pixels (May 15, 2014). If a pixel displays the level beyond a threshold for more than 70% of the time in the past two weeks, the pixel is categorized as a "warm" pixel. If a pixel is above the threshold more than 30% of time but less than 70% of the time in the past two weeks, the pixel is categorized as a "flickering" pixel.

	CCD0	CCD1	CCD2	CCD3	CCD5	CCD6	CCD7
Previously Unknown Bad Pixels
Current Warm Pixels			(526,66) (803,225) (837,378) (178,149)			(849,169) (1000,214)	(335,412)
Flickering Warm Pixels	(786,117) (154,9)	(427,125) (700,242) (910,239)	(99,899) (726,537) (104,31) (665,25)	(318,53) (21,95) (394,80) (811,637) (680,391) (617,159)	(877,408) (357,303) (369,376) (728,340) (263,317) (367,511) (669,577)	(884,31) (670,387)	(126,856)
Current Hot Pixels
Flickering Hot Pixels
Warm column candidates					1022 510 512		1022 512
Flickering Warm column candidates

ACIS Focal Plane Temperature

For this period, 5 peaks are observed.

Day (DOY)	Temp (C)	Width (Days)
240.89	-104.46	3.26
241.41	-111.95	0.36
241.78	-111.17	0.41
242.57	-109.14	0.47
243.06	-114.38	0.67

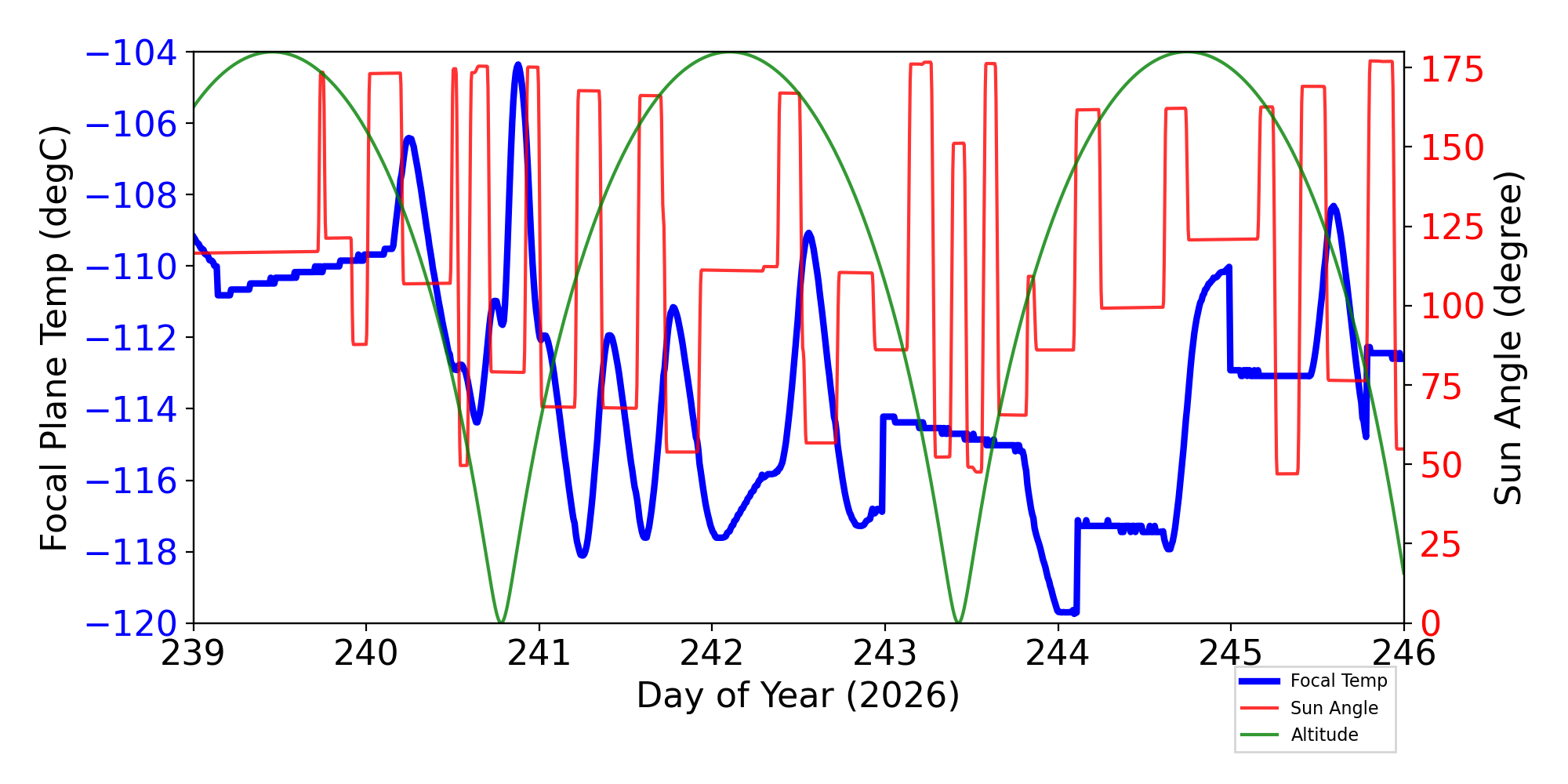

Weekly focal plane temperature with sun angle, earth angle, and altitude overplotted. Sun angle is the solar array angle, that is the angle between the sun and the optical axis (+X axis). The earth angle is the angle between earth and the ACIS radiator (+Z axis). Altitude varies from 34 kkm to 128 kkm.

SIM Movements

8 TSC moves this period

weekly average time/step	0.00135 s
mission average time/step	0.00132 s

Telemetry

New violations or new extrema are shown in blue cells.

MSID	08/28/26	08/29/26	08/30/26	08/31/26	09/01/26	09/02/26	09/03/26	yellow limits (lower) upper	red limits (lower) upper	Units	Description
1CRBT	451.35			677.96		525.07	677.96	(136.15) 183.15	(131.15) 193.15	K	COLD RADIATOR TEMP. B
1CRBTC	(81.79)			(86.96)		(89.55)	(89.55)	(136.15) 183.15	(131.15) 193.15	C	COLD RADIATOR TEMP. B
AFTBLKHDT				308.91				(260.2) 303.0	(250.2) 308.0	TEMP	AFT BULKHEAD TEMP
AWD1TQI	(-3.39)			(-3.31)				(-1.22) 1.22	(-3.3) 3.3	AMP	WHEEL 1 TORQUE CURRENT
AWD6TQI	(-3.47)			(-3.35)				(-1.22) 1.22	(-3.3) 3.3	AMP	WHEEL 6 TORQUE CURRENT
CALPALV			(125.00)		(117.00)			(126.0) 128.0	(125.0) 129.0	V	Cal Pulser Amplitude
CTXBPWR	(0.00)	(0.00)	(0.00)		(0.00)	(0.00)		(36.12) 37.0	(36.0) 38.0	DBM	TRANSMITTER B OUTPUT POWER
HRMAAVG	(304.51)					(304.18)		(306.0) 308.0	(305.0) 309.0	K	AVG OF HRMA METRICS
IMHBLV					(79.00)	(85.00)		(126.0) 128.0	(125.0) 129.0	(2IMHBLV)	Imaging Bot & Top MCP HV Monitor
MZOBACONE	311.94	311.74	314.09	314.82		312.69	310.31	(260.2) 303.0	(250.2) 308.0	CONE	-Z SIDE OBA CONE
OBAAVG	305.15	303.26		305.77		305.28	301.58	(282.5) 300.0	(281.4) 301.0	K	OBA/TFTE TEMP
OBADIAGRAD	4.49	4.65	4.49	4.61	4.59	4.75	4.88	(-1.11) 3.5	(-2.78) 3.9	K	OBA DIAM GRAD
PZOBACONE	310.13		309.62	310.60	310.44	309.64		(260.2) 303.0	(250.2) 308.0	CONE	+Z SIDE OBA CONE
TFTERANGE	48.27	46.63	49.13	47.73		49.07	46.28	(16.7) 37.5	(11.1) 45.0	K	TFTE VENT/RAD TEMP

IRUs

Gyro Bias Drift	Gyro Bias Drift Histogram

Recent Observations

OBSID	DETECTOR	GRATING	TARGET	ANALYSIS	ACA
31061	HRC-I	NONE	HD 27406	OK	OK
31998	ACIS-67	NONE	SDSS J022226.11-085701.3	OK	OK
30409	ACIS-3567	NONE	ClG J0242-2132	OK	OK
32516	ACIS-67	NONE	WISE J2246-0526	OK	OK
32510	ACIS-678	NONE	MASTER OT J014644.56+482650.2	OK	OK
32508	ACIS-0123	NONE	RMJ214001.0-080553.4	OK	OK
32515	ACIS-67	NONE	NGC5728	OK	OK
30203	ACIS-67	NONE	NGC5728	OK	OK
32507	ACIS-67	NONE	LEDA2831062	OK	OK
30505	ACIS-56789	HETG	Vela X-1	OK/NA	OK
26973	HRC-I	NONE	70 OPH	OK	OK
32509	ACIS-0123	NONE	RMJ214053.7-082112.5	OK	OK
30135	ACIS-2367	NONE	SNR G1.9+0.3	OK	OK
32513	ACIS-2367	NONE	SNR G1.9+0.3	OK	OK
32512	ACIS-0123	NONE	[CTC2021] Vela C CR1c1	OK	OK
30424	ACIS-0123	NONE	Abell 2255	OK	OK
32535	ACIS-67	NONE	SRGA J174800.5-280826	OK	OK
30196	ACIS-67	NONE	NGC5728	OK	OK
32529	ACIS-0123	NONE	Abell 2255	OK	OK
30440	HRC-I	NONE	G29-38	OK	OK
32530	HRC-I	NONE	G29-38	OK	OK
31881	ACIS-01236	NONE	Perseus cluster W	OK	OK
30441	HRC-I	NONE	G29-38	OK	OK
32520	ACIS-0123	NONE	UGC 05479	OK	OK
30402	ACIS-3567	NONE	ClG J0242-2132	OK	OK
32517	ACIS-67	NONE	SDSSJ222024.58+010931.2	OK	OK
30438	ACIS-012367	NONE	PG 1553+113	OK	OK
32519	ACIS-67	NONE	PKS2227-088	OK	OK
32528	ACIS-67	NONE	NGC5728	OK	OK
32527	ACIS-67	NONE	NGC5728	OK	OK
30427	ACIS-0123	NONE	Abell 2255	OK	OK

MSID	Mean	RMS	Delta/Yr	Delta/Yr/Yr	Unit	Description
4rt556t	0.095	5.965e-04	(2.95+/-0.01)e2	0.03 +/- 0.01	K	RT 556 - HRMA TEMP
4rt558t	0.109	6.356e-04	(2.95+/-0.01)e2	0.03 +/- 0.01	K	RT 558 - HRMA TEMP
4rt568t	0.735	0.002	(2.93+/-0.06)e2	0.11 +/- 0.05	K	RT 568 - HRMA TEMP
4rt575t	1.016	0.003	(2.96+/-0.09)e2	0.11 +/- 0.06	K	RT 575 - OB CONE TEMP
4rt576t	0.750	0.002	(2.89+/-0.06)e2	0.09 +/- 0.05	K	RT 576 - OB CONE TEMP
4rt577t	1.103	0.003	(2.96+/-0.09)e2	0.17 +/- 0.08	K	RT 577 - OB CONE TEMP
4rt578t	1.017	0.003	(2.94+/-0.09)e2	0.16 +/- 0.07	K	RT 578 - OB CONE TEMP
4rt579t	0.770	0.003	(2.90+/-0.07)e2	0.14 +/- 0.07	K	RT 579 - OB CONE TEMP
4rt580t	0.782	0.003	(2.90+/-0.07)e2	0.15 +/- 0.07	K	RT 580 - OB CONE TEMP
4rt581t	0.875	0.004	(2.92+/-0.08)e2	0.17 +/- 0.07	K	RT 581 - OB CONE TEMP

HRMA Struts

MSID	Mean	RMS	Delta/Yr	Delta/Yr/Yr	Unit	Description
4rt582t	0.387	0.001	(2.88+/-0.03)e2	0.06 +/- 0.03	K	RT 582 - STRUT TEMP
4rt583t	0.595	0.002	(2.92+/-0.05)e2	0.06 +/- 0.04	K	RT 583 - STRUT TEMP
4rt584t	0.744	0.002	(2.95+/-0.06)e2	0.07 +/- 0.04	K	RT 584 - STRUT TEMP
4rt585t	0.747	0.002	(2.95+/-0.06)e2	0.08 +/- 0.04	K	RT 585 - STRUT TEMP
4rt586t	0.598	0.002	(2.93+/-0.05)e2	0.07 +/- 0.04	K	RT 586 - STRUT TEMP
4rt587t	0.387	0.002	(2.88+/-0.03)e2	0.06 +/- 0.03	K	RT 587 - STRUT TEMP
4rt588t	-9.397e-04	8.438e-04	(2.83+/-0.01)e2	0.03 +/- 0.02	K	RT 588 - STRUT TEMP
4rt589t	0.791	0.003	(2.90+/-0.07)e2	0.08 +/- 0.05	K	RT 589 - STRUT TEMP
4rt590t	1.368	0.003	(2.99+/-0.11)e2	0.09 +/- 0.07	K	RT 590 - STRUT TEMP
4rt591t	1.361	0.004	(2.99+/-0.11)e2	0.11 +/- 0.07	K	RT 591 - STRUT TEMP
4rt592t	0.724	0.003	(2.89+/-0.06)e2	0.08 +/- 0.04	K	RT 592 - STRUT TEMP
4rt593t	-0.009	6.815e-04	(2.83+/-0.01)e2	0.02 +/- 0.01	K	RT 593 - STRUT TEMP
4rt594t	-0.005	0.003	(2.88+/-0.02)e2	0.03 +/- 0.01	K	RT 594 - TFTE TEMP
4rt595t	0.728	0.002	(2.90+/-0.06)e2	0.08 +/- 0.05	K	RT 595 - TFTE TEMP
4rt596t	0.608	0.003	(2.88+/-0.05)e2	0.02 +/- 0.04	K	RT 596 - TFTE TEMP
4rt597t	1.302	0.003	(2.98+/-0.11)e2	0.14 +/- 0.07	K	RT 597 - TFTE TEMP
4rt598t	1.292	0.003	(2.98+/-0.11)e2	0.14 +/- 0.07	K	RT 598 - TFTE TEMP

If you have any questions, please contact: swolk@head.cfa.harvard.edu
