MTA Monitoring Report 09/04/26 - 09/10/26

Archive of all weekly reports
Archive of monthly reports

Although we prefer to quote CTI values of the cleanest data (FT <= -119.7 C, int time > 7000sec), the data that fulfills these conditions are getting rare. We now quote CTI based on temperature corrected data for Focal plane temperature <= -118.5 C).

The unit is now CTI/year not CTI/day.

Average of ACIS-I CCDs (MnKa) slope:	5.214e-02 CTI/year	(1.428e-04 CTI/day)
Detrended slope:	4.865e-02 CTI/year	(1.333e-04 CTI/day)

ACIS Warm Pixels

We display all bad pixels that have showed up in past, and, if any, previously unknown bad pixels appeared in the last 14 days. We also list hot pixels (defined as 1000 above the average of bias background). Warm columns 509-514 are probably due to boundaries.

New definitions of warm pixels and flickering pixels (May 15, 2014). If a pixel displays the level beyond a threshold for more than 70% of the time in the past two weeks, the pixel is categorized as a "warm" pixel. If a pixel is above the threshold more than 30% of time but less than 70% of the time in the past two weeks, the pixel is categorized as a "flickering" pixel.

	CCD0	CCD1	CCD2	CCD3	CCD5	CCD6	CCD7
Previously Unknown Bad Pixels
Current Warm Pixels	(786,117)	(910,239)	(178,149) (104,31) (837,378) (526,66) (803,225)	(811,637)			(335,412)
Flickering Warm Pixels	(154,9) (171,937) (283,278) (692,141)	(700,242) (427,125) (370,70)	(99,899) (665,25) (726,537)	(617,159) (394,80) (21,95) (318,53) (680,391) (144,50)	(728,340) (669,577) (367,511) (263,317) (369,376) (357,303)	(849,169) (884,31) (357,29) (1000,214)
Current Hot Pixels
Flickering Hot Pixels
Warm column candidates					510 512 1022		512 1022
Flickering Warm column candidates

ACIS Focal Plane Temperature

For this period, 8 peaks are observed.

Day (DOY)	Temp (C)	Width (Days)
246.66	-111.00	1.96
247.20	-114.22	0.97
248.24	-110.63	0.39
248.78	-107.25	0.76
250.17	-109.63	1.23
250.60	-109.88	0.51
251.30	-106.12	0.66
251.84	-109.75	1.34

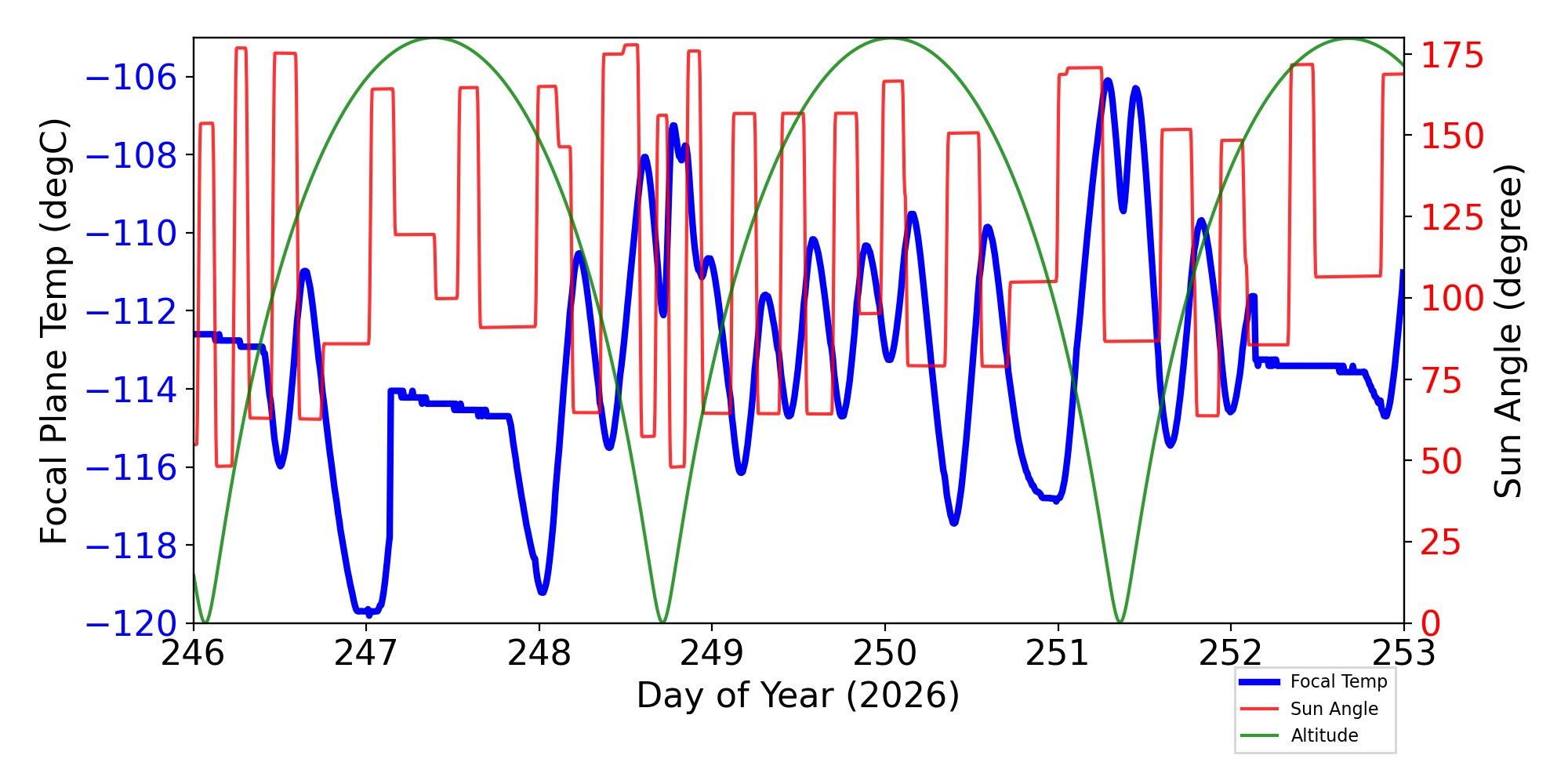

Weekly focal plane temperature with sun angle, earth angle, and altitude overplotted. Sun angle is the solar array angle, that is the angle between the sun and the optical axis (+X axis). The earth angle is the angle between earth and the ACIS radiator (+Z axis). Altitude varies from 34 kkm to 128 kkm.

SIM Movements

9 TSC moves this period

weekly average time/step	0.00133 s
mission average time/step	0.00132 s

Telemetry

New violations or new extrema are shown in blue cells.

MSID	09/04/26	09/05/26	09/06/26	09/07/26	09/08/26	09/09/26	09/10/26	yellow limits (lower) upper	red limits (lower) upper	Units	Description
1CRBT		677.96						(136.15) 183.15	(131.15) 193.15	K	COLD RADIATOR TEMP. B
1CRBTC		(99.90)						(136.15) 183.15	(131.15) 193.15	C	COLD RADIATOR TEMP. B
AFTBLKHDT							308.12	(260.2) 303.0	(250.2) 308.0	TEMP	AFT BULKHEAD TEMP
AWD1TQI		(-3.39)		(-3.39)			(-3.39)	(-1.22) 1.22	(-3.3) 3.3	AMP	WHEEL 1 TORQUE CURRENT
AWD6TQI		(-3.43)		(-3.43)			(-3.47)	(-1.22) 1.22	(-3.3) 3.3	AMP	WHEEL 6 TORQUE CURRENT
CALPALV	(118.00)		(122.00)					(126.0) 128.0	(125.0) 129.0	V	Cal Pulser Amplitude
CTXBPWR	(0.00)	(0.00)	(0.00)	(0.00)	(0.00)	(0.00)	(0.00)	(36.12) 37.0	(36.0) 38.0	DBM	TRANSMITTER B OUTPUT POWER
IMHBLV	(85.00)					(79.00)		(126.0) 128.0	(125.0) 129.0	(2IMHBLV)	Imaging Bot & Top MCP HV Monitor
IMHVLV						(79.00)		(126.0) 128.0	(125.0) 129.0	(2IMHVLV)	Imaging Bot MCP HV Monitor
MZOBACONE	313.50	311.08	308.29	313.32	312.28	313.68	314.56	(260.2) 303.0	(250.2) 308.0	CONE	-Z SIDE OBA CONE
OBAAVG	304.66	304.06		304.66	303.82		305.88	(282.5) 300.0	(281.4) 301.0	K	OBA/TFTE TEMP
OBADIAGRAD	4.74	4.46	4.60	4.83	4.73	4.64	4.58	(-1.11) 3.5	(-2.78) 3.9	K	OBA DIAM GRAD
PZOBACONE	309.26	308.67		309.35	308.50	309.47	310.69	(260.2) 303.0	(250.2) 308.0	CONE	+Z SIDE OBA CONE
TFTERANGE		47.44	46.73		47.29	48.77	48.44	(16.7) 37.5	(11.1) 45.0	K	TFTE VENT/RAD TEMP
TSCTSF3			(268.43)	(268.43)	(268.79)			(278.15) 359.15	(269.15) 483.15	K	SC-TS FITTING -3 TEMP

IRUs

Gyro Bias Drift	Gyro Bias Drift Histogram

Recent Observations

OBSID	DETECTOR	GRATING	TARGET	ANALYSIS	ACA
30427	ACIS-0123	NONE	Abell 2255	OK	OK
32531	HRC-I	NONE	G29-38	OK	OK
32518	ACIS-67	NONE	2MASXJ03120291+5029147	OK	OK
32460	ACIS-67	NONE	EP J223759.5+531421	OK	OK
30449	HRC-I	NONE	G29-38	OK	OK
32522	ACIS-5678	NONE	V* V1116 Tau	OK	OK
32521	ACIS-67	NONE	GJ 2006 B	OK	OK
32532	HRC-I	NONE	G29-38	OK	OK
29815	ACIS-0123	NONE	PSR J1015-5719	OK	OK
32525	ACIS-0123	NONE	PSR J1015-5719	OK	OK
30513	ACIS-0123	NONE	Abell 2667	OK	OK
32524	ACIS-0123	NONE	PSR J1015-5719	OK	OK
32526	ACIS-0123	NONE	PSR J1015-5719	OK	OK
32533	ACIS-0123	NONE	Abell 2667	OK	OK
32534	ACIS-0123	NONE	Abell 2667	OK	OK
30450	HRC-I	NONE	G29-38	OK	OK
32523	ACIS-67	NONE	1RXS J044334.6-084744	OK	OK
29912	ACIS-67	NONE	SDSS J162501.98+430931.6	OK	OK
30416	ACIS-0123	NONE	MACS J0018.5+1626	OK	OK
32926	ACIS-67	NONE	SDSS J162501.98+430931.6	OK	OK
30361	ACIS-01236	NONE	Perseus cluster E	OK	OK
32929	ACIS-0123	NONE	MACS J0018.5+1626	OK	OK
29895	HRC-I	NONE	VV 114	OK	OK
30117	ACIS-0123	NONE	PSR J1015-5719	OK	OK
32922	ACIS-0123	NONE	RMJ232421.7+020618.6	OK	OK
32246	ACIS-0123	NONE	Abell 2255	OK	OK
30439	HRC-I	NONE	G29-38	OK	OK
30367	ACIS-0123	NONE	Perseus cluster E	OK	OK
32927	ACIS-0123	NONE	PSR J1015-5719	OK	OK
31882	ACIS-01236	NONE	Perseus cluster E	OK	OK

MSID	Mean	RMS	Delta/Yr	Delta/Yr/Yr	Unit	Description
4hposaro	-0.297	0.024	66.66 +/- 20.52	0.67 +/- 0.67	na	NA
4hposbro	-0.293	0.024	67.26 +/- 20.73	0.77 +/- 0.68	na	NA
4lposaro	0.036	0.014	73.99 +/- 12.05	0.14 +/- 0.38	na	NA
4lposbro	0.037	0.015	73.04 +/- 12.39	0.14 +/- 0.39	na	NA
4mp28av	0.015	8.664e-04	0.45 +/- 0.74	-0.02 +/- 0.02	V	MCE A: +28 VOLT MONITOR
4mp28bv	0.091	0.004	2.25 +/- 3.40	-0.08 +/- 0.10	V	MCE B: +28 VOLT MONITOR
4mp5av	0.025	9.677e-04	0.56 +/- 0.84	-0.03 +/- 0.03	V	MCE A: +5 VOLT MONITOR
4mp5bv	0.016	7.147e-04	0.41 +/- 0.62	-0.01 +/- 0.02	V	MCE B: +5 VOLT MONITOR

If you have any questions, please contact: swolk@head.cfa.harvard.edu
