Although we prefer to quote CTI values of the cleanest data (FT <= -119.7 C, int time > 7000sec), the data that fulfills these conditions are getting rare. We now quote CTI based on temperature corrected data for Focal plane temperature <= -118.5 C).

The unit is now CTI/year not CTI/day.

Average of ACIS-I CCDs (MnKa) slope:	5.214e-02 CTI/year	(1.428e-04 CTI/day)
Detrended slope:	4.865e-02 CTI/year	(1.333e-04 CTI/day)

ACIS Warm Pixels

We display all bad pixels that have showed up in past, and, if any, previously unknown bad pixels appeared in the last 14 days. We also list hot pixels (defined as 1000 above the average of bias background). Warm columns 509-514 are probably due to boundaries.

New definitions of warm pixels and flickering pixels (May 15, 2014). If a pixel displays the level beyond a threshold for more than 70% of the time in the past two weeks, the pixel is categorized as a "warm" pixel. If a pixel is above the threshold more than 30% of time but less than 70% of the time in the past two weeks, the pixel is categorized as a "flickering" pixel.

	CCD0	CCD1	CCD2	CCD3	CCD5	CCD6	CCD7	CCD8
Previously Unknown Bad Pixels
Current Warm Pixels				(21,95)		(670,387) (849,169) (1000,214)	(335,412)
Flickering Warm Pixels	(786,117)	(910,239) (985,393) (802,665)	(526,66) (837,378) (178,149) (104,31) (99,899) (726,537) (803,225)	(931,553) (394,80) (617,159) (811,637)	(263,317) (357,303) (282,385) (233,227) (369,376) (161,206)	(884,31)	(126,856)	(675,304) (275,393) (139,109) (838,239) (597,187)
Current Hot Pixels
Flickering Hot Pixels
Warm column candidates					512 510 1022		512 1022
Flickering Warm column candidates

ACIS Focal Plane Temperature

For this period, 7 peaks are observed.

Day (DOY)	Temp (C)	Width (Days)
141.78	-111.15	0.65
142.52	-110.33	0.85
143.16	-110.82	1.13
144.42	-109.20	0.57
144.82	-111.51	0.32
146.38	-106.28	1.19
147.23	-109.35	0.42

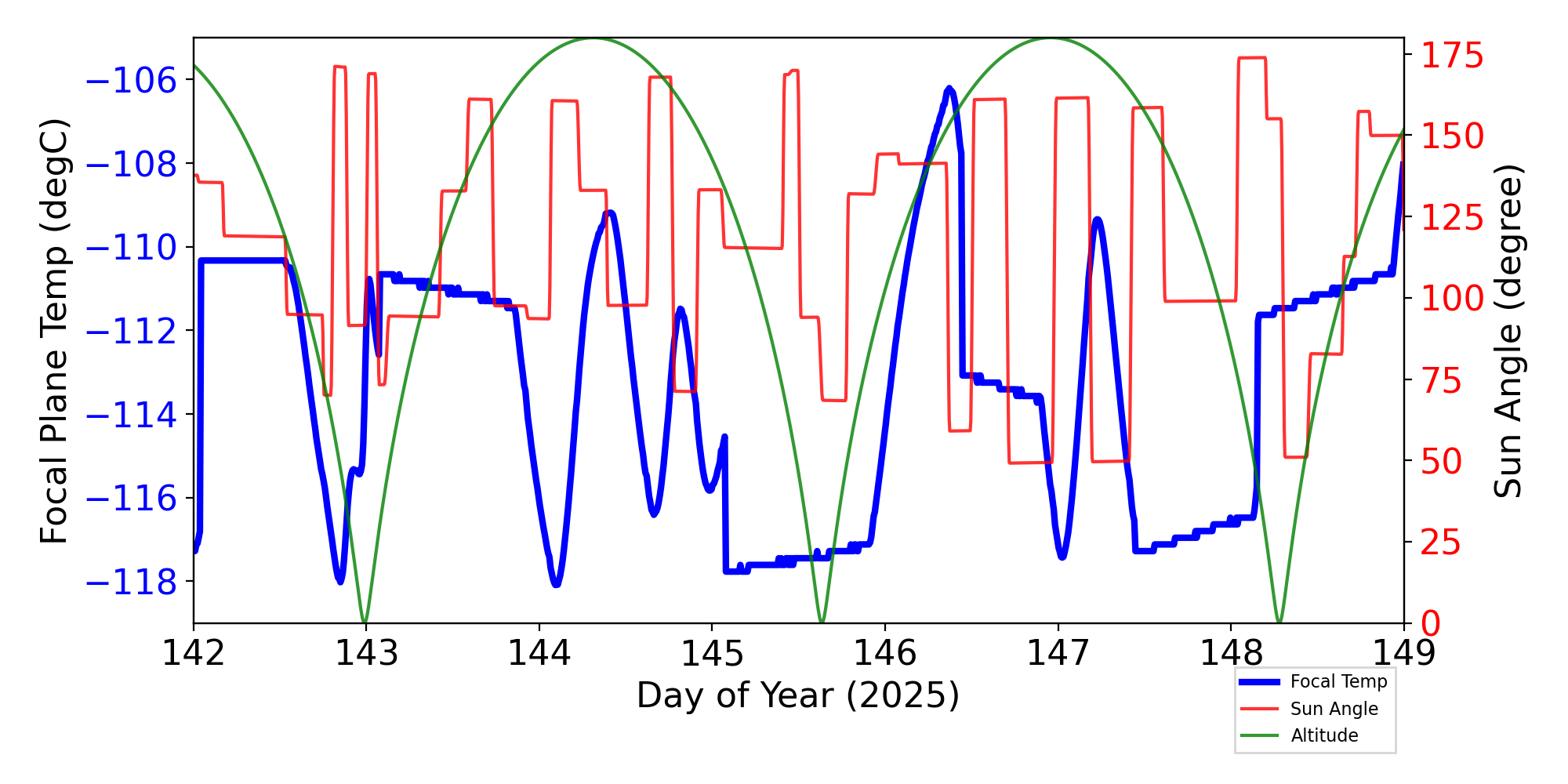

Weekly focal plane temperature with sun angle, earth angle, and altitude overplotted. Sun angle is the solar array angle, that is the angle between the sun and the optical axis (+X axis). The earth angle is the angle between earth and the ACIS radiator (+Z axis). Altitude varies from 34 kkm to 128 kkm.

SIM Movements

14 TSC moves this period

weekly average time/step	0.00130 s
mission average time/step	0.00132 s

Telemetry

New violations or new extrema are shown in blue cells.

MSID	05/23/25	05/24/25	05/25/25	05/26/25	05/27/25	05/28/25	05/29/25	yellow limits (lower) upper	red limits (lower) upper	Units	Description
1CRBT						677.96		(136.15) 183.15	(131.15) 193.15	K	COLD RADIATOR TEMP. B
1CRBTC						(-91.76)		(136.15) 183.15	(131.15) 193.15	C	COLD RADIATOR TEMP. B
AFTBLKHDT	308.14							(260.2) 303.0	(250.2) 308.0	TEMP	AFT BULKHEAD TEMP
AWD1TQI	(-3.35)		(-3.39)			(-3.31)		(-1.22) 1.22	(-3.3) 3.3	AMP	WHEEL 1 TORQUE CURRENT
AWD3TQI		(-3.31)						(-1.22) 1.22	(-3.3) 3.3	AMP	WHEEL 3 TORQUE CURRENT
AWD4TQI		(-3.43)						(-1.22) 1.22	(-3.3) 3.3	AMP	WHEEL 4 TORQUE CURRENT
AWD6TQI	(-3.47)	(-3.43)	(-3.43)			(-3.39)		(-1.22) 1.22	(-3.3) 3.3	AMP	WHEEL 6 TORQUE CURRENT
C24PALV		(-30.00)						(23.5) 24.5	(22.0) 26.0	V	+24V Bus Monitor
CALPALV		(0.00)					(123.00)	(126.0) 128.0	(125.0) 129.0	V	Cal Pulser Amplitude
CTXBPWR	(0.00)	(0.00)	(0.00)	(0.00)	(0.00)	(0.00)	(0.00)	(36.12) 37.0	(36.0) 38.0	DBM	TRANSMITTER B OUTPUT POWER
HRMAAVG			(304.62)	(304.11)				(306.0) 308.0	(305.0) 309.0	K	AVG OF HRMA METRICS
IMHBLV	(0.00)							(126.0) 128.0	(125.0) 129.0	(2IMHBLV)	Imaging Bot & Top MCP HV Monitor
IMHVLV							(79.00)	(126.0) 128.0	(125.0) 129.0	(2IMHVLV)	Imaging Bot MCP HV Monitor
MZOBACONE		314.33		311.76	310.57	310.70	313.90	(260.2) 303.0	(250.2) 308.0	CONE	-Z SIDE OBA CONE
OBAAVG				304.87	302.15	302.47	304.96	(282.5) 300.0	(281.4) 301.0	K	OBA/TFTE TEMP
OBADIAGRAD	4.49	4.42	4.34	4.14	4.61	4.77	4.69	(-1.11) 3.5	(-2.78) 3.9	K	OBA DIAM GRAD
PZOBACONE	310.68	310.23	309.89	309.17			309.53	(260.2) 303.0	(250.2) 308.0	CONE	+Z SIDE OBA CONE
S2HVLV		(0.00)						(126.0) 128.0	(125.0) 129.0	(2S2HVLV)	Shield PMT 2 HV Monitor
TFTERANGE				48.01	48.10	48.13	48.90	(16.7) 37.5	(11.1) 45.0	K	TFTE VENT/RAD TEMP
TSCTSF3			(268.79)			(268.79)	(268.43)	(278.15) 359.15	(269.15) 483.15	K	SC-TS FITTING -3 TEMP

IRUs

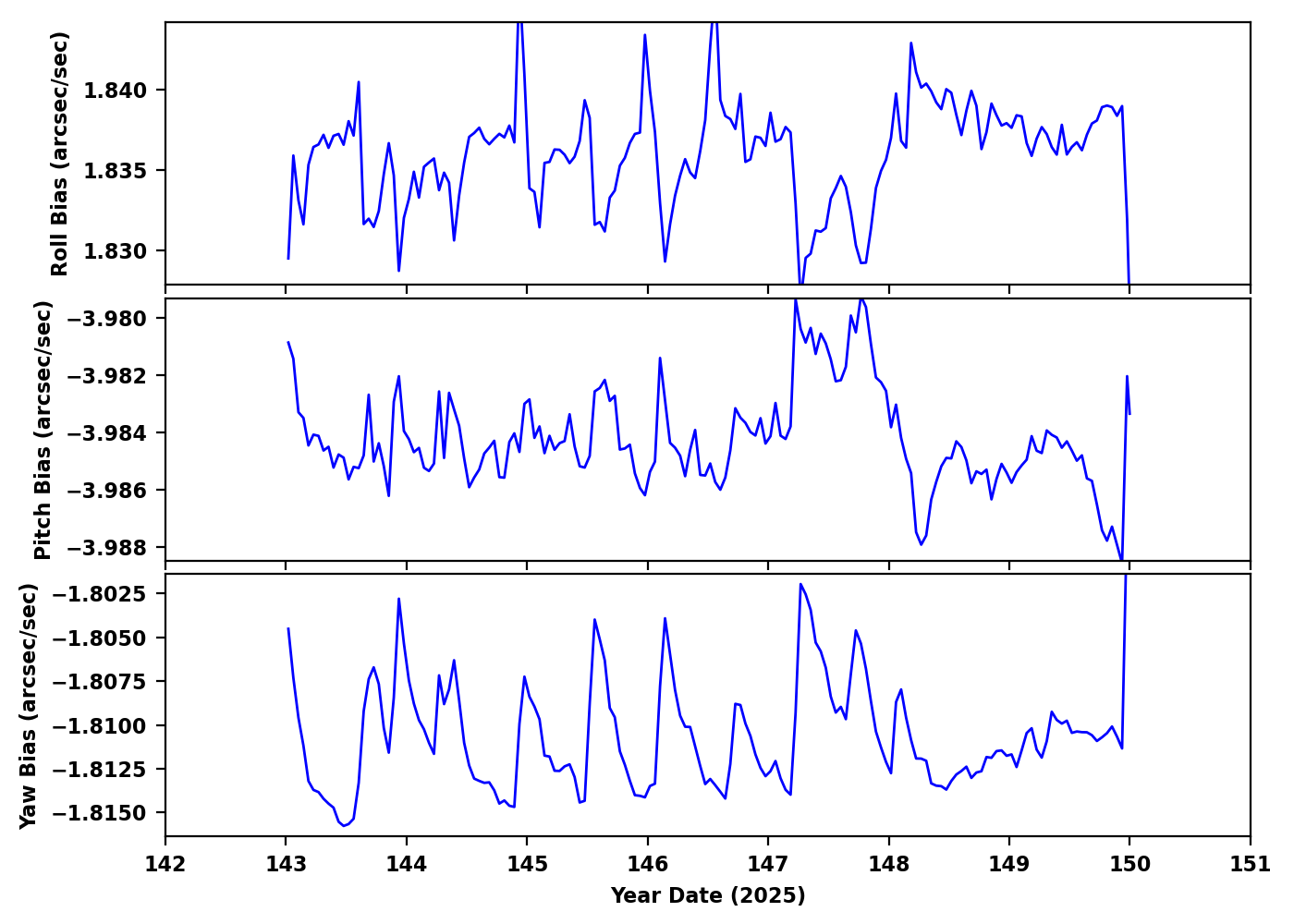

Gyro Bias Drift	Gyro Bias Drift Histogram

Recent Observations

OBSID	DETECTOR	GRATING	TARGET	ANALYSIS	ACA
28534	ACIS-67	NONE	Sextans A	OK	OK
30171	ACIS-3678	NONE	NGC4540	OK	OK
28530	ACIS-67	NONE	Sextans A	OK	OK
30940	ACIS-67	NONE	NGC5728	OK	OK
28767	HRC-I	HETG	4U 1626-67	OK/NA	OK
30931	ACIS-67	NONE	Sextans A	OK	OK
30047	ACIS-678	NONE	EXO 0748-676	OK	OK
30941	ACIS-67	NONE	NGC5728	OK	OK
30932	HRC-I	HETG	4U 1626-67	OK/NA	OK
30930	ACIS-67	NONE	2RXS J160108.0-325455	OK	OK
29586	ACIS-67	NONE	E0102-72.3	OK	OK
30928	ACIS-67	NONE	2MASS J08182026-1425527	OK	OK
30933	HRC-I	HETG	4U 1626-67	OK/NA	OK
30165	ACIS-3678	NONE	NGC4207	OK	OK
29606	HRC-S	NONE	SNR G21.5-0.9	OK	OK
30942	ACIS-3678	NONE	NGC4781	OK	OK
29788	ACIS-67	NONE	GRB250520A	OK	OK
30953	ACIS-67	NONE	Gaia DR2 1921178320776903168	OK	OK
28841	ACIS-5678	HETG	GX 9+9	OK/NA	OK
28304	ACIS-2367	NONE	2MAXIJ0134-082	OK	OK
30945	ACIS-2367	NONE	2MAXIJ0134-082	OK	OK
30946	ACIS-5678	HETG	GX 9+9	OK/NA	OK
29585	ACIS-67	NONE	E0102-72.3	OK	OK
29587	ACIS-67	NONE	E0102-72.3	OK	OK
28858	ACIS-0123	NONE	CMZ Molecular Cloud	OK	OK
28250	ACIS-5678	NONE	SDSS J134912.35+351704.9	OK	OK
28250	ACIS-5678	NONE	SDSS J134912.35+351704.9	OK	OK
29809	ACIS-23678	NONE	eRASSU J100957.4+125914	OK	OK
28129	ACIS-0123	NONE	Suzaku Field of NPS	OK	OK
29791	ACIS-67	NONE	NuSTAR 250326	OK	OK
30944	ACIS-0123	NONE	Suzaku Field of NPS	OK	OK
29729	HRC-I	NONE	Eta Car	OK	OK
28851	ACIS-0123	NONE	A1550	OK	OK

MSID	Mean	RMS	Delta/Yr	Delta/Yr/Yr	Unit	Description
4rt556t	0.070	5.912e-04	(2.94+/-0.01)e2	0.03 +/- 0.01	K	RT 556 - HRMA TEMP
4rt558t	0.083	6.351e-04	(2.94+/-0.01)e2	0.03 +/- 0.01	K	RT 558 - HRMA TEMP
4rt568t	0.694	0.003	(2.91+/-0.05)e2	0.12 +/- 0.04	K	RT 568 - HRMA TEMP
4rt575t	0.983	0.003	(2.94+/-0.07)e2	0.14 +/- 0.05	K	RT 575 - OB CONE TEMP
4rt576t	0.713	0.003	(2.87+/-0.05)e2	0.12 +/- 0.04	K	RT 576 - OB CONE TEMP
4rt577t	1.060	0.004	(2.94+/-0.08)e2	0.20 +/- 0.07	K	RT 577 - OB CONE TEMP
4rt578t	0.961	0.004	(2.92+/-0.07)e2	0.20 +/- 0.07	K	RT 578 - OB CONE TEMP
4rt579t	0.700	0.004	(2.89+/-0.06)e2	0.19 +/- 0.06	K	RT 579 - OB CONE TEMP
4rt580t	0.702	0.004	(2.88+/-0.06)e2	0.20 +/- 0.06	K	RT 580 - OB CONE TEMP
4rt581t	0.793	0.004	(2.90+/-0.06)e2	0.22 +/- 0.08	K	RT 581 - OB CONE TEMP

HRMA Struts

MSID	Mean	RMS	Delta/Yr	Delta/Yr/Yr	Unit	Description
4rt582t	0.359	0.002	(2.87+/-0.03)e2	0.06 +/- 0.02	K	RT 582 - STRUT TEMP
4rt583t	0.558	0.002	(2.90+/-0.04)e2	0.07 +/- 0.03	K	RT 583 - STRUT TEMP
4rt584t	0.704	0.002	(2.93+/-0.05)e2	0.08 +/- 0.04	K	RT 584 - STRUT TEMP
4rt585t	0.706	0.002	(2.94+/-0.05)e2	0.09 +/- 0.04	K	RT 585 - STRUT TEMP
4rt586t	0.567	0.002	(2.91+/-0.04)e2	0.09 +/- 0.03	K	RT 586 - STRUT TEMP
4rt587t	0.365	0.002	(2.87+/-0.03)e2	0.05 +/- 0.03	K	RT 587 - STRUT TEMP
4rt588t	-0.043	4.859e-04	(2.83+/-0.00)e2	0.01 +/- 0.01	K	RT 588 - STRUT TEMP
4rt589t	0.714	0.003	(2.88+/-0.06)e2	0.10 +/- 0.05	K	RT 589 - STRUT TEMP
4rt590t	1.289	0.004	(2.96+/-0.10)e2	0.14 +/- 0.07	K	RT 590 - STRUT TEMP
4rt591t	1.277	0.004	(2.96+/-0.10)e2	0.13 +/- 0.07	K	RT 591 - STRUT TEMP
4rt592t	0.652	0.003	(2.87+/-0.05)e2	0.11 +/- 0.04	K	RT 592 - STRUT TEMP
4rt593t	-0.035	4.662e-04	(2.83+/-0.00)e2	0.00 +/- 0.01	K	RT 593 - STRUT TEMP
4rt594t	0.146	0.002	(2.89+/-0.02)e2	0.03 +/- 0.01	K	RT 594 - TFTE TEMP
4rt595t	0.695	0.003	(2.88+/-0.05)e2	0.10 +/- 0.04	K	RT 595 - TFTE TEMP
4rt596t	0.632	0.003	(2.87+/-0.05)e2	0.04 +/- 0.03	K	RT 596 - TFTE TEMP
4rt597t	1.251	0.004	(2.95+/-0.09)e2	0.15 +/- 0.06	K	RT 597 - TFTE TEMP
4rt598t	1.226	0.004	(2.95+/-0.09)e2	0.16 +/- 0.06	K	RT 598 - TFTE TEMP

If you have any questions, please contact: swolk@head.cfa.harvard.edu
