MTA Monitoring Report 05/09/25 - 05/15/25

Archive of all weekly reports
Archive of monthly reports

Although we prefer to quote CTI values of the cleanest data (FT <= -119.7 C, int time > 7000sec), the data that fulfills these conditions are getting rare. We now quote CTI based on temperature corrected data for Focal plane temperature <= -118.5 C).

The unit is now CTI/year not CTI/day.

Average of ACIS-I CCDs (MnKa) slope:	5.214e-02 CTI/year	(1.428e-04 CTI/day)
Detrended slope:	4.865e-02 CTI/year	(1.333e-04 CTI/day)

ACIS Warm Pixels

We display all bad pixels that have showed up in past, and, if any, previously unknown bad pixels appeared in the last 14 days. We also list hot pixels (defined as 1000 above the average of bias background). Warm columns 509-514 are probably due to boundaries.

New definitions of warm pixels and flickering pixels (May 15, 2014). If a pixel displays the level beyond a threshold for more than 70% of the time in the past two weeks, the pixel is categorized as a "warm" pixel. If a pixel is above the threshold more than 30% of time but less than 70% of the time in the past two weeks, the pixel is categorized as a "flickering" pixel.

	CCD0	CCD1	CCD2	CCD3	CCD5	CCD6	CCD7	CCD8
Previously Unknown Bad Pixels		(815,203)
Current Warm Pixels			(803,225) (104,31) (99,899) (178,149) (526,66) (837,378)	(811,637) (21,95) (680,391) (394,80)		(849,169)	(335,412)
Flickering Warm Pixels	(786,117)	(427,125) (910,239) (985,393) (684,280) (802,665)	(726,537)	(318,53) (931,553)	(367,511) (369,376) (161,206) (357,303) (282,385) (263,317)	(670,387) (884,31) (1000,214)	(126,856)	(447,769) (675,304) (139,109) (178,399) (182,474) (275,393) (881,53) (295,978) (332,324) (136,65) (597,187) (333,466) (34,645) (838,239)
Current Hot Pixels
Flickering Hot Pixels
Warm column candidates					1022 510 512		1022 512
Flickering Warm column candidates

ACIS Focal Plane Temperature

For this period, 5 peaks are observed.

Day (DOY)	Temp (C)	Width (Days)
127.17	-94.93	0.51
127.67	-112.92	0.47
128.49	-109.32	0.73
129.81	-103.53	0.68
131.34	-109.41	2.65

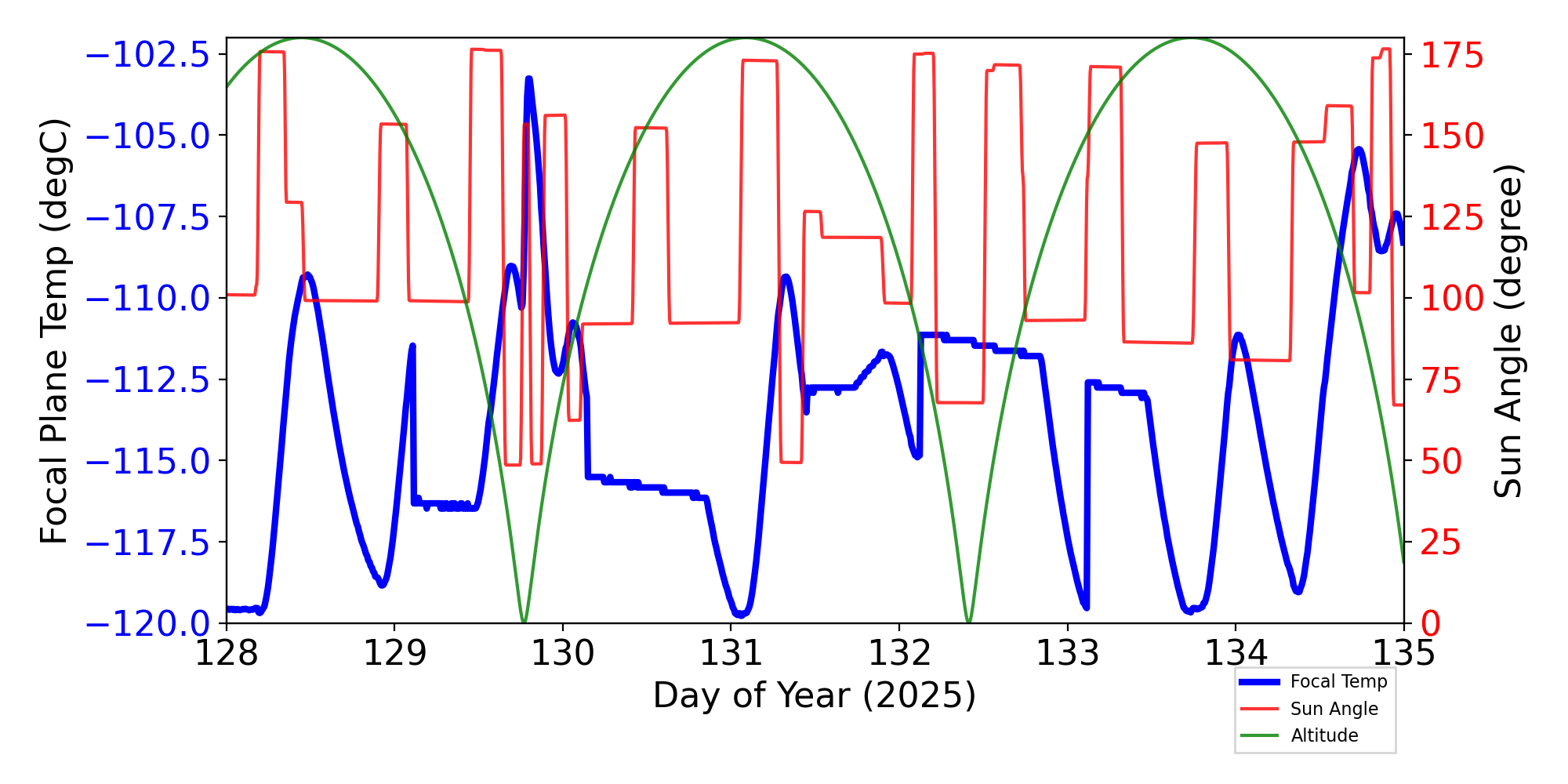

Weekly focal plane temperature with sun angle, earth angle, and altitude overplotted. Sun angle is the solar array angle, that is the angle between the sun and the optical axis (+X axis). The earth angle is the angle between earth and the ACIS radiator (+Z axis). Altitude varies from 34 kkm to 128 kkm.

SIM Movements

11 TSC moves this period

weekly average time/step	0.00133 s
mission average time/step	0.00132 s

Telemetry

New violations or new extrema are shown in blue cells.

MSID	05/09/25	05/10/25	05/11/25	05/12/25	05/13/25	05/14/25	05/15/25	yellow limits (lower) upper	red limits (lower) upper	Units	Description
AWD1TQI	(-3.39)			(-3.39)		(-3.39)		(-1.22) 1.22	(-3.3) 3.3	AMP	WHEEL 1 TORQUE CURRENT
AWD6TQI	(-3.43)			(-3.43)		(-3.43)		(-1.22) 1.22	(-3.3) 3.3	AMP	WHEEL 6 TORQUE CURRENT
CALPALV							(118.00)	(126.0) 128.0	(125.0) 129.0	V	Cal Pulser Amplitude
CTXBPWR	(0.00)	(0.00)	(0.00)	(0.00)	(0.00)	(0.00)	(0.00)	(36.12) 37.0	(36.0) 38.0	DBM	TRANSMITTER B OUTPUT POWER
MZOBACONE	314.02	313.43	313.41	312.77	311.58	313.77	313.26	(260.2) 303.0	(250.2) 308.0	CONE	-Z SIDE OBA CONE
OBAAVG	305.46	304.82	304.92	304.41	303.08	304.86	305.11	(282.5) 300.0	(281.4) 301.0	K	OBA/TFTE TEMP
OBADIAGRAD	4.35	4.72	4.25	4.71	4.76	4.62	4.56	(-1.11) 3.5	(-2.78) 3.9	K	OBA DIAM GRAD
PZOBACONE	309.95	309.19	309.36	308.72		309.44	309.62	(260.2) 303.0	(250.2) 308.0	CONE	+Z SIDE OBA CONE
TCM_TX1		(268.79)	(268.79)					(283.15) 348.15	(269.15) 404.15	K	TRANSPONDER-1 EXT BPL TEMP
TFTERANGE	48.69		49.43	48.99	47.90	47.27	48.91	(16.7) 37.5	(11.1) 45.0	K	TFTE VENT/RAD TEMP
TSCTSF3		(268.43)	(268.43)				(268.43)	(278.15) 359.15	(269.15) 483.15	K	SC-TS FITTING -3 TEMP

IRUs

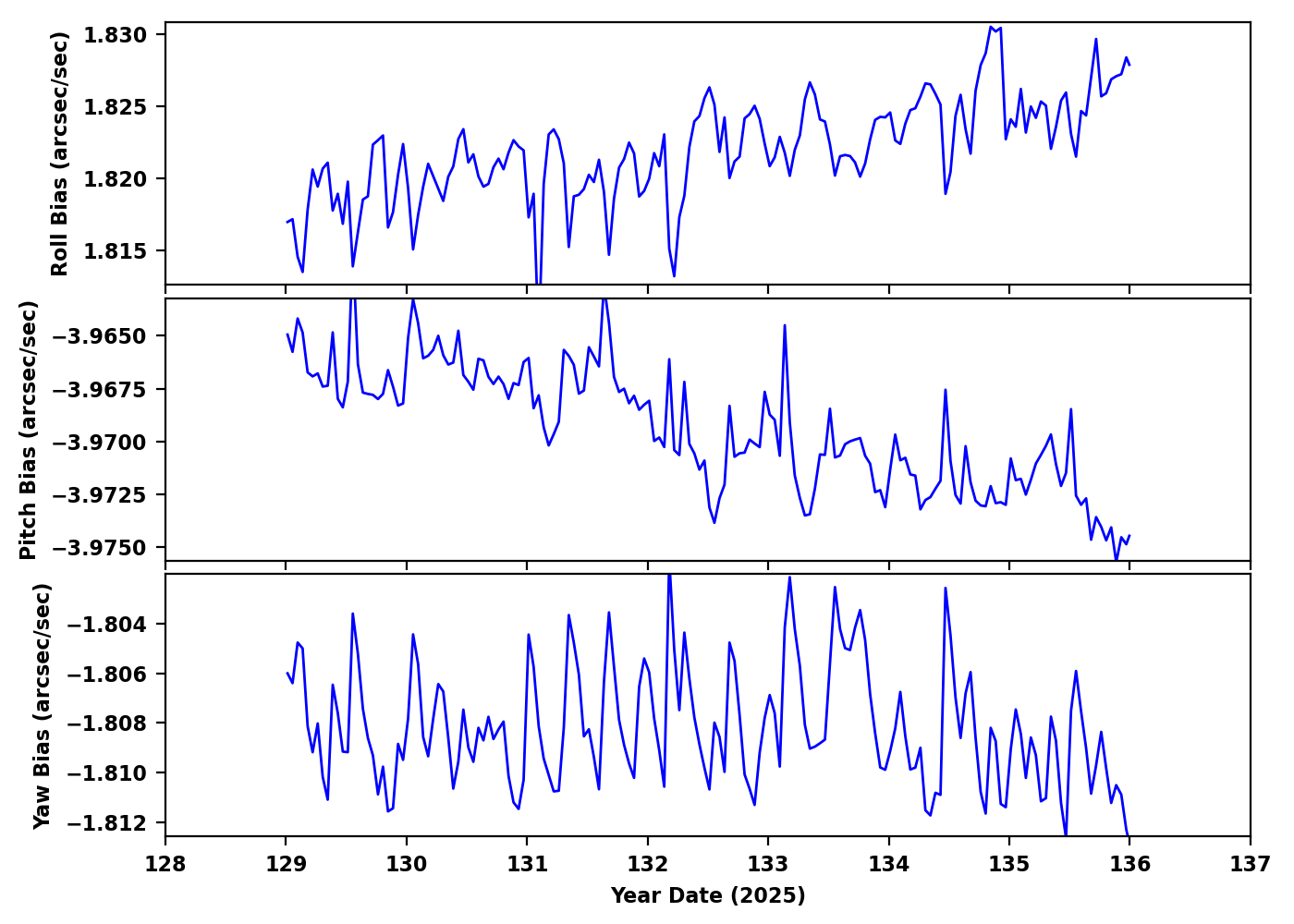

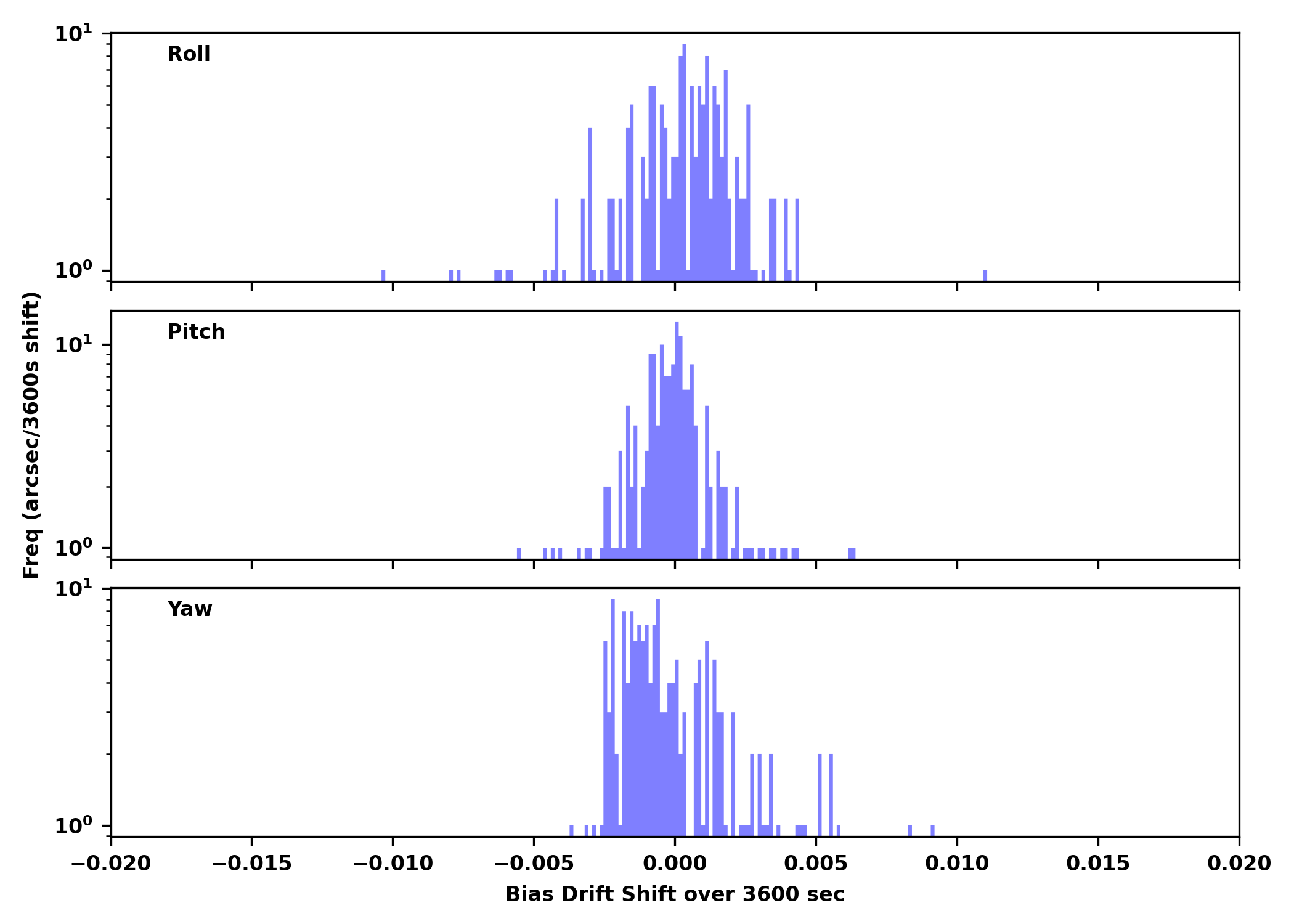

Gyro Bias Drift	Gyro Bias Drift Histogram

Recent Observations

OBSID	DETECTOR	GRATING	TARGET	ANALYSIS	ACA
28691	ACIS-0123	NONE	RXCJ1314.4-2515	OK	OK
29944	ACIS-67	NONE	8C 1435+638	OK	OK
28569	ACIS-012367	NONE	SDSS J104454.87+354055.0	OK	OK
28819	ACIS-01236	NONE	PSZ2G065.32-64.84	OK	OK
28190	ACIS-3678	NONE	ESO 518-2	OK	OK
30921	ACIS-0123	NONE	RXCJ1314.4-2515	OK	OK
29584	ACIS-3	NONE	E0102-72.3	OK	OK
29589	ACIS-3	NONE	E0102-72.3	OK	OK
30919	ACIS-67	NONE	Gaia DR2 2998766575752095488	OK	OK
30198	ACIS-67	NONE	NGC5728	OK	OK
30526	ACIS-0123	NONE	RXJ 1131-1231	OK	OK
28581	ACIS-3678	NONE	NGC 4102	OK	OK
28522	ACIS-0123	NONE	PSR J1101-6101	OK	OK
30209	ACIS-67	NONE	NGC5728	OK	OK
29588	ACIS-3	NONE	E0102-72.3	OK	OK
30923	ACIS-67	NONE	NGC5728	OK	OK
30371	ACIS-3567	NONE	Abell 795	OK	OK
29784	ACIS-456789	HETG	4U 1630-47	CC/NA	OK
30922	ACIS-456789	HETG	4U 1630-47	CC/NA	OK
30098	ACIS-456789	HETG	VV Pup	OK/NA	OK
30870	ACIS-0123	NONE	NGC4248	OK	OK
30452	HRC-I	NONE	HE 1353-1917	OK	OK
30927	HRC-I	NONE	HE 1353-1917	OK	OK
28795	ACIS-01236	NONE	[ZCA2021] BOSS1244 SW	OK	OK

MSID		Mean	RMS	Delta/Yr	Delta/Yr/Yr	Unit	Description
eb1v	off	-0.022	1.531e-04	32.47 +/- 0.19	-0.00 +/- 0.00	V	BATT 1 VOLTAGE
	on	-0.057	0.009	32.25 +/- 0.70	-(9.69+/-15.86)e-4	V	BATT 1 VOLTAGE
eb2ci	off	-0.004	8.901e-05	0.34 +/- 0.07	-(2.83+/-14.54)e-4	AMP	BATT 2 CHARGE CURRENT
	on	0.008	0.005	0.42 +/- 0.26	-0.00 +/- 0.00	AMP	BATT 2 CHARGE CURRENT
eb2v	off	-0.020	1.642e-04	32.46 +/- 0.18	-0.01 +/- 0.00	V	BATT 2 VOLTAGE
	on	-0.061	0.011	32.21 +/- 0.71	(5.92+/-20.24)e-4	V	BATT 2 VOLTAGE
ecnv3v		-0.001	1.993e-05	15.30 +/- 0.02	-(9.89+/-6.56)e-5	V	CONV 3 +15V OUTPUT
eepa5v		-3.517e-04	2.421e-04	5.23 +/- 0.17	(2.61+/-0.25)e-10	V	+5V RCTU_EP A

S/C Main Temperatures

MSID		Mean	RMS	Delta/Yr	Delta/Yr/Yr	Unit	Description
tape2pst		0.586	0.002	(2.90+/-0.05)e2	0.07 +/- 0.04	K	PEA-2 POWER SUPPLY TEMP
tapea1t		0.511	0.002	(3.01+/-0.04)e2	0.09 +/- 0.03	K	PEA-1 CASE TEMP
tcylaft1		1.827	0.007	(3.03+/-0.14)e2	0.21 +/- 0.14	K	CNT CYL TEMP:16-IN FWD OF SC-TS FIT-1
tpc_ese		1.178	0.008	(2.87+/-0.09)e2	0.04 +/- 0.21	K	ESE TEMP
tsamyt	on	-0.133	0.048	(3.19+/-0.03)e2	-0.06 +/- 0.07	K	-Y WING SOLAR ARRAY TEMP
	off	0.023	0.003	(3.19+/-0.02)e2	-0.03 +/- 0.03	K	-Y WING SOLAR ARRAY TEMP
tsapyt	on	-0.101	0.047	(3.18+/-0.03)e2	-0.06 +/- 0.07	K	+Y WING SOLAR ARRAY TEMP
	off	0.052	0.003	(3.19+/-0.02)e2	-0.02 +/- 0.02	K	+Y WING SOLAR ARRAY TEMP

S/C Anc Temperature

MSID	Mean	RMS	Delta/Yr	Delta/Yr/Yr	Unit	Description
tatecdrt	0.595	0.002	(2.89+/-0.05)e2	0.09 +/- 0.04	K	TEC DRIVER RDNT TEMP
trspmtpc	1.479	0.007	(2.95+/-0.12)e2	0.06 +/- 0.17	K	RAD SHR PNL TEMP:TTWN MUPS AND PCAD
tsctsf1	1.787	0.006	(3.00+/-0.13)e2	0.15 +/- 0.11	K	SC-TS FITTING -1 TEMP
tsctsf2	0.775	0.003	(2.78+/-0.06)e2	0.04 +/- 0.06	K	SC-TS FITTING -2 TEMP

If you have any questions, please contact: swolk@head.cfa.harvard.edu
