MTA Monitoring Report 08/01/25 - 08/07/25

Archive of all weekly reports
Archive of monthly reports

Although we prefer to quote CTI values of the cleanest data (FT <= -119.7 C, int time > 7000sec), the data that fulfills these conditions are getting rare. We now quote CTI based on temperature corrected data for Focal plane temperature <= -118.5 C).

The unit is now CTI/year not CTI/day.

Average of ACIS-I CCDs (MnKa) slope:	5.214e-02 CTI/year	(1.428e-04 CTI/day)
Detrended slope:	4.865e-02 CTI/year	(1.333e-04 CTI/day)

ACIS Warm Pixels

We display all bad pixels that have showed up in past, and, if any, previously unknown bad pixels appeared in the last 14 days. We also list hot pixels (defined as 1000 above the average of bias background). Warm columns 509-514 are probably due to boundaries.

New definitions of warm pixels and flickering pixels (May 15, 2014). If a pixel displays the level beyond a threshold for more than 70% of the time in the past two weeks, the pixel is categorized as a "warm" pixel. If a pixel is above the threshold more than 30% of time but less than 70% of the time in the past two weeks, the pixel is categorized as a "flickering" pixel.

	CCD0	CCD1	CCD2	CCD3	CCD4	CCD5	CCD6	CCD7	CCD8	CCD9
Previously Unknown Bad Pixels										(830,35)
Current Warm Pixels			(803,225) (526,66) (178,149) (837,378)	(21,95)				(335,412)
Flickering Warm Pixels	(692,141) (786,117)	(910,239) (427,125) (802,665) (985,393)	(726,537) (104,31) (99,899)	(394,80) (811,637) (680,391)	(363,19) (879,121) (791,366)	(161,206) (439,452) (669,577) (877,408) (554,484) (258,797) (641,669) (728,340) (282,385) (226,202) (270,726) (369,376) (357,303) (367,511) (263,317) (233,102) (233,227)	(1000,214) (849,169) (884,31) (670,387)	(74,134)	(881,53) (447,769) (182,474) (597,187) (136,65) (295,978) (838,239) (139,109) (333,466) (275,393)	(40,49) (675,52)
Current Hot Pixels
Flickering Hot Pixels
Warm column candidates						510 512 1022		512 1022
Flickering Warm column candidates

ACIS Focal Plane Temperature

For this period, 8 peaks are observed.

Day (DOY)	Temp (C)	Width (Days)
211.39	-110.54	0.50
211.85	-104.46	0.52
212.46	-115.02	0.58
213.15	-109.68	0.65
213.97	-108.41	1.19
216.32	-104.50	0.89
217.12	-101.32	0.73
217.60	-111.15	0.47

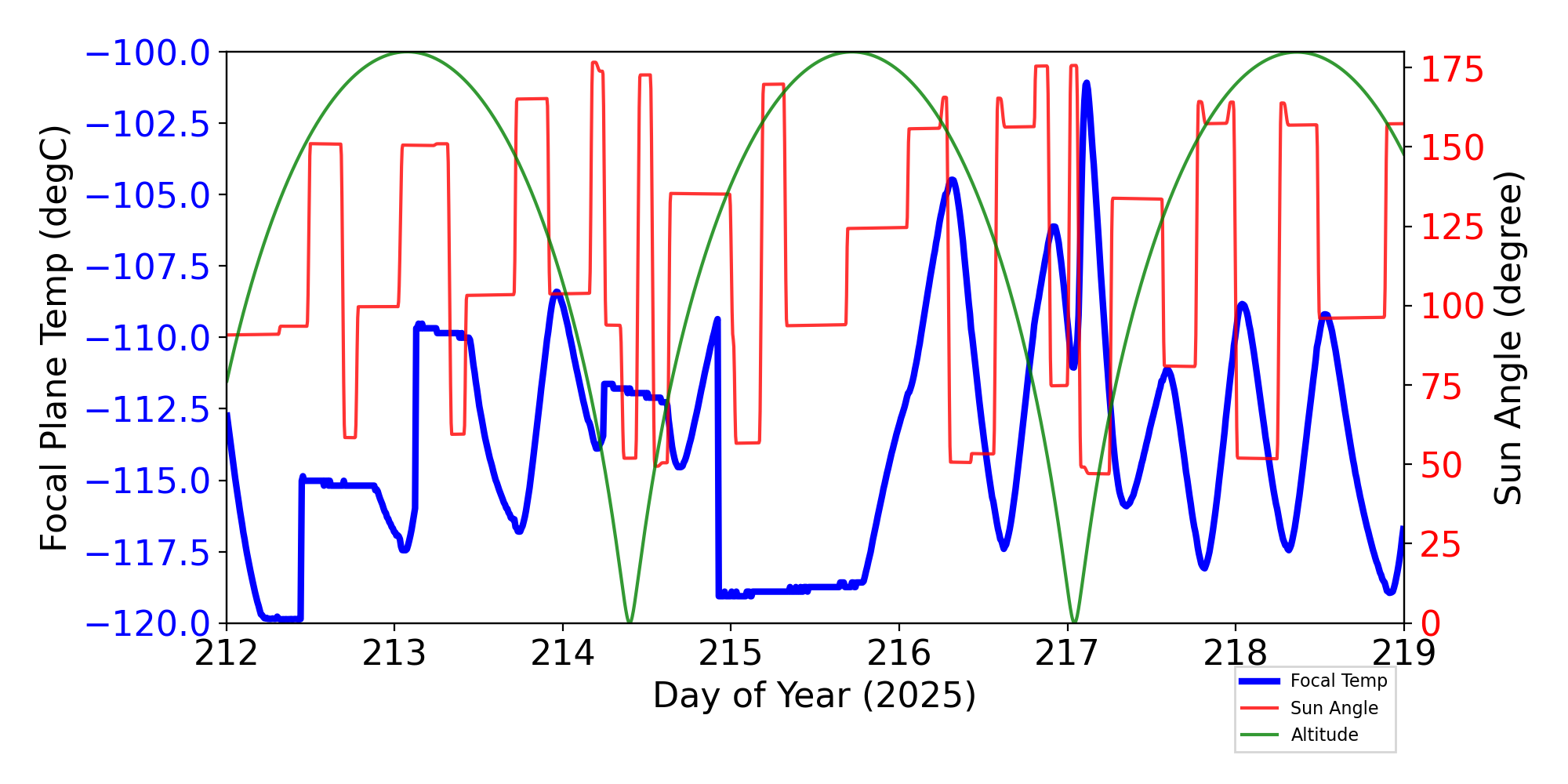

Weekly focal plane temperature with sun angle, earth angle, and altitude overplotted. Sun angle is the solar array angle, that is the angle between the sun and the optical axis (+X axis). The earth angle is the angle between earth and the ACIS radiator (+Z axis). Altitude varies from 34 kkm to 128 kkm.

SIM Movements

14 TSC moves this period

weekly average time/step	0.00131 s
mission average time/step	0.00132 s

Telemetry

New violations or new extrema are shown in blue cells.

MSID	08/01/25	08/02/25	08/03/25	08/04/25	08/05/25	08/06/25	08/07/25	yellow limits (lower) upper	red limits (lower) upper	Units	Description
AWD1TQI		(-3.39)		(-3.39)			(-3.39)	(-1.22) 1.22	(-3.3) 3.3	AMP	WHEEL 1 TORQUE CURRENT
AWD3TQI					(-3.39)			(-1.22) 1.22	(-3.3) 3.3	AMP	WHEEL 3 TORQUE CURRENT
AWD4TQI				(-3.43)	(-3.47)			(-1.22) 1.22	(-3.3) 3.3	AMP	WHEEL 4 TORQUE CURRENT
AWD6TQI		(-3.39)		(-3.43)			(-3.47)	(-1.22) 1.22	(-3.3) 3.3	AMP	WHEEL 6 TORQUE CURRENT
CTXBPWR	(0.00)	(0.00)	(0.00)	(0.00)	(0.00)	(0.00)	(0.00)	(36.12) 37.0	(36.0) 38.0	DBM	TRANSMITTER B OUTPUT POWER
ESAMYI		(0.06)		(0.06)			(0.06)	(5.63) 30.15	(5.3) 33.0	AMP	S/A -Y CURRENT
ESAPYI		(0.14)		(0.14)			(0.14)	(5.54) 30.15	(5.2) 33.0	AMP	S/A +Y CURRENT
IMHBLV	(85.00)		(79.00)					(126.0) 128.0	(125.0) 129.0	(2IMHBLV)	Imaging Bot & Top MCP HV Monitor
MZOBACONE	314.01	311.43	310.79	309.70	308.18	309.38	310.89	(260.2) 303.0	(250.2) 308.0	CONE	-Z SIDE OBA CONE
OBAAVG		303.58	303.21	303.21		301.18	302.63	(282.5) 300.0	(281.4) 301.0	K	OBA/TFTE TEMP
OBACONEAVG				308.55	305.09	306.30		(282.5) 300.0	(281.8) 301.0	K	OBA CONE AVG TEMP
OBADIAGRAD	4.41	4.34	4.64	4.20	4.64	4.66	4.53	(-1.11) 3.5	(-2.78) 3.9	K	OBA DIAM GRAD
PZOBACONE	309.90							(260.2) 303.0	(250.2) 308.0	CONE	+Z SIDE OBA CONE
TCM_TX1				(268.79)				(283.15) 348.15	(269.15) 404.15	K	TRANSPONDER-1 EXT BPL TEMP
TFTERANGE		48.22	48.82	48.75	47.09	47.08	48.16	(16.7) 37.5	(11.1) 45.0	K	TFTE VENT/RAD TEMP
TSCTSF3			(268.79)	(268.79)	(268.43)	(268.43)		(278.15) 359.15	(269.15) 483.15	K	SC-TS FITTING -3 TEMP

IRUs

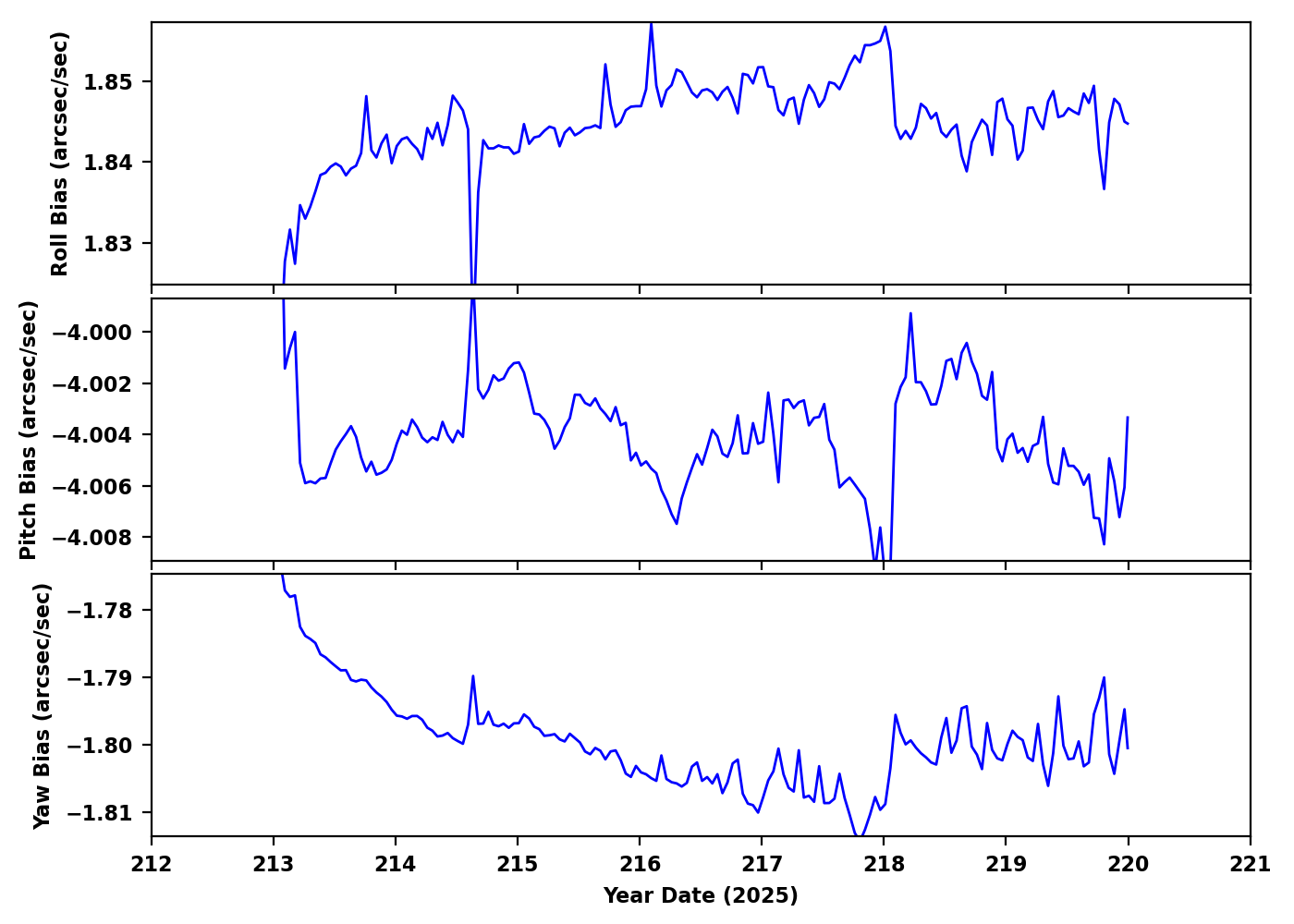

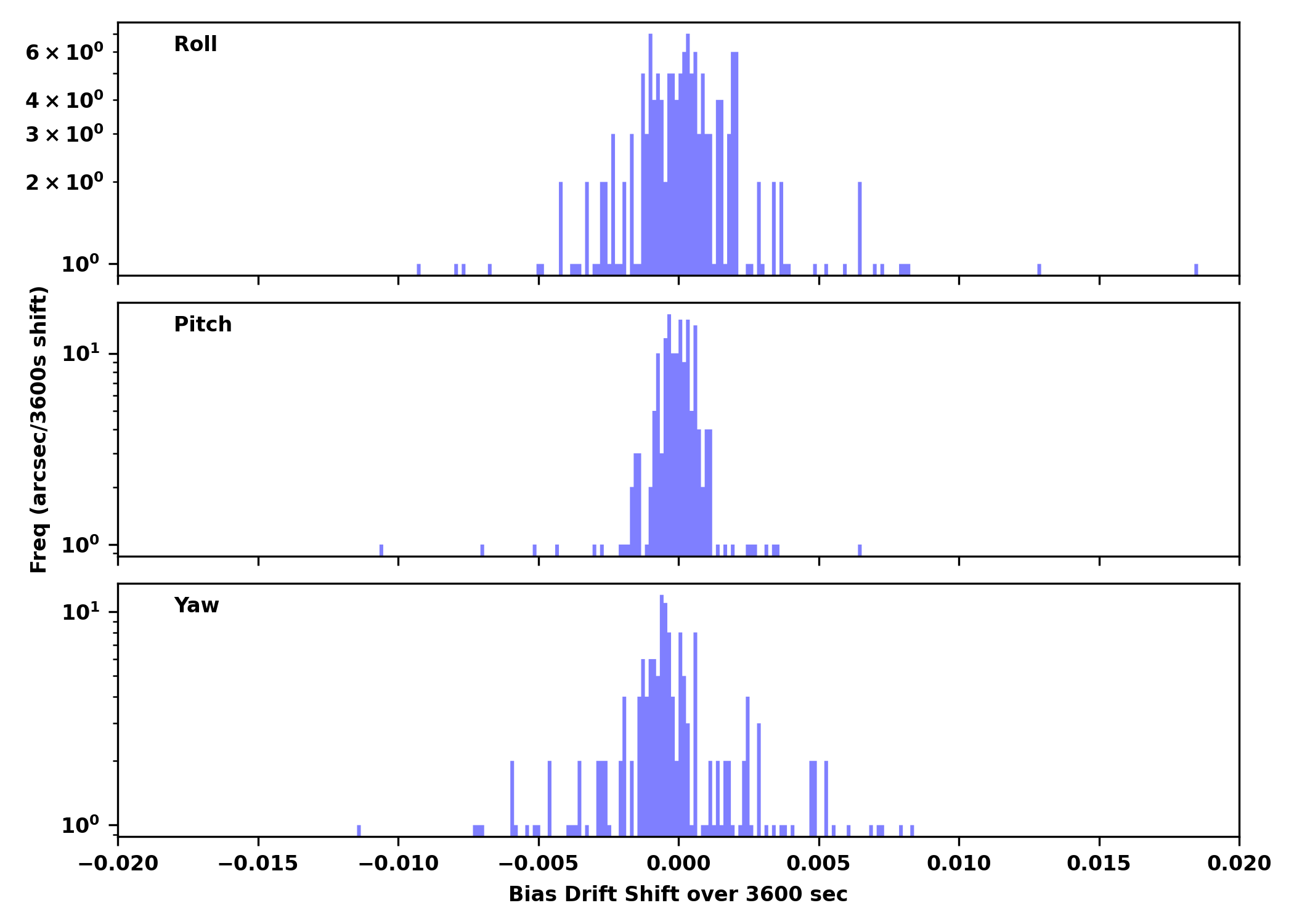

Gyro Bias Drift	Gyro Bias Drift Histogram

Recent Observations

OBSID	DETECTOR	GRATING	TARGET	ANALYSIS	ACA
28216	ACIS-235678	NONE	WISEA J201749.05+620443.3	OK	OK
30654	HRC-I	NONE	HD 29159	OK	OK
29106	ACIS-67	NONE	2MASS J20401855+1059450	OK	OK
31017	ACIS-0123	NONE	R Cr A	OK	OK
28647	ACIS-0123	NONE	SDSS J0100+2802	OK	OK
31013	ACIS-67	NONE	SDSSJ212858.85-070019.8	OK	OK
31015	ACIS-0123	NONE	SDSS J0100+2802	OK	OK
31014	ACIS-67	NONE	2RXS J213450.7-200504	OK	OK
30651	HRC-I	NONE	HD 284930	OK	OK
29798	ACIS-45678	NONE	MAXI J1820+070	OK	OK
28634	ACIS-0123	NONE	Abell 370	OK	OK
28689	ACIS-0123	NONE	A85 North	OK	OK
28093	HRC-I	NONE	NGC4261	OK	OK
28705	ACIS-0123	NONE	1E 2215.7-0404 / 1E 2216.0-0401	OK	OK
28708	ACIS-01236	NONE	1E 2215.7-0404 / 1E 2216.0-0401	OK	OK
28208	ACIS-456789	HETG	NGC 4579	OK/NA	OK
30446	HRC-I	NONE	HE 1353-1917	OK	OK
31025	ACIS-01236	NONE	1E 2215.7-0404 / 1E 2216.0-0401	OK	OK
31019	ACIS-67	NONE	Sgr A*	OK	OK
31024	ACIS-456789	HETG	NGC 4579	OK/NA	OK
28585	ACIS-67	NONE	WISE J025942.86-163542.9	OK	OK
31027	ACIS-67	HETG	NGC 7314	OK/NA	OK
30225	ACIS-67	HETG	NGC 7314	OK/NA	OK
28636	ACIS-0123	NONE	Abell 370	OK	OK

MSID	Mean	RMS	Delta/Yr	Delta/Yr/Yr	Unit	Description
oobthr02	0.380	0.033	(2.87+/-0.23)e2	0.06 +/- 0.03	K	RT 25: HRMA STRUT
oobthr03	0.598	0.023	(2.91+/-0.16)e2	0.07 +/- 0.03	K	RT 26: HRMA STRUT
oobthr04	0.748	0.023	(2.94+/-0.17)e2	0.08 +/- 0.04	K	RT 27: HRMA STRUT
oobthr05	0.736	0.031	(2.94+/-0.22)e2	0.09 +/- 0.04	K	RT 28: HRMA STRUT
oobthr06	0.606	0.025	(2.91+/-0.18)e2	0.08 +/- 0.03	K	RT 29: HRMA STRUT
oobthr07	0.399	0.023	(2.87+/-0.16)e2	0.06 +/- 0.03	K	RT 30: HRMA STRUT
oobthr08	0.995	0.003	(2.93+/-0.07)e2	0.14 +/- 0.05	K	RT 31: OBA CONE
oobthr09	0.690	0.159	(2.93+/-1.10)e2	0.13 +/- 0.05	K	RT 32: OBA CONE
oobthr10	0.718	0.104	(2.92+/-0.73)e2	0.13 +/- 0.05	K	RT 33: OBA CONE
oobthr11	0.887	0.003	(2.91+/-0.07)e2	0.13 +/- 0.05	K	RT 34: OBA CONE
oobthr12	0.876	0.003	(2.91+/-0.07)e2	0.14 +/- 0.05	K	RT 35: OBA CONE
oobthr13	-4.743	3.219	(3.12+/-22.33)e2	0.14 +/- 0.05	K	RT 36: OBA CONE
oobthr14	-1.617	1.454	(3.01+/-10.08)e2	0.14 +/- 0.05	K	RT 37: OBA CONE
oobthr15	0.896	0.003	(2.91+/-0.07)e2	0.14 +/- 0.05	K	RT 38: OBA CONE

HRMA Heaters

MSID	Mean	RMS	Delta/Yr	Delta/Yr/Yr	Unit	Description
ohrthr02	-0.003	0.001	(2.95+/-0.01)e2	(2.20+/-0.96)e-4	K	RT 2: HRMA FORWARD APERTURE PLATE
ohrthr03	7.855e-04	5.670e-05	(2.95+/-0.00)e2	-(9.26+/-6.96)e-4	K	RT 5: HRMA FORWARD APERTURE PLATE
ohrthr04	-0.005	0.003	(2.95+/-0.02)e2	(3.39+/-6.10)e-5	K	RT 9: HRMA PRECOLLIMATOR PLATE 10
ohrthr05	0.089	9.100e-04	(2.95+/-0.01)e2	0.04 +/- 0.01	K	RT 13: HRMA AFT HEATER PLATE
ohrthr06	0.069	6.025e-04	(2.95+/-0.01)e2	0.03 +/- 0.01	K	RT 14: HRMA MOUNT
ohrthr07	0.077	5.946e-04	(2.95+/-0.01)e2	0.03 +/- 0.01	K	RT 18: HSA OUTER CYLINDER
ohrthr08	0.071	5.783e-04	(2.94+/-0.01)e2	0.03 +/- 0.01	K	RT 103: HRMA CAP
ohrthr09	0.069	5.449e-04	(2.95+/-0.01)e2	0.02 +/- 0.01	K	RT 105: HRMA CAP
ohrthr10	0.064	4.870e-04	(2.95+/-0.01)e2	0.02 +/- 0.01	K	RT 107: HRMA P1 FLEXURE
ohrthr11	0.061	4.803e-04	(2.95+/-0.01)e2	0.02 +/- 0.01	K	RT 108: HRMA P4 FLEXURE
ohrthr12	0.078	6.284e-04	(2.95+/-0.01)e2	0.03 +/- 0.01	K	RT 115: HRMA H1 FLEXURE
ohrthr13	0.076	6.031e-04	(2.95+/-0.01)e2	0.03 +/- 0.01	K	RT 116: HRMA H6 FLEXURE
ohrthr14	0.110	7.496e-04	(2.95+/-0.01)e2	0.03 +/- 0.01	K	RT 121: HSA AFT INNER CYLINDER
