MTA Monitoring Report 04/10/26 - 04/16/26

Archive of all weekly reports
Archive of monthly reports

Radiation

Quiet

Detrended CTI

Although we prefer to quote CTI values of the cleanest data (FT <= -119.7 C, int time > 7000sec), the data that fulfills these conditions are getting rare. We now quote CTI based on temperature corrected data for Focal plane temperature <= -118.5 C).

The unit is now CTI/year not CTI/day.

Average of ACIS-I CCDs (MnKa) slope: 5.214e-02 CTI/year (1.428e-04 CTI/day)
Detrended slope: 4.865e-02 CTI/year (1.333e-04 CTI/day)

ACIS Warm Pixels

We display all bad pixels that have showed up in past, and, if any, previously unknown bad pixels appeared in the last 14 days. We also list hot pixels (defined as 1000 above the average of bias background). Warm columns 509-514 are probably due to boundaries.

New definitions of warm pixels and flickering pixels (May 15, 2014). If a pixel displays the level beyond a threshold for more than 70% of the time in the past two weeks, the pixel is categorized as a "warm" pixel. If a pixel is above the threshold more than 30% of time but less than 70% of the time in the past two weeks, the pixel is categorized as a "flickering" pixel.

 CCD0CCD1CCD2CCD3CCD4CCD5CCD6CCD7CCD8CCD9
Previously Unknown Bad Pixels
Current Warm Pixels (786,117)   (178,149) (104,31) (526,66) (803,225) (617,159) (21,95)     (1000,214) (849,169) (335,412) (295,978) (139,109) (447,769) (136,65) (275,393) (597,187)
Flickering Warm Pixels (283,278) (171,937) (798,494) (427,125) (910,239) (802,665) (726,537) (353,201) (665,25) (99,899) (837,378) (811,637) (394,80) (680,391) (318,53)   (282,385) (728,340) (357,303) (263,317) (369,376) (670,387) (884,31)   (220,813) (182,474) (541,41) (838,239) (675,304)
Current Hot Pixels
Flickering Hot Pixels
Warm column candidates           510 1022 512   1022 512
Flickering Warm column candidates

ACIS Focal Plane Temperature

For this period, 8 peaks are observed.

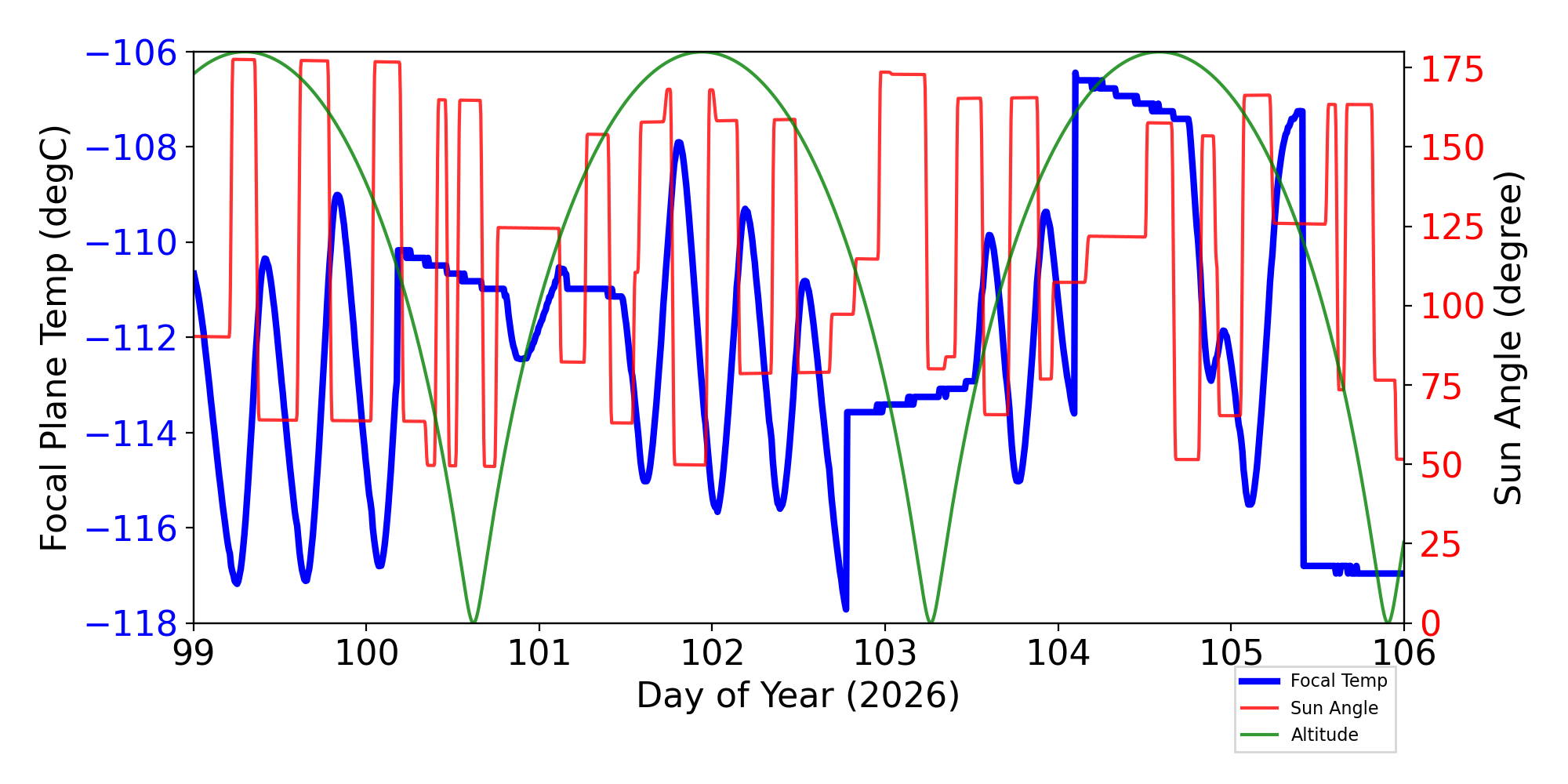

Weekly focal plane temperature with sun angle, earth angle, and altitude overplotted. Sun angle is the solar array angle, that is the angle between the sun and the optical axis (+X axis). The earth angle is the angle between earth and the ACIS radiator (+Z axis). Altitude varies from 34 kkm to 128 kkm.



SIM Movements

6 TSC moves this period

Telemetry

New violations or new extrema are shown in blue cells.

MSID 04/10/26 04/11/26 04/12/26 04/13/26 04/14/26 04/15/26 04/16/26 yellow limits
(lower)
upper 		red limits
(lower)
upper 		Units Description
AWD1TQI     (-3.35)         (-1.22)
1.22		 (-3.3)
3.3		 AMPWHEEL 1 TORQUE CURRENT
AWD6TQI (-3.43)   (-3.39)     (-3.43)   (-1.22)
1.22		 (-3.3)
3.3		 AMPWHEEL 6 TORQUE CURRENT
CTXBPWR   (0.00) (0.00) (0.00) (0.00)     (36.12)
37.0		 (36.0)
38.0		 DBMTRANSMITTER B OUTPUT POWER
MZOBACONE 309.02 310.96 312.46 309.24 310.25 310.02 309.95 (260.2)
303.0		 (250.2)
308.0		 CONE-Z SIDE OBA CONE
OBAAVG 301.09 302.53 304.14 303.07 303.11 301.93 301.78 (282.5)
300.0		 (281.4)
301.0		 KOBA/TFTE TEMP
OBADIAGRAD 4.73 4.61 4.83 4.75 4.50 4.64 4.84 (-1.11)
3.5		 (-2.78)
3.9		 KOBA DIAM GRAD
PZOBACONE     308.74         (260.2)
303.0		 (250.2)
308.0		 CONE+Z SIDE OBA CONE
TCYZ_RW6     (275.34)         (288.15)
363.15		 (278.15)
404.15		 KRWA -6 TEMP (RWA CRNR COMP)
TFTERANGE 47.70 48.31 48.73 46.14 48.97 47.29 46.72 (16.7)
37.5		 (11.1)
45.0		 KTFTE VENT/RAD TEMP


IRUs

Gyro Bias Drift Gyro Bias Drift Histogram

Recent Observations

OBSID DETECTOR GRATING TARGET ANALYSIS ACA
32281 ACIS-3678 NONE NGC4941 OK OK
29666 ACIS-3678 NONE NGC4941 OK OK
30539 ACIS-0123 NONE 1RXS J021649.0+703552 OK OK
30540 ACIS-0123 NONE 1RXS J021649.0+703552 OK OK
32289 ACIS-0123 NONE 1RXS J021649.0+703552 OK OK
32282 ACIS-3678 NONE NGC4941 OK OK
31400 ACIS-567 LETG MKN421 OK/NA OK
32276 ACIS-67 NONE RGB_J0710p591_s1 OK OK
32280 ACIS-3678 NONE NGC4540 OK OK
30201 ACIS-67 NONE NGC5728 OK OK
32275 ACIS-67 NONE AT 2025aarm OK OK
32290 ACIS-0123 NONE 1RXS J021649.0+703552 OK OK
32285 ACIS-67 NONE NGC5728 OK OK
30186 ACIS-3678 NONE AM2107-474 OK OK
30186 ACIS-3678 NONE AM2107-474 OK OK
32284 ACIS-67 NONE NGC5728 OK OK
32119 ACIS-5678 NONE SDSS J093401.24+245342.5 OK OK
31288 ACIS-67 NONE 2MASX J07233444-5610432 OK OK
29864 ACIS-3678 NONE AM0425-421 OK OK
31311 ACIS-67 NONE LEDA 184063 OK OK
31448 ACIS-67 NONE PGC3321235 OK OK
32301 ACIS-67 NONE LEDA 184063 OK OK
31144 ACIS-5678 NONE SN2026hkg OK OK
29877 ACIS-67 NONE SDSS J123733.69+085255.7 OK OK
31737 ACIS-5678 LETG MKN421 OK/NA OK
31259 ACIS-67 NONE M 87 OK OK
32295 ACIS-3678 NONE AM0425-421 OK OK
29741 ACIS-5678 HETG TV Cassiopeia OK/NA OK
32302 ACIS-67 NONE LEDA 184063 OK OK
30240 ACIS-0123 NONE Center of COSMOS-Web OK OK
32304 ACIS-67 NONE LEDA 184063 OK OK
31420 ACIS-23567 NONE Abell 2319 OK OK
32303 ACIS-67 NONE LEDA 184063 OK OK
32293 ACIS-5678 HETG TV Cassiopeia OK/NA OK
30543 HRC-I NONE SN 2012au OK OK

Trending

This week's focus is ACIS

Last reported on Jan 29.

Only the most interesting or representative msids are shown below. For a full listing choose the bulletted link.


MSIDMeanRMSDelta/YrDelta/Yr/YrUnitDescription
1cbat 0.0550.004(2.09+/-0.03)e2-0.02 +/- 0.05KCAMERA BODY TEMP. A
1cbbt -0.0260.004(2.11+/-0.03)e2-0.01 +/- 0.05KCAMERA BODY TEMP. B
1crat 0.2840.003(1.49+/-0.03)e20.01 +/- 0.05KCOLD RADIATOR TEMP. A
1crbt 11.8470.178(2.15+/-1.75)e20.26 +/- 0.07KCOLD RADIATOR TEMP. B
1dactbt 0.1720.003(2.59+/-0.03)e20.06 +/- 0.06KDA COLLIMATOR TEMP. B
1deamzt 0.4350.005(2.87+/-0.06)e2-0.05 +/- 0.11KDEA -Z PANEL TEMP
1dpamyt 0.3780.006(2.88+/-0.06)e2-0.14 +/- 0.12KDPA -Y PANEL TEMP
1dpamzt 0.3530.006(2.91+/-0.05)e2-0.10 +/- 0.12KDPA -Z PANEL TEMP
1oahat 0.1310.004(2.44+/-0.02)e2-0.00 +/- 0.05KOPEN ACTUATOR HOUSING TEMP. A
1oahbt 0.1870.003(2.42+/-0.03)e20.04 +/- 0.05KOPEN ACTUATOR HOUSING TEMP. B
1pdeaat -0.0560.007(3.04+/-0.06)e2-0.12 +/- 0.17KPSMC DEA PS A TEMP
1pdeabt 0.0160.007(2.96+/-0.06)e2-0.09 +/- 0.17KPSMC DEA PS B TEMP
1wrat 0.1510.003(1.92+/-0.03)e2-0.01 +/- 0.05KWARM RADIATOR TEMP. A
1wrbt 0.1470.003(1.91+/-0.03)e2-0.01 +/- 0.05KWARM RADIATOR TEMP. B

MSIDMeanRMSDelta/YrDelta/Yr/YrUnitDescription
deahk1 0.0067.642e-050.25 +/- 0.07-(7.29+/-14.43)e-4CDPA Thermistor 1 - BEP PC Board
deahk2 0.0067.824e-050.22 +/- 0.07-(7.72+/-14.86)e-4CDPA Thermistor 2 - BEP Oscillator
deahk3 0.0019.825e-050.25 +/- 0.07-0.00 +/- 0.00CDPA Thermistor 3 - FEP 0 Mongoose
deahk4 0.0039.023e-050.23 +/- 0.07-(9.61+/-18.86)e-4CDPA Thermistor 4 - FEP 0 PC Board
deahk5 0.0029.678e-050.25 +/- 0.07-0.00 +/- 0.00CDPA Thermistor 5 - FEP 0 ACTEL
deahk6 0.0039.401e-050.25 +/- 0.07-0.00 +/- 0.00CDPA Thermistor 6 - FEP 0 RAM
deahk7 0.0048.875e-050.21 +/- 0.07-0.00 +/- 0.00CDPA Thermistor 7 - FEP 0 Frame Buf
deahk8 0.0059.630e-050.31 +/- 0.08-0.00 +/- 0.00CDPA Thermistor 8 - FEP 1 Mongoose
deahk9 0.0059.149e-050.27 +/- 0.07-0.00 +/- 0.00CDPA Thermistor 9 - FEP 1 PC Board
deahk10 0.0059.787e-050.30 +/- 0.08-0.00 +/- 0.00CDPA Thermistor 10- FEP 1 ACTEL
deahk11 0.0059.642e-050.29 +/- 0.07-0.00 +/- 0.00CDPA Thermistor 11- FEP 1 RAM
deahk12 0.0059.119e-050.22 +/- 0.07-(9.67+/-18.44)e-4CDPA Thermistor 12- FEP 1 Frame Buf
deahk13 0.000e+000.000e+00(0.00+/-0.00)e0(0.00+/-0.00)e0CDEA Video Board ADC
deahk15 0.0350.029-3.85 +/- 19.89-0.01 +/- 0.02CFocal Plane Temp. Board 12
deahk16 0.0380.029-2.15 +/- 19.910.01 +/- 0.02CFocal Plane Temp. Board 11

MSIDMeanRMSDelta/YrDelta/Yr/YrUnitDescription
deahk17 -1.373e-058.425e-06-0.00 +/- 0.01(5.65+/-3.97)e-6VDPA Ground Reference 1
deahk18 -6.626e-056.955e-050.05 +/- 0.05(1.92+/-26.04)e-6VDPA 5V Housekeeping A
deahk19 -1.371e-058.425e-06-0.00 +/- 0.01(2.58+/-3.89)e-6VDPA Ground Reference 2
deahk20 -4.844e-056.955e-050.05 +/- 0.05(2.62+/-2.24)e-5VDPA 5V Housekeeping B
deahk25 -5.237e-051.376e-040.30 +/- 0.10(1.76+/-4.64)e-5VPrimary Raw DEA 28V DC
deahk26 -2.287e-041.382e-040.25 +/- 0.10(5.43+/-4.60)e-5VPrimary Raw DEA 24V DC
deahk27 6.495e-057.192e-05-0.16 +/- 0.05(7.95+/-6.84)e-5VPrimary Raw DEA -15.5V
deahk28 -1.168e-046.842e-050.16 +/- 0.05(5.71+/-536.40)e-7VPrimary Raw DEA +15.5V
deahk29 -3.732e-057.078e-05-0.06 +/- 0.05-(4.54+/-28.10)e-6VPrimary Raw DEA -6V DC
deahk30 -5.066e-056.944e-050.06 +/- 0.05-(5.76+/-21.74)e-6VPrimary Raw DEA +6V DC
deahk31 -7.255e-068.404e-06(5.87+/-60.00)e-4(3.76+/-2.83)e-6mAmpRelative Dose Rad. Monitor Side A
deahk32 -6.653e-068.409e-06(9.71+/-600.00)e-5(4.05+/-2.70)e-6VInterface Ground Reference
