Although we prefer to quote CTI values of the cleanest data (FT <= -119.7 C, int time > 7000sec), the data that fulfills these conditions are getting rare. We now quote CTI based on temperature corrected data for Focal plane temperature <= -118.5 C).

The unit is now CTI/year not CTI/day.

Average of ACIS-I CCDs (MnKa) slope:	5.214e-02 CTI/year	(1.428e-04 CTI/day)
Detrended slope:	4.865e-02 CTI/year	(1.333e-04 CTI/day)

ACIS Warm Pixels

We display all bad pixels that have showed up in past, and, if any, previously unknown bad pixels appeared in the last 14 days. We also list hot pixels (defined as 1000 above the average of bias background). Warm columns 509-514 are probably due to boundaries.

New definitions of warm pixels and flickering pixels (May 15, 2014). If a pixel displays the level beyond a threshold for more than 70% of the time in the past two weeks, the pixel is categorized as a "warm" pixel. If a pixel is above the threshold more than 30% of time but less than 70% of the time in the past two weeks, the pixel is categorized as a "flickering" pixel.

	CCD0	CCD1	CCD2	CCD3	CCD5	CCD6	CCD7	CCD8
Previously Unknown Bad Pixels
Current Warm Pixels						(670,387) (849,169) (884,31)	(335,412)
Flickering Warm Pixels	(171,937) (283,278) (154,9) (786,117)	(700,242) (910,239) (427,125) (787,181)	(837,378) (803,225) (104,31) (526,66) (99,899) (726,537) (178,149) (665,25) (353,201)	(21,95) (811,637) (394,80) (617,159) (680,391) (318,53)	(357,303) (369,376) (263,317)	(1000,214)		(838,239) (275,393) (182,474) (136,65) (541,41) (597,187)
Current Hot Pixels
Flickering Hot Pixels
Warm column candidates					512 510 1022		512 1022
Flickering Warm column candidates

ACIS Focal Plane Temperature

For this period, 13 peaks are observed.

Day (DOY)	Temp (C)	Width (Days)
203.19	-115.02	0.49
203.86	-101.71	0.40
204.90	-110.21	0.39
205.70	-108.52	0.63
206.28	-116.39	0.19
206.50	-102.67	0.53
207.07	-112.37	0.38
207.45	-112.02	0.35
207.79	-111.33	0.40
208.29	-115.19	0.64
209.15	-104.99	0.85
209.69	-112.26	0.29
209.96	-110.46	0.33

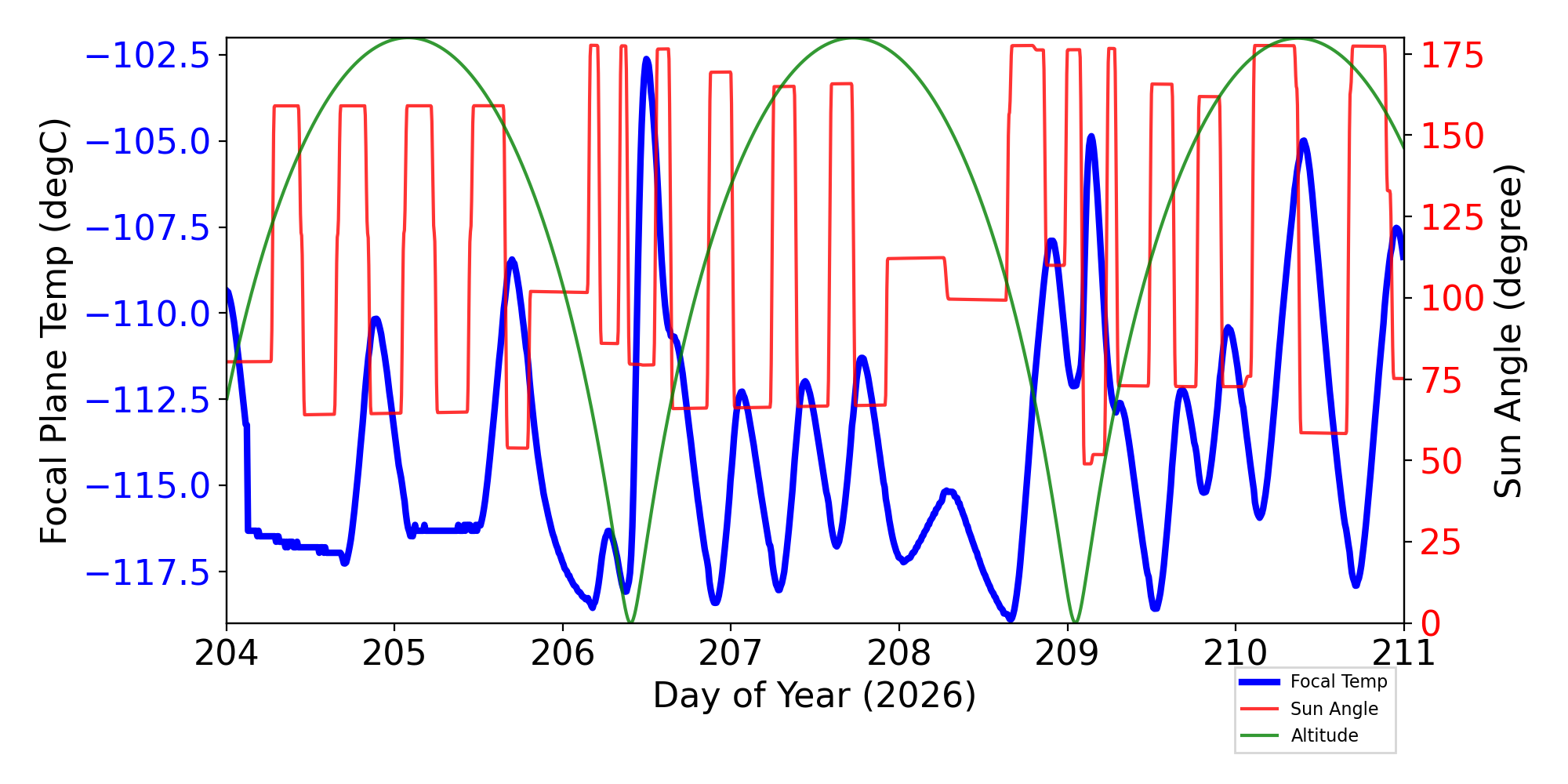

Weekly focal plane temperature with sun angle, earth angle, and altitude overplotted. Sun angle is the solar array angle, that is the angle between the sun and the optical axis (+X axis). The earth angle is the angle between earth and the ACIS radiator (+Z axis). Altitude varies from 34 kkm to 128 kkm.

SIM Movements

11 TSC moves this period

weekly average time/step	0.00142 s
mission average time/step	0.00132 s

Telemetry

New violations or new extrema are shown in blue cells.

MSID	07/24/26	07/25/26	07/26/26	07/27/26	07/28/26	07/29/26	07/30/26	yellow limits (lower) upper	red limits (lower) upper	Units	Description
1CRBT	677.96	677.96	677.96	677.96	677.96	677.96	677.96	(136.15) 183.15	(131.15) 193.15	K	COLD RADIATOR TEMP. B
1CRBTC	(17.76)	(12.69)	(40.69)	(20.30)	(15.22)	(15.22)	(17.76)	(136.15) 183.15	(131.15) 193.15	C	COLD RADIATOR TEMP. B
AFTBLKHDT				308.28				(260.2) 303.0	(250.2) 308.0	TEMP	AFT BULKHEAD TEMP
AWD1TQI		(-3.35)						(-1.22) 1.22	(-3.3) 3.3	AMP	WHEEL 1 TORQUE CURRENT
AWD6TQI		(-3.39)		(-3.31)				(-1.22) 1.22	(-3.3) 3.3	AMP	WHEEL 6 TORQUE CURRENT
CTXBPWR	(0.00)	(0.00)	(0.00)	(0.00)	(0.00)	(0.00)	(0.00)	(36.12) 37.0	(36.0) 38.0	DBM	TRANSMITTER B OUTPUT POWER
ESAMYI		(0.06)		(0.06)			(0.06)	(5.63) 30.15	(5.3) 33.0	AMP	S/A -Y CURRENT
ESAPYI		(0.14)		(0.14)			(0.14)	(5.54) 30.15	(5.2) 33.0	AMP	S/A +Y CURRENT
MZOBACONE	310.44	311.83	308.93	314.71				(260.2) 303.0	(250.2) 308.0	CONE	-Z SIDE OBA CONE
OBAAVG	301.97	303.33		305.84				(282.5) 300.0	(281.4) 301.0	K	OBA/TFTE TEMP
OBACONEAVG						304.48	303.33	(282.5) 300.0	(281.8) 301.0	K	OBA CONE AVG TEMP
OBADIAGRAD	4.65	4.58	4.69	4.30	4.69	4.86	4.99	(-1.11) 3.5	(-2.78) 3.9	K	OBA DIAM GRAD
PZOBACONE				310.71				(260.2) 303.0	(250.2) 308.0	CONE	+Z SIDE OBA CONE
TFTERANGE	47.51	48.25	46.42	48.87	45.69	45.87	46.44	(16.7) 37.5	(11.1) 45.0	K	TFTE VENT/RAD TEMP
TSCTSF3				(268.79)		(268.79)	(268.79)	(278.15) 359.15	(269.15) 483.15	K	SC-TS FITTING -3 TEMP

IRUs

Gyro Bias Drift	Gyro Bias Drift Histogram

Recent Observations

OBSID	DETECTOR	GRATING	TARGET	ANALYSIS	ACA
32452	ACIS-67	NONE	WGD2038-4008	OK	OK
30339	ACIS-0123	NONE	Perseus cluster W	OK	OK
30222	ACIS-67	NONE	WGD2038-4008	OK	OK
30346	ACIS-0123	NONE	Perseus cluster W	OK	OK
32449	ACIS-0123	NONE	NGC 3056	OK	OK
32453	ACIS-67	NONE	WGD2038-4008	OK	OK
30207	ACIS-67	NONE	NGC5728	OK	OK
32446	ACIS-67	NONE	Mrk 509	OK	OK
32454	ACIS-01236	NONE	Perseus cluster W	OK	OK
32448	ACIS-67	NONE	SDSSJ205829.72-072907.4	OK	OK
32447	ACIS-67	NONE	SDSSJ205302.76-071832.4	OK	OK
32456	ACIS-0123	NONE	Perseus cluster W	OK	OK
32455	ACIS-01236	NONE	Perseus cluster W	OK	OK
30414	ACIS-0123	NONE	MACS J0018.5+1626	OK	OK
30325	ACIS-01236	NONE	Perseus cluster N	OK	OK
31661	ACIS-3678	NONE	PSO J308.0416-21.2339	OK	OK
30205	ACIS-67	NONE	NGC5728	OK	OK
32464	ACIS-67	NONE	NGC 6814	OK	OK
31407	ACIS-01236	NONE	A1795	OK	OK
32462	ACIS-67	NONE	LEDA90334	OK	OK
32471	ACIS-01236	NONE	A1795	OK	OK
31664	ACIS-3678	NONE	PSO J308.0416-21.2339	OK	OK
32430	ACIS-3678	NONE	GRB251129A	OK	OK
32472	ACIS-67	NONE	PSO J308.0416-21.2339	OK	OK
29822	ACIS-2367	NONE	SNR G1.9+0.3	OK	OK
31309	ACIS-23678	NONE	ZTF26aavrgaw	OK	OK
29881	ACIS-2567	NONE	SDSS J122558.56+042826.3	OK	OK

MSID	Mean	RMS	Delta/Yr	Delta/Yr/Yr	Unit	Description
3btu_bpt	0.386	0.007	(2.66+/-0.07)e2	-0.11 +/- 0.17	K	BTU BASEPLATE (+X)), ABORT HTR TSC2
3fabraat	0.193	0.004	(2.67+/-0.04)e2	-0.04 +/- 0.06	K	FA STRUCTURE AT BEARING A ABORT HTR. FA6 TEMP
3fabrcat	0.198	0.007	(2.76+/-0.06)e2	0.07 +/- 0.15	K	FA STRUCTURE AT BEARING C ABORT HTR. FA6 TEMP
3famyzat	-0.101	0.014	(2.83+/-0.12)e2	0.05 +/- 0.17	K	FA STRUCTURE +X FACE AT -Y-Z END ABORT HTR. FA6 TEMP
3fapyzat	-0.185	0.014	(2.82+/-0.12)e2	-0.02 +/- 0.07	K	FA STRUCTURE +X FACE AT +Y+Z END ABORT HTR. FA6 TEMP
3faralat	0.086	0.013	(2.77+/-0.11)e2	0.02 +/- 0.22	K	FA STRUCTURE AT RAIL -Z, ABORT HEATER FA6 TEMP
3flcabpt	0.320	0.004	(2.82+/-0.04)e2	-0.07 +/- 0.08	K	FLCA BASEPLATE (+X)
3rctubpt	0.516	0.009	(2.74+/-0.09)e2	-0.14 +/- 0.21	K	RCTU BASEPLATE (+X)
3tsmxcet	1.841	0.024	(2.30+/-0.25)e2	0.02 +/- 0.52	K	-X TURTLE SHELL NR HRC CEA
3tsmxspt	10.404	0.100	(3.36+/-1.18)e2	1.21 +/- 1.84	K	-X TURTLE SHELL NR ACIS SS
3tsmydpt	0.696	0.010	(2.33+/-0.10)e2	-0.10 +/- 0.21	K	-Y TURTLE SHELL NR ACIS DPA
3tspyfet	0.145	0.007	(2.33+/-0.06)e2	-0.11 +/- 0.16	K	+Y TURTLE SHELL NR HRC FEA
3tspzdet	0.620	0.008	(2.68+/-0.08)e2	-0.09 +/- 0.17	K	+Z TURTLE SHELL NR ACIS DEA
3tspzspt	0.622	0.007	(2.72+/-0.08)e2	-0.07 +/- 0.17	K	+Z TURTLE SHELL NR ACIS SS
3ttacs1t	0.212	0.003	(2.66+/-0.03)e2	-0.02 +/- 0.06	K	TT at ACIS Attach #1 Abort Htr
3ttacs2t	0.203	0.004	(2.66+/-0.03)e2	0.02 +/- 0.08	K	TT at ACIS Attach #2 Abort Htr
3ttacs3t	0.180	0.002	(2.62+/-0.02)e2	0.03 +/- 0.04	K	TT at ACIS Attach #3 Abort Htr
3ttbrgbt	0.268	0.010	(2.60+/-0.08)e2	0.01 +/- 0.22	K	TT at Bearing B, Abort Htr TSC4
3tthrc1t	0.247	0.010	(2.69+/-0.09)e2	-0.02 +/- 0.24	K	TT at HRC Bipod Attach #1
3tthrc2t	0.191	0.010	(2.73+/-0.09)e2	-0.00 +/- 0.24	K	TT at HRC Bipod Attach #2
3tthrc3t	0.139	0.004	(2.68+/-0.03)e2	0.07 +/- 0.09	K	TT at HRC Bipod Attach #3
3ttralat	0.322	0.007	(2.47+/-0.07)e2	0.09 +/- 0.15	K	TT at Rail A, Abort Htr TSC3
3ttralct	0.209	0.005	(2.67+/-0.04)e2	0.03 +/- 0.11	K	TT at Rail C, Abort Htr TSC3
3ttvalvt	0.397	0.009	(2.54+/-0.08)e2	0.10 +/- 0.20	K	TT at Vent Valve, Abort Htr TSC7
