MTA Monitoring Report 06/26/26 - 07/02/26

Archive of all weekly reports
Archive of monthly reports

Radiation

Quiet

Detrended CTI

Although we prefer to quote CTI values of the cleanest data (FT <= -119.7 C, int time > 7000sec), the data that fulfills these conditions are getting rare. We now quote CTI based on temperature corrected data for Focal plane temperature <= -118.5 C).

The unit is now CTI/year not CTI/day.

Average of ACIS-I CCDs (MnKa) slope: 5.214e-02 CTI/year (1.428e-04 CTI/day)
Detrended slope: 4.865e-02 CTI/year (1.333e-04 CTI/day)

ACIS Warm Pixels

We display all bad pixels that have showed up in past, and, if any, previously unknown bad pixels appeared in the last 14 days. We also list hot pixels (defined as 1000 above the average of bias background). Warm columns 509-514 are probably due to boundaries.

New definitions of warm pixels and flickering pixels (May 15, 2014). If a pixel displays the level beyond a threshold for more than 70% of the time in the past two weeks, the pixel is categorized as a "warm" pixel. If a pixel is above the threshold more than 30% of time but less than 70% of the time in the past two weeks, the pixel is categorized as a "flickering" pixel.

 CCD0CCD1CCD2CCD3CCD4CCD5CCD6CCD7CCD8CCD9
Previously Unknown Bad Pixels   (266,210) (110,18)
Current Warm Pixels     (99,899) (178,149) (803,225) (526,66) (21,95) (811,637)       (335,412) (275,393)
Flickering Warm Pixels (154,9) (786,117) (802,665) (910,239) (427,125) (665,25) (726,537) (680,391)   (669,577) (728,340) (233,227) (641,669) (369,376) (263,317) (367,511) (877,408) (258,797) (357,303) (282,385) (161,206) (233,102) (226,202) (884,31) (849,169) (287,164) (360,249) (670,387)   (838,239) (182,474) (541,41) (295,978) (447,769) (220,813) (136,65) (597,187)
Current Hot Pixels
Flickering Hot Pixels
Warm column candidates           510 1022 512   1022 512
Flickering Warm column candidates

ACIS Focal Plane Temperature

For this period, 6 peaks are observed.

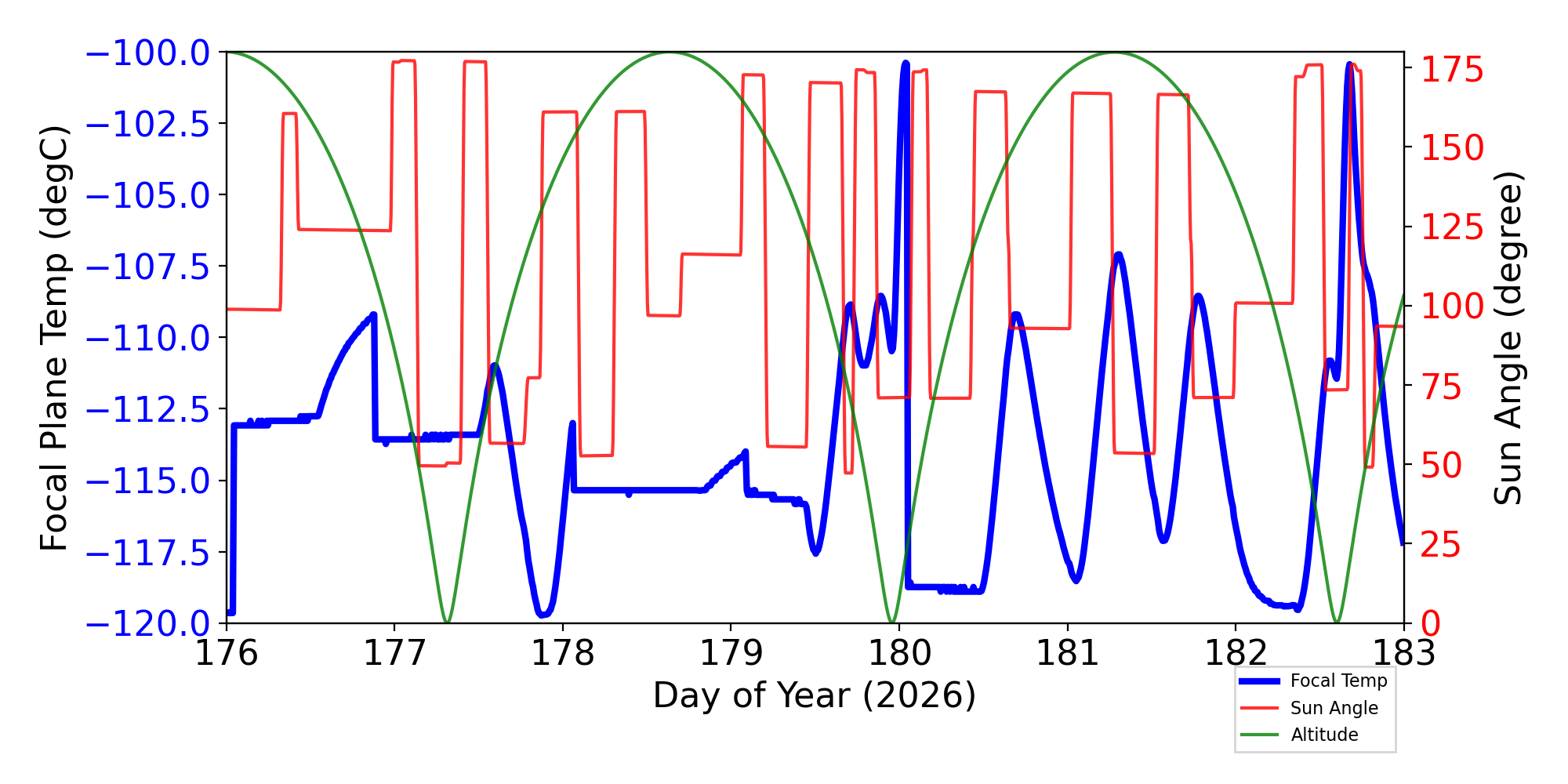

Weekly focal plane temperature with sun angle, earth angle, and altitude overplotted. Sun angle is the solar array angle, that is the angle between the sun and the optical axis (+X axis). The earth angle is the angle between earth and the ACIS radiator (+Z axis). Altitude varies from 34 kkm to 128 kkm.



SIM Movements

8 TSC moves this period

Telemetry

New violations or new extrema are shown in blue cells.

MSID 06/26/26 06/27/26 06/28/26 06/29/26 06/30/26 07/01/26 07/02/26 yellow limits
(lower)
upper 		red limits
(lower)
upper 		Units Description
1CRBT 677.96 677.96 677.96 677.96 677.96 677.96 677.96 (136.15)
183.15		 (131.15)
193.15		 KCOLD RADIATOR TEMP. B
1CRBTC (48.36) (56.05) (33.03) (48.36) (38.13) (27.93) (53.49) (136.15)
183.15		 (131.15)
193.15		 CCOLD RADIATOR TEMP. B
AWD1TQI           (-3.39)   (-1.22)
1.22		 (-3.3)
3.3		 AMPWHEEL 1 TORQUE CURRENT
AWD6TQI           (-3.43)   (-1.22)
1.22		 (-3.3)
3.3		 AMPWHEEL 6 TORQUE CURRENT
CTXBPWR   (0.00) (0.00) (0.00) (0.00) (0.00) (0.00) (36.12)
37.0		 (36.0)
38.0		 DBMTRANSMITTER B OUTPUT POWER
HRMAAVG (303.58)             (306.0)
308.0		 (305.0)
309.0		 KAVG OF HRMA METRICS
MZOBACONE 310.45 310.00 310.40 309.39 309.11 310.85 312.88 (260.2)
303.0		 (250.2)
308.0		 CONE-Z SIDE OBA CONE
OBAAVG 304.34 302.20 302.69 301.08 301.15 302.38 304.14 (282.5)
300.0		 (281.4)
301.0		 KOBA/TFTE TEMP
OBACONEAVG   307.57 308.05 306.23 306.25     (282.5)
300.0		 (281.8)
301.0		 KOBA CONE AVG TEMP
OBADIAGRAD 4.74 4.58 4.53 4.74 4.73 4.75 4.67 (-1.11)
3.5		 (-2.78)
3.9		 KOBA DIAM GRAD
PZOBACONE 309.14           308.65 (260.2)
303.0		 (250.2)
308.0		 CONE+Z SIDE OBA CONE
TCYZ_RW6 (275.71)             (288.15)
363.15		 (278.15)
404.15		 KRWA -6 TEMP (RWA CRNR COMP)
TFTERANGE 46.35 48.61 48.74 47.53 47.38 48.04 48.24 (16.7)
37.5		 (11.1)
45.0		 KTFTE VENT/RAD TEMP


IRUs

Gyro Bias Drift Gyro Bias Drift Histogram

Recent Observations

OBSID DETECTOR GRATING TARGET ANALYSIS ACA
30512 ACIS-0123 NONE Abell 2108 OK OK
31483 ACIS-3678 NONE NGC2566 OK OK
31385 ACIS-67 NONE Cas A OK OK
31384 ACIS-23 NONE Cas A OK OK
29829 ACIS-2367 NONE SN 1986J OK OK
31596 ACIS-67 NONE Kes 73 OK OK
31597 ACIS-67 NONE Kes 73 OK OK
31408 ACIS-23567 NONE A1795 OK OK
32335 ACIS-67 NONE LEDA 184063 OK OK
32403 ACIS-0123 NONE HEP G003.632-00.859 OK OK
32406 ACIS-67 NONE SNR G1.9+0.3 OK OK
32404 ACIS-0123 NONE Center of COSMOS-Web OK OK
29996 ACIS-5678 NONE ASASSN-14ko OK OK
30123 ACIS-0123 NONE Snake OK OK
30118 ACIS-0123 NONE PSR J1015-5719 OK OK
32410 ACIS-0123 NONE Snake OK OK
32411 ACIS-0123 NONE Snake OK OK
30261 ACIS-0123 NONE Center of COSMOS-Web OK OK
32409 ACIS-5678 NONE ASASSN-14ko OK OK
31876 ACIS-0123 NONE G292.0+1.8 OK OK
31410 ACIS-23567 NONE A1795 OK OK
32401 ACIS-3678 NONE AT2026nhm OK OK
29858 ACIS-5678 NONE NGC4684 OK OK
32400 ACIS-67 NONE AT2026nik OK OK
31340 ACIS-0123 NONE V4641 Sgr N1 OK OK

Trending

This week's focus is ACIS

Last reported on Apr 16.

Only the most interesting or representative msids are shown below. For a full listing choose the bulletted link.


MSIDMeanRMSDelta/YrDelta/Yr/YrUnitDescription
1cbat 0.0590.004(2.09+/-0.03)e2-0.03 +/- 0.05KCAMERA BODY TEMP. A
1cbbt -0.0210.004(2.11+/-0.03)e2-0.03 +/- 0.05KCAMERA BODY TEMP. B
1crat 0.2850.003(1.49+/-0.03)e2-0.01 +/- 0.05KCOLD RADIATOR TEMP. A
1crbt 12.3280.178(2.19+/-1.79)e20.24 +/- 0.07KCOLD RADIATOR TEMP. B
1dactbt 0.1760.003(2.59+/-0.03)e20.05 +/- 0.06KDA COLLIMATOR TEMP. B
1deamzt 0.4290.005(2.87+/-0.06)e2-0.08 +/- 0.11KDEA -Z PANEL TEMP
1dpamyt 0.3710.006(2.88+/-0.06)e2-0.16 +/- 0.12KDPA -Y PANEL TEMP
1dpamzt 0.3460.005(2.92+/-0.05)e2-0.13 +/- 0.12KDPA -Z PANEL TEMP
1oahat 0.1310.004(2.44+/-0.02)e2-0.00 +/- 0.05KOPEN ACTUATOR HOUSING TEMP. A
1oahbt 0.1900.003(2.42+/-0.03)e20.03 +/- 0.05KOPEN ACTUATOR HOUSING TEMP. B
1pdeaat -0.0570.007(3.04+/-0.06)e2-0.17 +/- 0.17KPSMC DEA PS A TEMP
1pdeabt 0.0140.007(2.96+/-0.06)e2-0.14 +/- 0.17KPSMC DEA PS B TEMP
1wrat 0.1530.003(1.92+/-0.03)e2-0.02 +/- 0.05KWARM RADIATOR TEMP. A
1wrbt 0.1500.003(1.91+/-0.03)e2-0.02 +/- 0.04KWARM RADIATOR TEMP. B

MSIDMeanRMSDelta/YrDelta/Yr/YrUnitDescription
deahk1 0.0067.642e-050.25 +/- 0.07-(7.29+/-14.43)e-4CDPA Thermistor 1 - BEP PC Board
deahk2 0.0067.824e-050.22 +/- 0.07-(7.72+/-14.86)e-4CDPA Thermistor 2 - BEP Oscillator
deahk3 0.0019.825e-050.25 +/- 0.07-0.00 +/- 0.00CDPA Thermistor 3 - FEP 0 Mongoose
deahk4 0.0039.023e-050.23 +/- 0.07-(9.61+/-18.86)e-4CDPA Thermistor 4 - FEP 0 PC Board
deahk5 0.0029.678e-050.25 +/- 0.07-0.00 +/- 0.00CDPA Thermistor 5 - FEP 0 ACTEL
deahk6 0.0039.401e-050.25 +/- 0.07-0.00 +/- 0.00CDPA Thermistor 6 - FEP 0 RAM
deahk7 0.0048.875e-050.21 +/- 0.07-0.00 +/- 0.00CDPA Thermistor 7 - FEP 0 Frame Buf
deahk8 0.0059.630e-050.31 +/- 0.08-0.00 +/- 0.00CDPA Thermistor 8 - FEP 1 Mongoose
deahk9 0.0059.149e-050.27 +/- 0.07-0.00 +/- 0.00CDPA Thermistor 9 - FEP 1 PC Board
deahk10 0.0059.787e-050.30 +/- 0.08-0.00 +/- 0.00CDPA Thermistor 10- FEP 1 ACTEL
deahk11 0.0059.642e-050.29 +/- 0.07-0.00 +/- 0.00CDPA Thermistor 11- FEP 1 RAM
deahk12 0.0059.119e-050.22 +/- 0.07-(9.67+/-18.44)e-4CDPA Thermistor 12- FEP 1 Frame Buf
deahk13 0.000e+000.000e+00(0.00+/-0.00)e0(0.00+/-0.00)e0CDEA Video Board ADC
deahk15 0.0350.029-3.85 +/- 19.89-0.01 +/- 0.02CFocal Plane Temp. Board 12
deahk16 0.0380.029-2.15 +/- 19.910.01 +/- 0.02CFocal Plane Temp. Board 11

MSIDMeanRMSDelta/YrDelta/Yr/YrUnitDescription
deahk17 -1.373e-058.425e-06-0.00 +/- 0.01(5.65+/-3.97)e-6VDPA Ground Reference 1
deahk18 -6.626e-056.955e-050.05 +/- 0.05(1.92+/-26.04)e-6VDPA 5V Housekeeping A
deahk19 -1.371e-058.425e-06-0.00 +/- 0.01(2.58+/-3.89)e-6VDPA Ground Reference 2
deahk20 -4.844e-056.955e-050.05 +/- 0.05(2.62+/-2.24)e-5VDPA 5V Housekeeping B
deahk25 -5.237e-051.376e-040.30 +/- 0.10(1.76+/-4.64)e-5VPrimary Raw DEA 28V DC
deahk26 -2.287e-041.382e-040.25 +/- 0.10(5.43+/-4.60)e-5VPrimary Raw DEA 24V DC
deahk27 6.495e-057.192e-05-0.16 +/- 0.05(7.95+/-6.84)e-5VPrimary Raw DEA -15.5V
deahk28 -1.168e-046.842e-050.16 +/- 0.05(5.71+/-536.40)e-7VPrimary Raw DEA +15.5V
deahk29 -3.732e-057.078e-05-0.06 +/- 0.05-(4.54+/-28.10)e-6VPrimary Raw DEA -6V DC
deahk30 -5.066e-056.944e-050.06 +/- 0.05-(5.76+/-21.74)e-6VPrimary Raw DEA +6V DC
deahk31 -7.255e-068.404e-06(5.87+/-60.00)e-4(3.76+/-2.83)e-6mAmpRelative Dose Rad. Monitor Side A
deahk32 -6.653e-068.409e-06(9.71+/-600.00)e-5(4.05+/-2.70)e-6VInterface Ground Reference
