| Science Run Stop: | 2025:152:05:51:32.000 |
| Science Run Start: | 2025:153:20:39:33.000 |
| Interruption: | 105.24 ks |
| Triggered by: | auto |
Go to:
ACE Plot (Electron DE1, DE4 / Proton P2,P3, P5, P6p, P7)
HRC Plot (HRC Shield Rate)
ACIS Plot (ACIS Count Rate)
GOES-R Plot (P5/P6/P7/HRC Prox)
XMM Plot (LE and HES)
ACE radiation data are plotted around periods when science runs were interrupted. Plots start exactly 2 days before the interruption started. The top panel shows differential fluxes of electrons 38-53 and 175-315 (particles/cm2-s-ster-MeV), the bottom panel shows differential fluxes of protons 47-65, 112-187, and 310-580 (particles/cm2-s-ster-MeV).
Avg Max Time Min Time Value at Start of Interruption ----------------------------------------------------------------------------------------------- e38-53 1.152e+05+/-3.388e+05 2.410e+06 2025:152:08:50:00 1.110e+03 2025:150:20:20:00 590000.0 e175-315 5.483e+02+/-9.683e+03 1.100e+05 2025:152:18:40:00 6.630e+00 2025:151:00:30:00 7370.0 p47-68 3.494e+04+/-9.783e+04 6.470e+05 2025:152:05:25:00 2.570e+03 2025:151:02:35:00 577000.0 p115-195 1.090e+04+/-3.597e+04 3.000e+05 2025:152:05:25:00 9.180e+00 2025:151:00:00:00 226000.0 p310-580 3.089e+03+/-1.384e+04 9.920e+04 2025:152:05:20:00 1.040e+00 2025:151:00:20:00 60600.0 p795-1193 2.201e+03+/-1.171e+04 7.650e+04 2025:152:05:20:00 1.530e-01 2025:150:21:45:00 34900.0 p1060-1900 2.464e+02+/-9.050e+03 2.550e+04 2025:152:05:20:00 2.610e-03 2025:150:22:25:00 10800.0 e38-53/e175-315 9.372e+01+/-3.742e+01 2.393e+02 2025:150:06:10:00 1.000e+00 2025:154:15:55:00 80.05427408412483 p47-68/p1060-1900 1.180e+02+/-3.918e+02 7.293e+03 2025:150:21:25:00 3.627e-01 2025:152:18:40:00 53.425925925925924 p115-195/p1060-1900 8.121e+00+/-2.653e+01 6.717e+02 2025:150:21:30:00 1.336e-01 2025:152:18:40:00 20.925925925925927 p310-580/p1060-1900 2.035e+00+/-2.177e+00 2.557e+01 2025:152:05:20:00 4.155e-02 2025:152:18:40:00 5.611111111111111 p795-1193/p1060-1900 1.460e+00+/-1.683e+00 2.146e+01 2025:152:05:15:00 1.140e-02 2025:151:01:50:00 3.2314814814814814

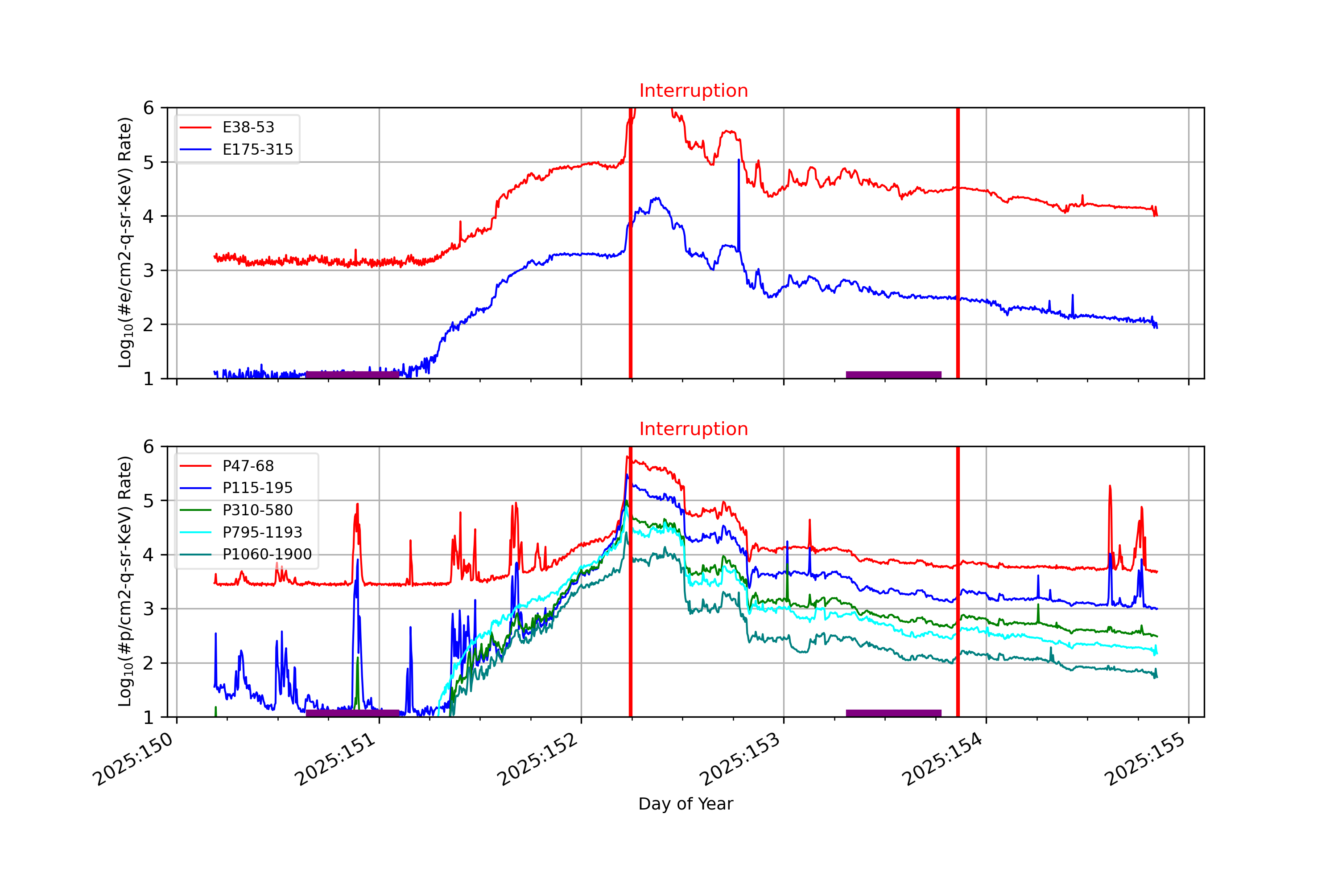

Two vertical red lines indicate the start and the end of the interruption. Purple hatched areas indicate that the satellite is in the radiation belt. The horizontal dashed line indicates P3 trigger level. If P3 level is higher than this level more than 2 hours, SCS 107 may be manually triggered.
Avg Max Time Min Time Value at Interruption Started ----------------------------------------------------------------------------------------------- 2SHEV2RT 6.889e+01+/-3.178e+02 2.318e+03 2025:150:10:52:38 0.000e+00 2025:150:05:51:58 2025:152:05:52:54

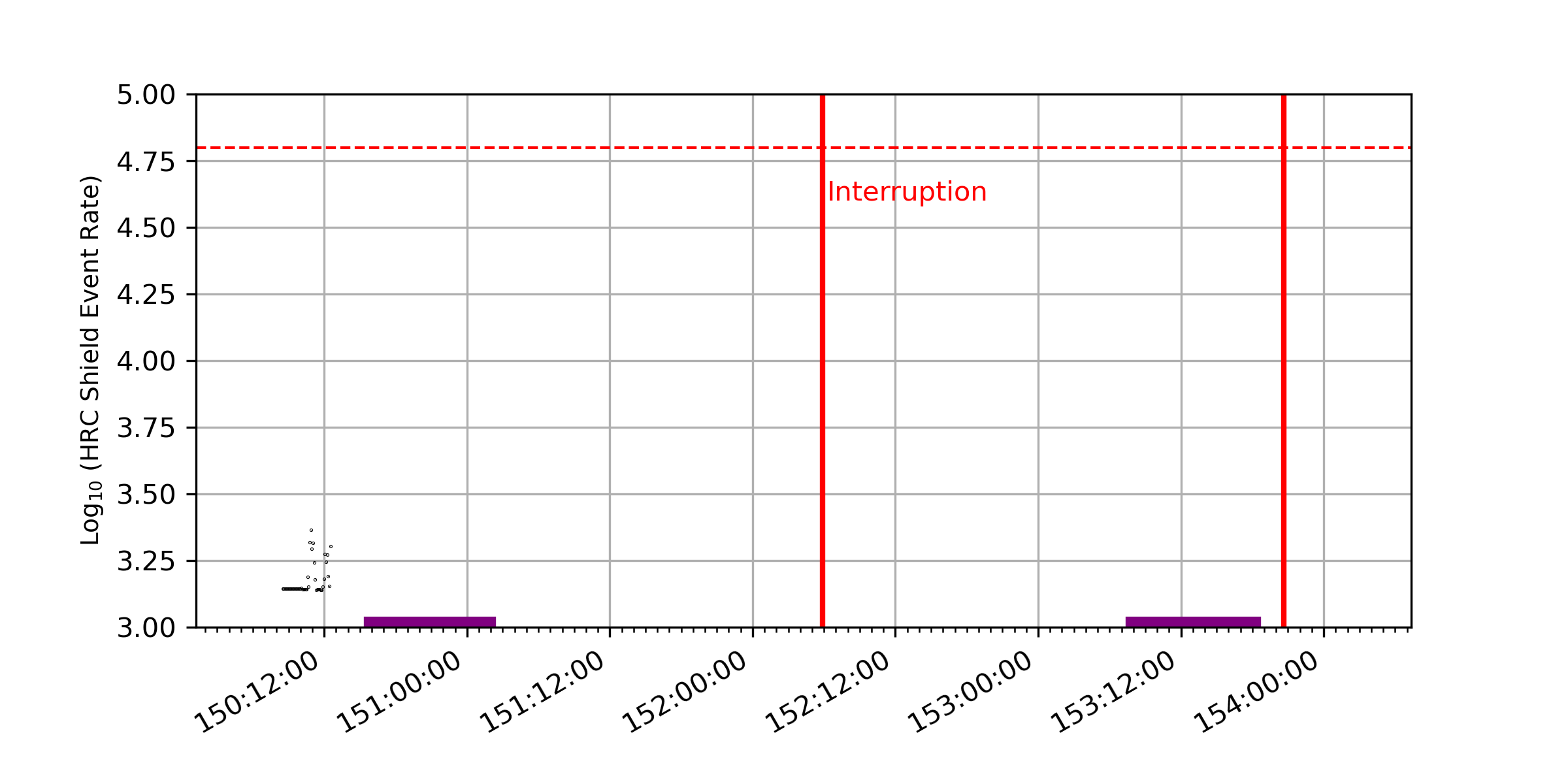

Two vertical red lines indicate the start and the end of the interruption. Purple hatched areas indicate that the satellite is in the radiation belt. The red horizontal dashed line indicates SCS 107 limits. If the HRC shield rate/256 goes above 248, automatic SCS 107 is triggered.
The following plots are copied from the ACIS Threshold Crossings Page. For more details, please refer to Using ACIS to detect and report high radiation conditions. All available plots for each day of the shutdown are listed. If a day is missing, then there is no plot available.
GOES-R data are taken from NOAA site (https://services.swpc.noaa.gov/json/goes/primary/integral-protons-1-day.json).
| P5 | 11.64 - 23.27 MeV protons (particles/cm2-sec-sr-MeV) |
| P6 | 25.90 - 38.10 MeV protons (particles/cm2-sec-sr-MeV) |
| P7 | 40.30 - 73.40 MeV protons (particles/cm2-sec-sr-MeV) |
HRC Proxy is defined as:
HRC Proxy = 143 * P5 + 64738 * P6 + 162505 * P7 + 4127
Avg Max Time Min Time Value at Start of Interruption ----------------------------------------------------------------------------------------------- P4 2.398e+01+/-6.848e+01 4.554e+02 2025:152:09:05:00 0.000e+00 2025:150:05:55:00 78.78 P5 1.842e+00+/-5.194e+00 3.672e+01 2025:152:09:15:00 0.000e+00 2025:150:06:05:00 6.48 P6 1.047e-01+/-2.612e-01 2.073e+00 2025:152:09:45:00 0.000e+00 2025:150:06:05:00 0.377 HRC_Proxy 1.192e+04+/-1.859e+04 1.502e+05 2025:152:09:45:00 4.127e+03 2025:150:07:25:00 31986

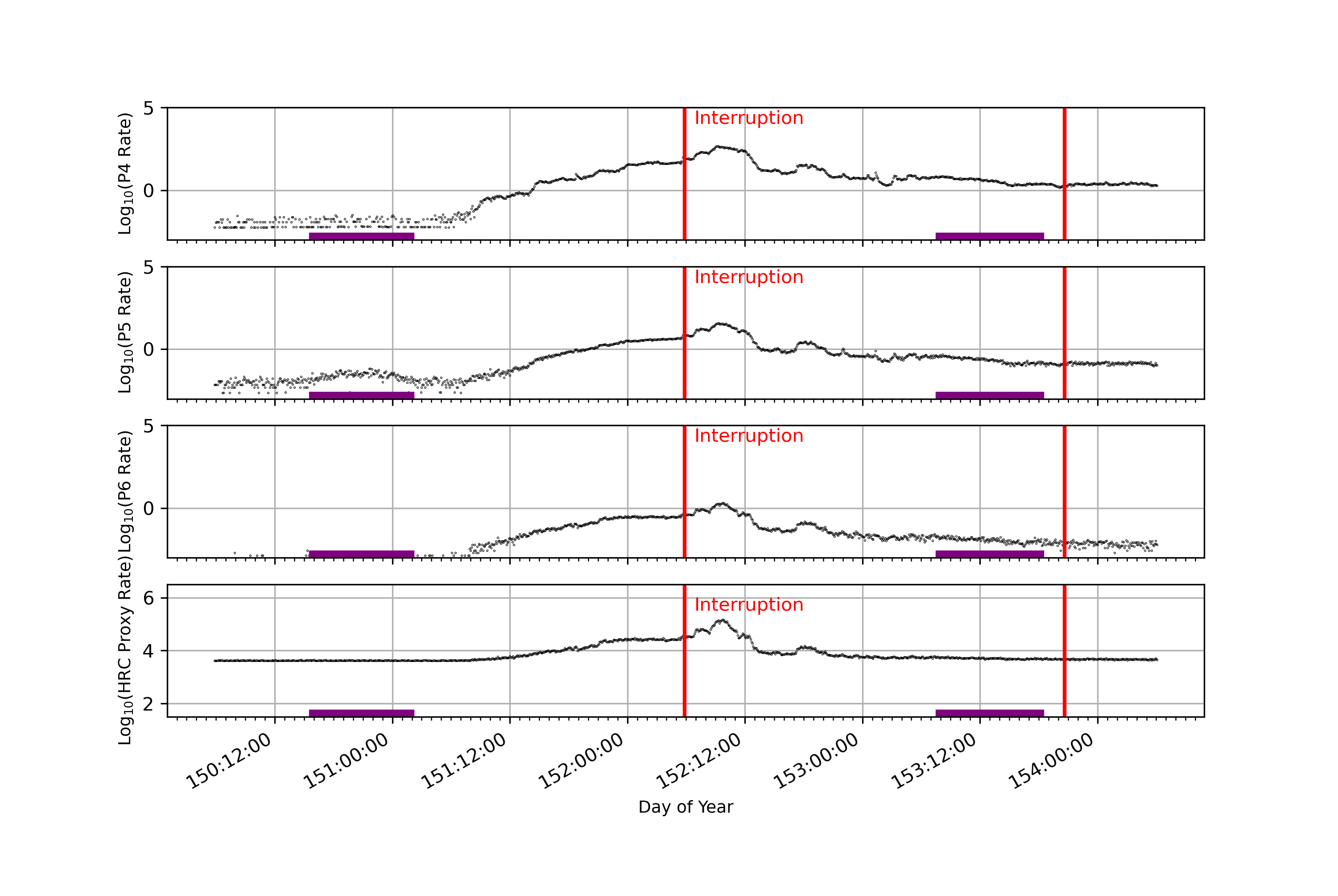

Two vertical red lines indicate the start and the end of the interruption. Purple hatched areas indicate that the satellite is in the radiation belt. The red horizontal dashed lines indicate SCS 107 limits. If GOES P Channels or the HRC Proxy go above these levels, SCS 107 may be manually triggered.
Avg Max Time Min Time Value at Start of Interruption ----------------------------------------------------------------------------------------------- LE-0 2.006e+03+/-8.666e+03 7.960e+04 2025:153:05:52:12 1.574e+00 2025:150:18:16:50 247.184 LE-1 9.169e+02+/-4.248e+03 3.987e+04 2025:153:05:52:12 1.176e+00 2025:150:18:16:50 110.011 LE-2 1.429e+01+/-3.586e+01 2.375e+02 2025:152:10:26:39 2.910e-01 2025:150:14:18:40 101.275 HES-0 5.176e+02+/-2.305e+03 2.599e+04 2025:153:06:22:20 2.655e+00 2025:150:17:41:02 157.21 HES-1 1.691e+02+/-8.111e+02 9.344e+03 2025:153:06:22:20 9.220e-01 2025:150:13:05:15 20.431 HES-2 3.060e+01+/-8.386e+01 5.862e+02 2025:152:09:18:35 3.160e-01 2025:150:09:15:04 112.824

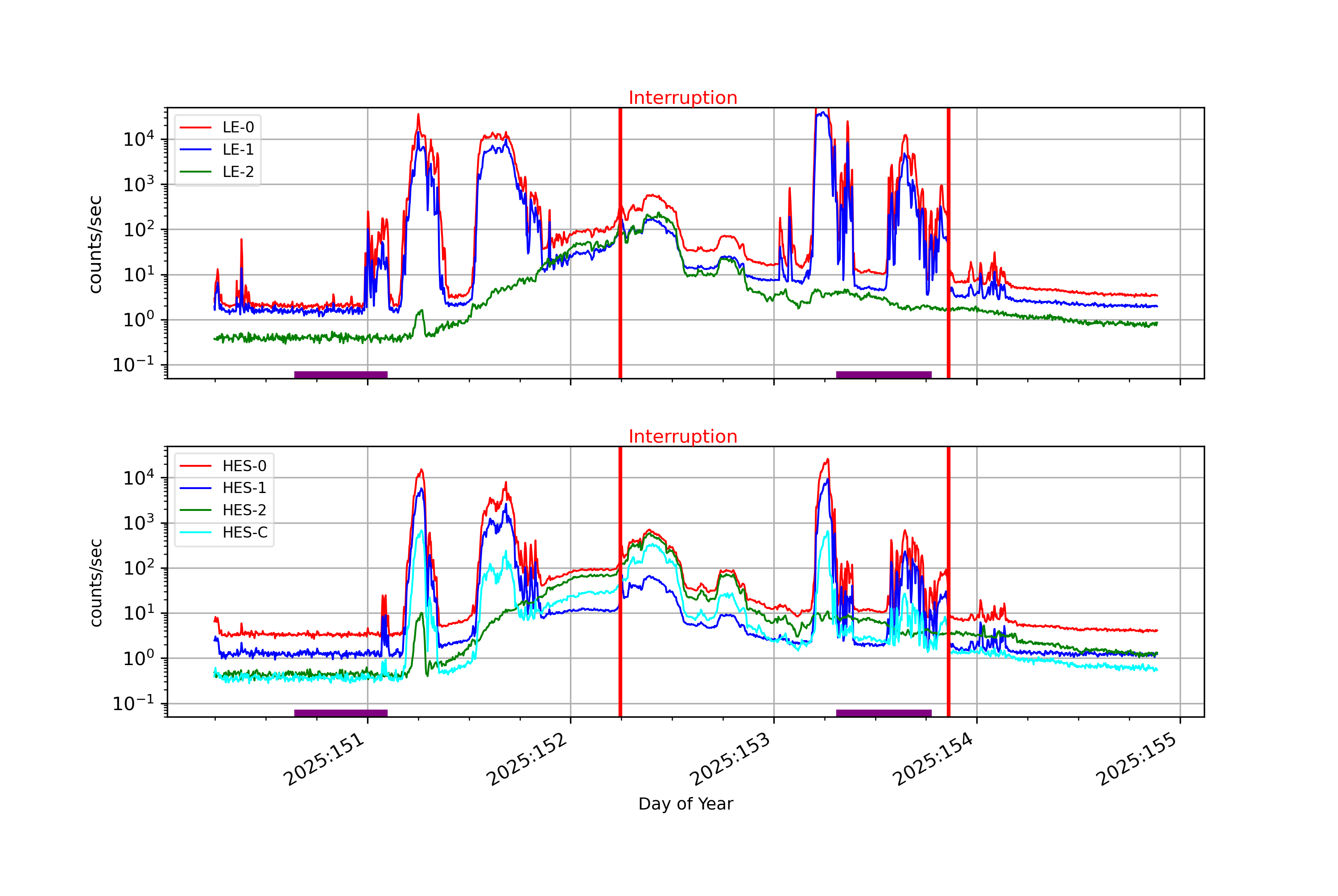

Two vertical red lines indicate the start and the end of the interruption. Red hatched areas indicate that the satellite is in the radiation belt.
