ACIS

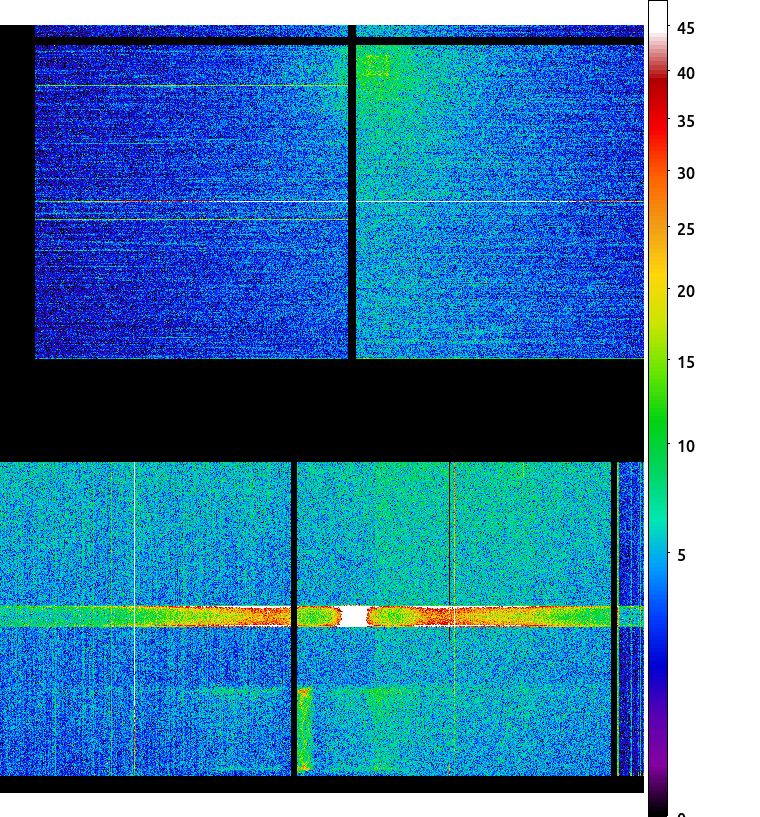

ACIS DOSE Registered-Photon-Map
The steps we took to compute the dose map are;
- Level 1 Event files for a specified month are obtained from archive.
- Image data including I2, I3, S2, S3 CCDs are extracted from all event files.
- All the extracted image data were merged to create a month long exposure map for the month.
- The exposure map is opened with ds9, and check a distribution of count rates against energy. From this, estimate the upper threshold value. Any events beyond this upper threshold are assumed erroneous events such as bad pixels.
- Using this upper threshold, the data is filtered, and create a cleaned exposure map for the month.

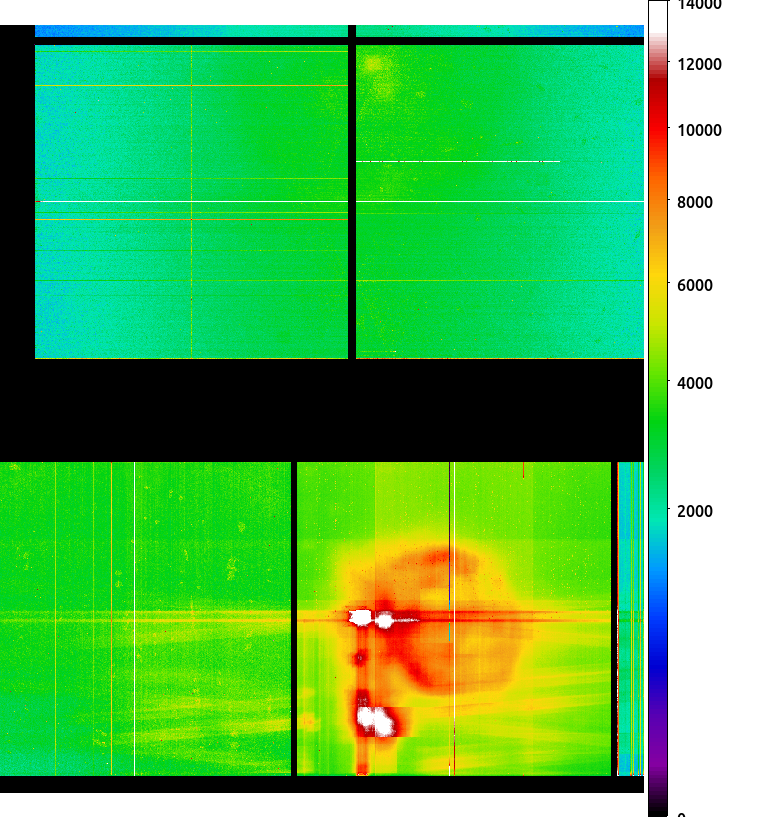

- The exposure map from each month from the Sep 1999 is added up to create a cumulative exposure map for each month.
- Using fimgstatistic, we compute count rate statistics for each CCDs.
- For observations with high data drop rates (e.g., Crab nebula, Cas A), we corrected the observations by adding events.
Please check more detail plots at Telemetered Photon Dose Trend page.
)
)
)
Statistics: # IMAGE NPIX MEAN RMS MIN MAX ACIS_apr25 6004901 3.873 13.447 0.0 2444 I2 node 0 262654 2.460192 1.795982 0.0 75.0 I2 node 1 262654 2.754081 4.955576 0.0 1602.0 I2 node 2 262654 2.749044 1.926047 0.0 102.0 I2 node 3 262654 2.958267 3.935798 0.0 1592.0 I3 node 0 262654 4.773313 3.482103 0.0 789.0 I3 node 1 262654 4.207417 2.532552 0.0 172.0 I3 node 2 262654 3.762794 2.252185 0.0 98.0 I3 node 3 262654 3.724499 2.268698 0.0 193.0 S2 node 0 262654 4.669956 4.472250 0.0 691.0 S2 node 1 262654 4.995713 4.409901 0.0 413.0 S2 node 2 262654 5.700329 8.123449 0.0 1666.0 S2 node 3 262654 6.565096 8.555427 0.0 601.0 S3 node 0 262654 13.159781 58.477057 0.0 2444.0 S3 node 1 262654 7.761006 7.128424 0.0 235.0 S3 node 2 262654 7.339323 6.685115 0.0 213.0 S3 node 3 262654 5.973179 4.060339 0.0 179.0
)
)
)
Statistics: IMAGE NPIX MEAN RMS MIN MAX ACIS_total 6004901 2728.816 3450.747 0.0 168593 I2 node 0 262654 2369.859715 481.351112 507.0 15742.0 I2 node 1 262654 2498.993920 706.220339 518.0 166587.0 I2 node 2 262654 2526.369034 536.530008 543.0 17407.0 I2 node 3 262654 2530.762864 658.166333 502.0 36259.0 I3 node 0 262654 2730.584502 677.440972 504.0 15274.0 I3 node 1 262654 2811.497282 1756.332635 527.0 56058.0 I3 node 2 262654 2519.611822 472.736510 493.0 15406.0 I3 node 3 262654 2496.740387 509.822104 471.0 36004.0 S2 node 0 262654 3183.969060 514.832267 1720.0 22633.0 S2 node 1 262654 3382.301498 772.165055 1894.0 20572.0 S2 node 2 262654 3750.439706 776.179625 2307.0 33690.0 S2 node 3 262654 3707.898813 632.568621 2029.0 86253.0 S3 node 0 262654 5641.288806 3046.253682 2481.0 55370.0 S3 node 1 262654 6857.564920 2402.836456 0.0 83602.0 S3 node 2 262654 5590.881824 1375.237035 2626.0 27660.0 S3 node 3 262654 4397.645316 779.292903 2650.0 26755.0
)
|
)
|
)
|
)
|
| Jan 2025 | Oct 2024 | Jul 2024 | Apr 2024 |
|---|

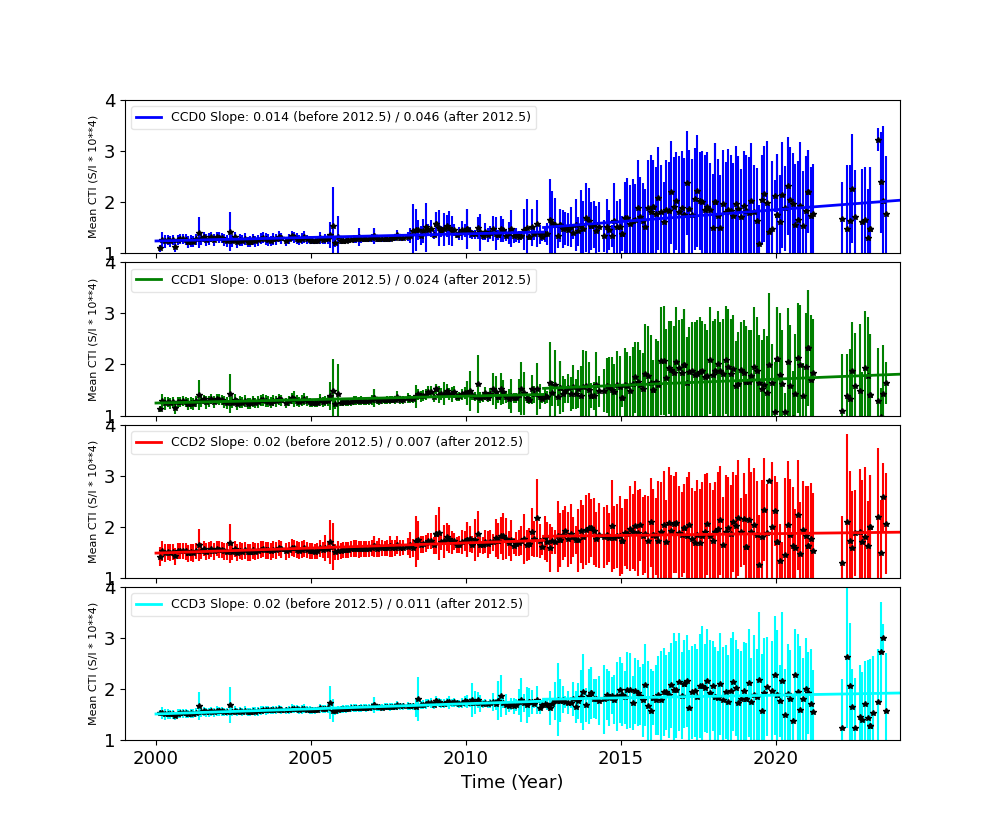

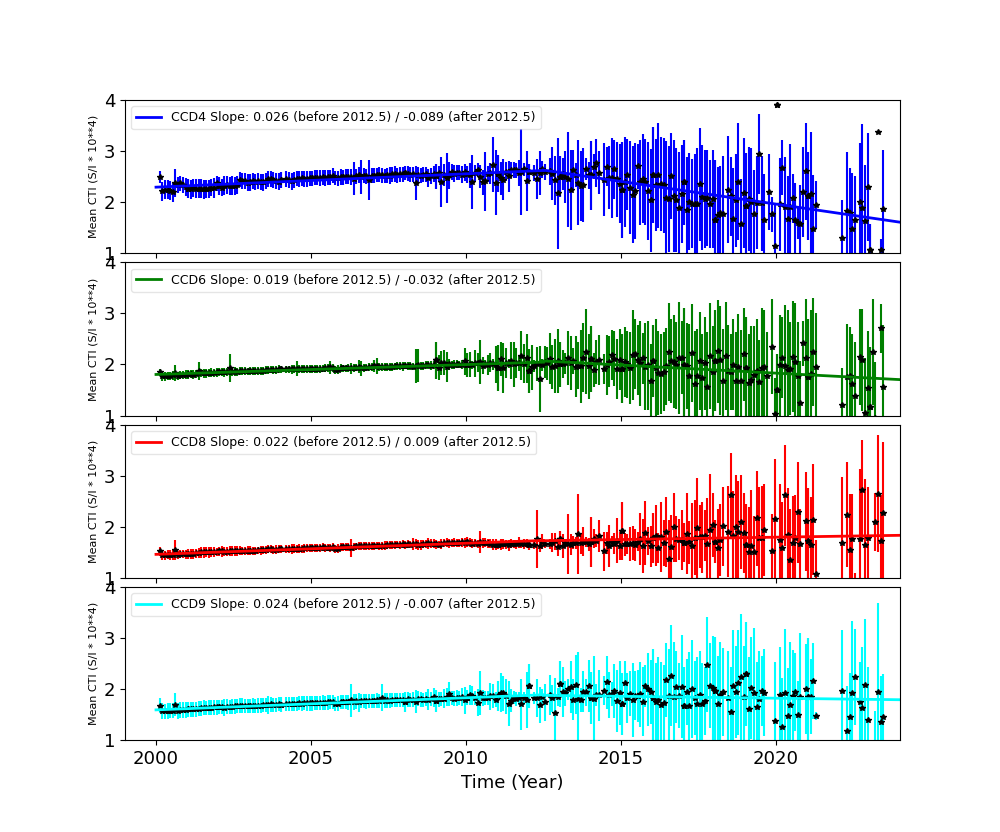

The Mean Detrended CTI
We report CTIs with a refined data definition. CTIs were computed for the temperature dependency corrected data. Please see CTI page for detailed explanation. CTI's are computed for Mn K alpha, and defined as slope/intercept x10^4 of row # vs ADU. Data file: here
Imaging CCDs
Spectral CCDs

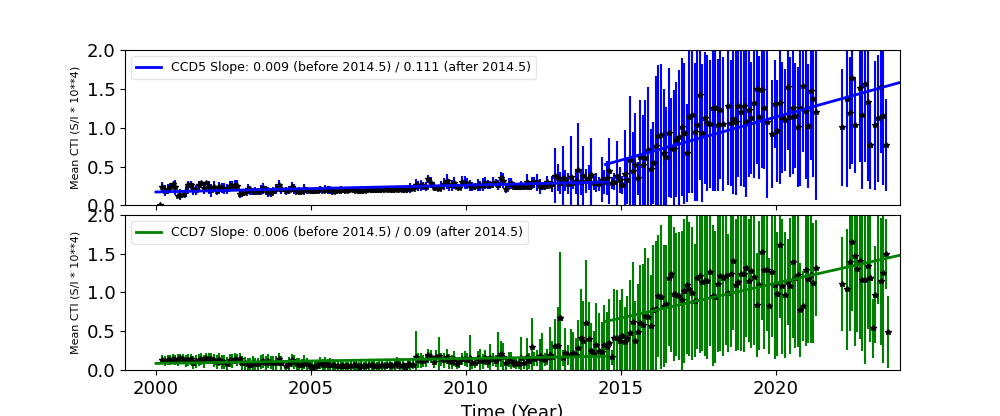

Backside CCDs
Focal Plane Temperature
Apr 2025 Focal Temperature
| The Mean (max) FPT: | |
|---|---|
| -107.53 | +/- 7.69 C |
| Mean Width: | |
| 0.8 | +/- 0.58 days |
Averaged Focal Plane Temperature
We are using 10 period moving averages to show trends of peak temperatures and peak widths. Note, the gaps in the width plot are due to missing/corrupted data.

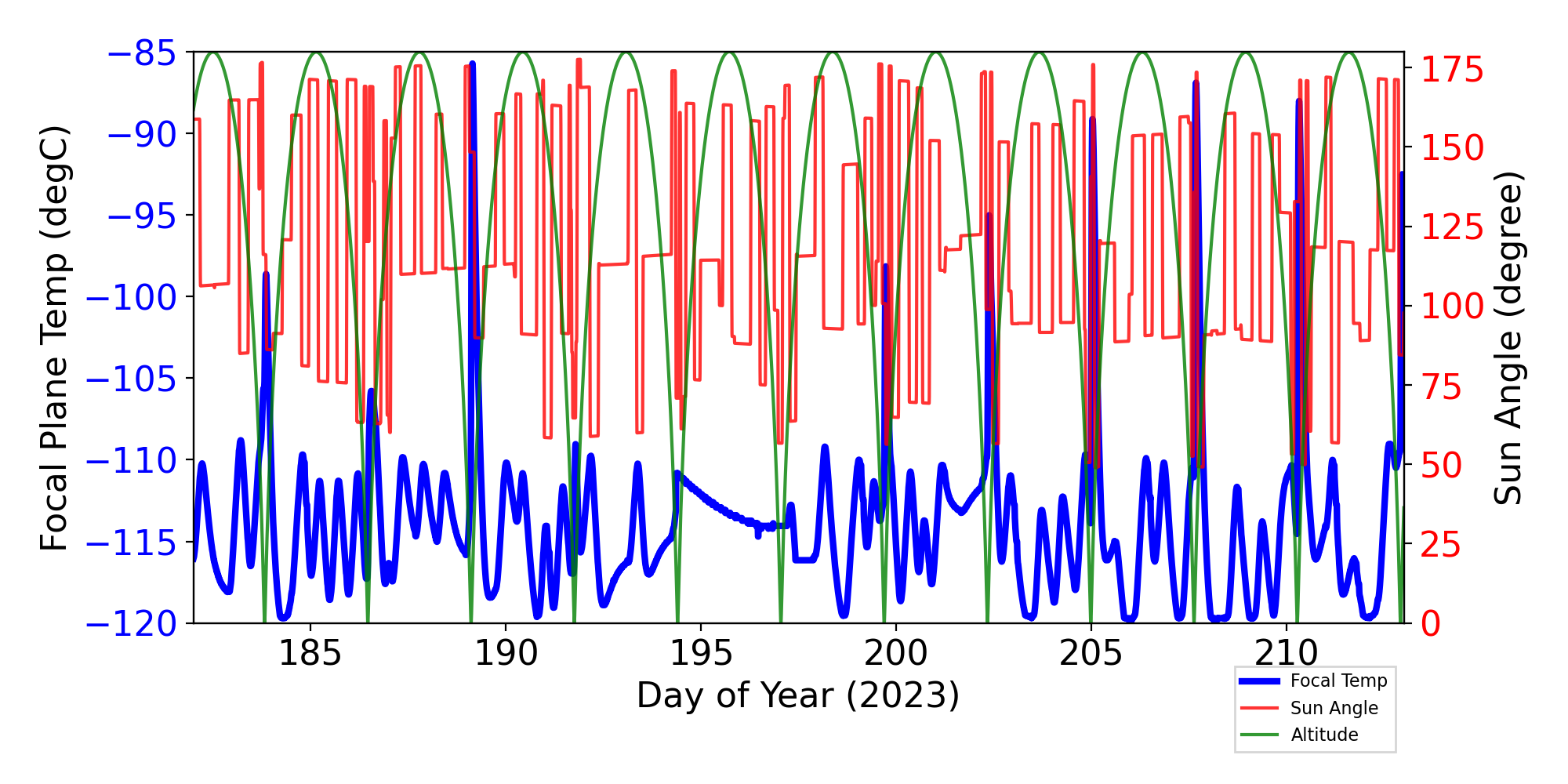

Focal Plane Temperature, Sun Angle and Altitude
Bad Pixels
The plots below were generated with a new warm pixel finding script. Please see Acis Bad Pixel Page for details.

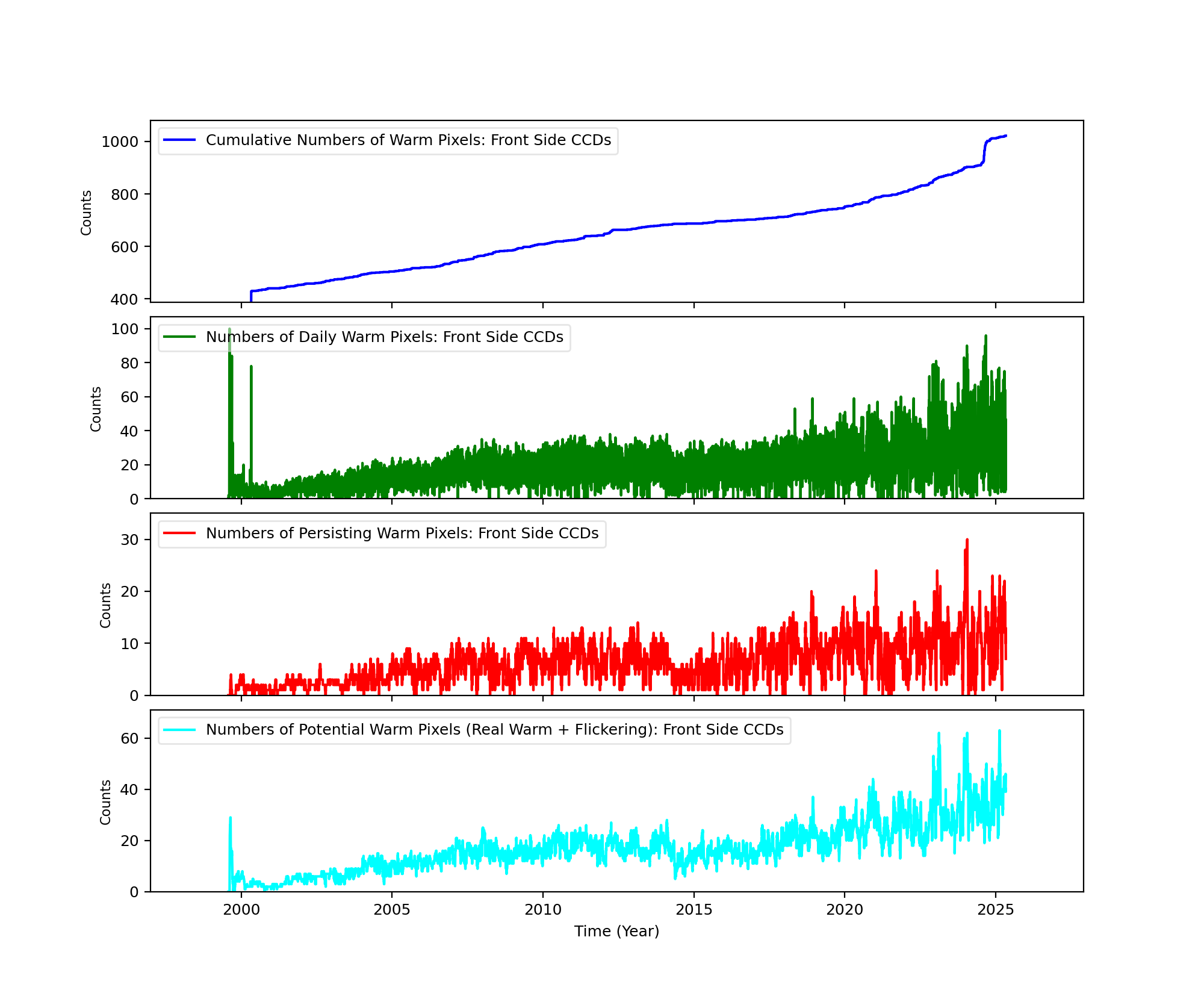

Front Side CCDs

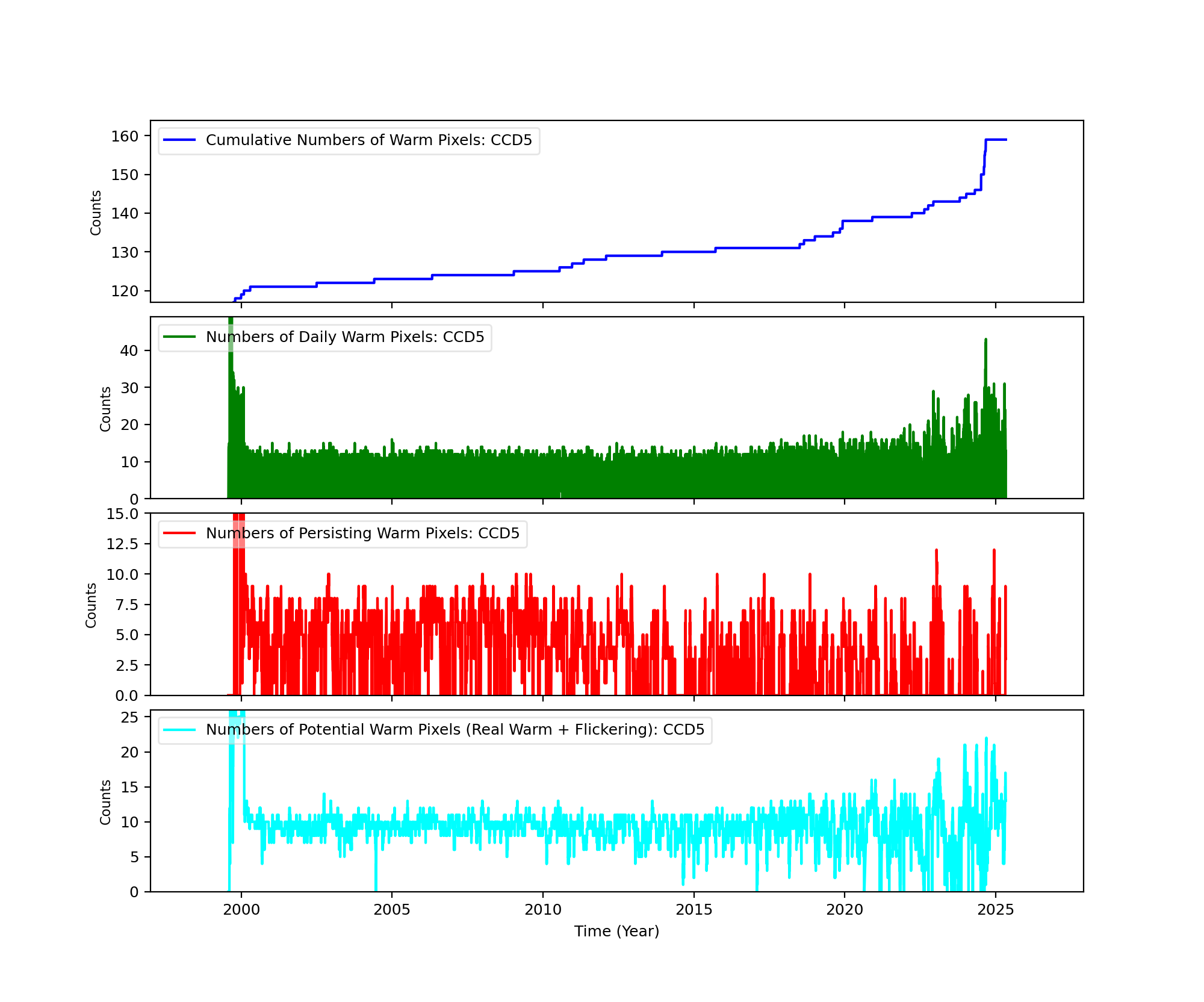

Back Side CCD (CCD5)
Science Instrument Background Rates
| Name | Low (keV) | High(KeV) | Description |
|---|---|---|---|
| SSoft | 0.00 | 0.50 | Super soft photons |
| Soft | 0.50 | 1.00 | Soft photons |
| Med | 1.00 | 3.00 | Moderate energy photons |
| Hard | 3.00 | 5.00 | Hard Photons |
| Harder | 5.00 | 10.00 | Very Hard photons |
| Hardest | 10.00 | Beyond 10 keV |
HRC
DOSE of Central 4K Pore-Pairs
Please refer to Maximum Dose Trends for more details.
)
|
|---|
IMAGE NPIX MEAN STDDEV MIN MAX HRCI_04_2025.fits 16777216 0.078 0.283 0.000 7.000
)
IMAGE NPIX MEAN STDDEV MIN MAX HRCI_08_1999_04_2025.fits 16777216 na na na na
)
|
|---|
IMAGE NPIX MEAN STDDEV MIN MAX HRCS_04_2025.fits 16777216 0.009 0.096 0.000 3.000
)
IMAGE NPIX MEAN STDDEV MIN MAX HRCS_08_1999_04_2025.fits 16777216 na na na na
|
|
Max dose trend plots corrected for events that "pile-up"
in the center of the taps due to bad position information.
|
)
|
)
|
)
|
)
|
| Jan 2025 | Oct 2024 | Jul 2024 | Apr 2024 |
|---|
)
|
)
|
)
|
)
|
| Jan 2025 | Oct 2024 | Jul 2024 | Apr 2024 |
|---|
Gratings

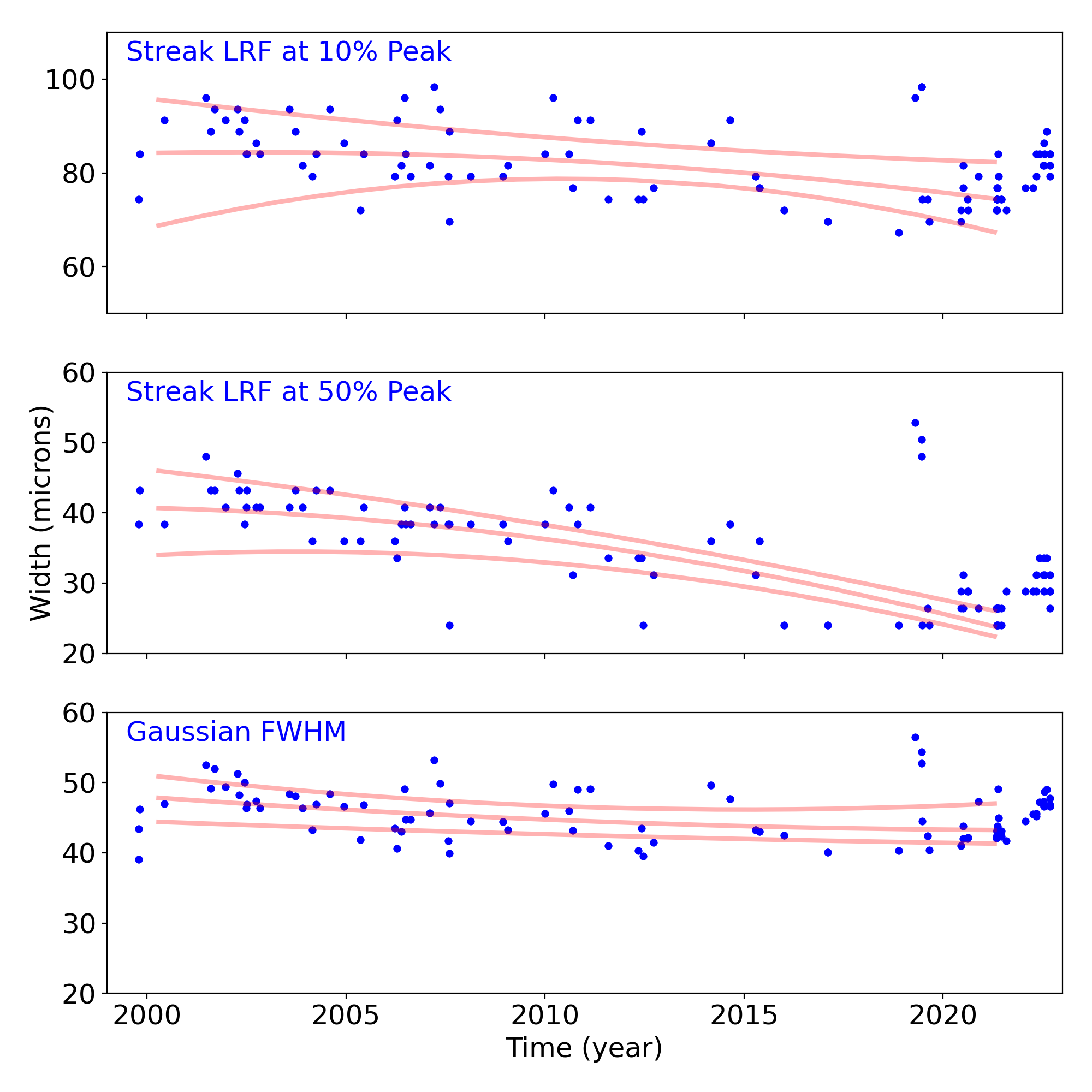

Grating Trends/Focus

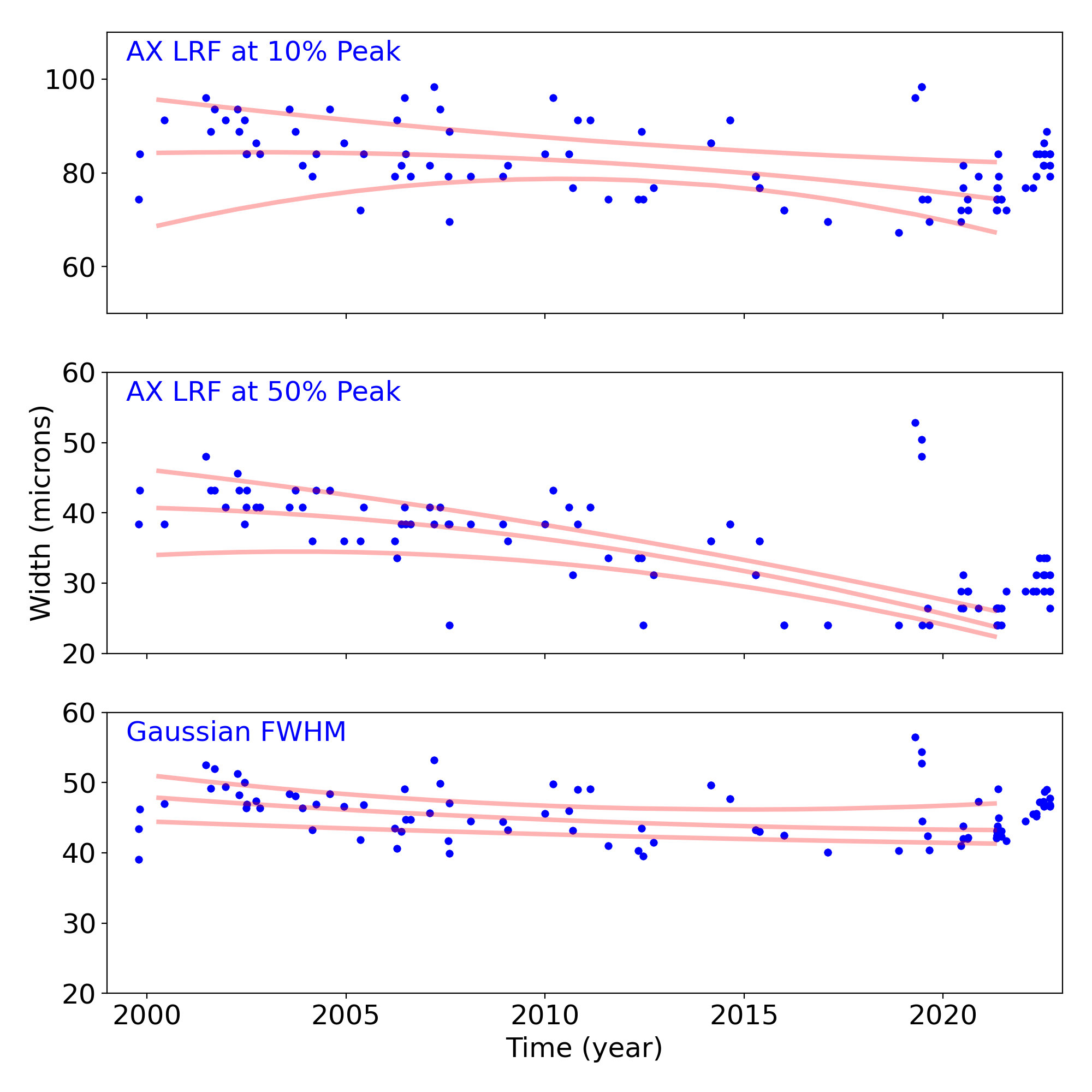

We plot the width of the zero order streak of ACIS/HETG observations and the width of the zero order image for HRC/LETG observations of point sources. No significant defocusing trend is seen at this time. See Gratings Trends pages.
Gratings Resolving Power

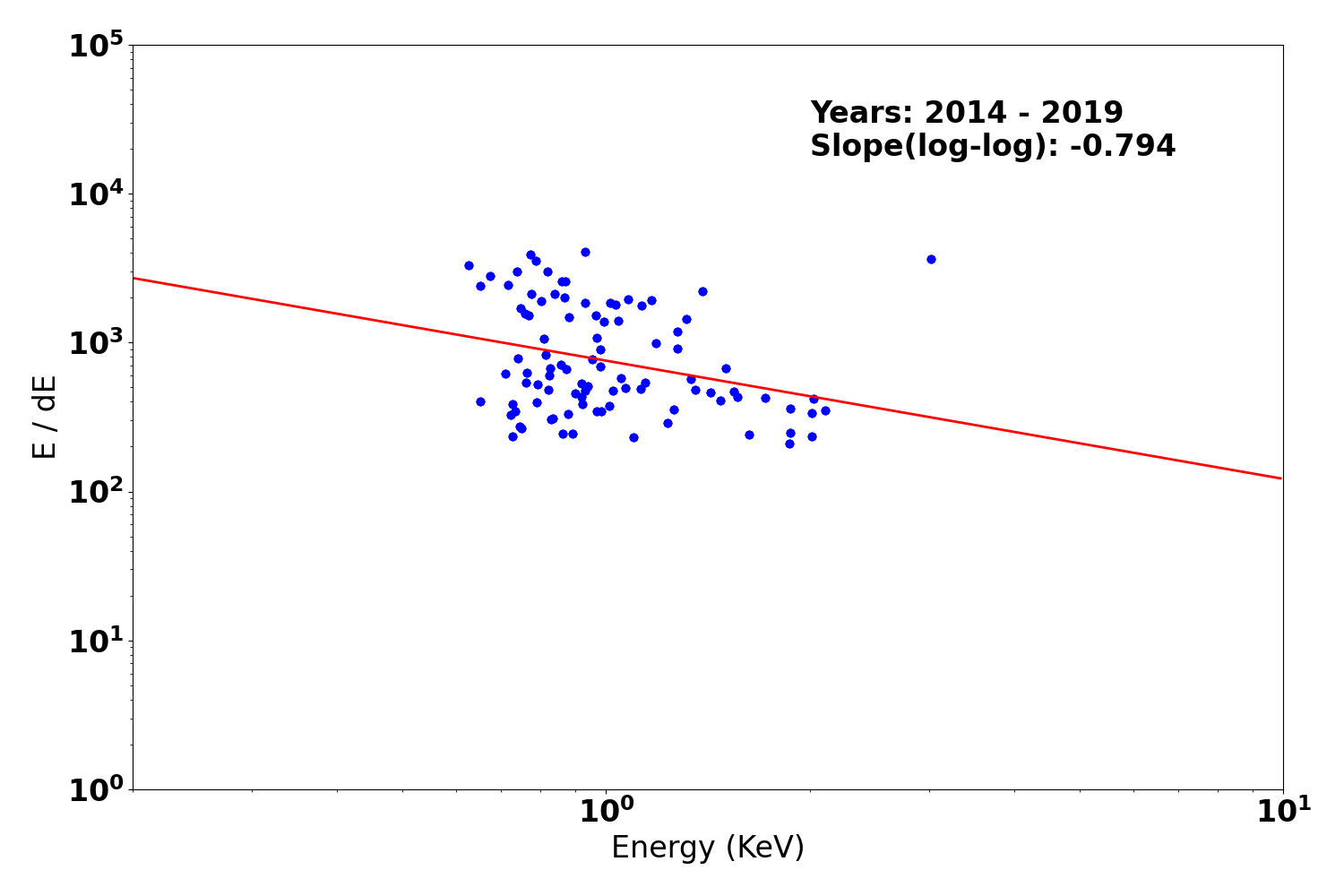

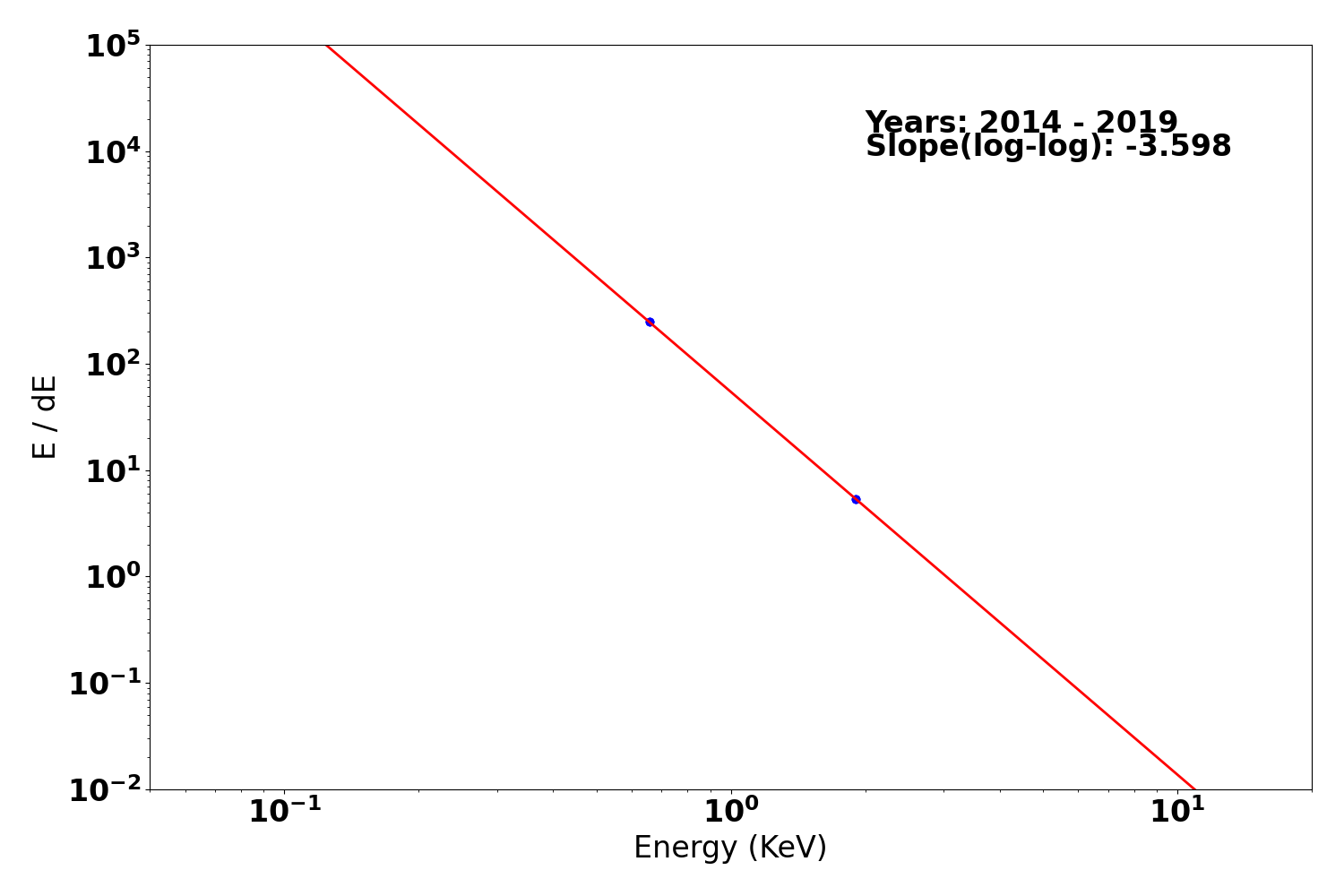

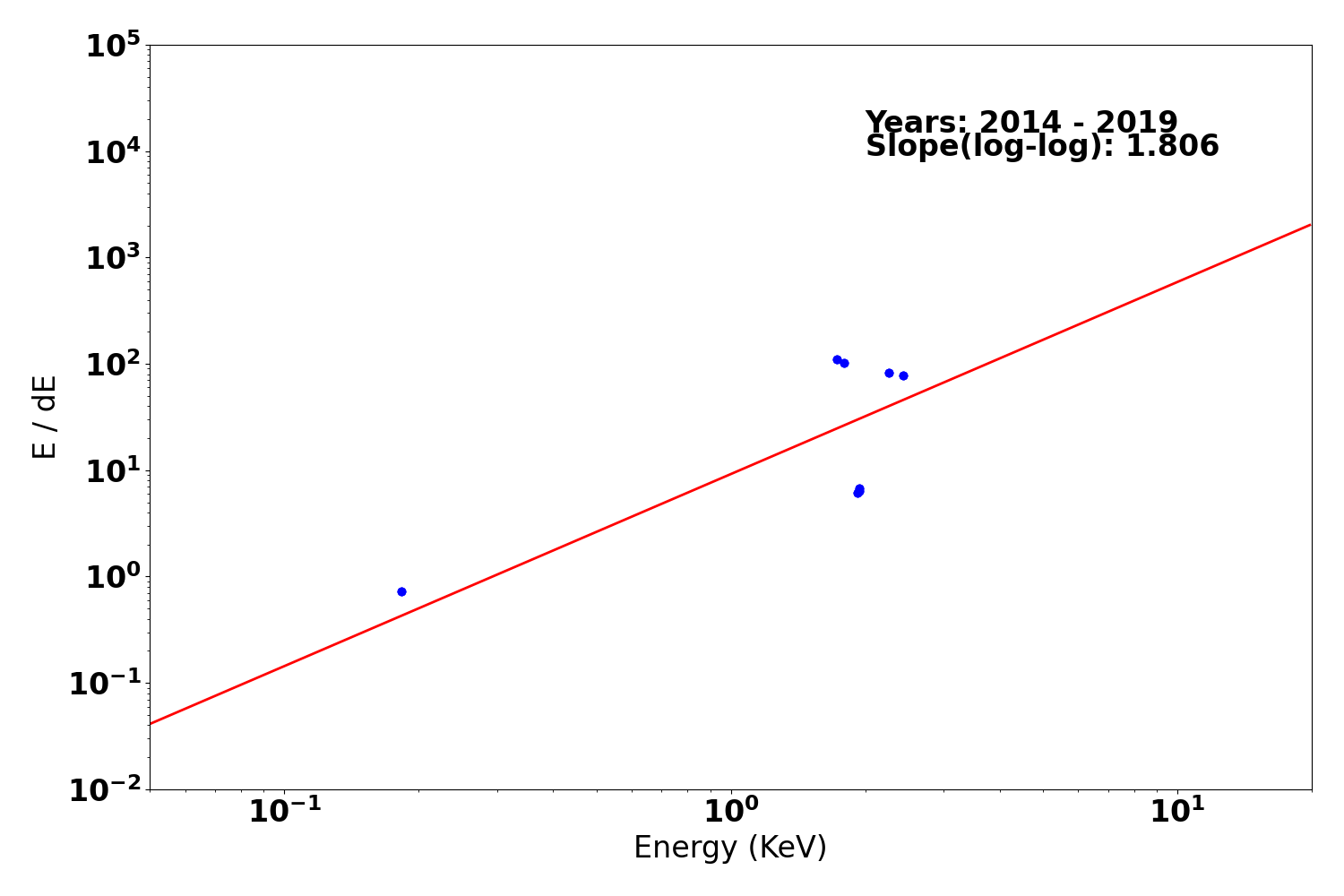

We plot E/dE vs. E for fits to detected lines with fwhm_error/fwhm less than 0.15 for the plus and minus arms of HEG, MEG, and LEG. Also shown are conservative (dotted line) and optimistic (dashed line) pre-launch resolving power expectations.
We have selected only calibration observations of Capella, HR1099, and Sigma Gem. See MIT technotes for a parallel analysis.
| Year 2014 - | |
|---|---|
| Letg minus side | Letg plus side |
 |
 |

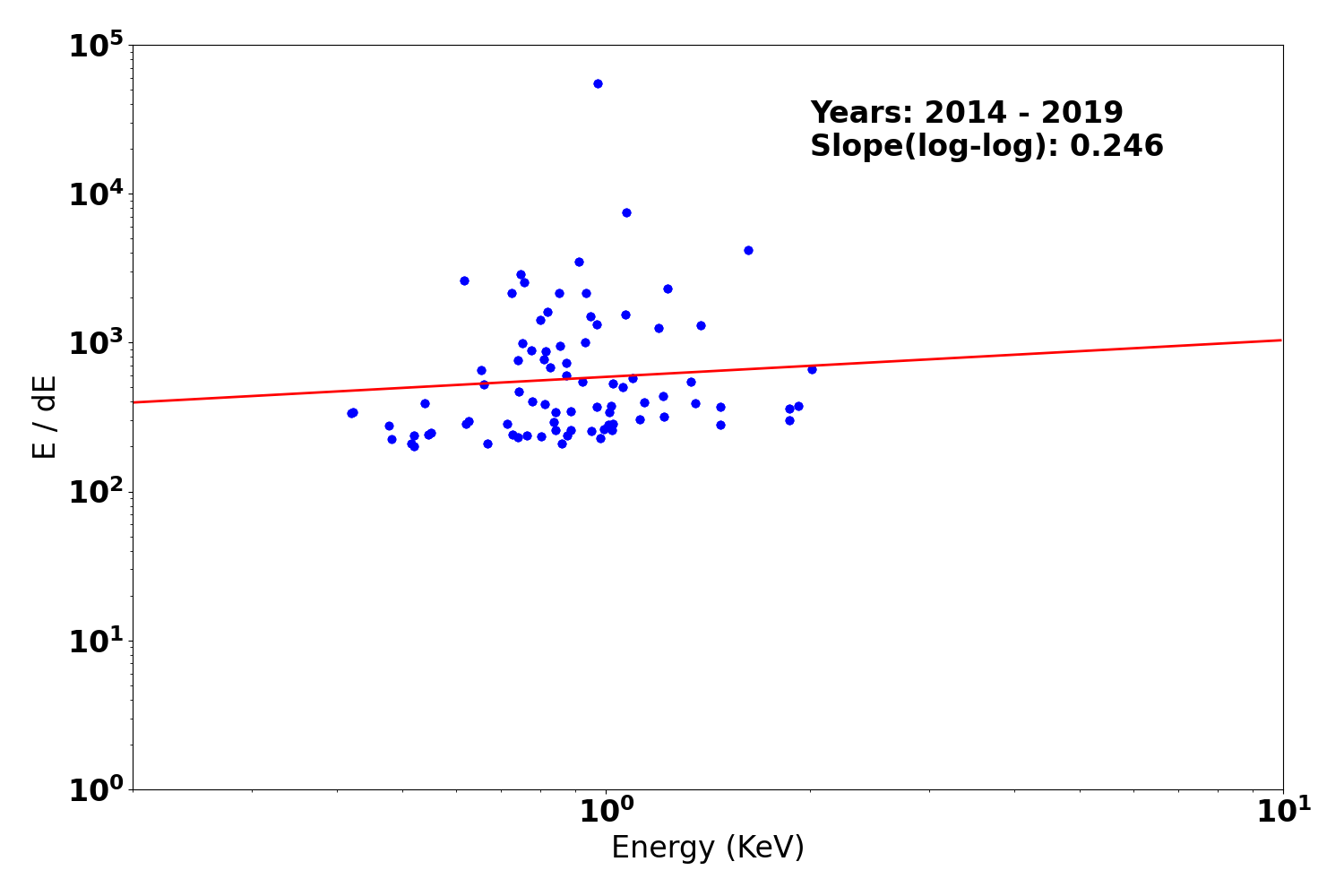

| Metg minus side | Metg plus side |
 |
 |

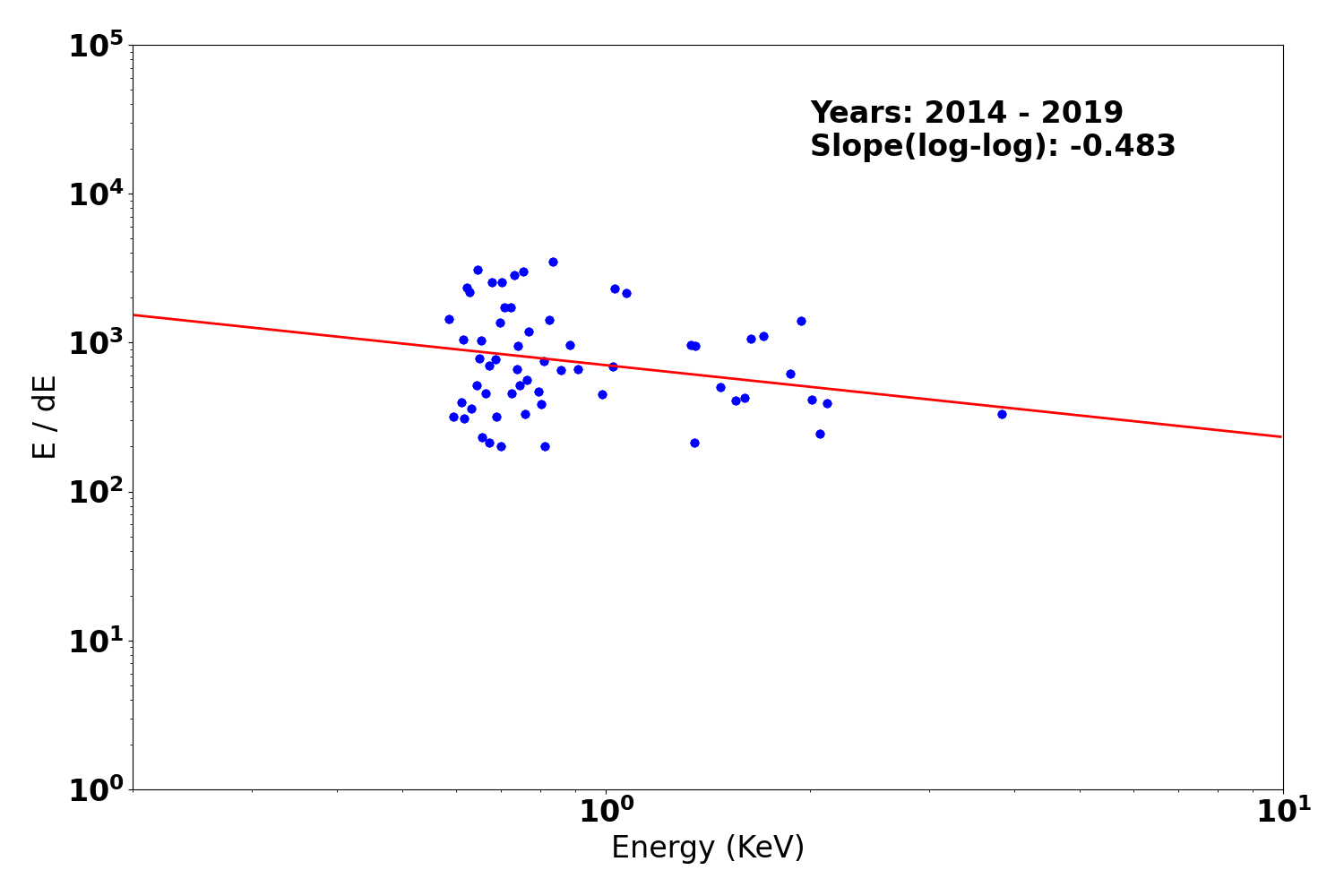

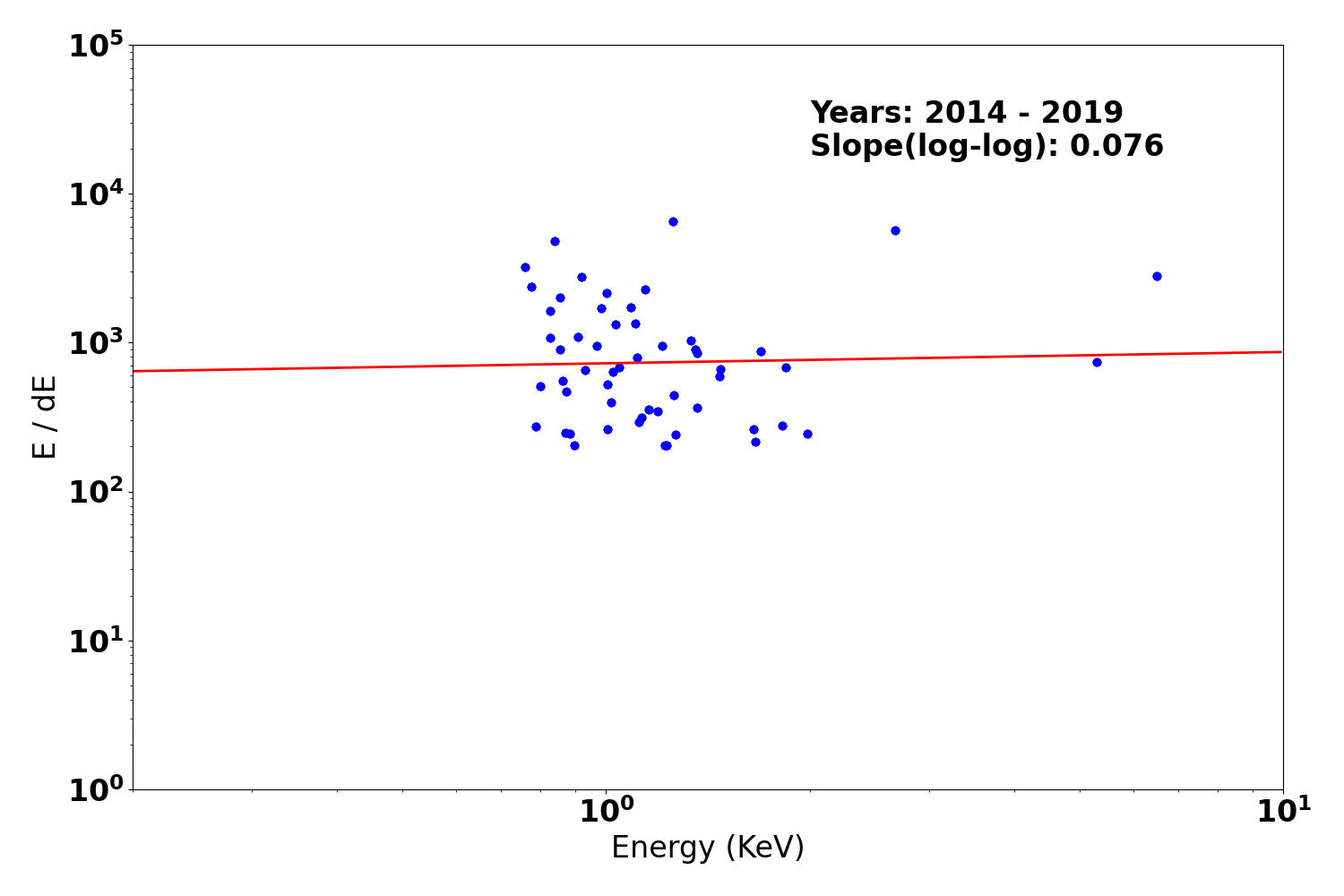

| Hetg minus side | Hetg plus side |
 |
 |
PCAD
ACA Trending
| ACIS |
)
|
)
|
)
|
|
|---|---|---|---|---|
)
|
)
|
)
| ||
| HRCI |
)
|
)
|
)
|
)
|
| HRCI |
)
|
)
|
)
|
)
|

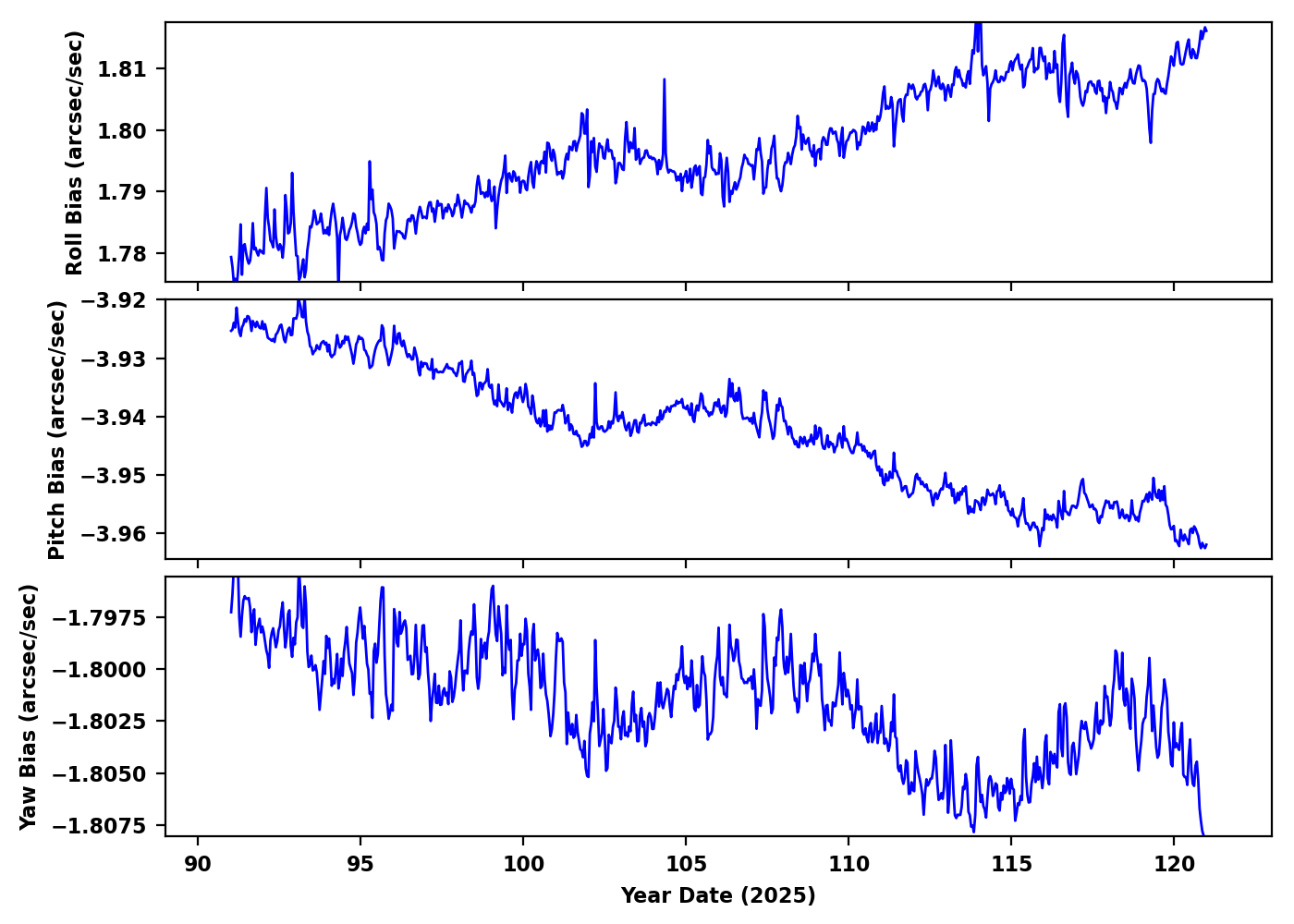

Gyro Bias Drift
Radiation History

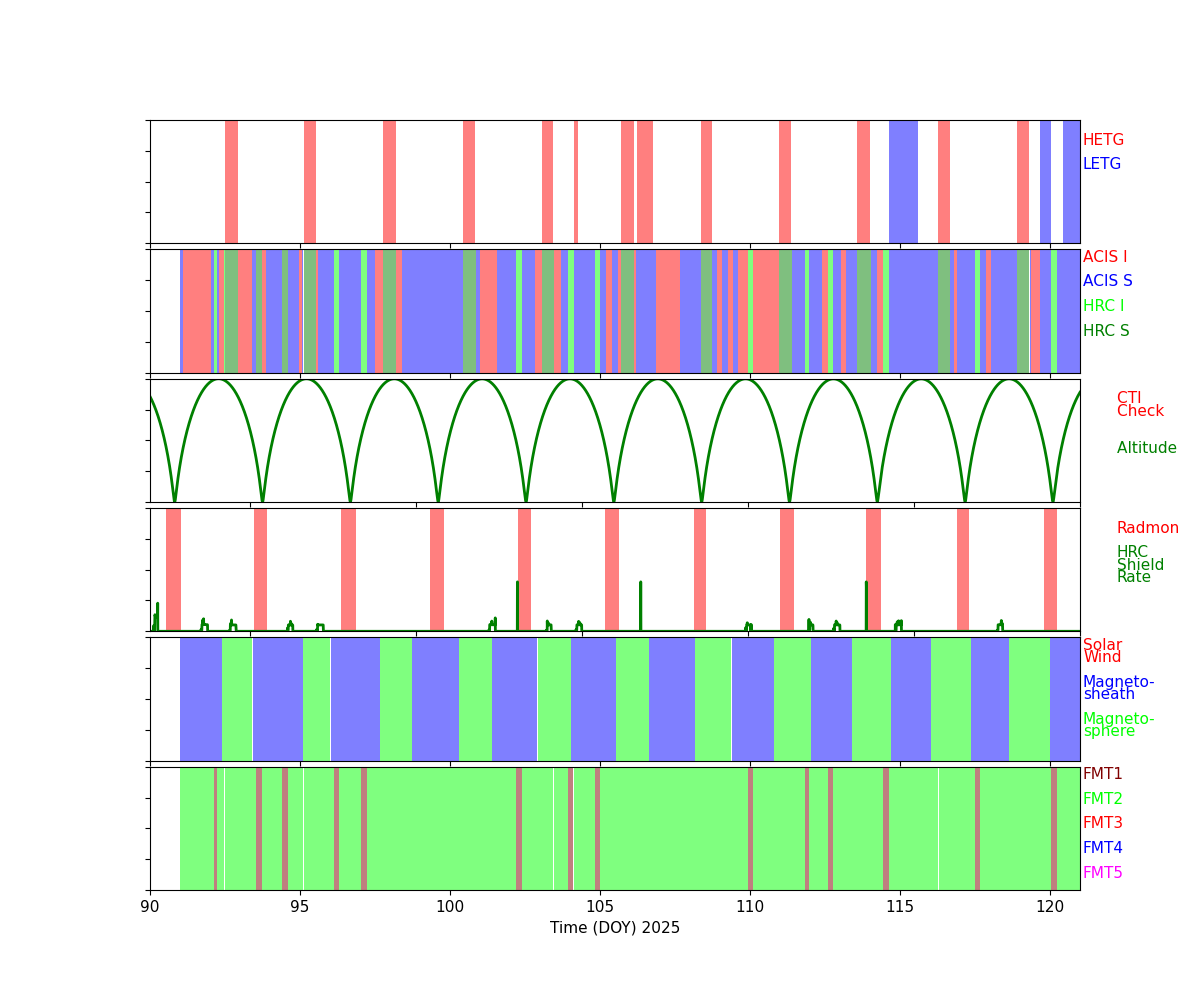

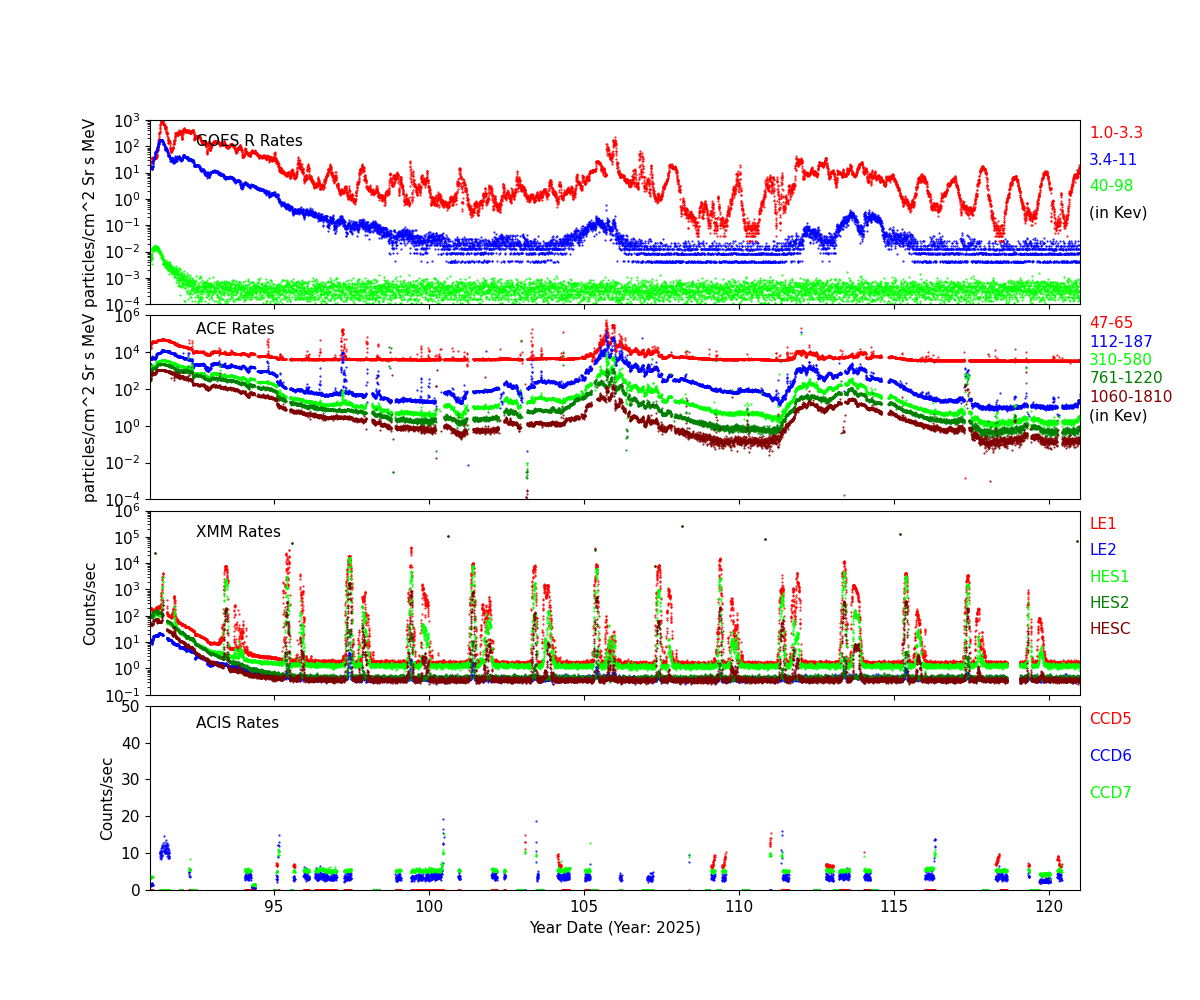

Radiation Count Rates of Apr 2025

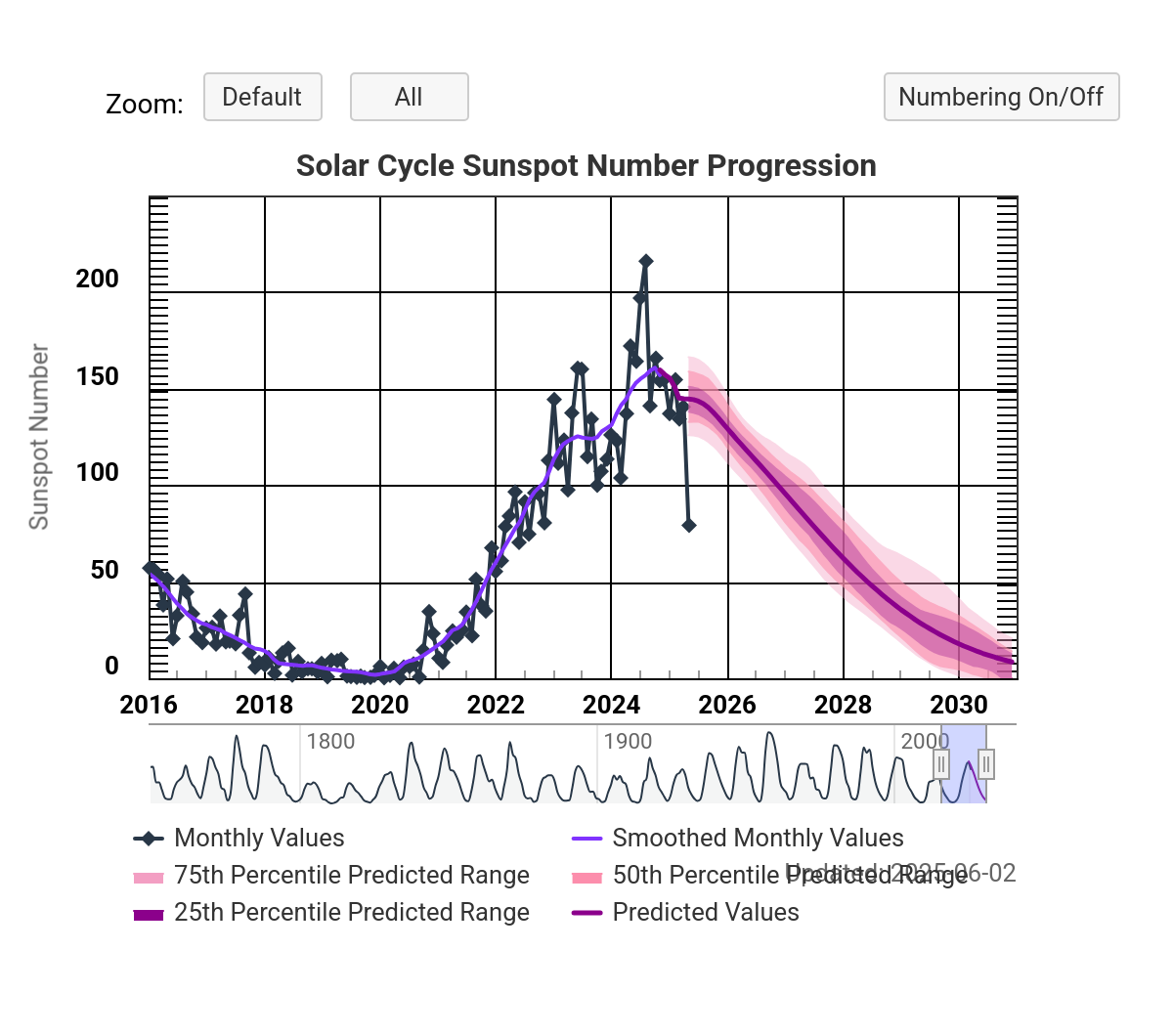

Sun Spot History (See:NOAA Page)
SIM
SIM Shift and Twist

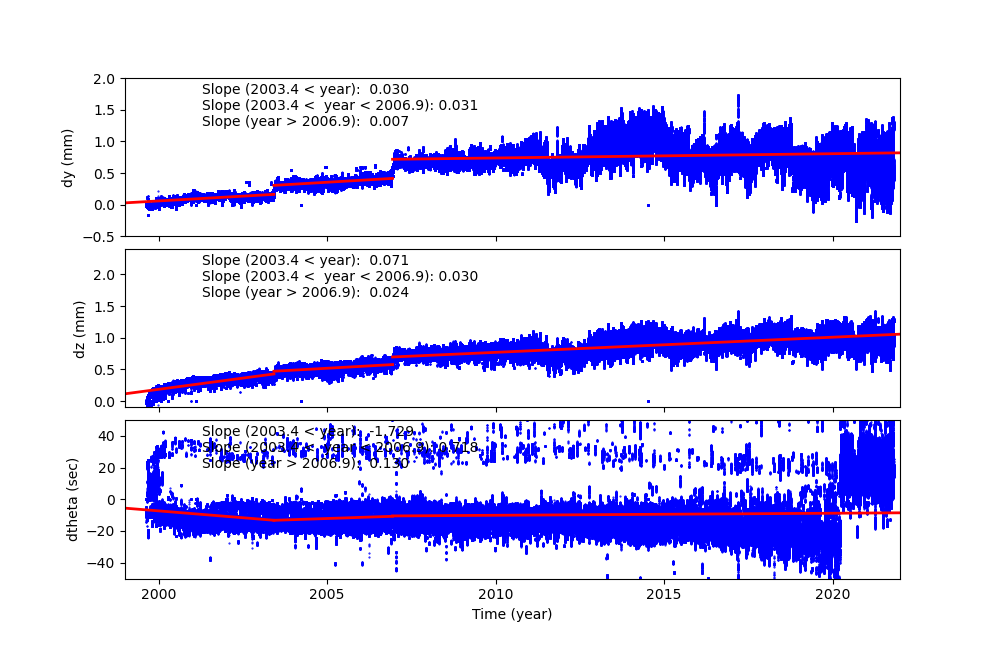

SIM Shift and Twist Trend The following plots show trends of SIM shifts (dy and dz) and twist (dtheta). All quantities are directly taken from pcaf*_asol1.fits files. The units are mm for dy and dz, and degree for dtheta. We fit three lines separated before and after (Days of Mission)= 1400 (May 21, 2003), 2700 (Dec 11, 2006), and 4400 (Aug 07, 2011). The unit of slopes are mm per day or degree per day.
The sudden shift around DOM = 1400, 2700 and 4400 are due to fid light drift (see a memo by Aldcroft fiducial light drift). On the dtheta plot, two tracks are clearly observed. The track around 0.01 is due to HRC-I, and all others are clustered around -0.002. For more detail, please see SIM Shift and Twist Trend page
Trending
Quarterly Trends
- EPS Batteries
| Previous Quarter | |||||||
| MSID | MEAN | RMS | DELTA/YR | DELTA/YR/YR | UNITS | DESCRIPTION | |
| eb2ci | off | -5.618e-04 | 5.916e-05 | 0.31 +/- 0.14 | 0.00 +/- 0.00 | AMP | BATT 2 CHARGE CURRENT | on | -0.002 | 0.003 | 0.38 +/- 0.32 | (0.00+/-0.00)e0 |
|---|---|---|---|---|---|---|---|
| eb2di | off | -6.918e-04 | 1.283e-04 | 0.03 +/- 0.30 | (2.09+/-6.00)e-5 | AMP | BATT 2 DISCHARGE CURRENT | on | 0.006 | 0.010 | 0.27 +/- 1.03 | (0.00+/-0.00)e0 |
| eb2v | off | 0.001 | 6.602e-05 | 32.28 +/- 0.16 | 0.00 +/- 0.00 | V | BATT 2 VOLTAGE | on | -0.007 | 0.004 | 32.17 +/- 0.46 | (0.00+/-0.00)e0 |
| ecnv1v | -2.077e-05 | 4.755e-06 | 14.89 +/- 0.01 | (6.32+/-6.01)e-4 | V | CONV 1 +15V OUTPUT | |
| ecnv2v | -4.739e-06 | 3.541e-06 | 14.83 +/- 0.01 | 0.00 +/- 0.00 | V | CONV 2 +15V OUTPUT | |
| ecnv3v | -2.715e-05 | 2.294e-06 | 15.28 +/- 0.01 | (1.44+/-3.65)e-4 | V | CONV 3 +15V OUTPUT | |
- Spacecraft Electronics
| Previous Quarter | |||||||
| MSID | MEAN | RMS | DELTA/YR | DELTA/YR/YR | UNITS | DESCRIPTION | |
| elbi | 0.003 | 5.472e-04 | 53.23 +/- 1.28 | 0.03 +/- 0.16 | AMP | LOAD BUS CURRENT | |
|---|---|---|---|---|---|---|---|
| elbv | off | 0.002 | 6.899e-05 | 27.82 +/- 0.17 | -0.04 +/- 0.02 | V | LOAD BUS VOLTAGE | on | 0.007 | 0.003 | 27.71 +/- 0.36 | (0.00+/-0.00)e0 |
- OBA Heater
| Previous Quarter | |||||||
| MSID | MEAN | RMS | DELTA/YR | DELTA/YR/YR | UNITS | DESCRIPTION | |
| oobthr04 | 0.006 | 7.138e-04 | (3.03+/-0.02)e2 | 0.81 +/- 0.39 | K | RT 27: HRMA STRUT | |
|---|---|---|---|---|---|---|---|
| oobthr12 | 0.008 | 0.001 | (3.01+/-0.02)e2 | 0.97 +/- 0.60 | K | RT 35: OBA CONE | |
| oobthr26 | 0.011 | 0.002 | (3.05+/-0.04)e2 | 1.18 +/- 0.91 | K | RT 48: OBA CONE | |
| oobthr38 | 3.574e-05 | 5.182e-06 | (2.72+/-0.00)e2 | 0.00 +/- 0.00 | K | RT 60: TFTE CONE | |
| oobthr44 | 0.008 | 0.001 | (3.04+/-0.02)e2 | 1.02 +/- 0.62 | K | RT 66: TFTE COVER | |
| oobthr50 | 0.008 | 8.899e-04 | (2.98+/-0.02)e2 | 0.90 +/- 0.52 | K | RT 76: S/C STRUT | |
Spacecraft Motions

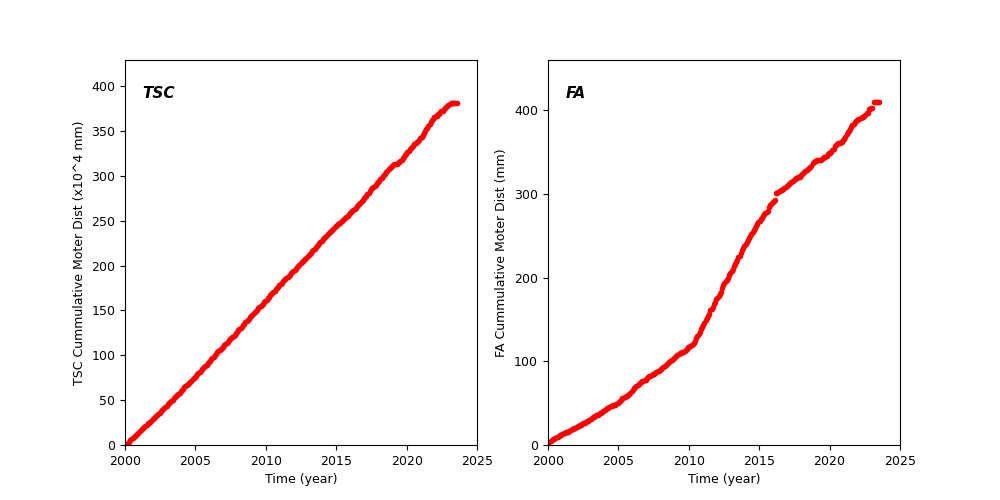

TSC and FA Cummulative Moter Distance

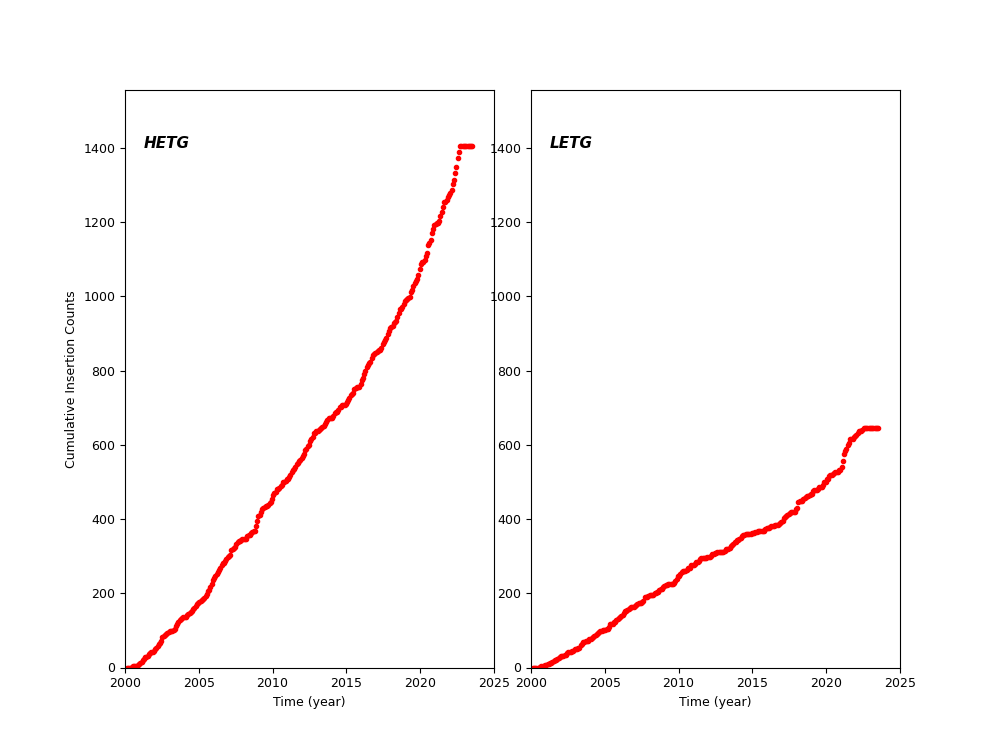

HETG and LETG Cummulative Insertion Counts

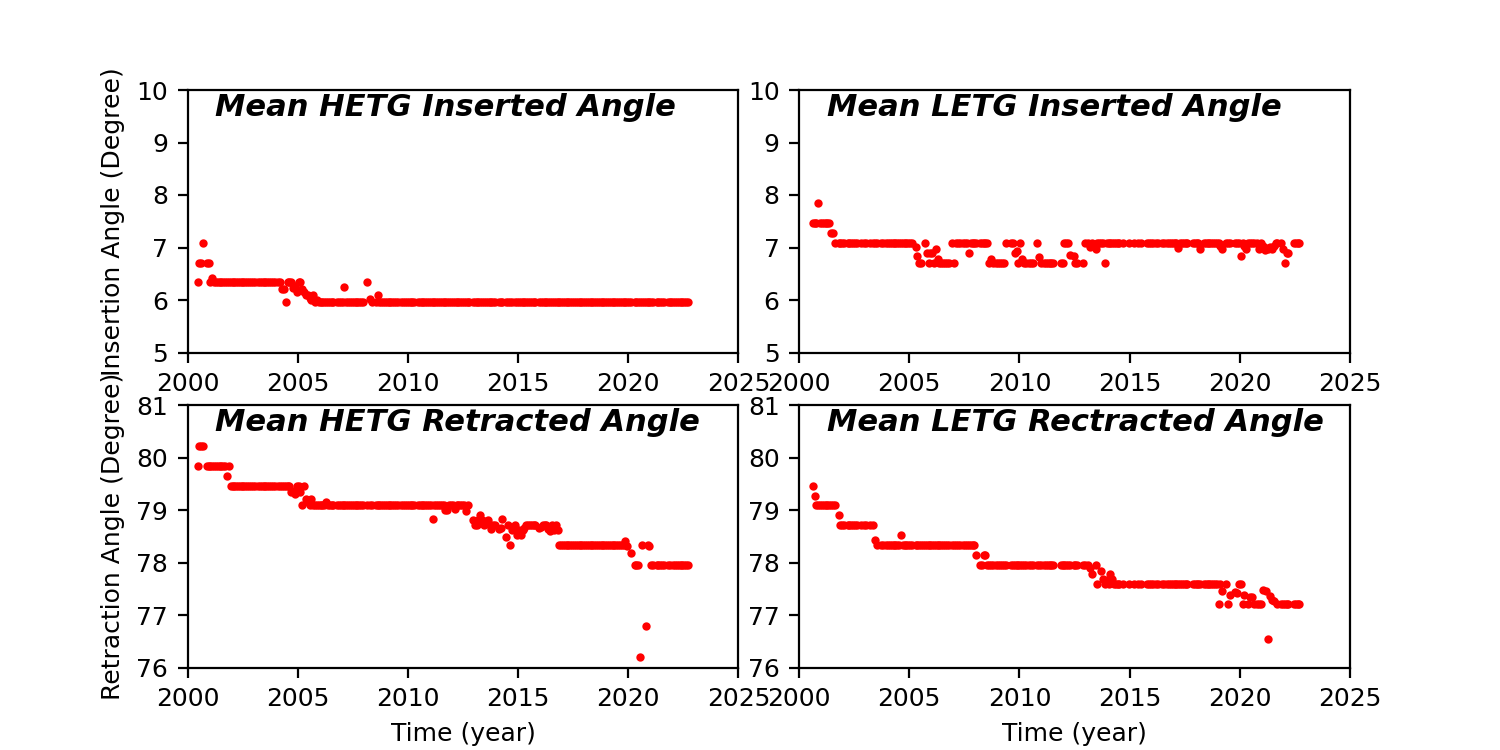

HETG/LETG Insertion/Retraction Angle

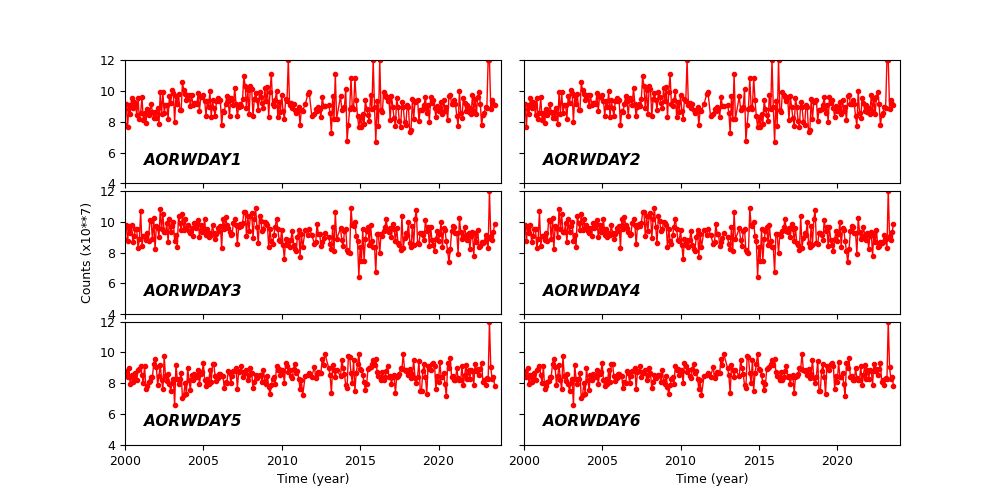

Reaction Wheel Rotations
