ACIS

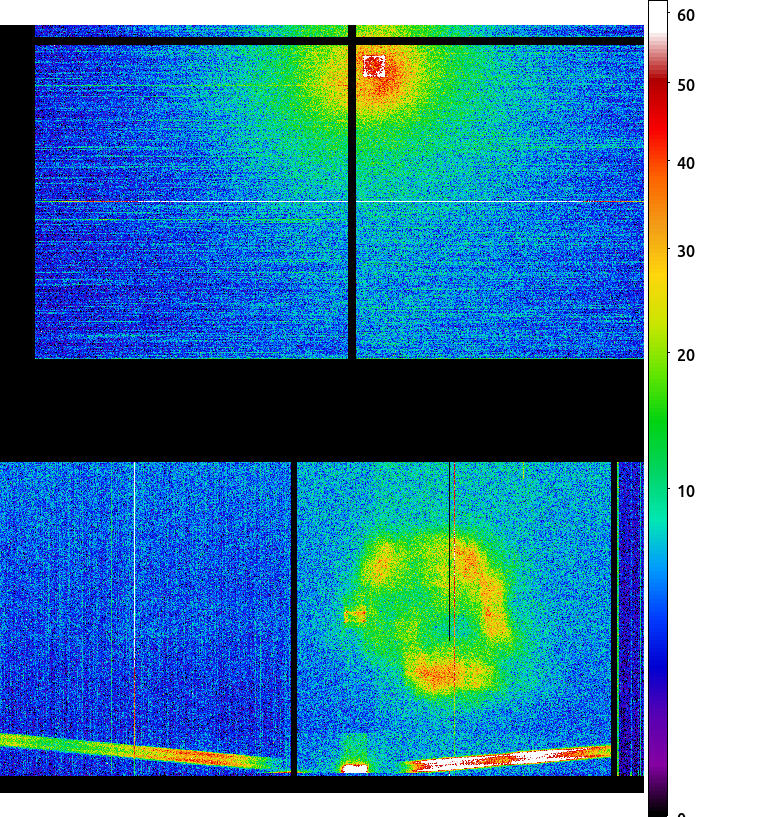

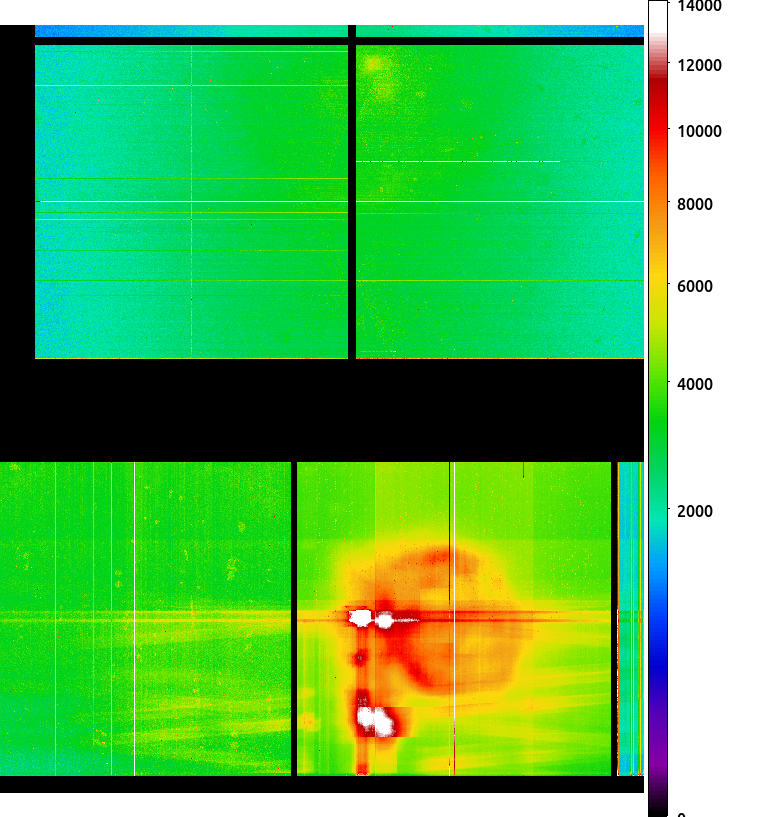

ACIS DOSE Registered-Photon-Map
The steps we took to compute the dose map are;
- Level 1 Event files for a specified month are obtained from archive.
- Image data including I2, I3, S2, S3 CCDs are extracted from all event files.
- All the extracted image data were merged to create a month long exposure map for the month.
- The exposure map is opened with ds9, and check a distribution of count rates against energy. From this, estimate the upper threshold value. Any events beyond this upper threshold are assumed erroneous events such as bad pixels.
- Using this upper threshold, the data is filtered, and create a cleaned exposure map for the month.
- The exposure map from each month from the Sep 1999 is added up to create a cumulative exposure map for each month.
- Using fimgstatistic, we compute count rate statistics for each CCDs.
- For observations with high data drop rates (e.g., Crab nebula, Cas A), we corrected the observations by adding events.
Please check more detail plots at Telemetered Photon Dose Trend page.
)
)
)
Statistics: # IMAGE NPIX MEAN RMS MIN MAX ACIS_nov25 6004901 5.261 7.514 0.0 839 I2 node 0 262654 4.009250 2.350664 0.0 63.0 I2 node 1 262654 4.504034 2.619906 0.0 78.0 I2 node 2 262654 5.665175 3.605002 0.0 78.0 I2 node 3 262654 8.203845 6.731643 0.0 561.0 I3 node 0 262654 12.154510 11.222881 0.0 839.0 I3 node 1 262654 7.050269 3.844532 0.0 110.0 I3 node 2 262654 5.394608 2.700188 0.0 66.0 I3 node 3 262654 4.904442 2.577309 0.0 111.0 S2 node 0 262654 4.524897 3.720424 0.0 507.0 S2 node 1 262654 4.670818 3.815253 0.0 249.0 S2 node 2 262654 5.252217 5.894138 0.0 246.0 S2 node 3 262654 4.773057 4.615752 0.0 432.0 S3 node 0 262654 8.011171 8.038780 0.0 130.0 S3 node 1 262654 13.561169 10.516771 0.0 137.0 S3 node 2 262654 13.565694 12.023978 0.0 143.0 S3 node 3 262654 7.594721 9.511112 0.0 130.0
)
)
)
Statistics: IMAGE NPIX MEAN RMS MIN MAX ACIS_total 6004901 2757.121 3477.470 0.0 169725 I2 node 0 262654 2394.095458 486.896209 511.0 16089.0 I2 node 1 262654 2526.492176 713.686646 523.0 167719.0 I2 node 2 262654 2554.983664 544.002779 548.0 17868.0 I2 node 3 262654 2560.548869 668.325472 506.0 37694.0 I3 node 0 262654 2771.370170 695.012357 507.0 16369.0 I3 node 1 262654 2844.853600 1759.761938 533.0 56090.0 I3 node 2 262654 2550.382199 479.296297 501.0 15637.0 I3 node 3 262654 2525.325063 516.238856 480.0 36710.0 S2 node 0 262654 3215.793850 519.928643 1733.0 22677.0 S2 node 1 262654 3416.644592 781.218612 1909.0 22109.0 S2 node 2 262654 3789.159681 784.743226 2324.0 34212.0 S2 node 3 262654 3745.332662 643.520489 2042.0 88909.0 S3 node 0 262654 5695.694535 3076.508917 2506.0 55589.0 S3 node 1 262654 6918.317713 2412.227593 0.0 83602.0 S3 node 2 262654 5652.759471 1387.040126 2663.0 27735.0 S3 node 3 262654 4445.569670 784.388240 2669.0 26830.0
)
|
)
|
)
|
)
|
| Aug 2025 | May 2025 | Feb 2025 | Nov 2024 |
|---|
The Mean Detrended CTI

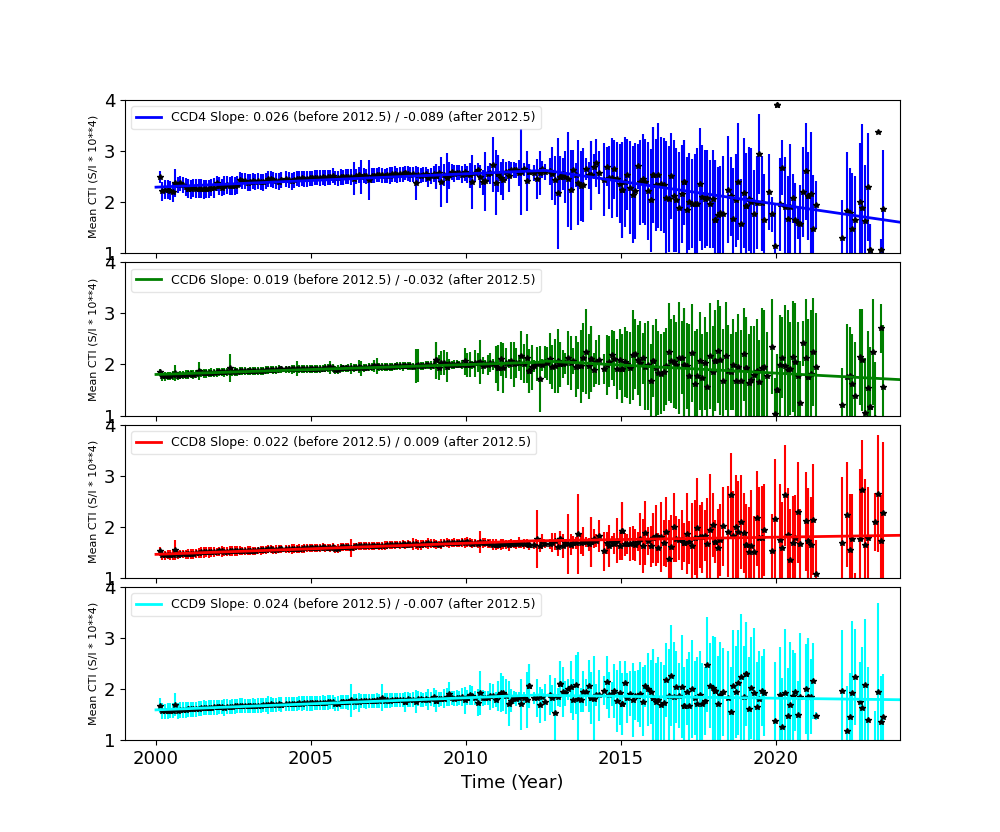

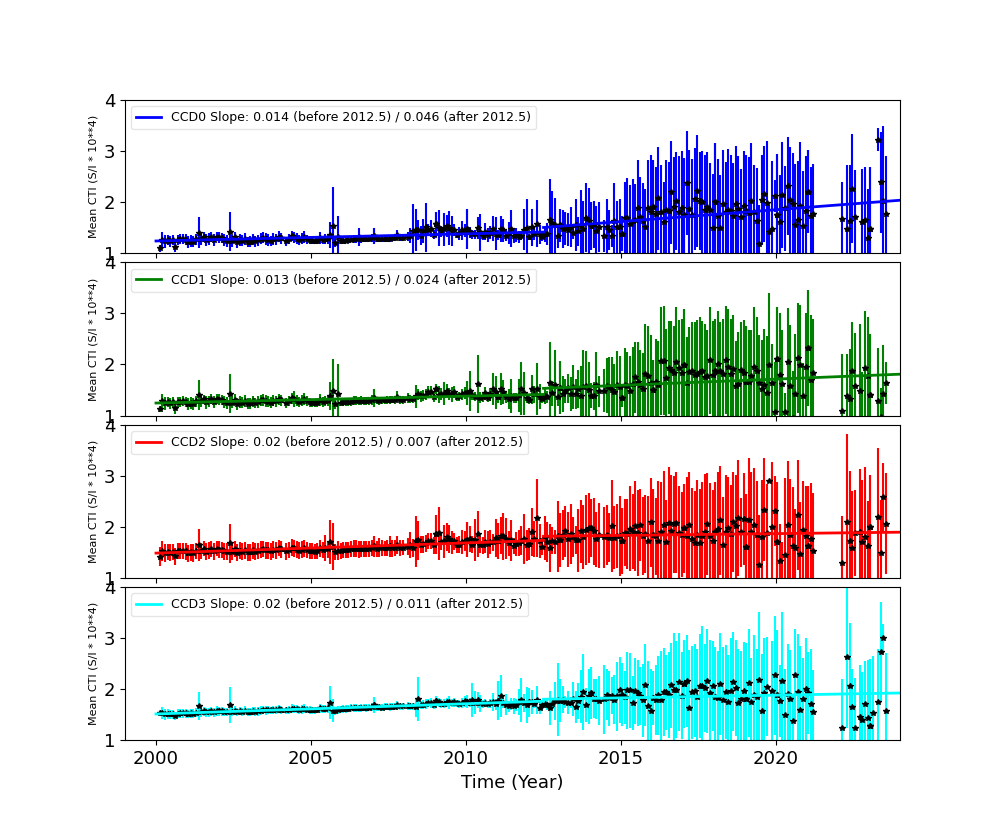

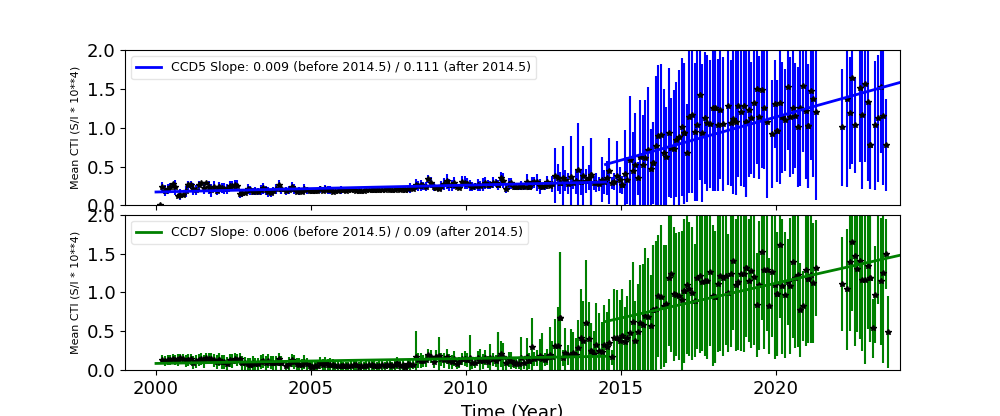

We report CTIs with a refined data definition. CTIs were computed for the temperature dependency corrected data. Please see CTI page for detailed explanation. CTI's are computed for Mn K alpha, and defined as slope/intercept x10^4 of row # vs ADU. Data file: here
Imaging CCDs
Spectral CCDs
Backside CCDs
Focal Plane Temperature
Nov 2025 Focal Temperature
| The Mean (max) FPT: | |
|---|---|
| -107.53 | +/- 7.69 C |
| Mean Width: | |
| 0.8 | +/- 0.58 days |

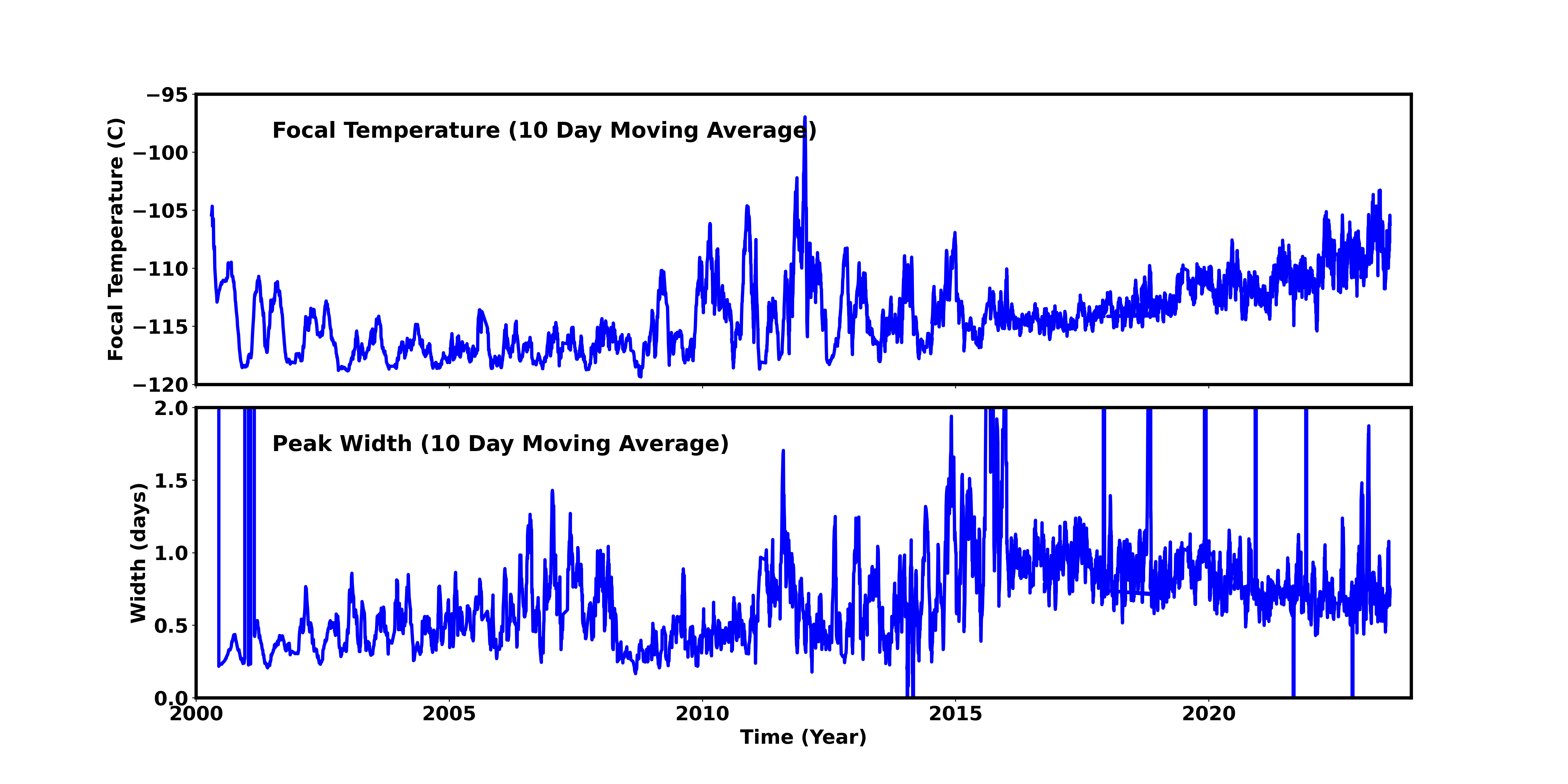

Averaged Focal Plane Temperature
We are using 10 period moving averages to show trends of peak temperatures and peak widths. Note, the gaps in the width plot are due to missing/corrupted data.

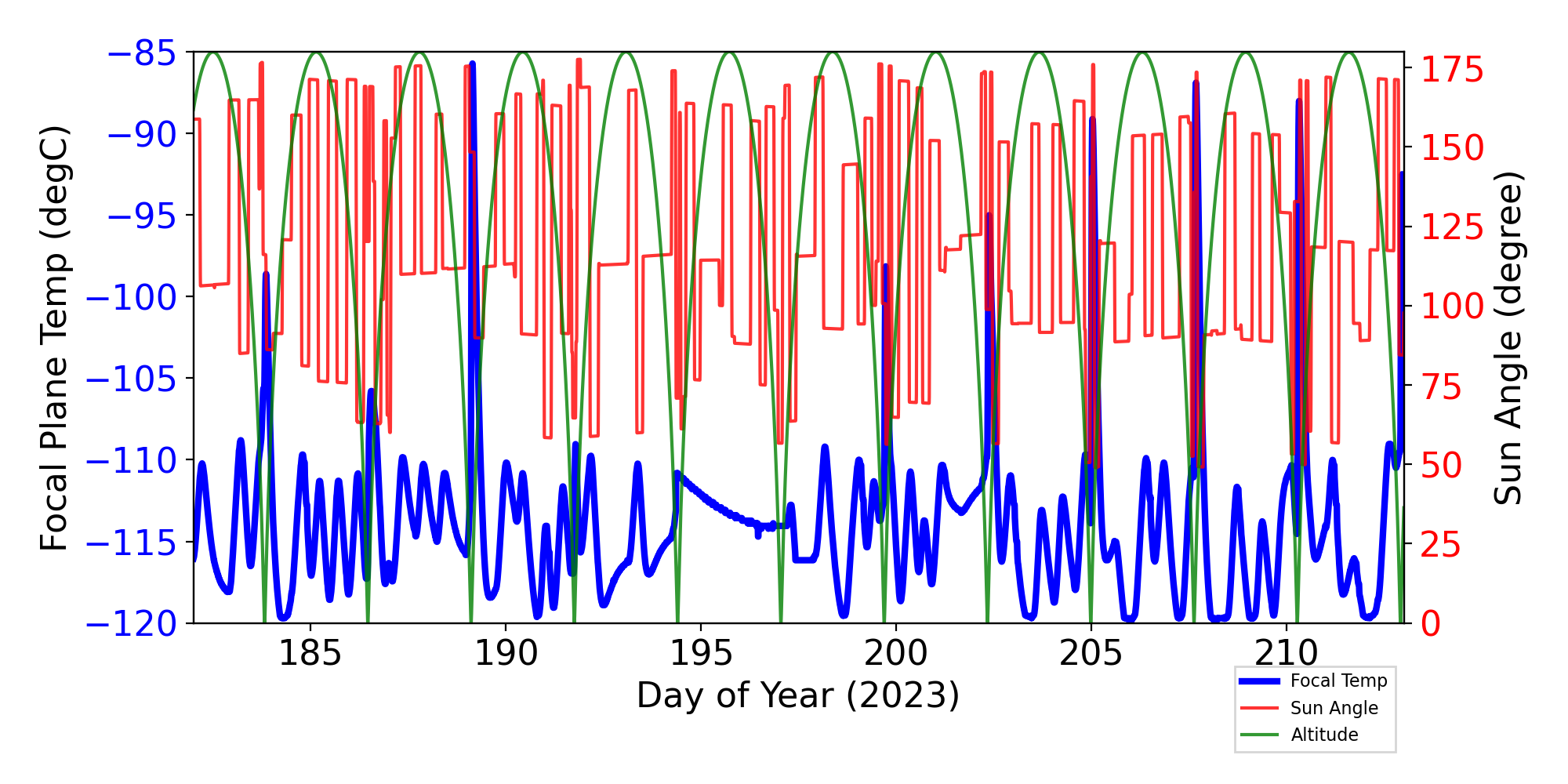

Focal Plane Temperature, Sun Angle and Altitude
Bad Pixels

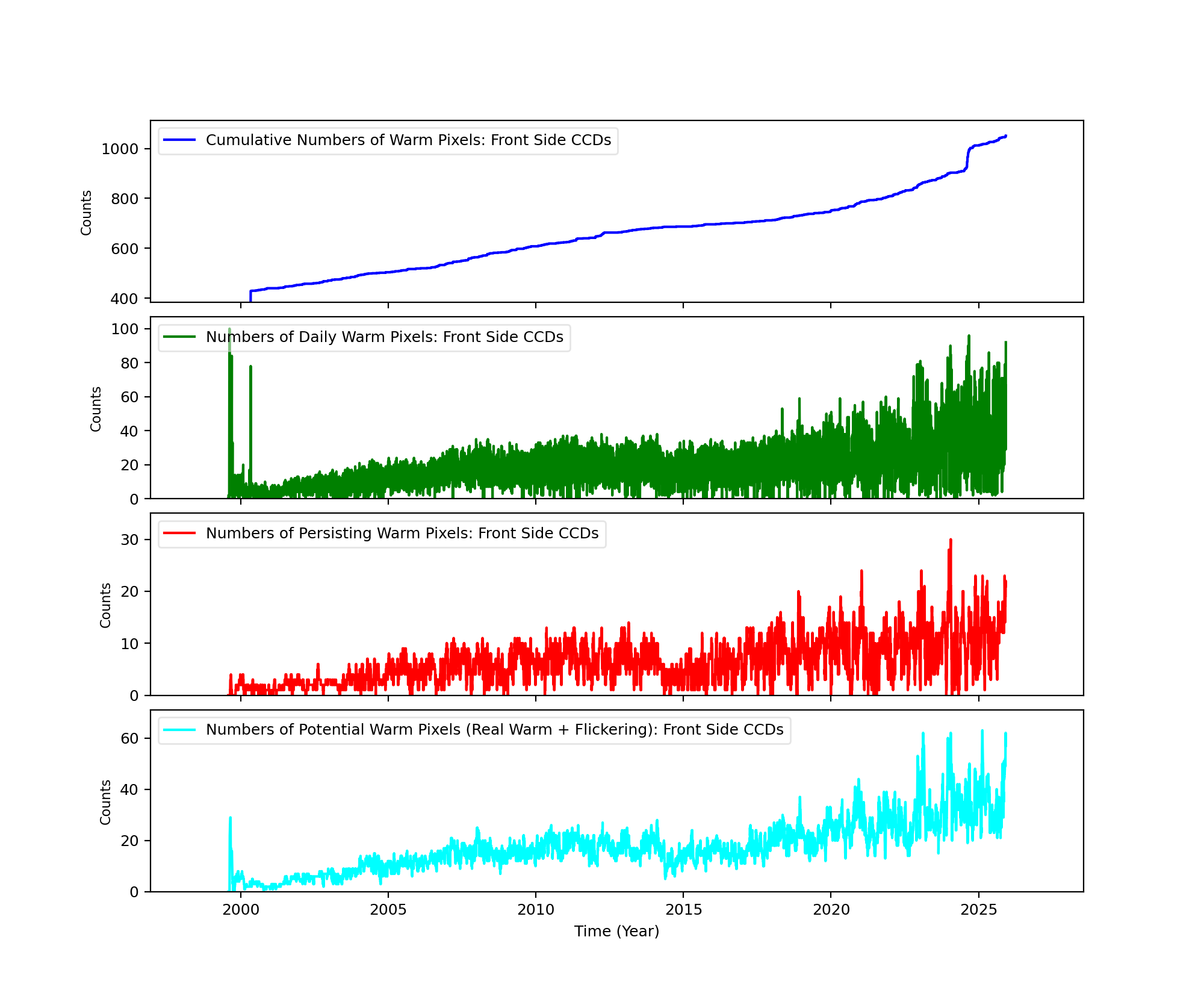

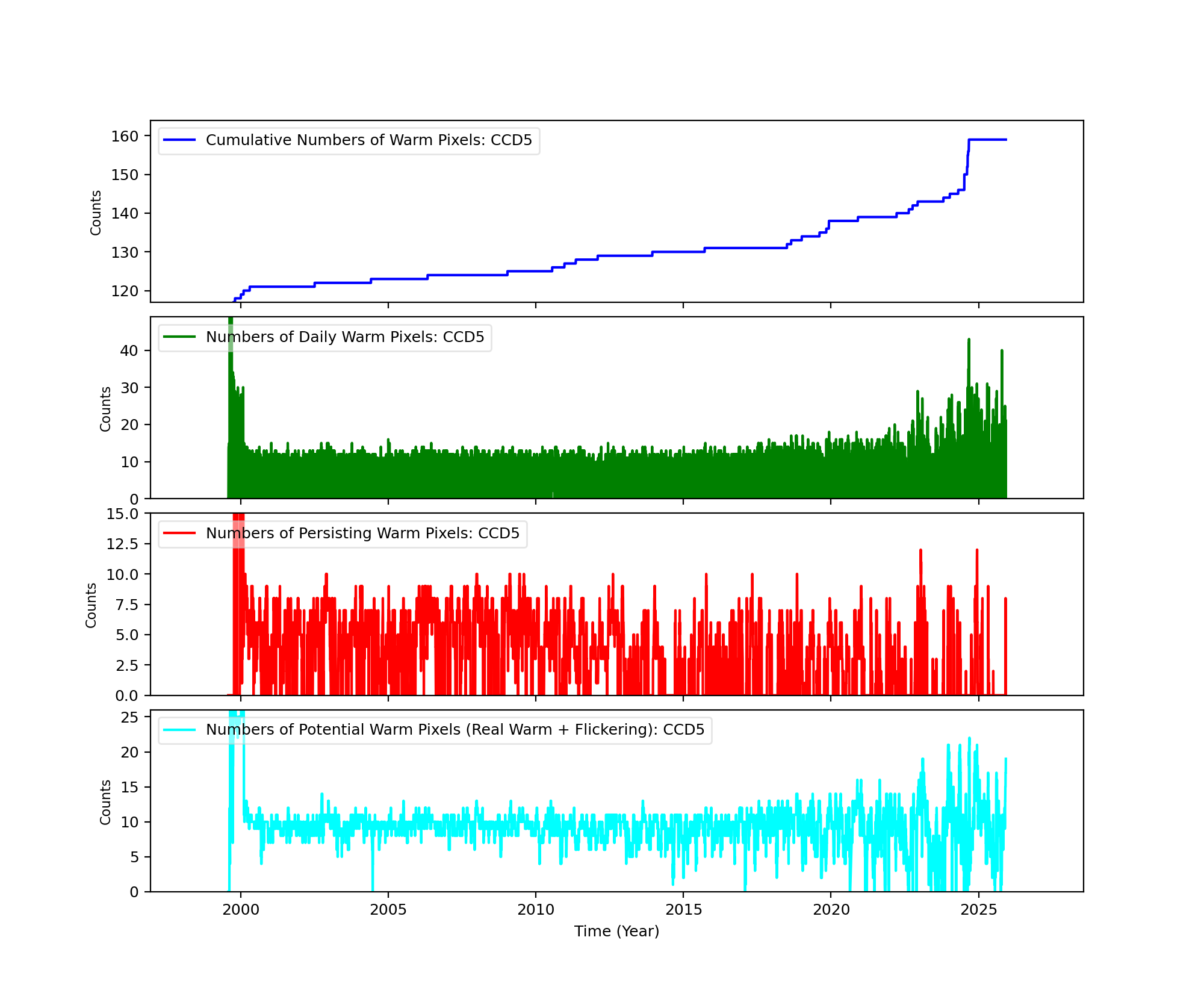

The plots below were generated with a new warm pixel finding script. Please see Acis Bad Pixel Page for details.
Front Side CCDs
Back Side CCD (CCD5)
Science Instrument Background Rates
| Name | Low (keV) | High(KeV) | Description |
|---|---|---|---|
| SSoft | 0.00 | 0.50 | Super soft photons |
| Soft | 0.50 | 1.00 | Soft photons |
| Med | 1.00 | 3.00 | Moderate energy photons |
| Hard | 3.00 | 5.00 | Hard Photons |
| Harder | 5.00 | 10.00 | Very Hard photons |
| Hardest | 10.00 | Beyond 10 keV |

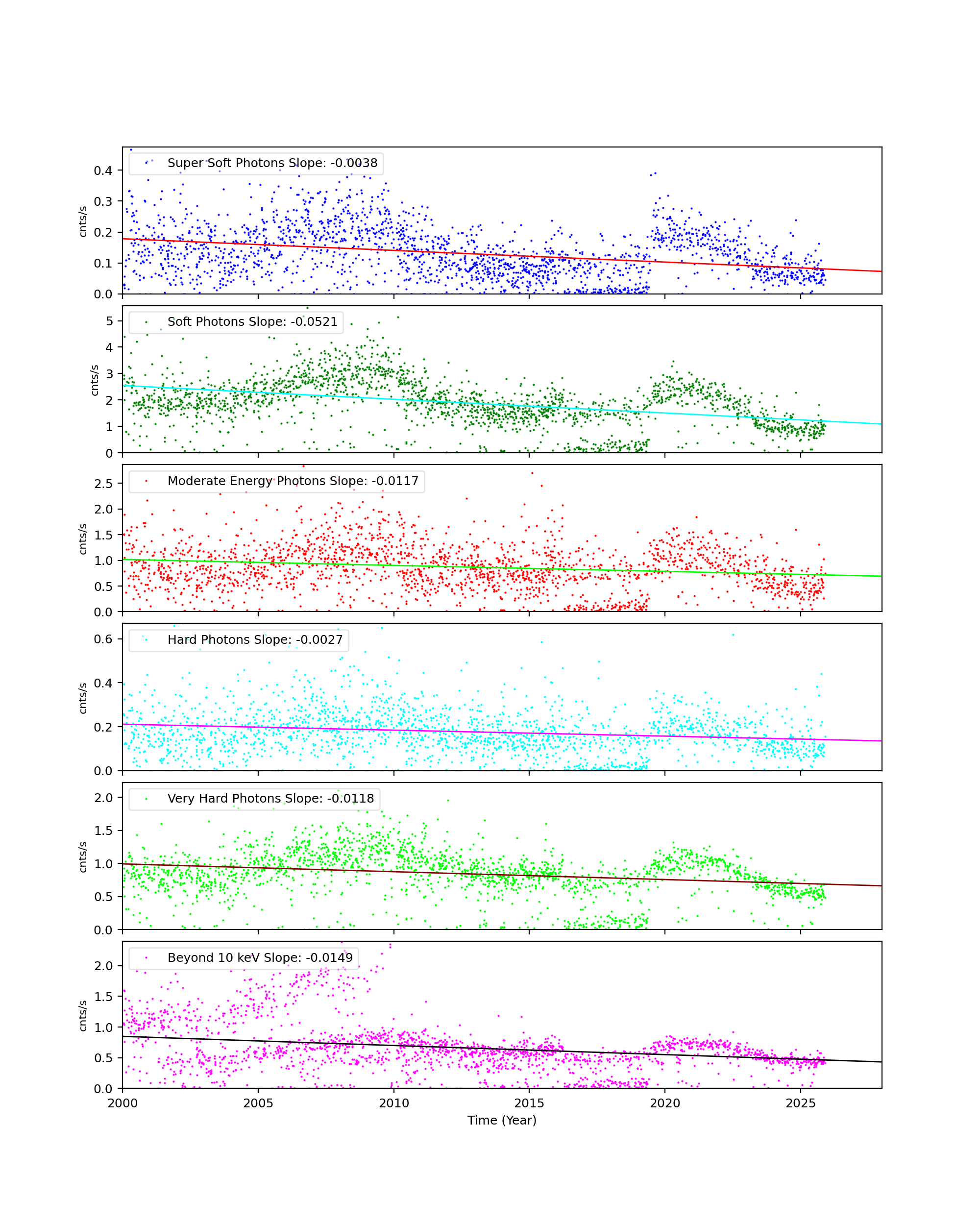

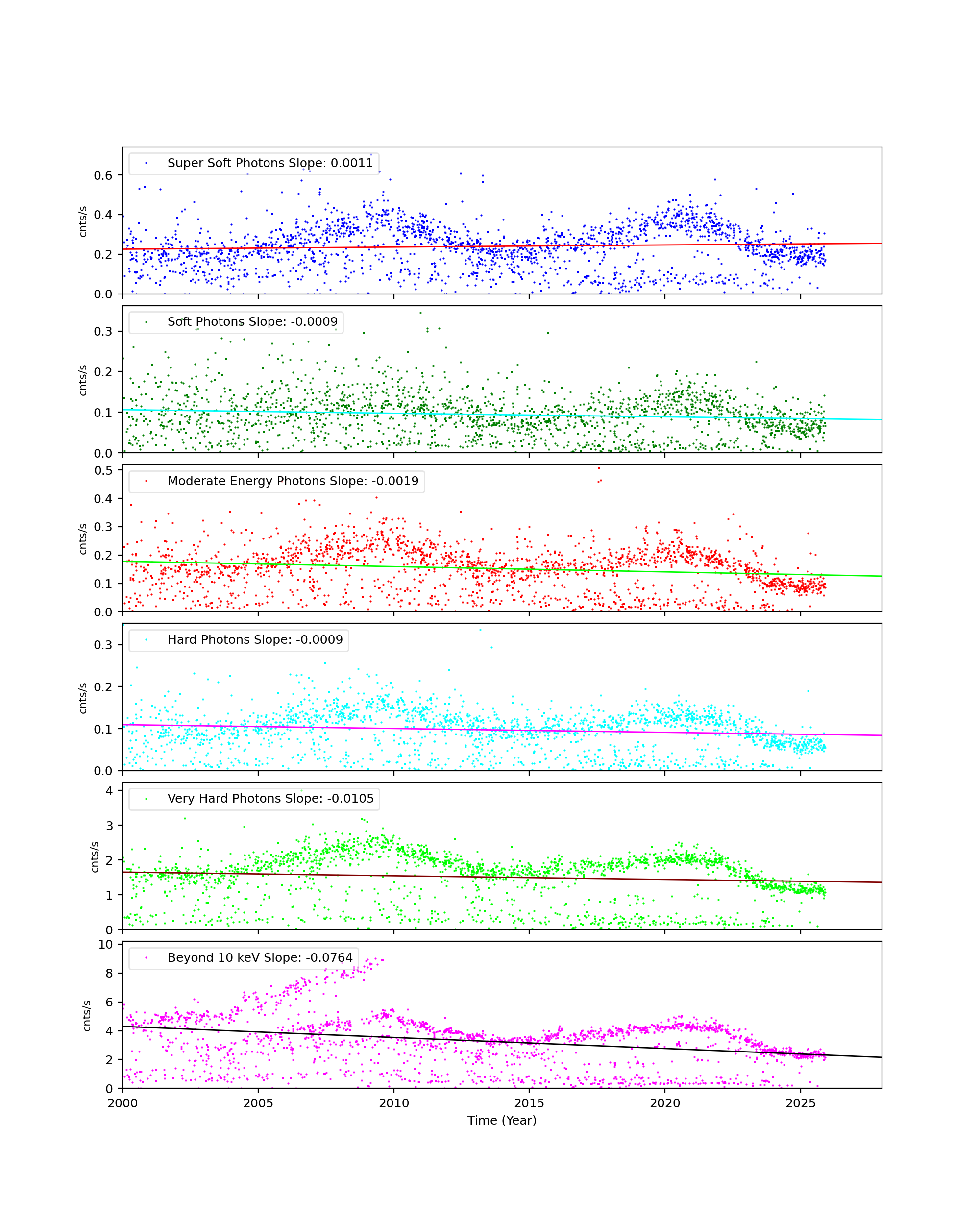

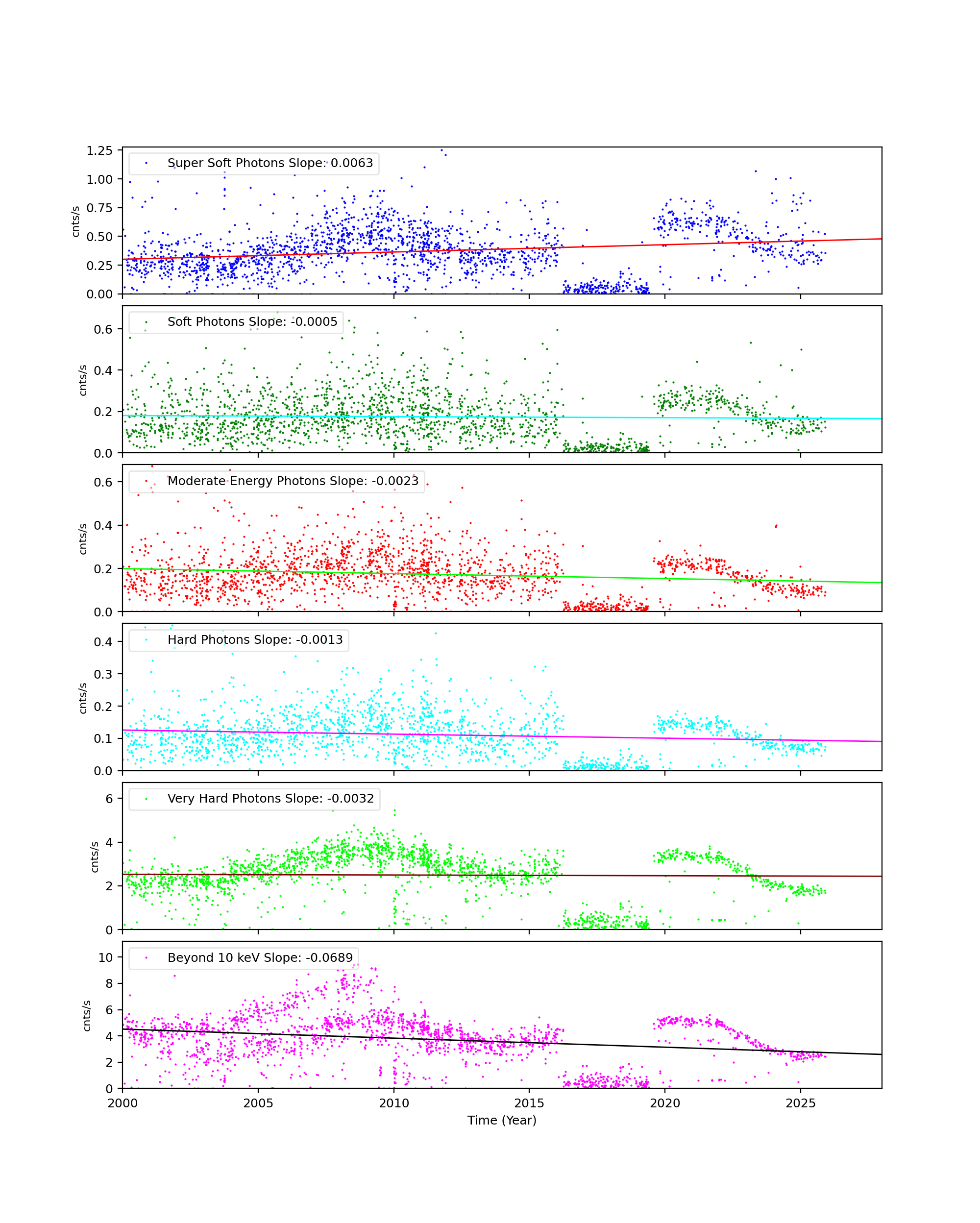

The following three plots show trends of SIB from year 2000. CCDs shown here are CCD3, CCD5, and CCD7. Fitted lines are linear fit after eliminating extreme outliers. For >10 keV plots, 2 lines are fit. One is with a 13 keV filter, and another without.
CCD 3
CCD 5
CCD 7
ACIS Histogram Mode Trends
We collected data from acis histogram mode data, and created trend plots of peak portions and peak widths against time (DOM). The peaks were estimated by fitting a simple Gaussian on three peaks (Al, Ti, and Mn), and the widths were estimated by a width at the half max from the peak.
All histogram data are taken under TIMED and GRADED_HIST mode, SIM position is at an external calibration source position, the focal temperature is around -119.7 C, and parameter settings in aciselec, acistemp are set to about same for all.
CCD 3, Peak Position
CCD 3, Peak Widths
CCD 3, Count Rates
HRC
DOSE of Central 4K Pore-Pairs
Please refer to Maximum Dose Trends for more details.
No Data
)
IMAGE NPIX MEAN STDDEV MIN MAX HRCI_08_1999_11_2025.fits 16777216 na na na na
No Data
)
IMAGE NPIX MEAN STDDEV MIN MAX HRCS_08_1999_11_2025.fits 16777216 na na na na
|
|

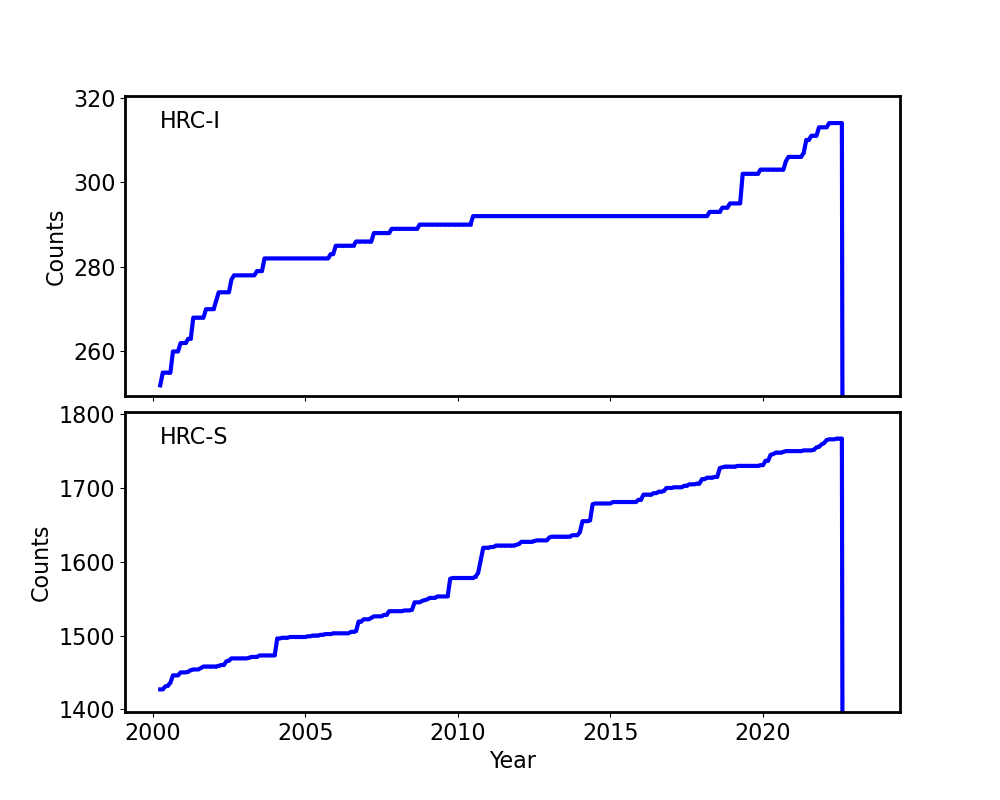

Max dose trend plots corrected for events that "pile-up"
in the center of the taps due to bad position information.
|
)
|
)
|
)
|
)
|
| Aug 2025 | May 2025 | Feb 2025 | Nov 2024 |
|---|
)
|
)
|
)
|
)
|
| Aug 2025 | May 2025 | Feb 2025 | Nov 2024 |
|---|
Gratings
Grating Trends/Focus

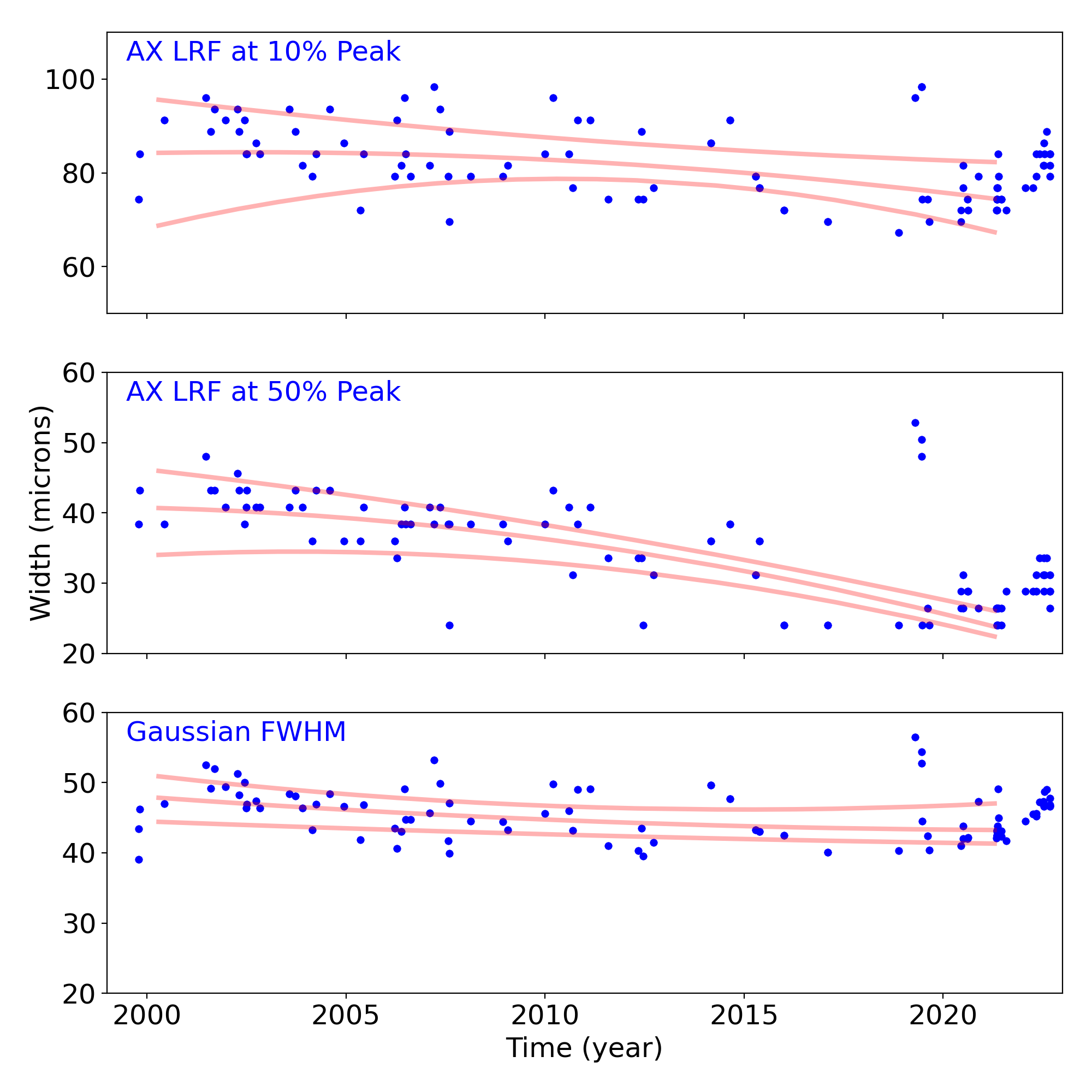

We plot the width of the zero order streak of ACIS/HETG observations and the width of the zero order image for HRC/LETG observations of point sources. No significant defocusing trend is seen at this time. See Gratings Trends pages.
PCAD
ACA Trending
| ACIS |
)
|
)
|
)
|
|
|---|---|---|---|---|
)
|
)
|
)
| ||
| HRCI |
)
|
)
|
)
|
)
|
| HRCI |
)
|
)
|
)
|
)
|

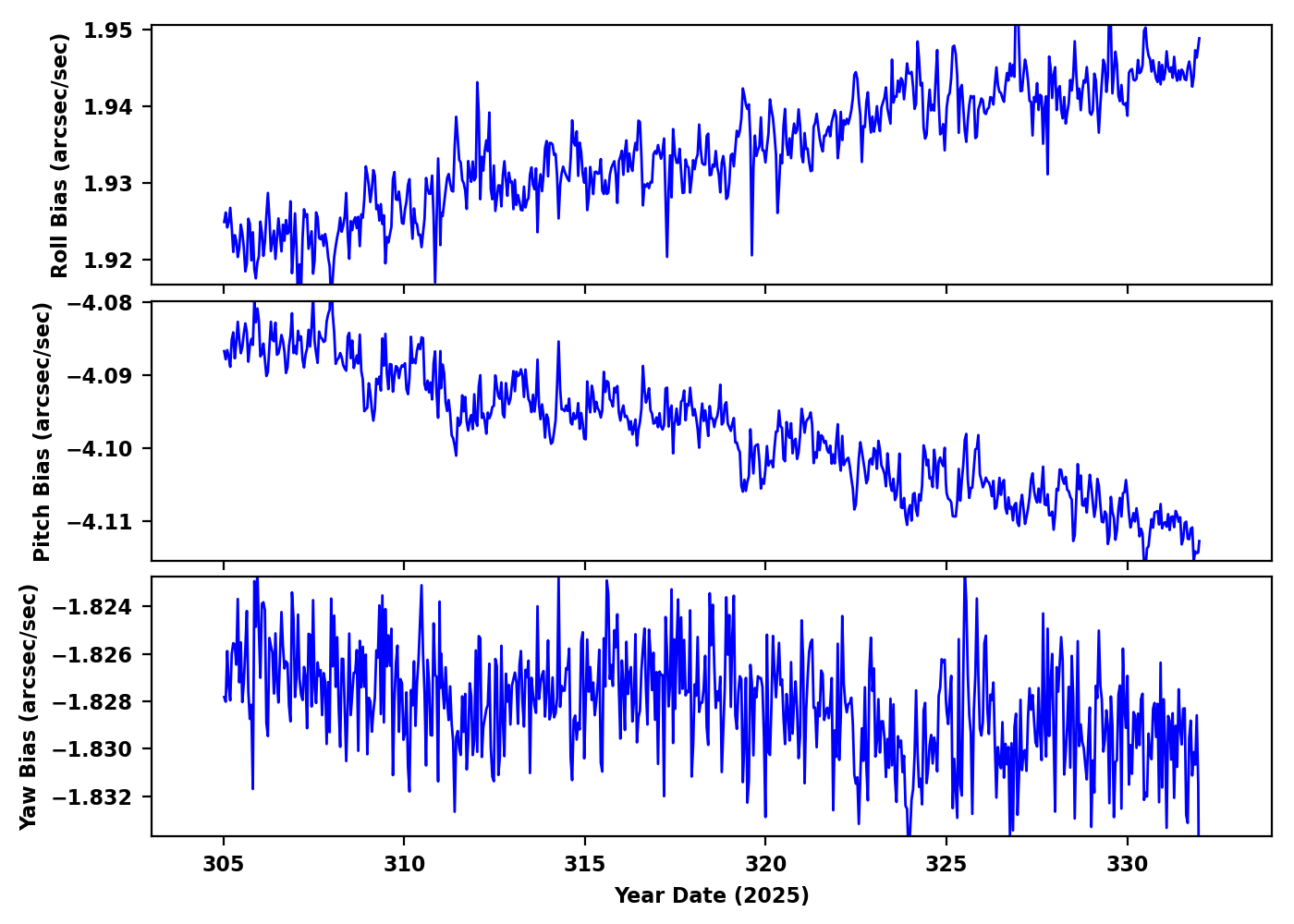

Gyro Bias Drift
Radiation History

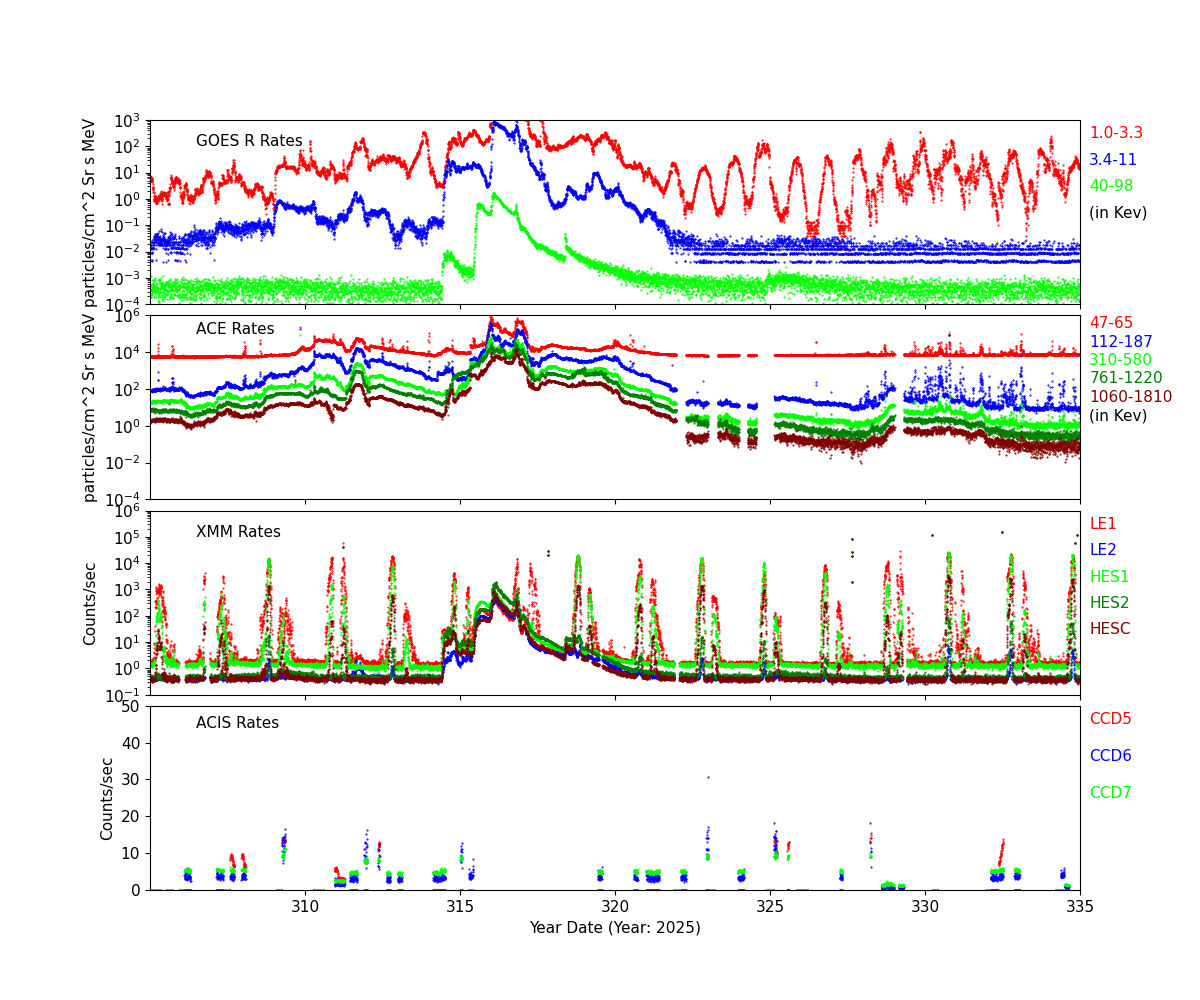

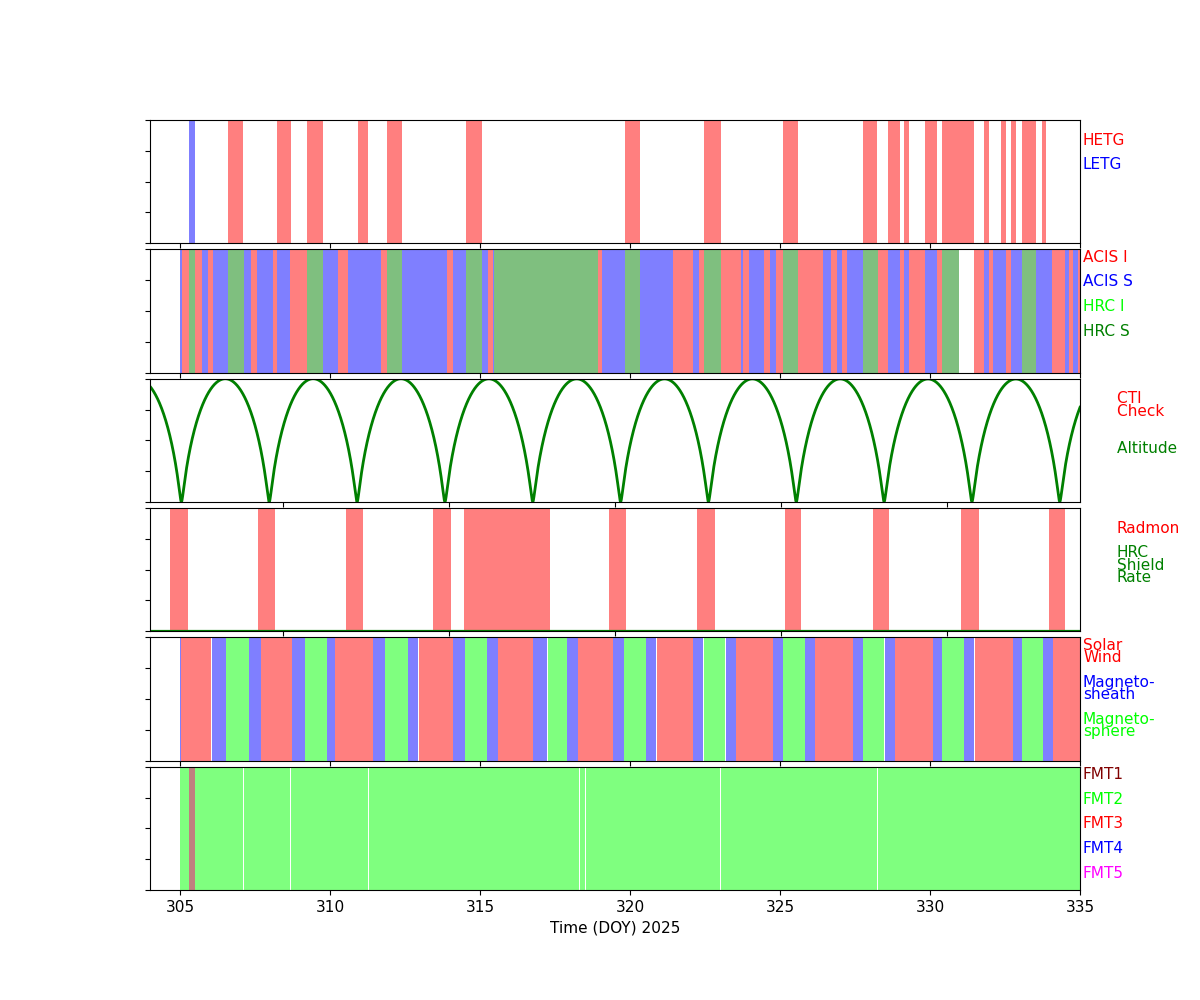

Radiation Count Rates of Nov 2025

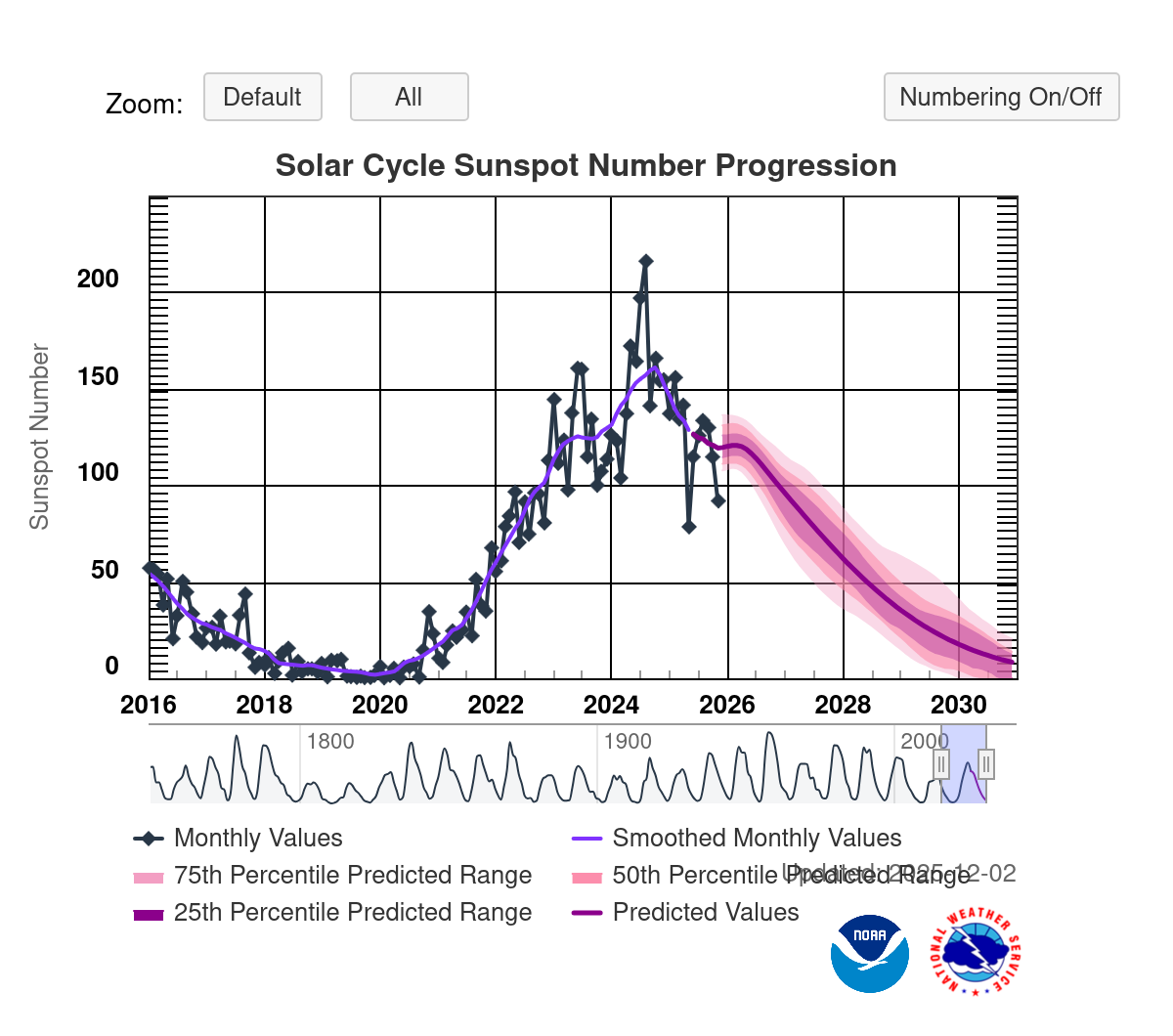

Sun Spot History (See:NOAA Page)
Trending
Quarterly Trends
- HRMA Heater
| Previous Quarter | |||||||
| MSID | MEAN | RMS | DELTA/YR | DELTA/YR/YR | UNITS | DESCRIPTION | |
| ohrthr03 | 2.306e-04 | 3.101e-05 | (2.95+/-0.00)e2 | 0.04 +/- 0.01 | K | RT 5: HRMA FORWARD APERTURE PLATE | |
|---|---|---|---|---|---|---|---|
| ohrthr09 | 8.754e-04 | 1.737e-04 | (2.96+/-0.00)e2 | 0.31 +/- 0.05 | K | RT 105: HRMA CAP | |
| ohrthr17 | 9.394e-04 | 1.848e-04 | (2.96+/-0.00)e2 | 0.33 +/- 0.06 | K | RT 125: HSA OUTER CYNLINDER | |
| ohrthr24 | 0.002 | 3.337e-04 | (2.97+/-0.01)e2 | 0.64 +/- 0.14 | K | RT 12: HRMA AFT HEATER PLATE | |
| ohrthr38 | 0.006 | 8.678e-04 | (3.01+/-0.02)e2 | 1.27 +/- 0.49 | K | RT 120: HRMA AFT COLLIMATOR OUTER CYLINDER | |
| ohrthr52 | 8.998e-04 | 1.806e-04 | (2.96+/-0.00)e2 | 0.33 +/- 0.06 | K | RT 100: HRMA CAP | |
- HRMA Thermal
| Previous Quarter | |||||||
| MSID | MEAN | RMS | DELTA/YR | DELTA/YR/YR | UNITS | DESCRIPTION | |
| 4rt568t | 0.006 | 9.319e-04 | (3.00+/-0.02)e2 | 1.26 +/- 0.53 | K | RT 568 - HRMA TEMP | |
|---|---|---|---|---|---|---|---|
| 4rt569t | 0.002 | 2.987e-04 | (2.97+/-0.01)e2 | 0.64 +/- 0.12 | K | RT 569 - HRMA TEMP | |
| 4rt570t | 0.001 | 1.639e-04 | (2.96+/-0.00)e2 | 0.31 +/- 0.06 | K | RT 570 - HRMA TEMP | |
| 4rt575t | 0.008 | 0.001 | (3.06+/-0.03)e2 | 1.55 +/- 0.67 | K | RT 575 - OB CONE TEMP | |
| 4rt576t | 0.007 | 9.279e-04 | (2.96+/-0.02)e2 | 1.40 +/- 0.53 | K | RT 576 - OB CONE TEMP | |
| 4rt578t | 0.009 | 0.002 | (3.04+/-0.04)e2 | 1.66 +/- 0.87 | K | RT 578 - OB CONE TEMP | |
- MUPS
| Previous Quarter | |||||||
| MSID | MEAN | RMS | DELTA/YR | DELTA/YR/YR | UNITS | DESCRIPTION | |
| pm1thv1t | 0.016 | 0.007 | (3.52+/-0.16)e2 | -1.18 +/- 2.51 | K | MUPS 1 THRUSTER VALVE 01 TEMP | |
|---|---|---|---|---|---|---|---|
| pline02t | 0.023 | 0.005 | (3.36+/-0.12)e2 | 0.78 +/- 2.28 | K | PROP LINE TEMP 02 | |
| pline03t | 0.025 | 0.006 | (3.29+/-0.14)e2 | 0.57 +/- 2.15 | K | PROP LINE TEMP 03 | |
| pline04t | 0.023 | 0.005 | (3.17+/-0.11)e2 | 2.82 +/- 2.29 | K | PROP LINE TEMP 04 | |
Spacecraft Motions

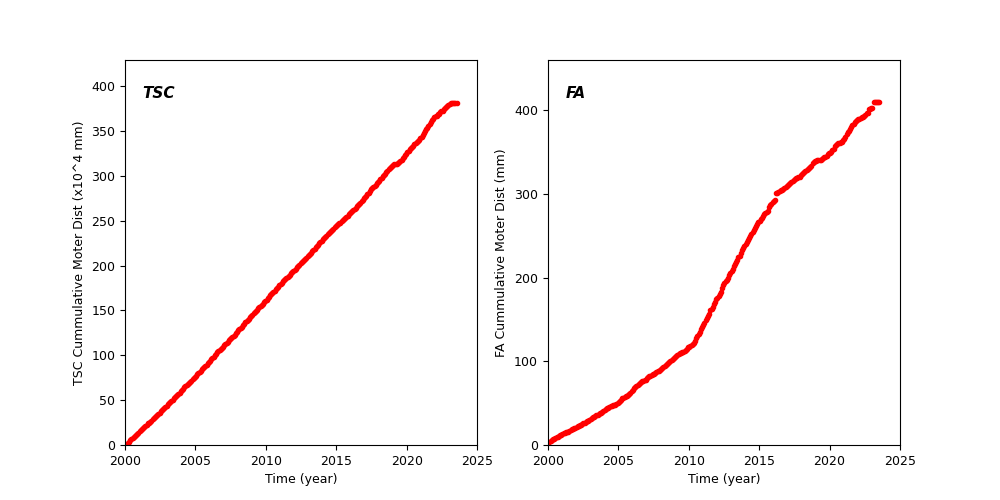

TSC and FA Cummulative Moter Distance

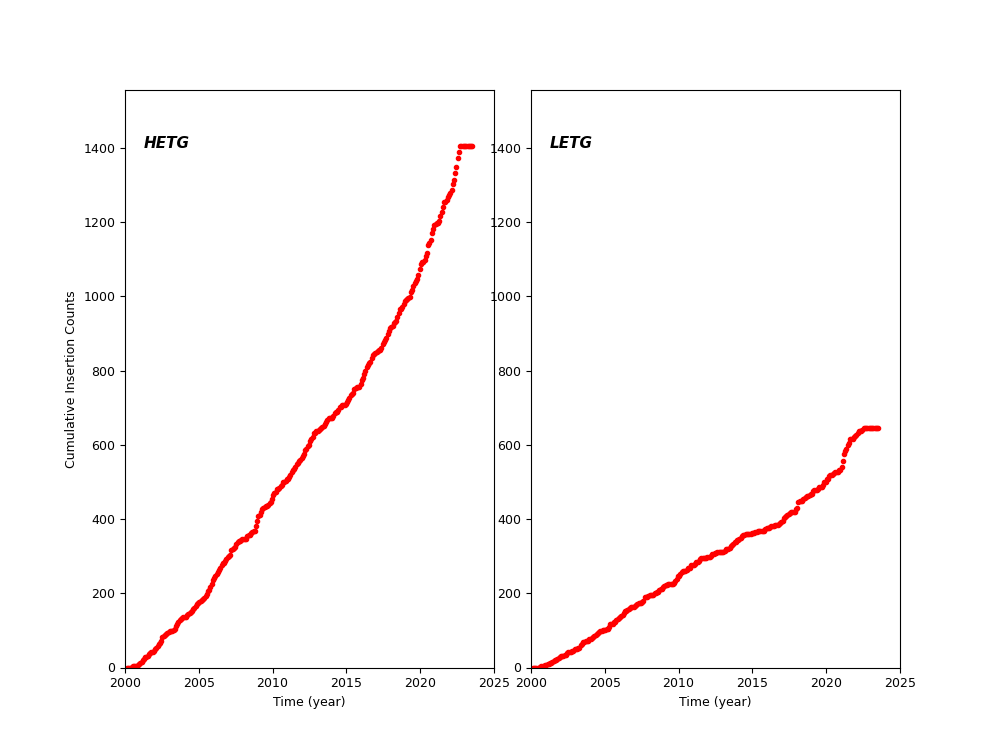

HETG and LETG Cummulative Insertion Counts

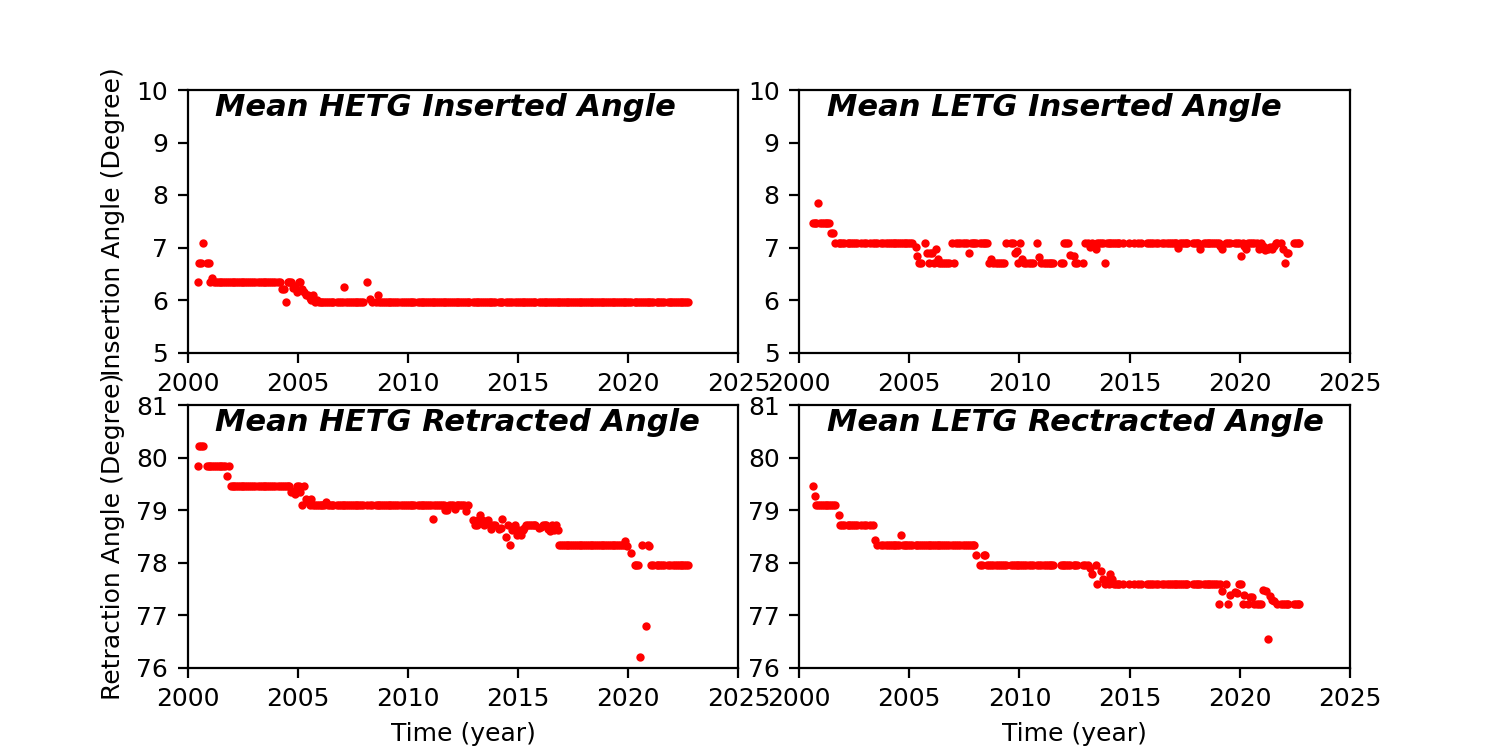

HETG/LETG Insertion/Retraction Angle

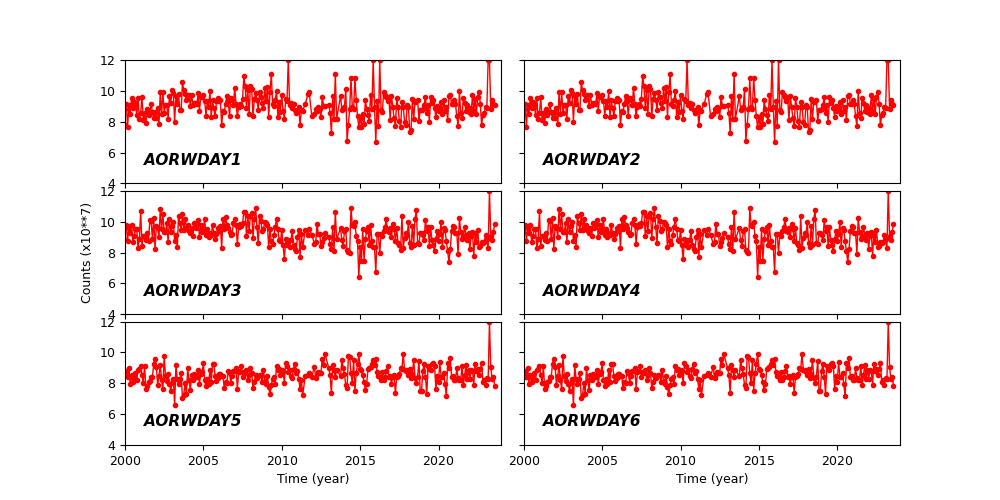

Reaction Wheel Rotations
