- M&TA MONTHLY REPORT -

January 2026

Back to SOT page





Configuration/Radiation Overview for January 2026

ACIS

ACIS DOSE Registered-Photon-Map

The steps we took to compute the dose map are;

Please check more detail plots at Telemetered Photon Dose Trend page.

  • January registered-photon-map in fits

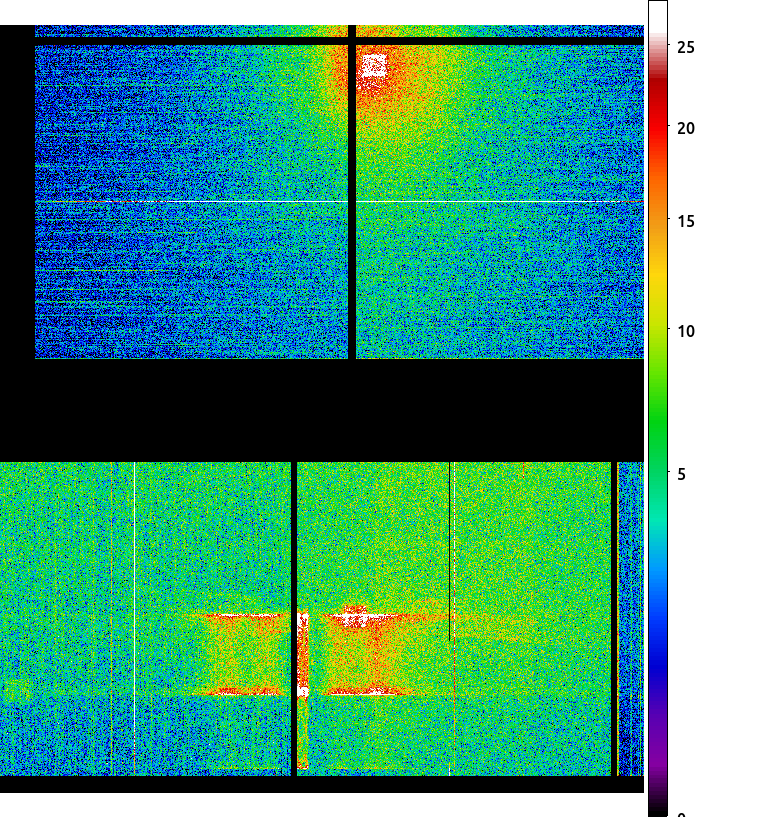

  • January Dose Map


    TOTAL


    CCD I3


    CCD S3

    Statistics:
    # IMAGE     NPIX     MEAN        RMS        MIN     MAX
    ACIS_jan26 6004901       3.686         4.424           0.0      431


    I2 node 0  262654	2.238239	1.669295	0.0	 31.0
    I2 node 1  262654	2.571638	1.863955	0.0	 92.0
    I2 node 2  262654	2.893797	2.146156	0.0	 41.0
    I2 node 3  262654	3.767442	3.608550	0.0	176.0

    I3 node 0  262654	7.077447	6.413987	0.0	195.0
    I3 node 1  262654	4.593941	3.036620	0.0	 73.0
    I3 node 2  262654	3.587826	2.186734	0.0	 58.0
    I3 node 3  262654	3.140136	2.013603	0.0	157.0

    S2 node 0  262654	4.559544	2.434389	0.0	101.0
    S2 node 1  262654	4.705155	2.724761	0.0	241.0
    S2 node 2  262654	5.130940	3.081268	0.0	431.0
    S2 node 3  262654	6.420393	4.324866	0.0	413.0

    S3 node 0  262654	8.212136	6.042364	0.0	106.0
    S3 node 1  262654	7.766390	4.045146	0.0	 64.0
    S3 node 2  262654	6.607851	2.828995	0.0	 32.0
    S3 node 3  262654	5.790317	2.582341	0.0	 48.0


  • Jul 1999 - Jan 2026 registered-photon-map in fits
  • Cumulative Dose Map


    TOTAL


    CCD I3


    CCD S3

    Statistics:
     IMAGE     NPIX      MEAN        RMS           MIN      MAX

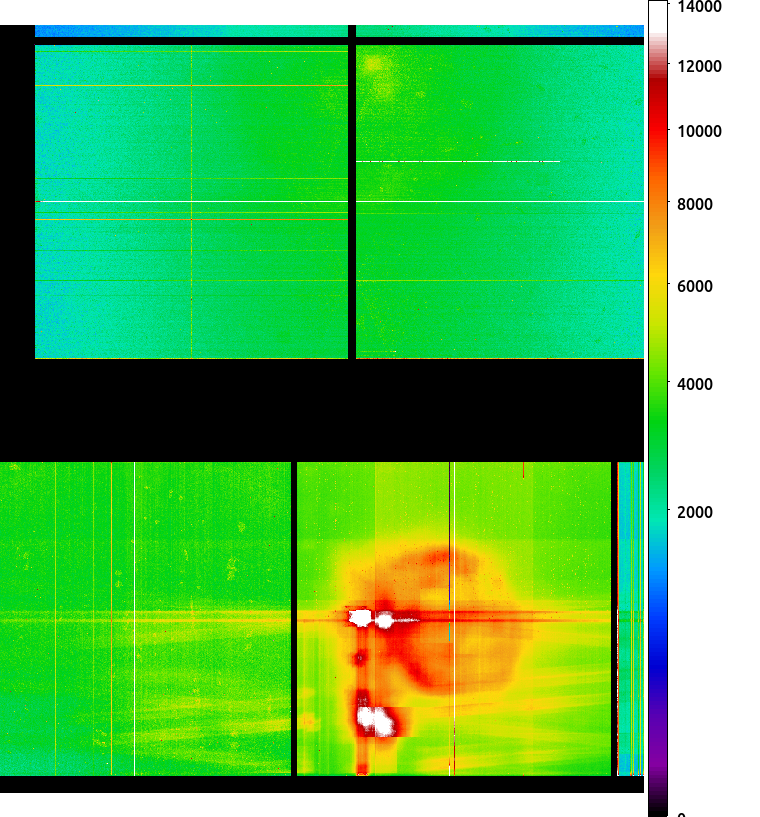

    ACIS_total   6004901       2765.812         3484.332           0.0   169725


    I2 node 0  262654	2399.891565	488.268025	511.0	16161.0
    I2 node 1  262654	2533.003328	715.190350	525.0	167719.0
    I2 node 2  262654	2562.648178	546.912311	551.0	17962.0
    I2 node 3  262654	2571.382707	674.174387	507.0	37749.0

    I3 node 0  262654	2790.084976	708.545577	508.0	16998.0
    I3 node 1  262654	2856.216189	1761.530813	534.0	56103.0
    I3 node 2  262654	2558.970059	481.555481	502.0	15676.0
    I3 node 3  262654	2532.846215	517.999063	482.0	37361.0

    S2 node 0  262654	3225.680113	520.905448	1736.0	22696.0
    S2 node 1  262654	3426.836850	783.625898	1913.0	22600.0
    S2 node 2  262654	3800.951022	786.405334	2326.0	34397.0
    S2 node 3  262654	3758.372252	646.640710	2046.0	89609.0

    S3 node 0  262654	5712.814338	3079.752677	2516.0	55616.0
    S3 node 1  262654	6935.419308	2413.276116	0.0	83602.0
    S3 node 2  262654	5669.255545	1386.421223	2671.0	27751.0
    S3 node 3  262654	4460.036485	784.725169	2678.0	26847.0


  • Integrated Exposure Maps of Last 12 Months
  • Oct 2025 Jul 2025 Apr 2025 Jan 2025

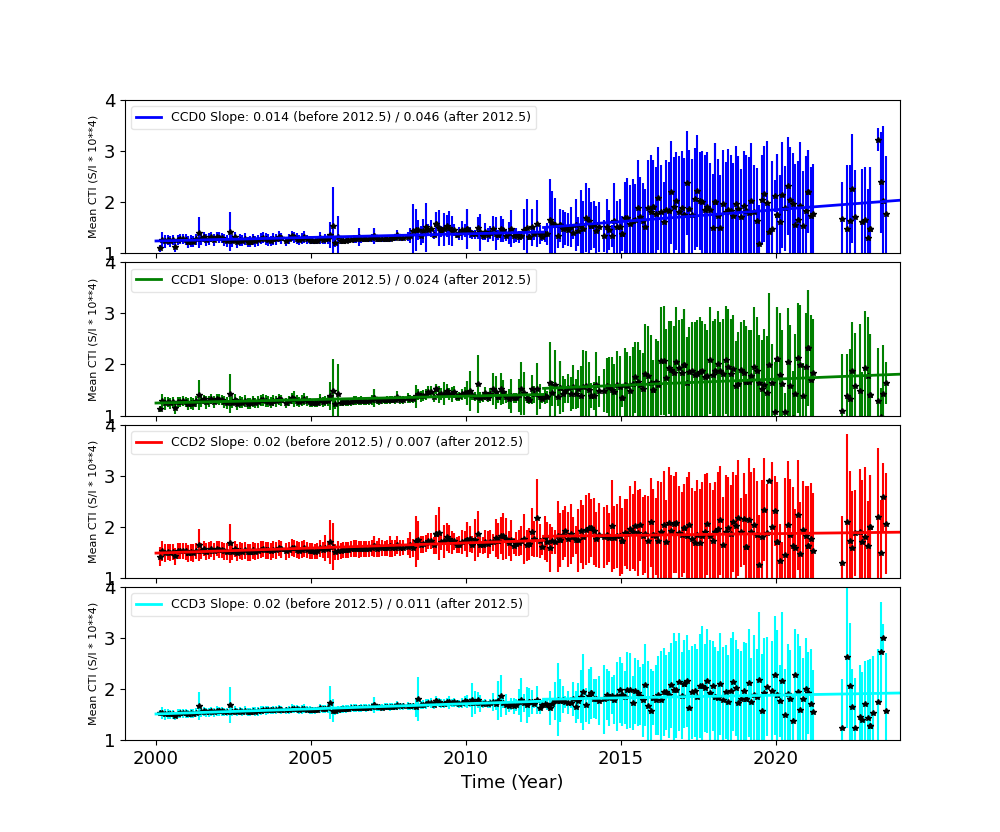

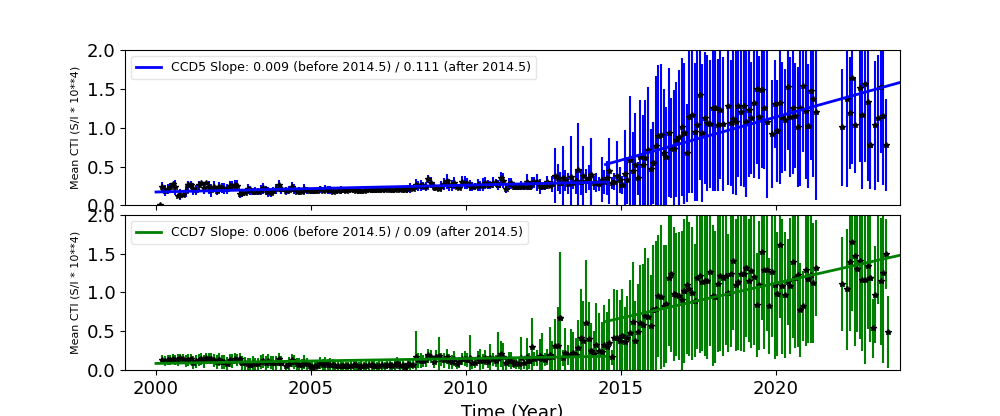

    The Mean Detrended CTI

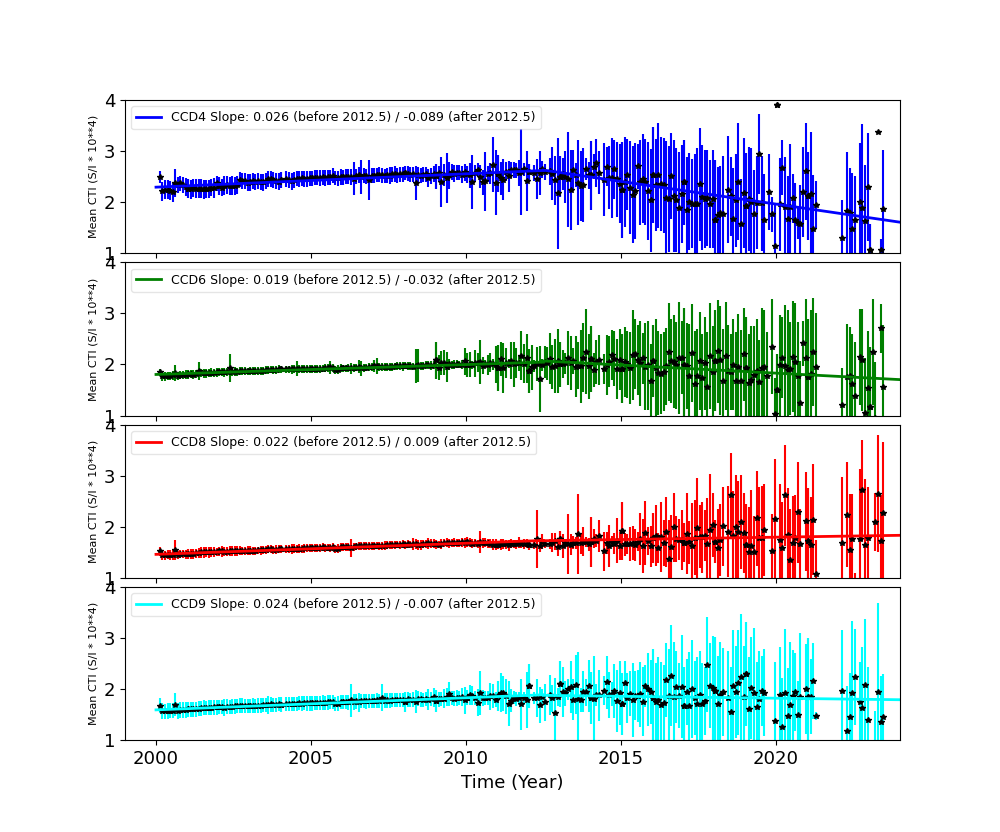

    We report CTIs with a refined data definition. CTIs were computed for the temperature dependency corrected data. Please see CTI page for detailed explanation. CTI's are computed for Mn K alpha, and defined as slope/intercept x10^4 of row # vs ADU. Data file: here

    Imaging CCDs

    Spectral CCDs

    Backside CCDs


    Focal Plane Temperature

    Jan 2026 Focal Temperature

    The Mean (max) FPT:
    -107.53 +/- 7.69 C
    Mean Width:
    0.8 +/- 0.58 days

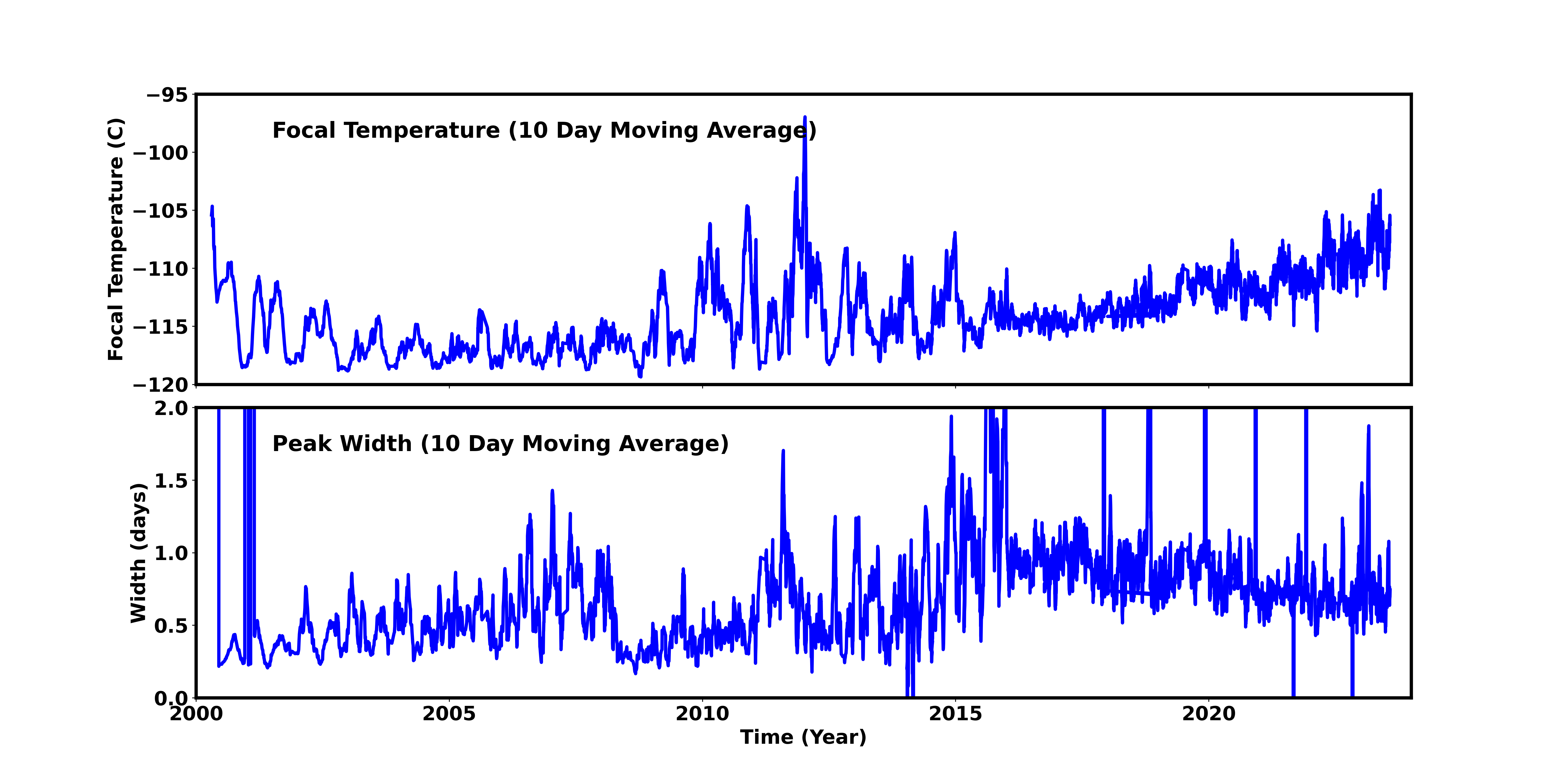

    Averaged Focal Plane Temperature

    We are using 10 period moving averages to show trends of peak temperatures and peak widths. Note, the gaps in the width plot are due to missing/corrupted data.

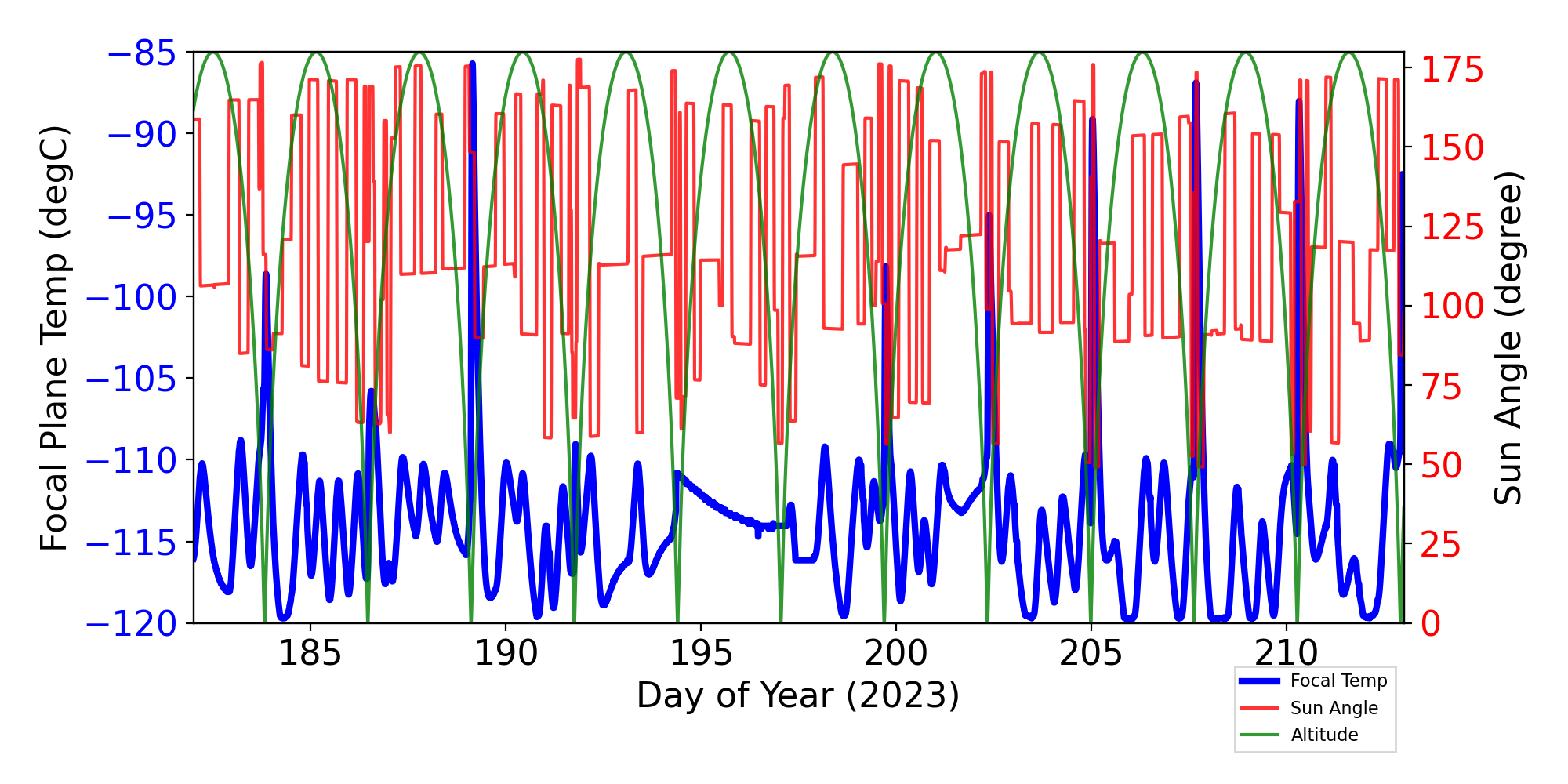

    Focal Plane Temperature, Sun Angle and Altitude


    Bad Pixels

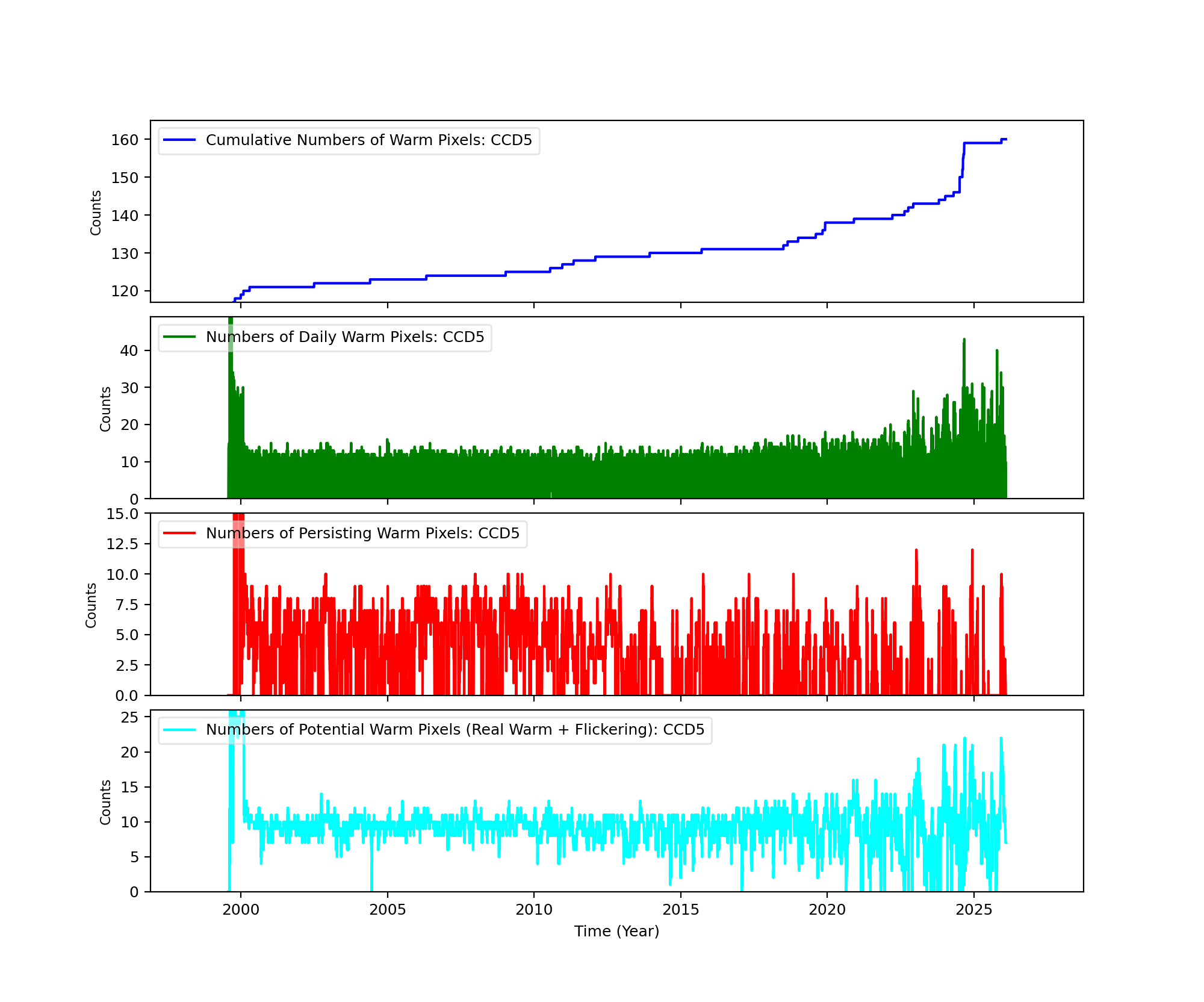

    The plots below were generated with a new warm pixel finding script. Please see Acis Bad Pixel Page for details.

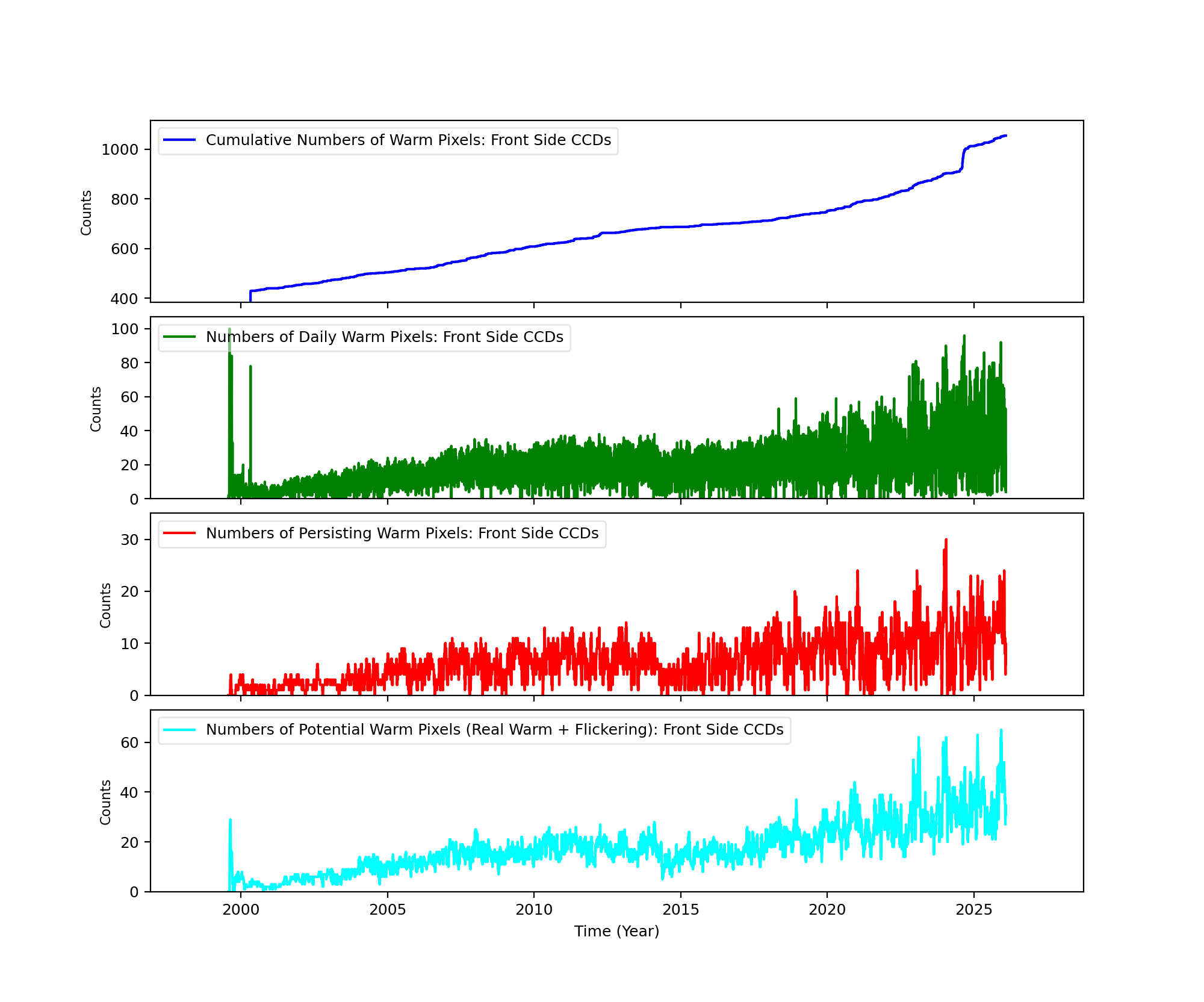

    Front Side CCDs

    Back Side CCD (CCD5)


    Science Instrument Background Rates

    Name Low (keV)High(KeV)Description
    SSoft 0.00 0.50 Super soft photons
    Soft 0.50 1.00 Soft photons
    Med 1.00 3.00 Moderate energy photons
    Hard 3.00 5.00 Hard Photons
    Harder 5.00 10.00 Very Hard photons
    Hardest10.00   Beyond 10 keV
    This page shows scientific instrument background data based on Acis observations. A source region file is generated using get_srcregions and then the input event file is filtered using the regions in that file to remove the sources.

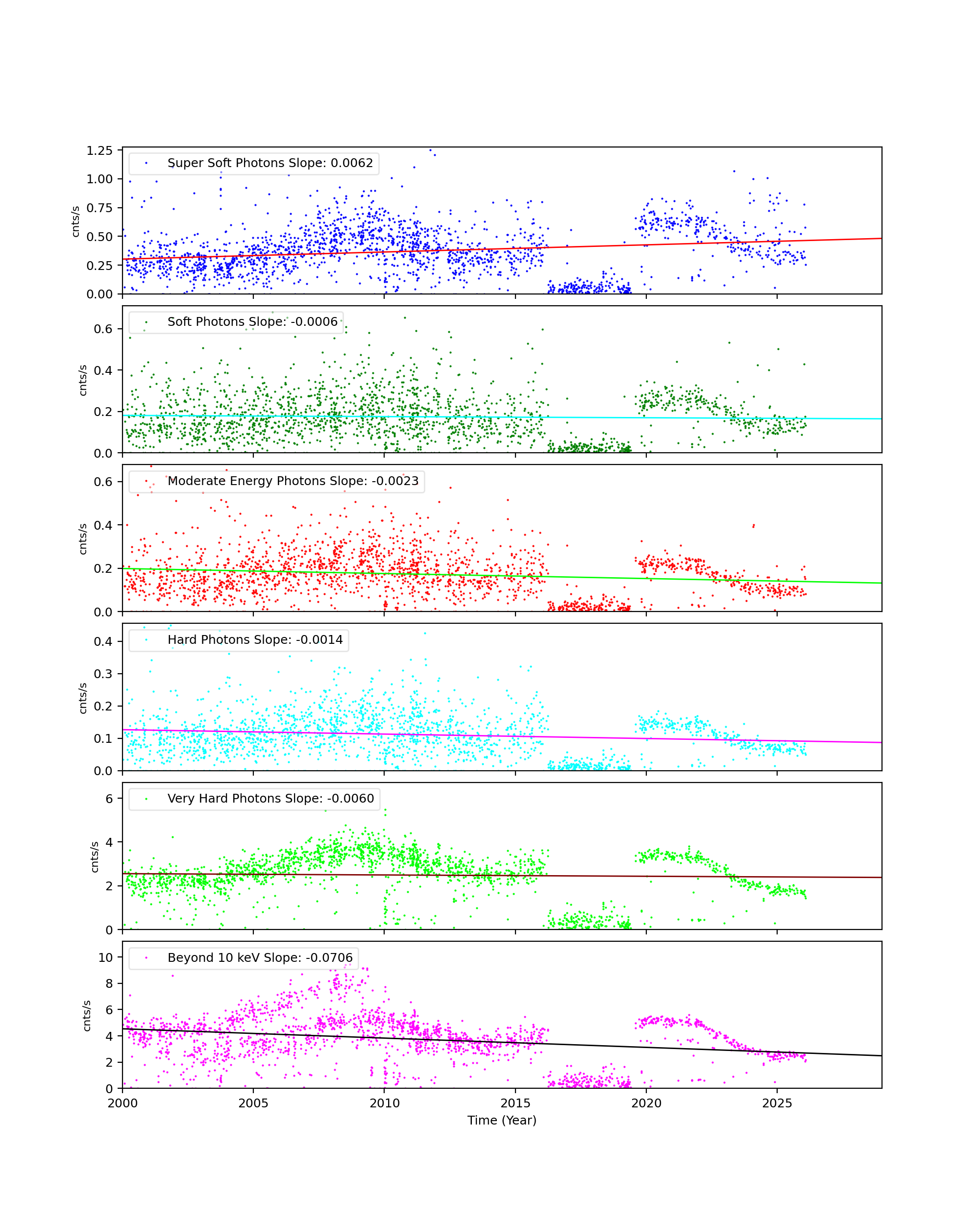

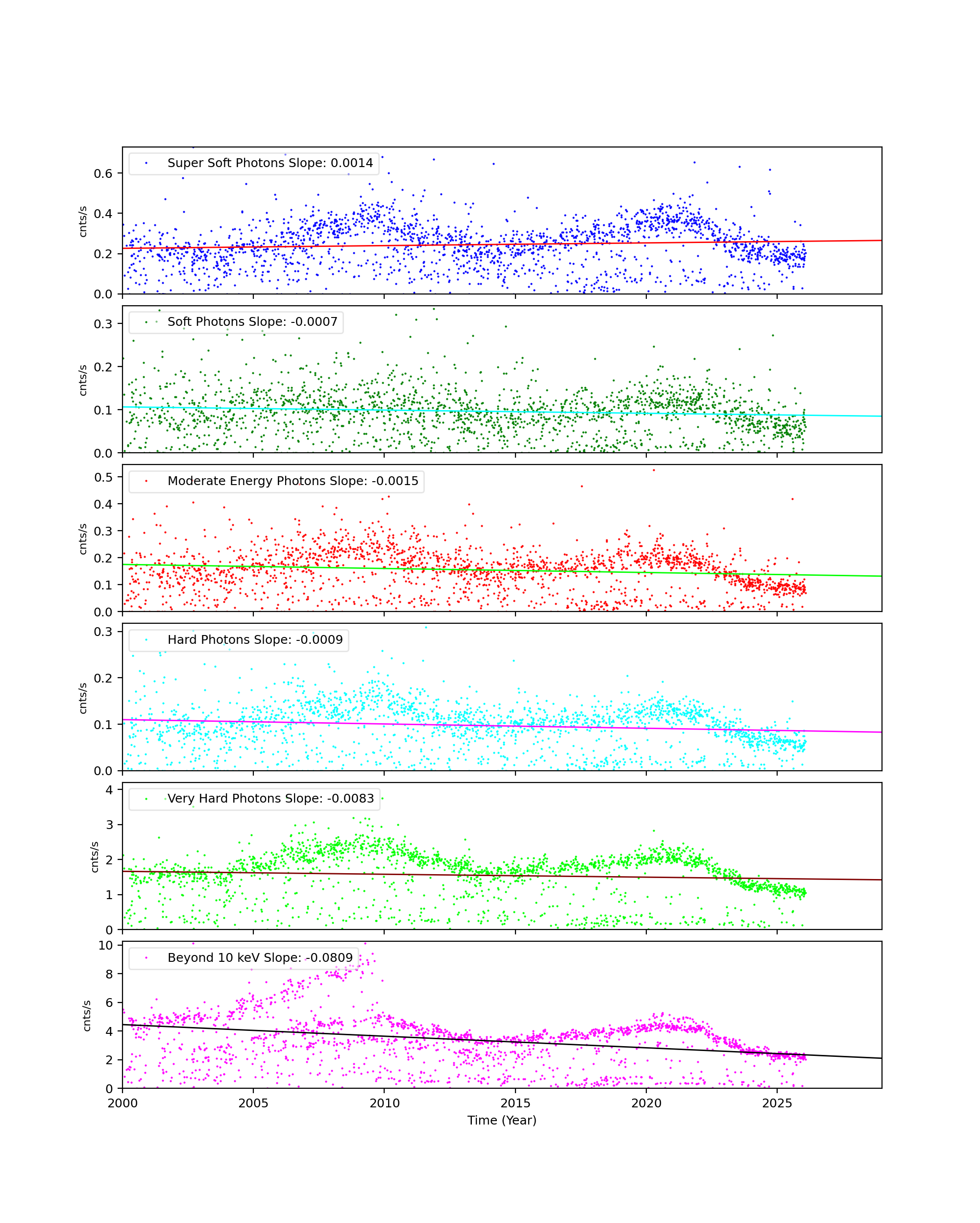

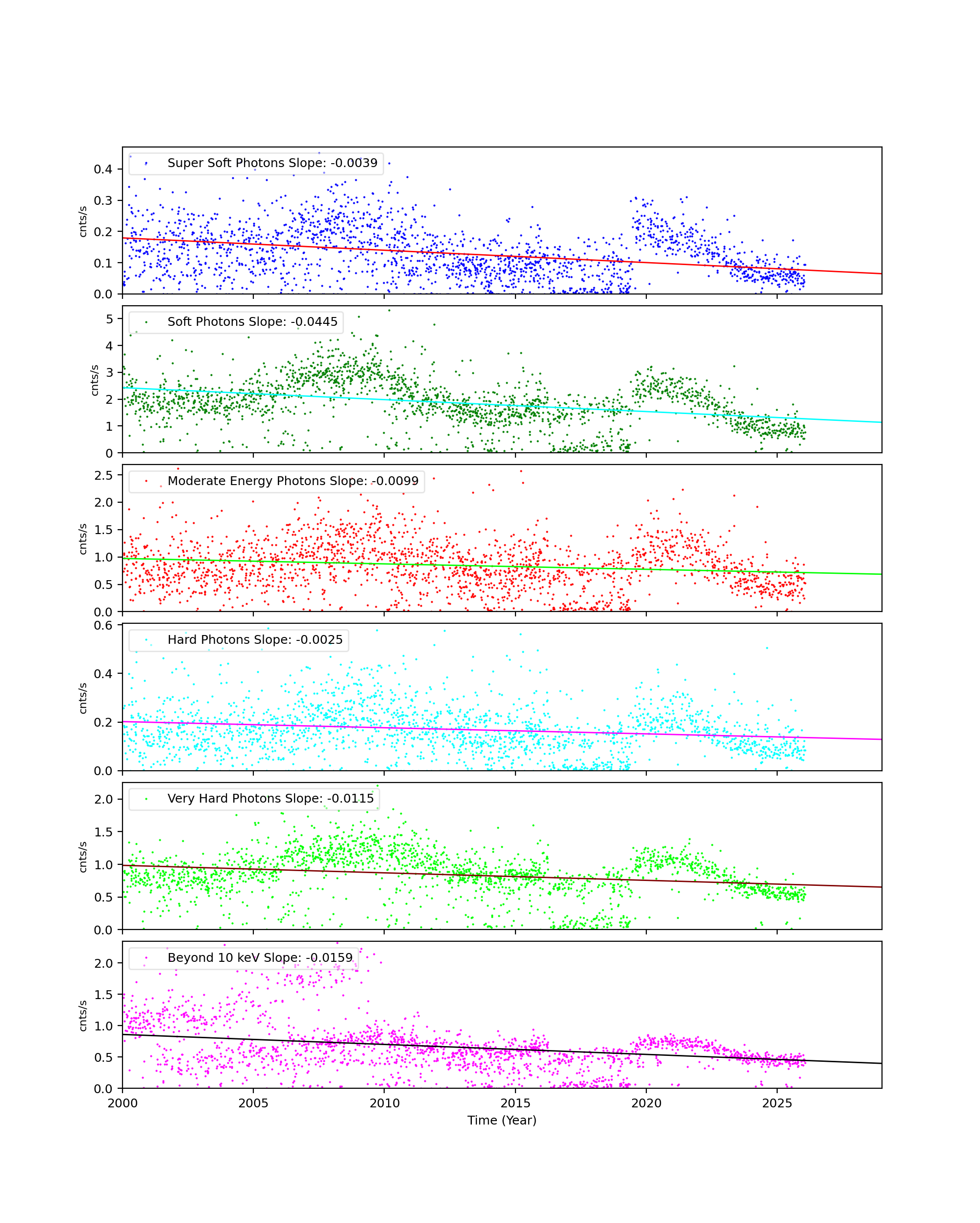

    The following three plots show trends of SIB from year 2000. CCDs shown here are CCD3, CCD5, and CCD7. Fitted lines are linear fit after eliminating extreme outliers. For >10 keV plots, 2 lines are fit. One is with a 13 keV filter, and another without.

    CCD 3


    CCD 5


    CCD 7



    ACIS Corner Pixels

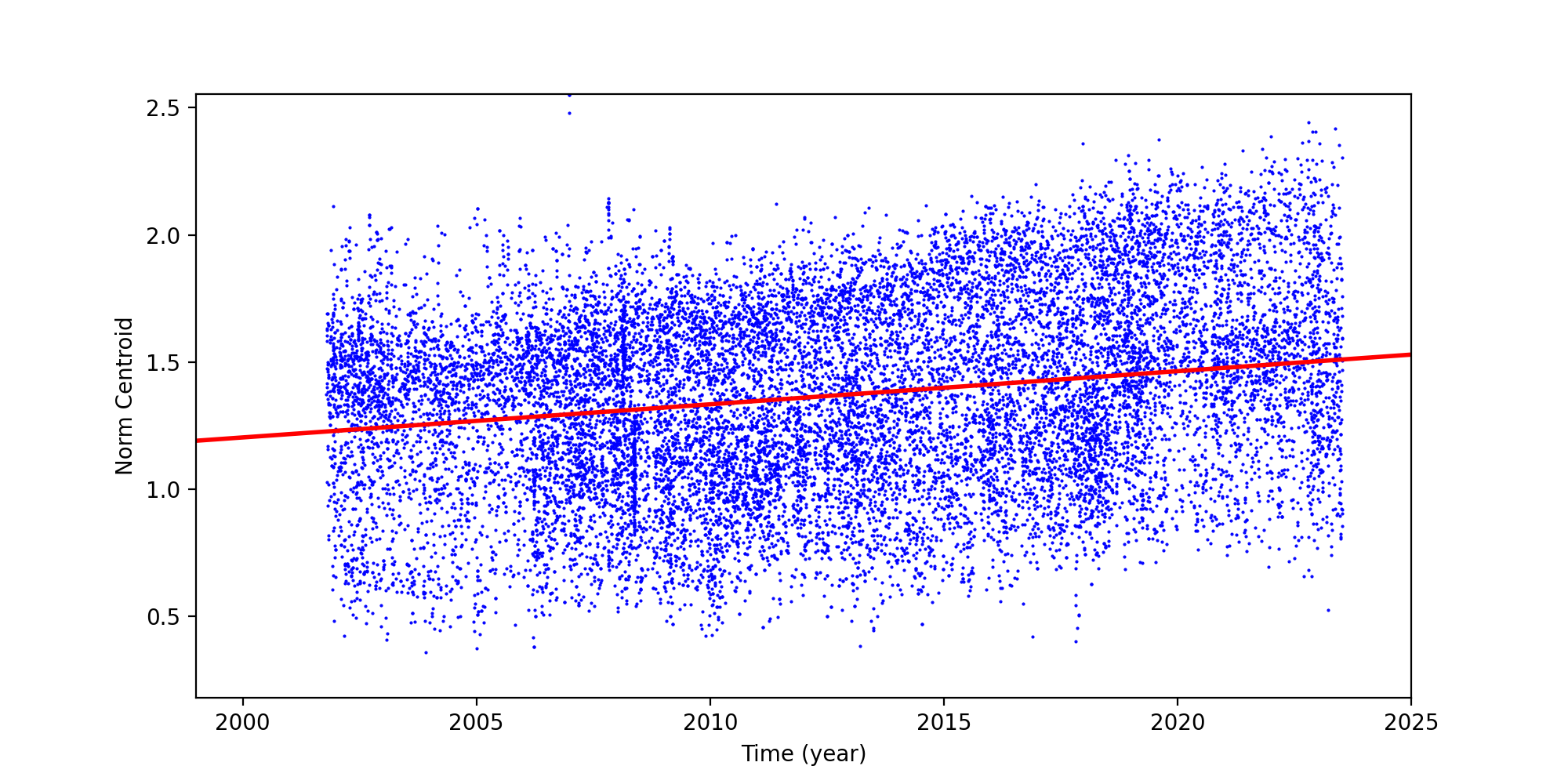

    We plot the average corner pixel centroid slope and mean for ACIS observations. Separate plots are shown for FAINT MODE (3X3) and VFAINT MODE (5X5) observations. Metric is the centroid of a Gaussian fit to the histogram of corner pixel PHA values of detected events. Plus signs are FAINT observations, diamonds are VFAINT observations, and boxes are VFAINT observations with centroids computed using only the corner pixels of a 3X3 event island (referred to as AFAINT). We see a very small upward trend.

    CCD: I3

    CCD: S3

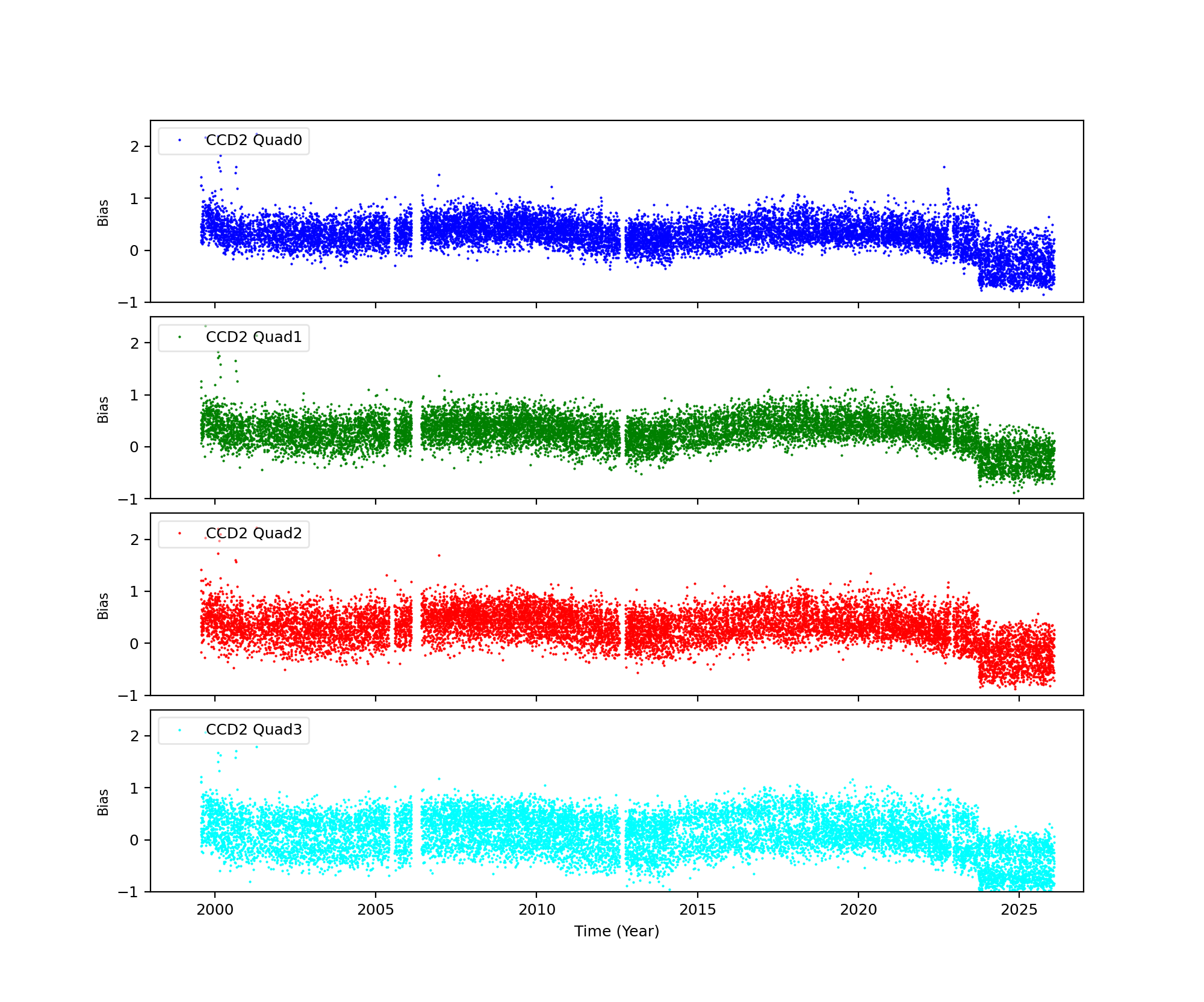

    ACIS Bias Trends

    The bias plus overclock level was calculated as follows:

    CCDS 0, 2 and 8 are the most extreme.

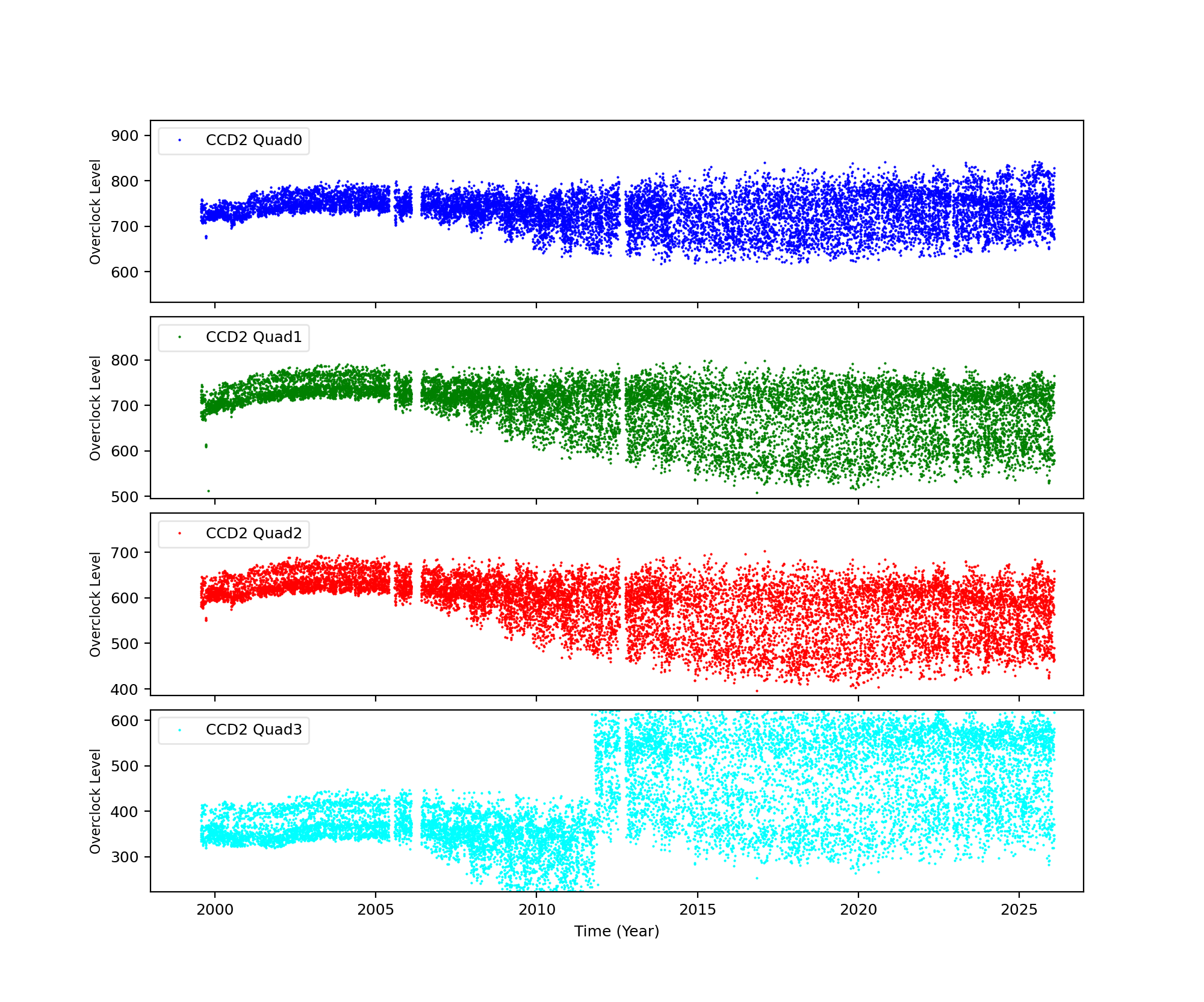

    An example of Overclock values as reported in FITS file header:

    An example of mean bias minus overclock value:


    TOP

    HRC

    DOSE of Central 4K Pore-Pairs

    Please refer to Maximum Dose Trends for more details.

  • Jan HRCI Dose in fits
  • IMAGE                NPIX      MEAN    STDDEV      MIN       MAX
    HRCI_01_2026.fits  16777216	0.052 	0.593 	0.000 	54.000

  • AUG 1999 - Jan 2026 HRCI Dose in fits
  • IMAGE                       NPIX      MEAN    STDDEV      MIN       MAX
    HRCI_08_1999_01_2026.fits  16777216	na	na	na	na

  • Jan HRCS Dose in fits
  • IMAGE                NPIX      MEAN    STDDEV      MIN       MAX
    HRCS_01_2026.fits  16777216	0.001 	0.024 	0.000 	2.000

  • AUG 1999 - Jan 2026 HRCS Dose in fits
  • IMAGE                       NPIX      MEAN    STDDEV      MIN       MAX
    HRCS_08_1999_01_2026.fits  16777216	na	na	na	na

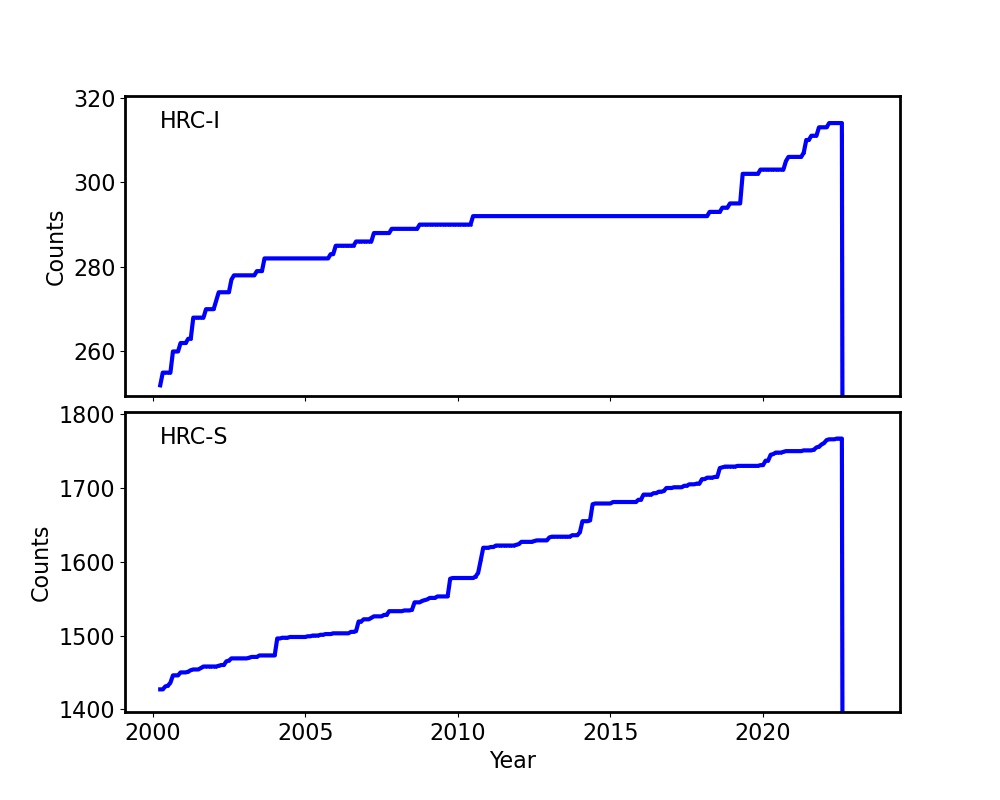

    Max dose trend plots corrected for events that "pile-up" in the center of the taps due to bad position information.

  • HRC I: Integrated Exposure Maps of Last 12 Months
  • Oct 2025 Jul 2025 Apr 2025 Jan 2025
  • HRC S: Integrated Exposure Maps of Last 12 Months
  • Oct 2025 Jul 2025 Apr 2025 Jan 2025

    TOP


    Gratings

    Grating Trends/Focus

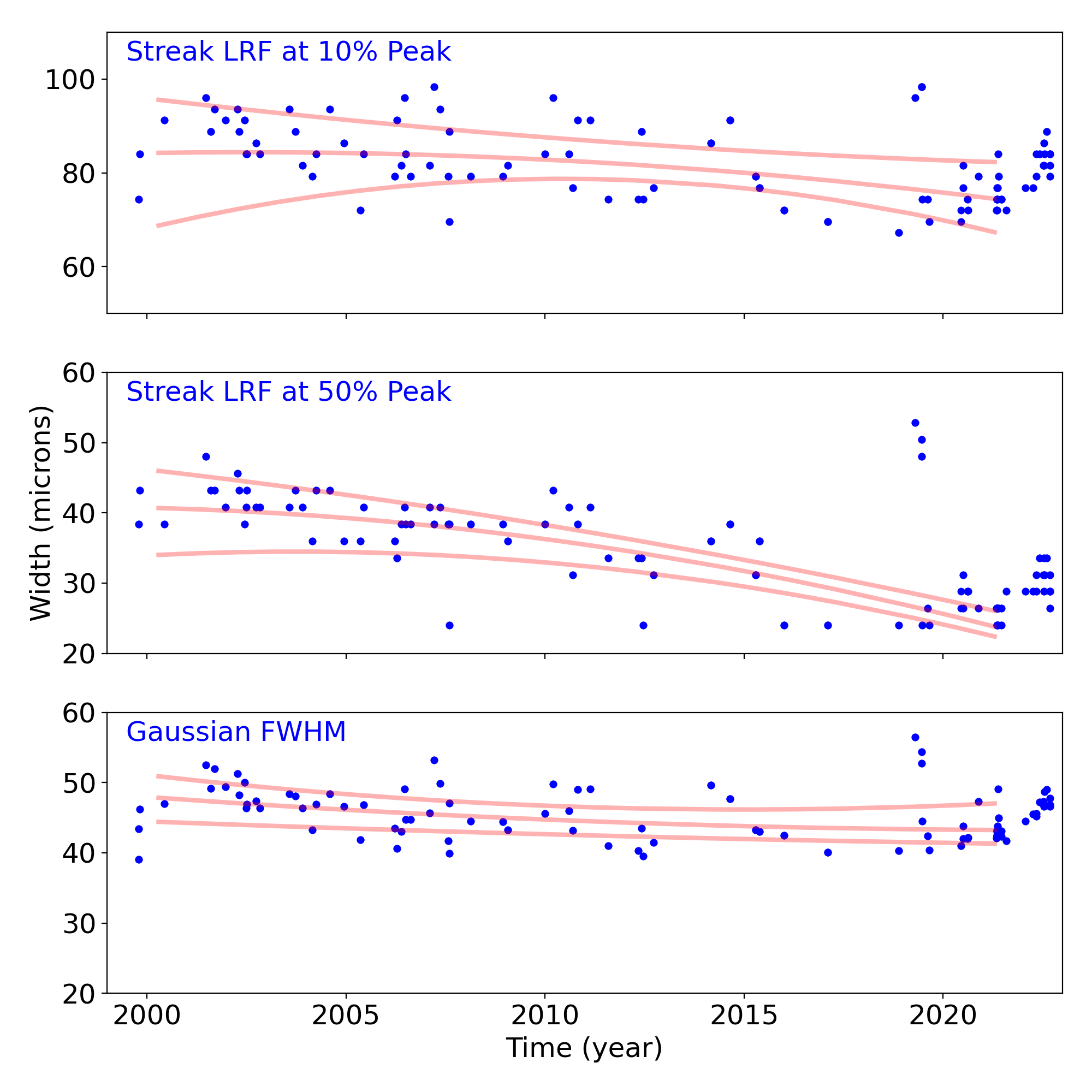

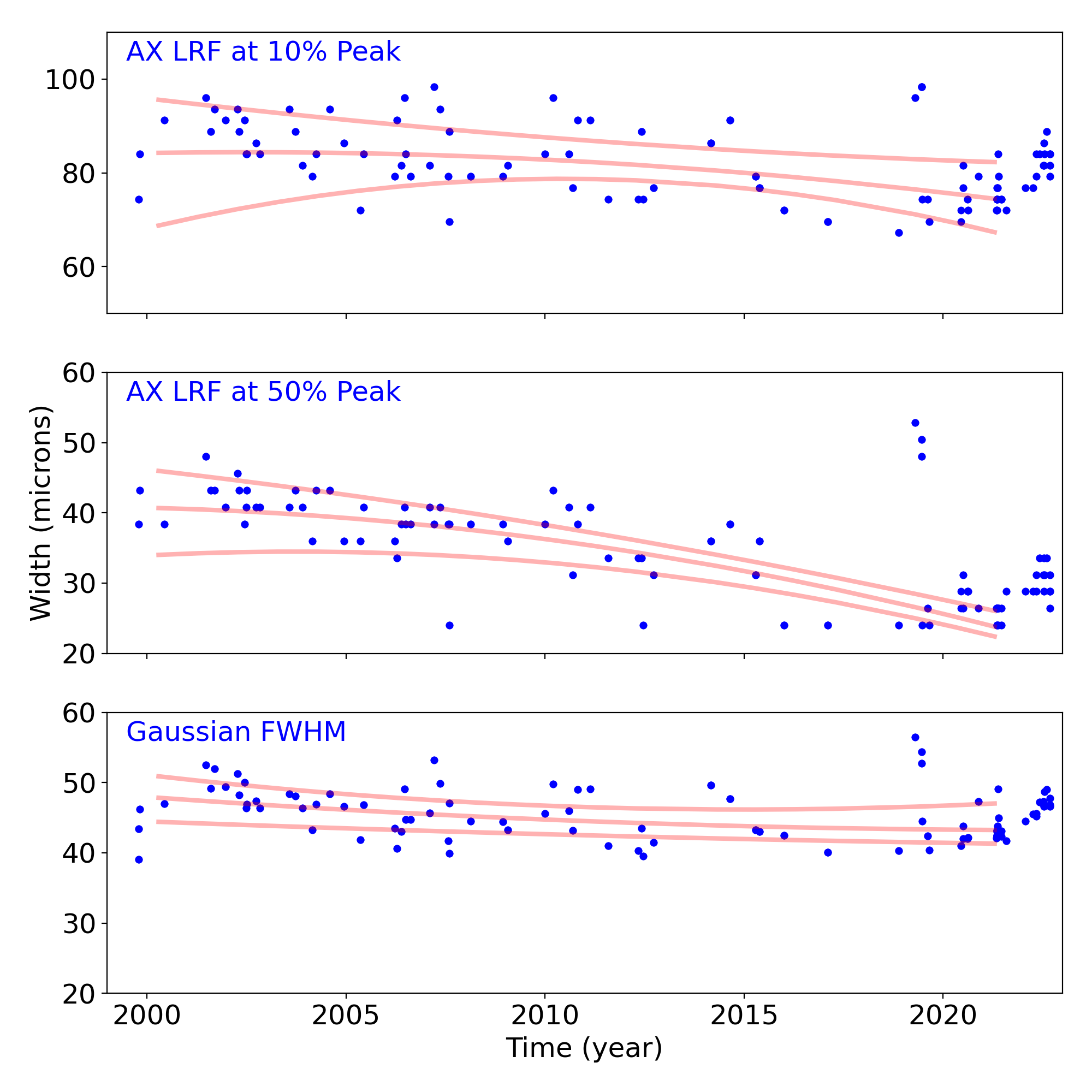

    We plot the width of the zero order streak of ACIS/HETG observations and the width of the zero order image for HRC/LETG observations of point sources. No significant defocusing trend is seen at this time. See Gratings Trends pages.


    TOP


    PCAD

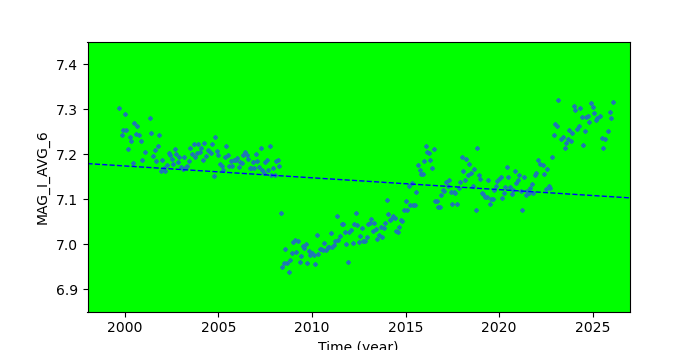

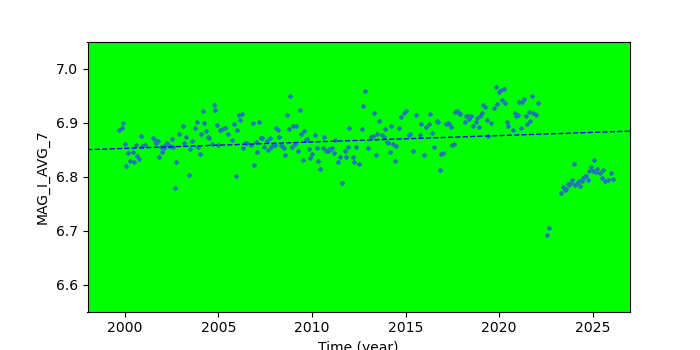

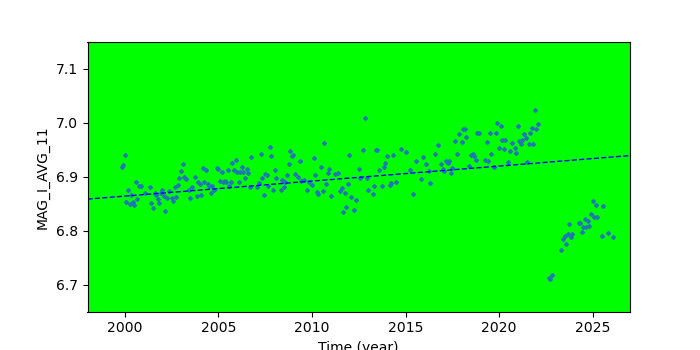

    ACA Trending

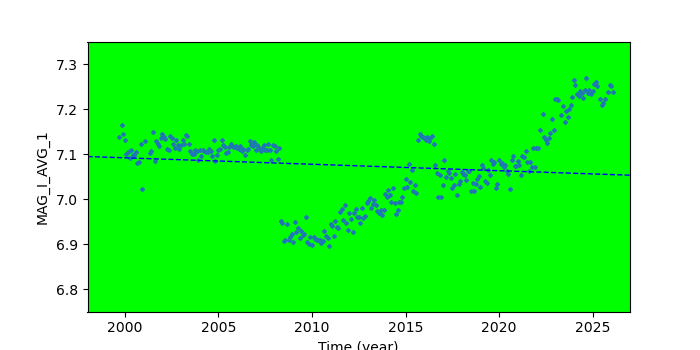

    ACA Trending - January 2020

    ACIS

    HRCI
    HRCI

    ACIS-1


    ACIS-6


    HRC-I-1


    HRC-S-1

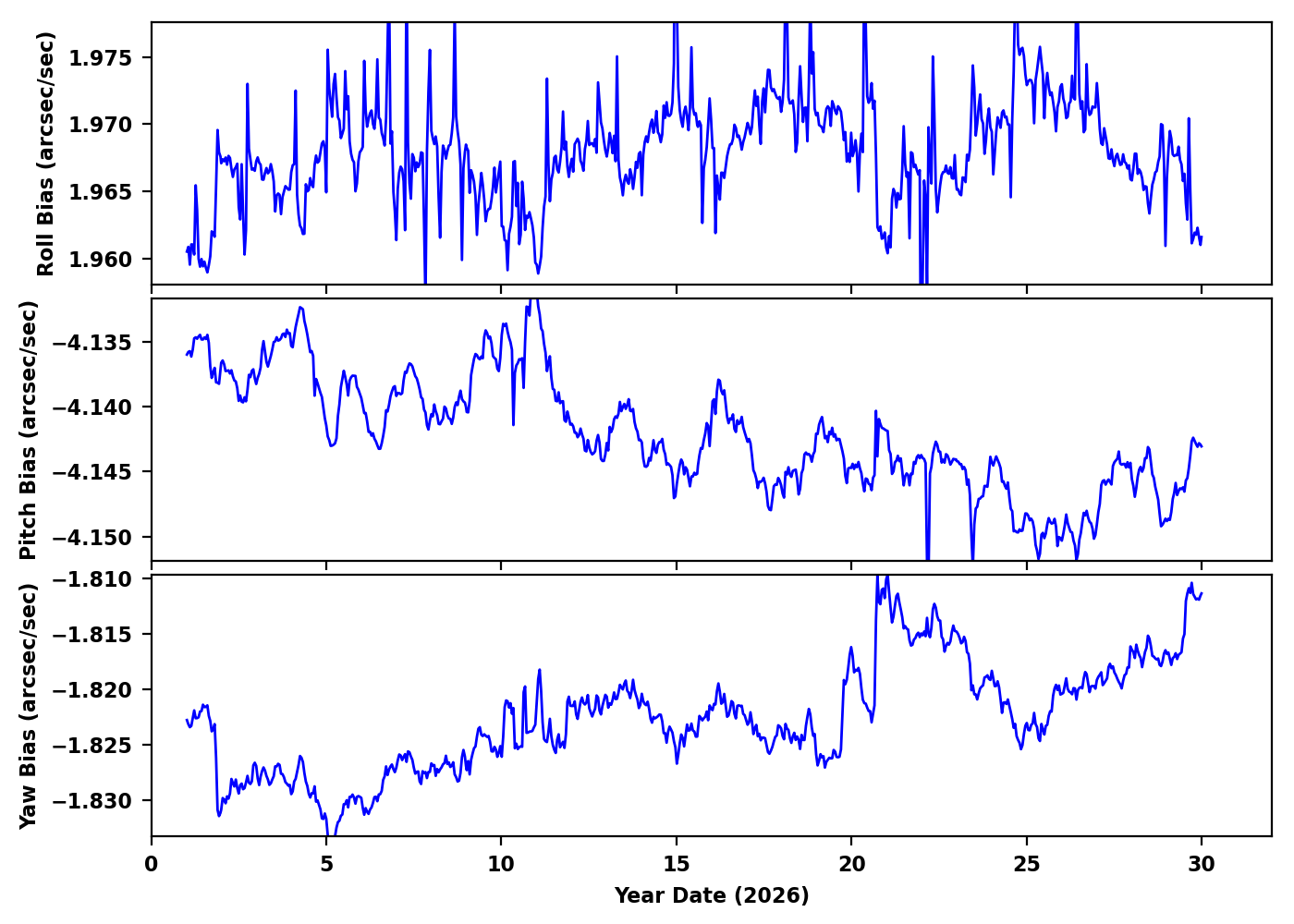

    Gyro Bias Drift


    Radiation History

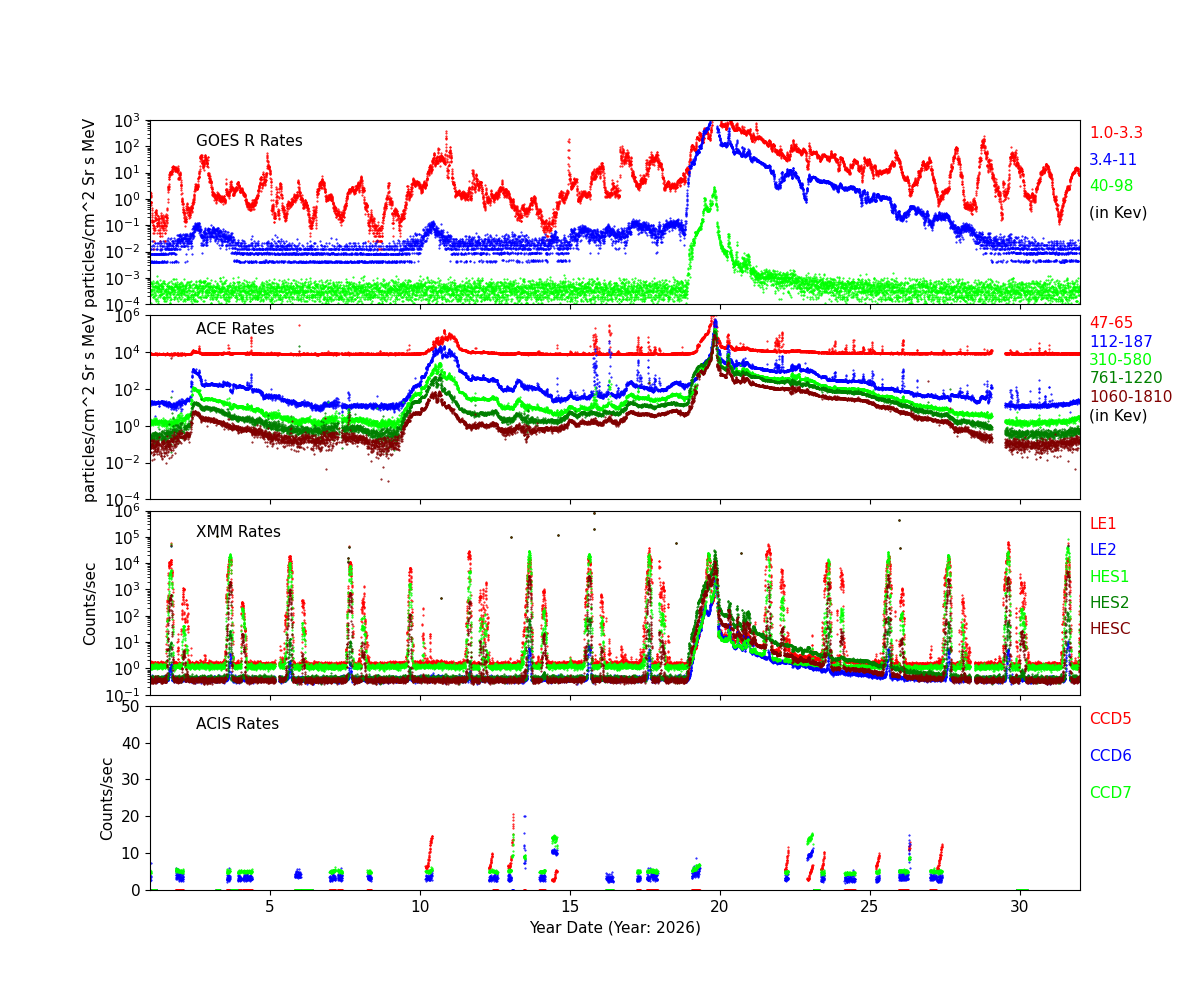

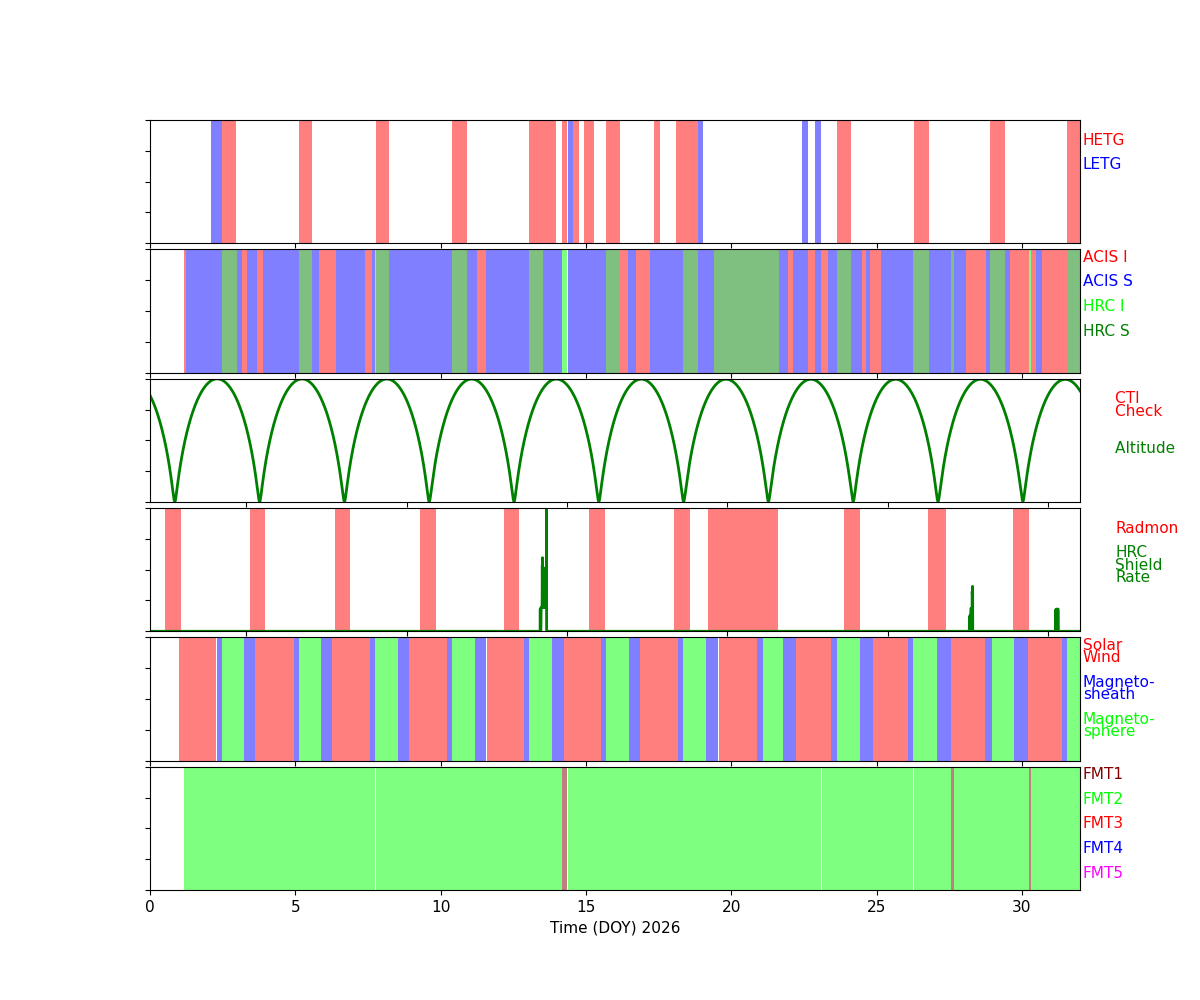

    Radiation Count Rates of Jan 2026


    Sun Spot History (See:NOAA Page)


    TOP


    Trending

    Quarterly Trends




    Spacecraft Motions

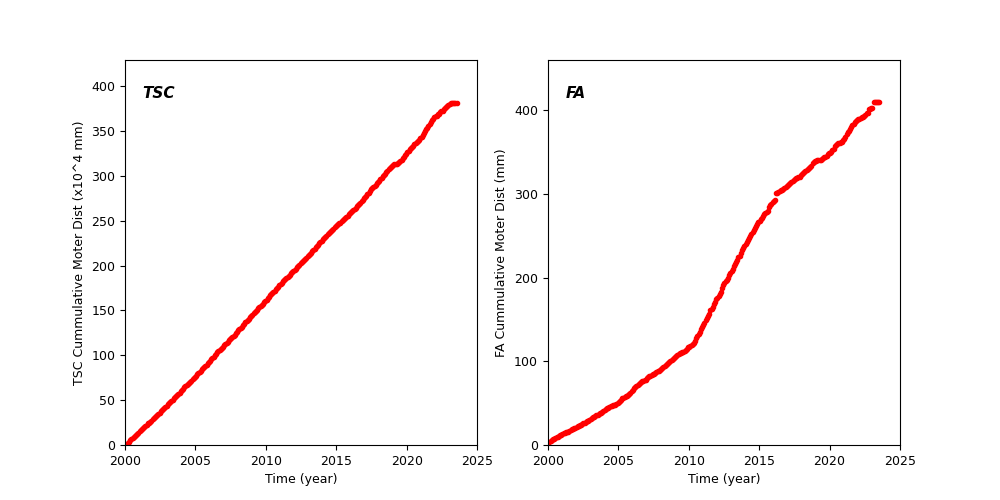

    TSC and FA Cummulative Moter Distance

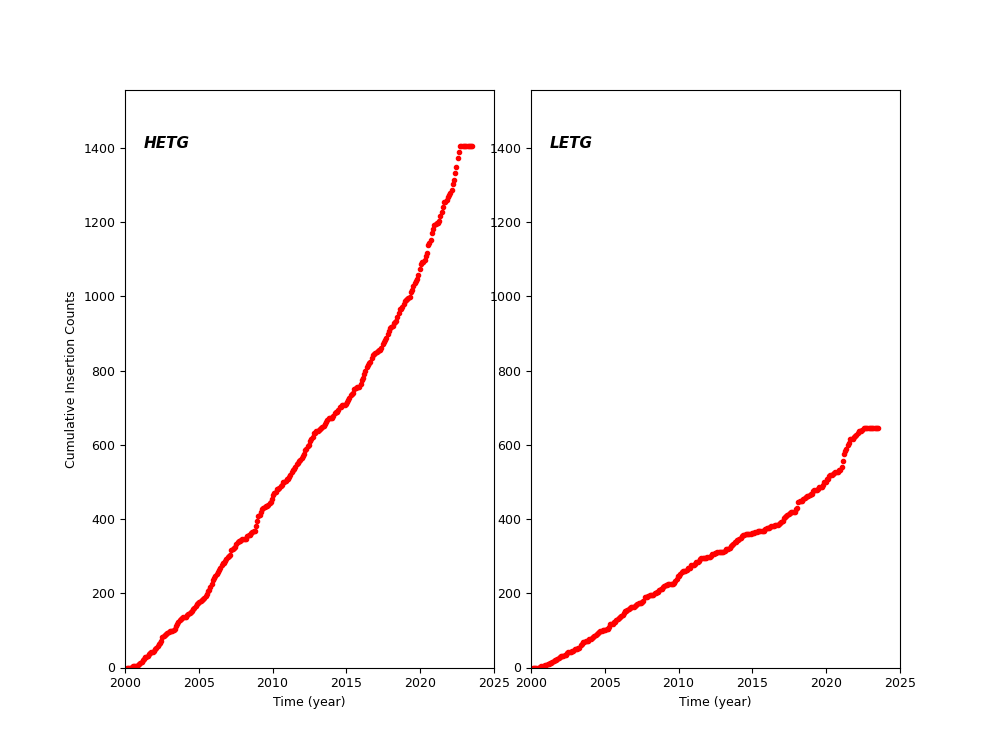

    HETG and LETG Cummulative Insertion Counts

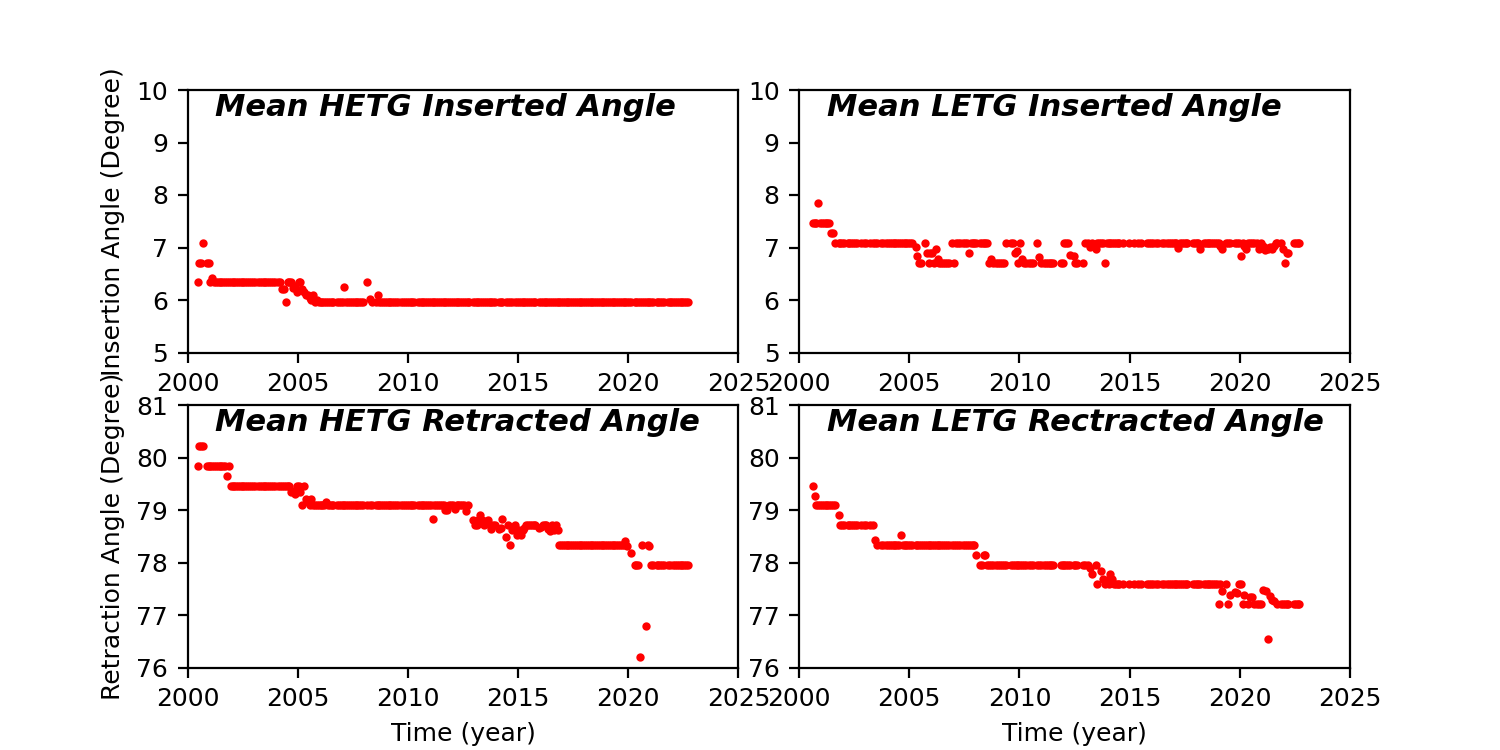

    HETG/LETG Insertion/Retraction Angle

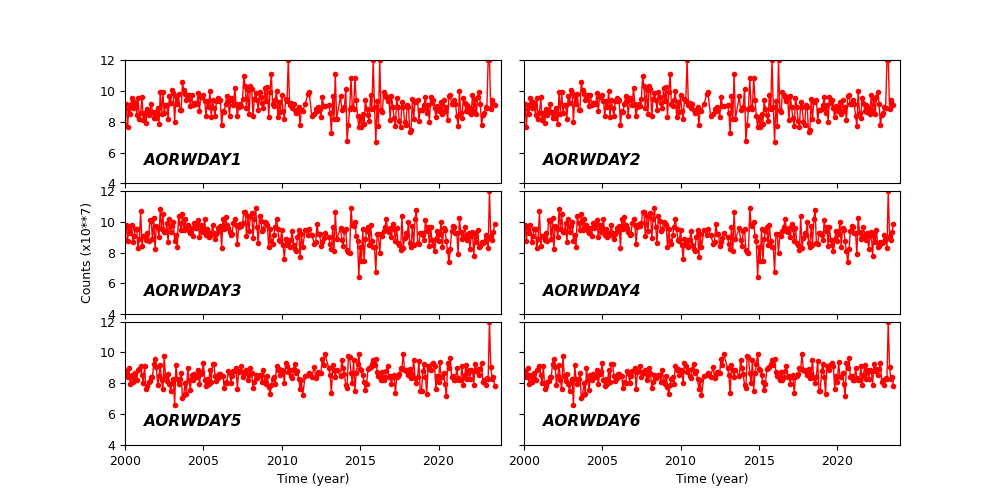

    Reaction Wheel Rotations

    TOP


    Links to Past Monthly Reports
